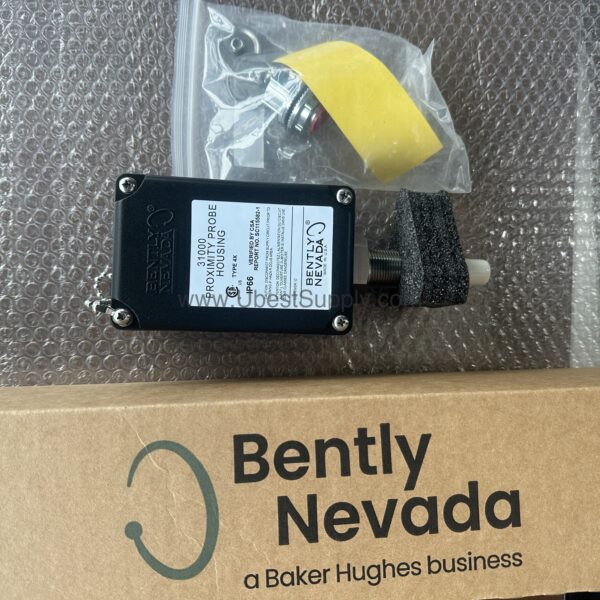

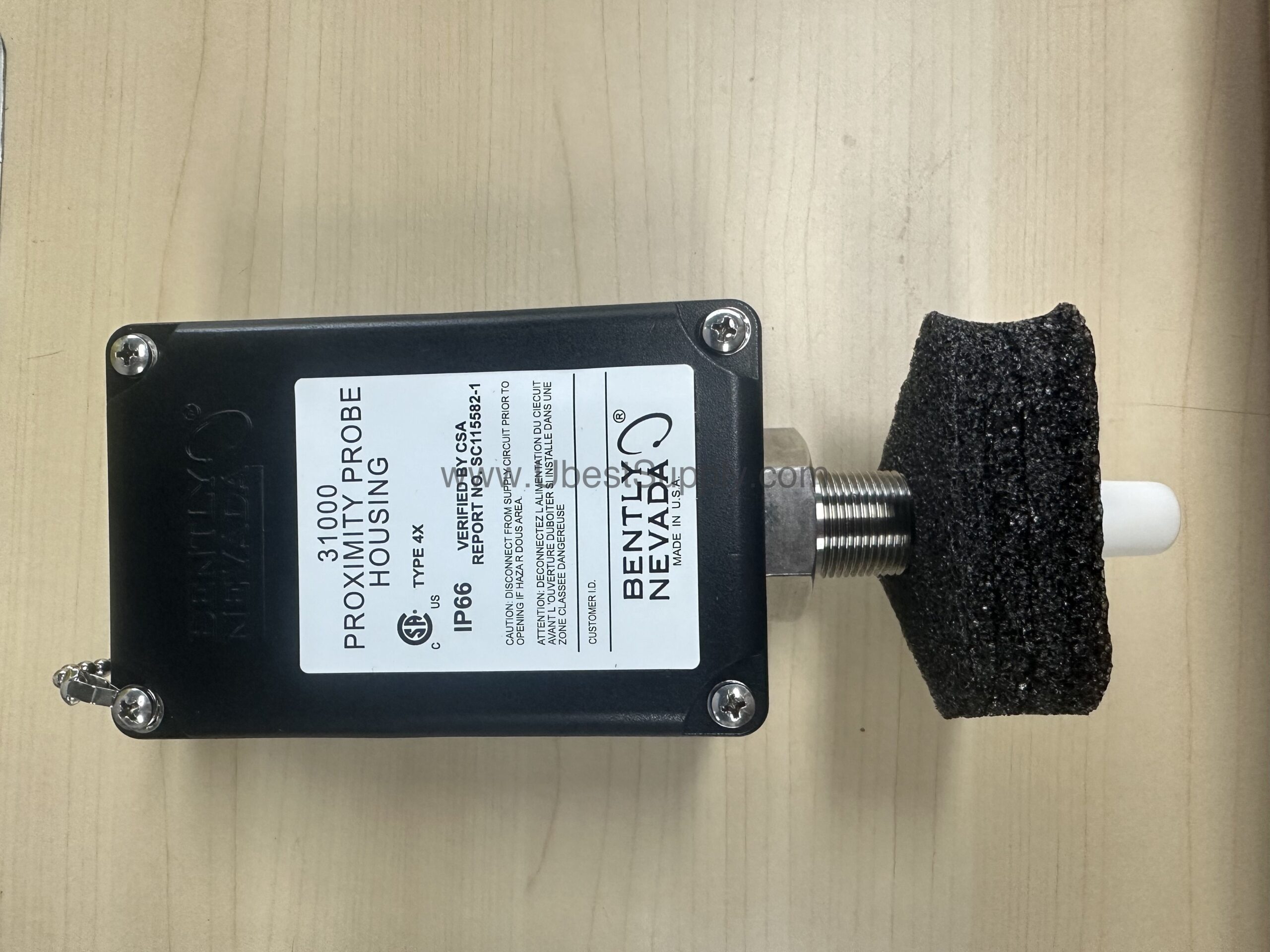

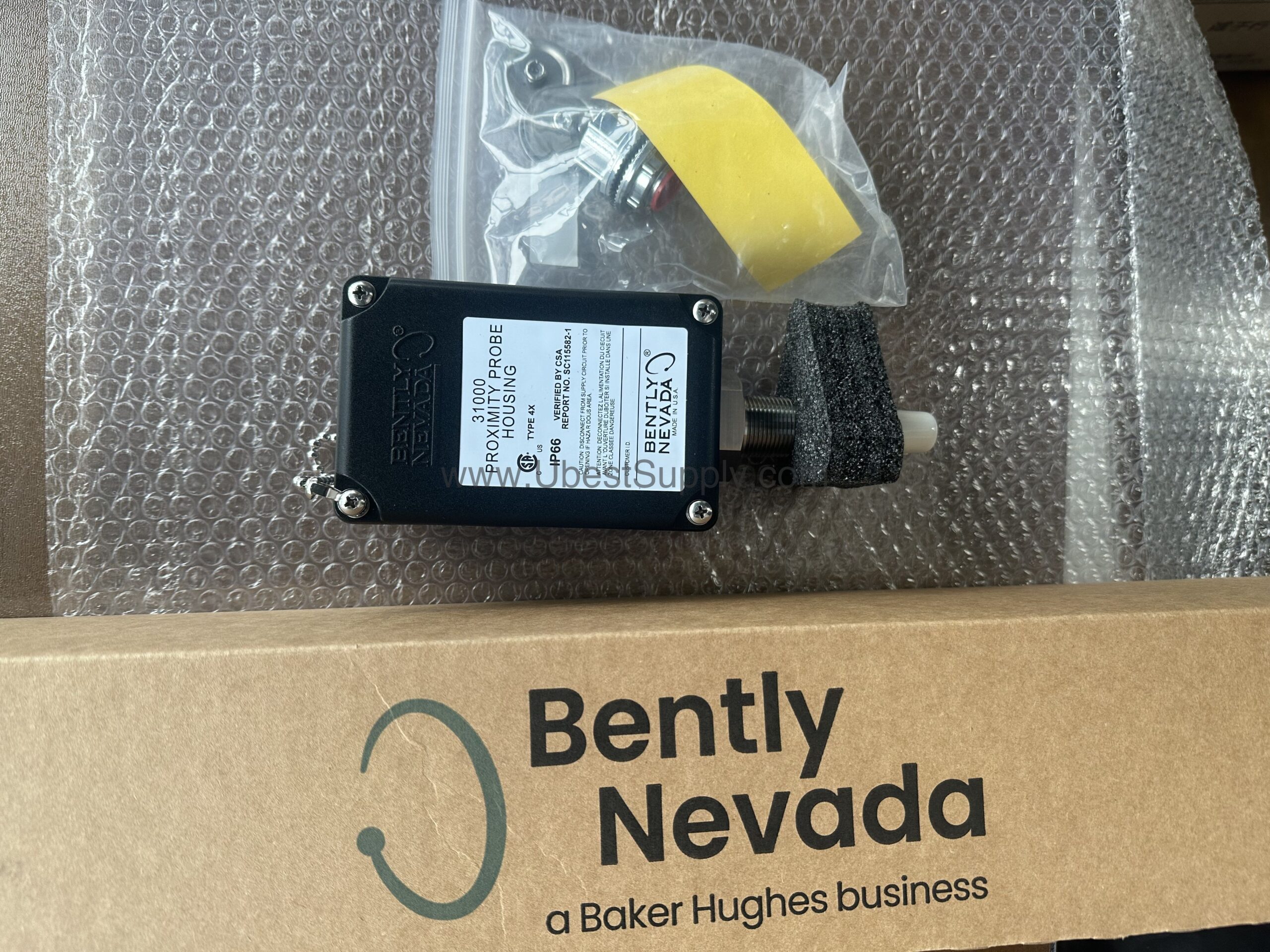

31000-16-10-15-063-03-02 | Bently Nevada 1.0m Cable Proximity Probe Housing

Introduction to the Bently Nevada 31000-16-10-15-063-03-02

When a rotating machine begins to vibrate unexpectedly, the cause may be misalignment, bearing wear, or rotor instability. The 31000-16-10-15-063-03-02 from Bently Nevada provides a robust housing solution for proximity probes, enabling accurate shaft vibration and position measurements. This housing is part of the 31000 series, designed for industrial environments where reliability and precision are non-negotiable.

With a probe option for a 3300 XL 8 mm probe and a 1.0 m (39 in) cable length, this housing ensures a secure and stable mounting for the sensor. The standoff adapter option of 1.5 in and probe penetration of 6.3 in allow for flexible installation in various machine configurations. Manufactured in the U.S.A., this housing meets demanding quality standards.

Key Features and Technical Specifications

• Probe Compatibility: Designed for 3300 XL 8 mm probes, ensuring accurate vibration sensing.
• Cable Length: 1.0 m (39 in) probe cable provides installation flexibility.
• Standoff Adapter: 1.5 in standoff adapter for precise probe positioning.
• Probe Penetration: 6.3 in penetration depth for optimal sensor placement.
• Mounting Thread: 3/4-14 NPT, required for standoff adapter installation.
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers for durability and static dissipation.
• Stainless Steel Components: AISI 304 sleeve and retaining chain, AISI 303 outer sleeve and screws for corrosion resistance.
• O-Ring Material: Neoprene® for reliable sealing.
• Temperature Range: -51°C to +105°C (-60°F to +221°F) for harsh environments.
• Weight: 1.2 kg (2.6 lb) typical.

One distinctive spec is the temperature rating of -51°C to +105°C, which allows the housing to perform in extreme cold and heat, ensuring reliable operation in diverse climates. This makes it suitable for outdoor installations or processes with wide temperature swings.

Real-World Applications

The 31000-16-10-15-063-03-02 is commonly used in turbomachinery, pumps, compressors, and motors where shaft vibration monitoring is critical. For example, in a petrochemical plant, this housing can be installed on a large centrifugal compressor to detect early signs of bearing wear, preventing unplanned downtime. Similarly, in power generation, it helps monitor turbine shaft vibration to maintain operational safety and efficiency.

Because of its rugged construction and environmental ratings, it is also suitable for offshore platforms and paper mills where moisture and corrosive elements are present. The stainless steel components and Type 4X/IP66 rating ensure long-term reliability in these demanding settings.

Installation and Setup

Proper installation is key to accurate measurements. First, ensure the mounting thread (3/4-14 NPT) matches the machine's tapping. The standoff adapter (1.5 in) must be used to position the probe correctly. When routing the probe cable, avoid sharp bends and excessive tension to prevent damage. The cable seal grip with grommets accommodates cable diameters from 1/8 to 3/8 inches, providing a secure and weatherproof entry.

For optimal performance, follow the manufacturer's guidelines for probe gap and positioning. Always verify that the housing is firmly tightened to the recommended torque of 29.4 N·m (260 in·lb) for the retaining nut, as specified in the datasheet. This ensures stability and prevents loosening due to vibration.

Maintenance and Reliability

Regular inspection of the housing and cable is recommended to ensure continued performance. Check for any signs of physical damage, corrosion, or loose fittings. The stainless steel components resist rust, but periodic cleaning with a soft cloth can remove dirt and debris. The O-ring seal should be inspected for wear or cracking, as it maintains the IP66 rating.

Given the housing's impact strength, certified to withstand 4 Joule impacts at extreme temperatures, it is built to survive harsh conditions. Still, avoid dropping or striking the housing during maintenance to preserve its integrity. Following these simple steps will extend the service life of the housing and the probe it protects.

Compatibility and Integration

The 31000-16-10-15-063-03-02 is designed for use with Bently Nevada 3300 XL 8 mm proximity probes. It is compatible with Bently Nevada monitoring systems that accept these probes, such as the 3500 series. The housing's mounting thread and standoff adapter ensure proper alignment with the probe, which is essential for accurate vibration and position readings.

For integration into existing systems, verify that the probe cable length matches your setup. The 1.0 m cable is suitable for most installations, but longer runs may require extension cables. Always consult the system's documentation to confirm compatibility.

Common Questions and Troubleshooting

Q: What is the temperature range of the 31000-16-10-15-063-03-02?

A: The housing is rated for -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

Q: What type of probe does this housing support?

A: It supports the 3300 XL 8 mm probe, ensuring accurate vibration measurement.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT, which is required when using the standoff adapter.

Q: Is the housing resistant to corrosion?

A: Yes, it features AISI 304 and 303 stainless steel components, providing excellent corrosion resistance.

Q: What is the weight of the housing?

A: The housing weighs approximately 1.2 kg (2.6 lb).

Product Support and Availability

The Bently Nevada 31000-16-10-15-063-03-02 is available through Petro Auto Tech. Contact our team for current availability and lead times. We are here to assist with any technical questions you may have.
