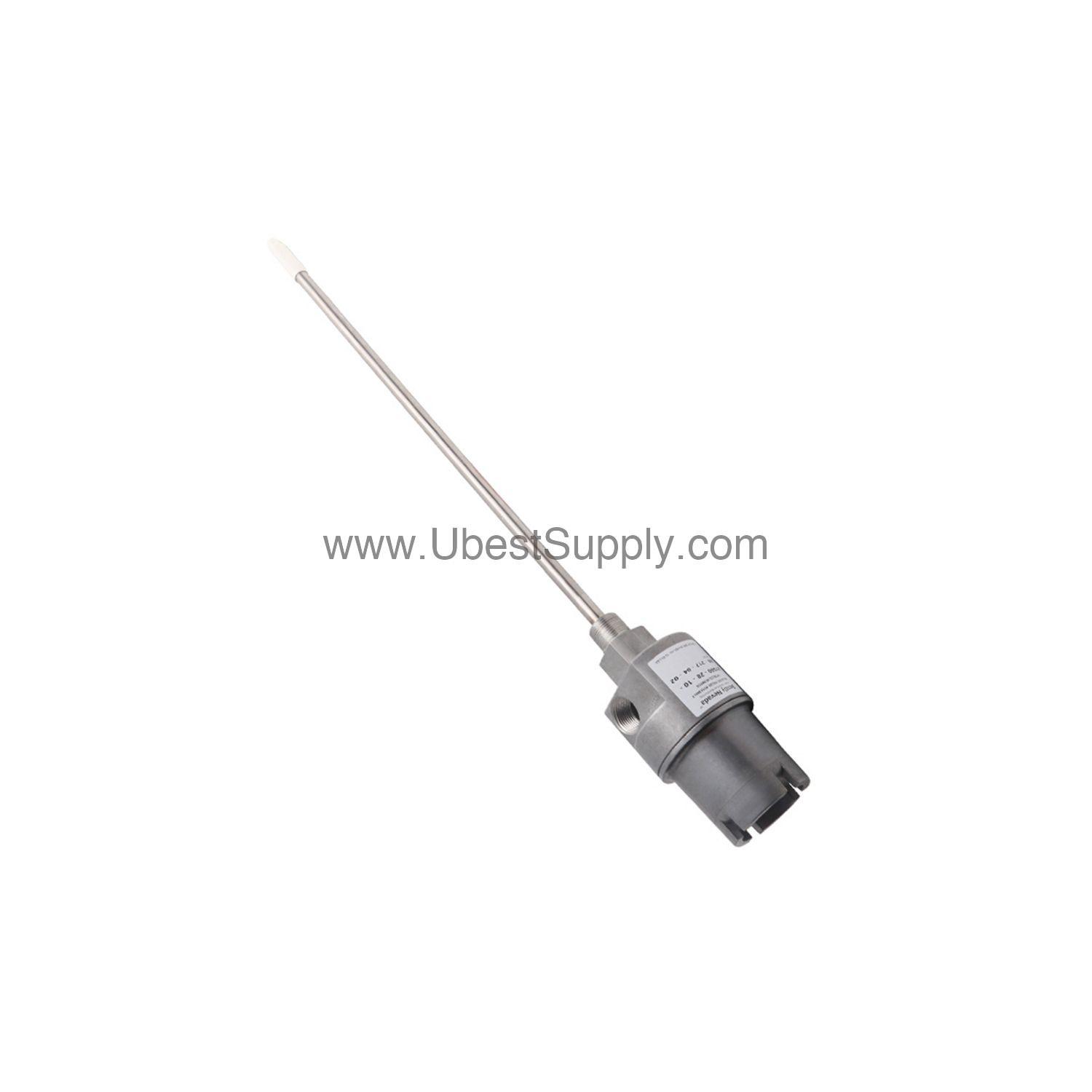

31000-29-05-00-090-01-02 | Bently Nevada 8 mm Proximity Probe Housing

Introduction to the Bently Nevada 31000-29-05-00-090-01-02

In the evolution of industrial monitoring, the need for reliable and durable sensing components has never been greater. The 31000-29-05-00-090-01-02 from Bently Nevada addresses this need as a proximity probe housing designed for harsh environments. This housing is part of the 31000 series, specifically engineered to protect a 3300 XL 8 mm probe with a connector protector. It is built to withstand extreme conditions, ensuring consistent performance in critical applications.

With a temperature rating of -51°C to +105°C (-60°F to +221°F), this housing operates reliably across a wide range of environments. Its construction uses glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers, providing both strength and electrostatic dissipation. This makes it suitable for hazardous areas where static discharge could be a concern.

Key Features and Technical Specifications

The 31000-29-05-00-090-01-02 is packed with features that ensure durability and functionality. Here are the key specifications:

• Probe Option: 3300 XL 8 mm probe with connector protector
• Cable Length: 0.5 m (20 in)
• Standoff Adapter: None
• Probe Penetration: 9.0 in
• Fittings: One 3/4-14 NPT fitting and two plugs
• Mounting Thread: 3/4-14 NPT
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel
• Outer Sleeve and Screws: AISI 303 stainless steel
• O-Ring Material: Neoprene®
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg (2.6 lb)

One distinctive spec is the housing impact strength, certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at extreme temperatures. This ensures the housing can endure physical shocks without compromising the internal probe, which is critical in vibrating machinery environments.

Applications and Use Cases

The 31000-29-05-00-090-01-02 is ideal for rotating machinery monitoring, such as turbines, compressors, and pumps. In these applications, precise vibration and displacement measurements are essential for predictive maintenance. The housing's robust design protects the probe from environmental factors like moisture and dust, ensuring accurate readings over time.

Furthermore, its Type 4X and IP66 ratings make it suitable for outdoor installations or washdown areas. The CENELEC EN50014 rating for electrostatic dissipation allows use in hazardous locations where static buildup could ignite flammable substances. Therefore, this housing is a versatile choice for many industrial sectors.

Installation and Setup

Installing the 31000-29-05-00-090-01-02 is straightforward, but attention to detail is key. The mounting thread is 3/4-14 NPT, which is required when using a standoff adapter. Ensure the probe penetration is set to 9.0 inches for optimal performance. The cable length of 0.5 meters provides flexibility for connection to monitoring systems.

When mounting, use the recommended torque of 29.4 N·m (260 in·lb) for the retaining nut to secure the housing properly. Always follow the manufacturer's guidelines to avoid damaging the housing or probe. Proper installation ensures reliable operation and extends the lifespan of the equipment.

Maintenance and Reliability

Regular inspection of the 31000-29-05-00-090-01-02 is recommended to maintain its protective qualities. Check the O-ring and fittings periodically for wear or damage. The stainless steel components resist corrosion, but it is wise to verify their integrity, especially in harsh environments.

The housing's impact strength and material durability contribute to long-term reliability, reducing the need for frequent replacements. This translates to lower maintenance costs and minimized downtime, making it a cost-effective solution for continuous monitoring applications.

Compatibility and Integration

The 31000-29-05-00-090-01-02 is designed to work with Bently Nevada's 3300 XL 8 mm proximity probes. This ensures seamless integration with existing monitoring systems. The connector protector simplifies wiring, and the NPT fitting allows for standard industrial connections.

For detailed compatibility information, refer to the official Bently Nevada documentation or contact Petro Auto Tech. Our team can assist with integration questions to ensure your system operates optimally.

Frequently Asked Questions

What is the temperature range of the 31000-29-05-00-090-01-02?

The housing operates from -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

What materials are used in the housing?

The housing is made of glass-reinforced PPS thermoplastic with conductive fibers, and the sleeves are stainless steel (AISI 304 and 303).

Does the housing come with a cable?

Yes, it includes a 0.5 m (20 in) cable length option.

Is the housing suitable for hazardous areas?

Yes, it has a CENELEC EN50014 rating for electrostatic dissipation, allowing use in hazardous locations.

Product Support and Availability

The 31000-29-05-00-090-01-02 is available through Petro Auto Tech. We offer competitive pricing and fast shipping to minimize downtime. Contact us for current stock and delivery options.
