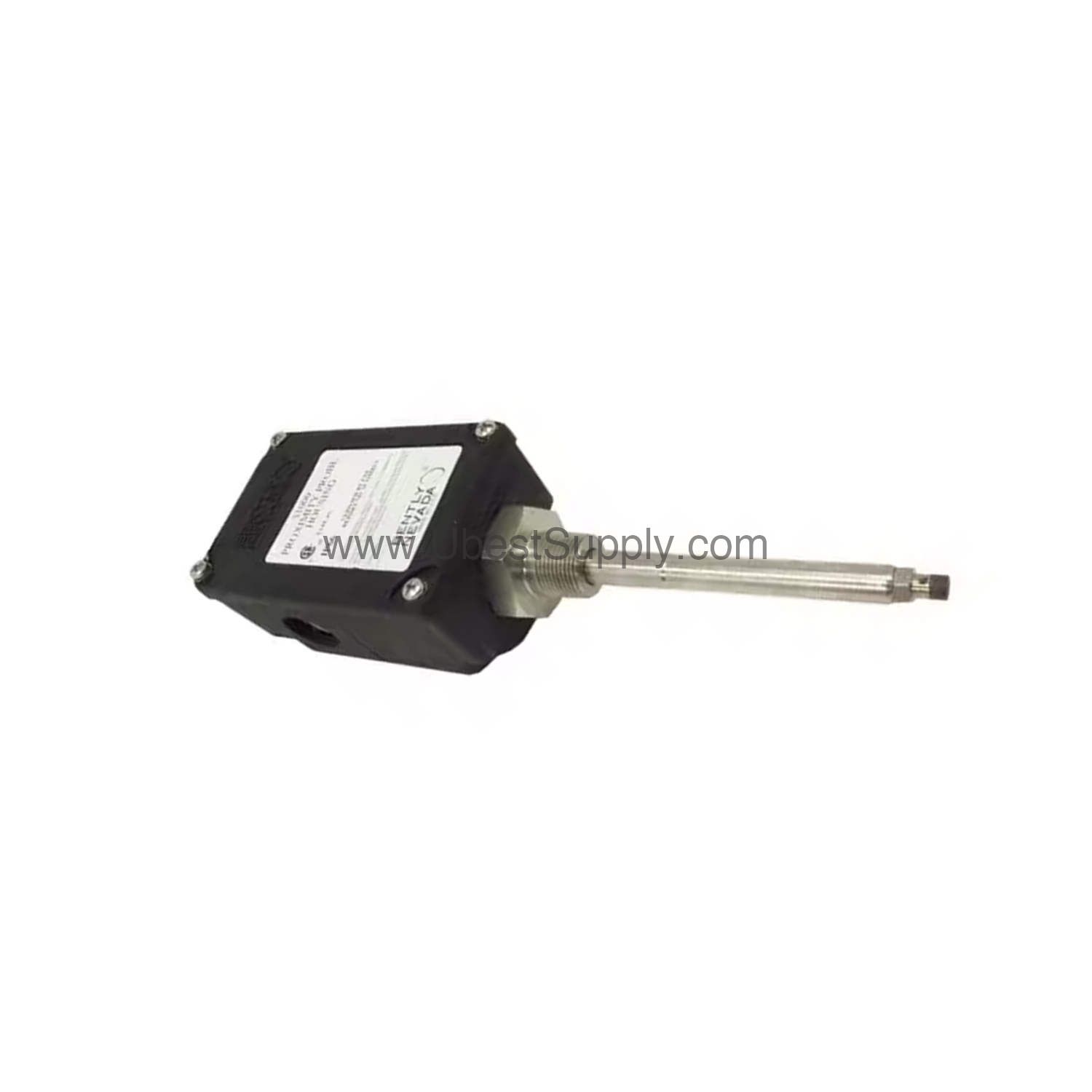

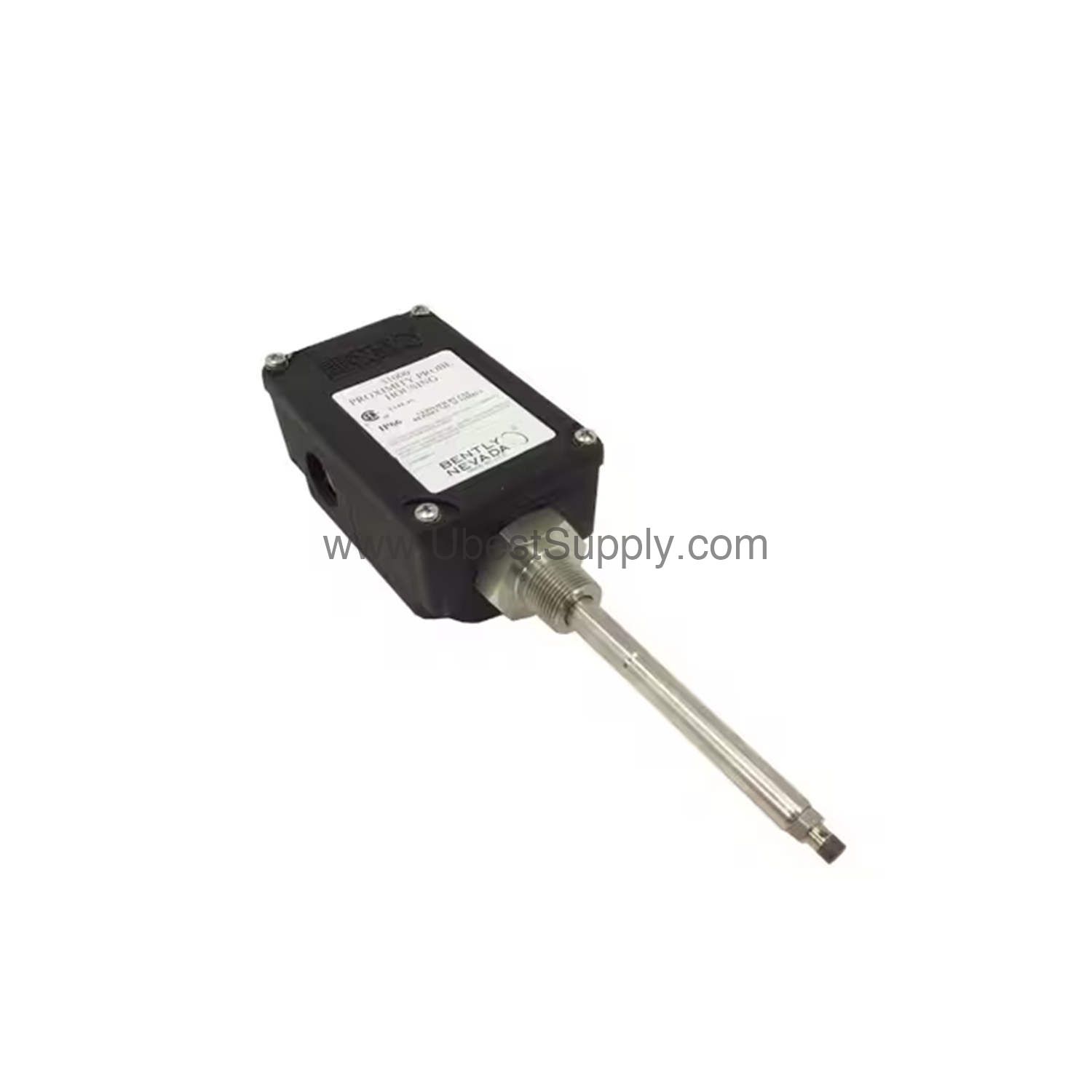

32000-00-00-04-470-01-02 | Bently Nevada 31000 Probe Housing

Introduction to the Bently Nevada 32000-00-00-04-470-01-02

When you need a robust housing for proximity probes in demanding industrial settings, the 32000-00-00-04-470-01-02 from Bently Nevada is engineered to deliver reliable performance. This 31000 series housing is designed to protect your probe while maintaining accurate measurements. With a glass-reinforced PPS thermoplastic body containing conductive fibers, it offers both strength and electrostatic dissipation, making it suitable for hazardous areas.

The housing is built to withstand extreme conditions, from -51°C to +105°C, and features a Type 4X rating certified by CSA, along with an IP66 rating verified by SC115582-1 (e) 106. This means it can handle dust, water, and corrosion, ensuring long-term durability in tough environments.

Key Features and Technical Specifications

Let's examine the specific features that make this housing a smart choice for your monitoring needs.

• Standoff Adapter Option: 04 = 40 mm, providing precise positioning for your probe.
• Probe Penetration Option: 470 mm, allowing deep insertion for accurate readings.
• Mounting Thread: 3/4-14 NPT, ensuring a secure and standard connection.
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers for static dissipation.
• Temperature Rating: -51°C to +105°C (-60°F to +221°F), suitable for extreme environments.
• Weight: 1.2 kg (2.6 lb), lightweight yet sturdy.
• Impact Strength: Certified by BASEEFA to withstand 4 Joule impacts at -39°C and 115°C, and CSA verified for 7 Joule impacts at room temperature.
• O-Ring Material: Neoprene® for reliable sealing.

One distinctive spec is the dual impact certification, which ensures the housing can survive physical shocks in both cold and hot conditions. This is critical for applications where equipment may be subject to accidental impacts, reducing the risk of downtime.

Applications and Use Cases

This housing is ideal for vibration monitoring on rotating machinery such as turbines, compressors, and pumps. In petrochemical plants, where explosive atmospheres are a concern, the CENELEC EN50014 rating for electrostatic dissipation adds a layer of safety. For offshore platforms, the IP66 rating protects against saltwater ingress. Moreover, the Type 4X rating makes it suitable for washdown environments in food processing. Consequently, the 32000-00-00-04-470-01-02 proves versatile across many industries.

Installation and Setup

When installing this housing, ensure the mounting thread (3/4-14 NPT) is properly engaged to avoid leaks. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). Also, verify that the standoff adapter is correctly aligned to achieve the desired probe gap. Finally, check that all fittings are tightened to maintain the IP66 rating. For detailed steps, consult the Bently Nevada installation manual.

Maintenance and Reliability

Regular inspection of the housing and O-ring is essential to maintain its protective rating. Periodically check for cracks or wear on the PPS material, especially if the housing has been subjected to impacts. The stainless steel sleeves (AISI 304 and 303) resist corrosion, but cleaning with a mild detergent is recommended. By following these simple steps, you can extend the service life of the housing and avoid unexpected failures.

Compatibility and Integration

The 32000-00-00-04-470-01-02 is part of the Bently Nevada 31000 series, designed to work with 31000 proximity probes. It includes a probe option of "00" (probe not required) and a probe cable option of "00" (cable not required), meaning you can order it as a standalone housing. It is compatible with standard Bently Nevada mounting hardware and can be integrated into existing monitoring systems.

Frequently Asked Questions

Q: What is the temperature range for the 32000-00-00-04-470-01-02?

A: The housing is rated for -51°C to +105°C (-60°F to +221°F), making it suitable for extreme thermal environments.

Q: Does this housing come with a probe or cable?

A: No, the probe option is "00" (not required) and the cable option is "00" (not required). You can order the housing separately.

Q: What is the mounting thread size?

A: The mounting thread option is 02, which is 3/4-14 NPT. This is required if you order the standoff adapter.

Q: What are the impact strength certifications?

A: BASEEFA certified the housing to withstand two 4 Joule impacts at -39°C and 115°C, and CSA verified 7 Joule impacts at room temperature.

Q: What is the weight of the housing?

A: The housing weighs approximately 1.2 kg (2.6 lb).

Product Support and Availability

At Petro Auto Tech, we stock the 32000-00-00-04-470-01-02 and are ready to ship. Our team can assist with any technical questions you may have. Contact us for current availability and lifecycle status.
