32000-16-05-00-080-03-02 | Bently Nevada 8 mm Probe Housing

Introduction to the 32000-16-05-00-080-03-02

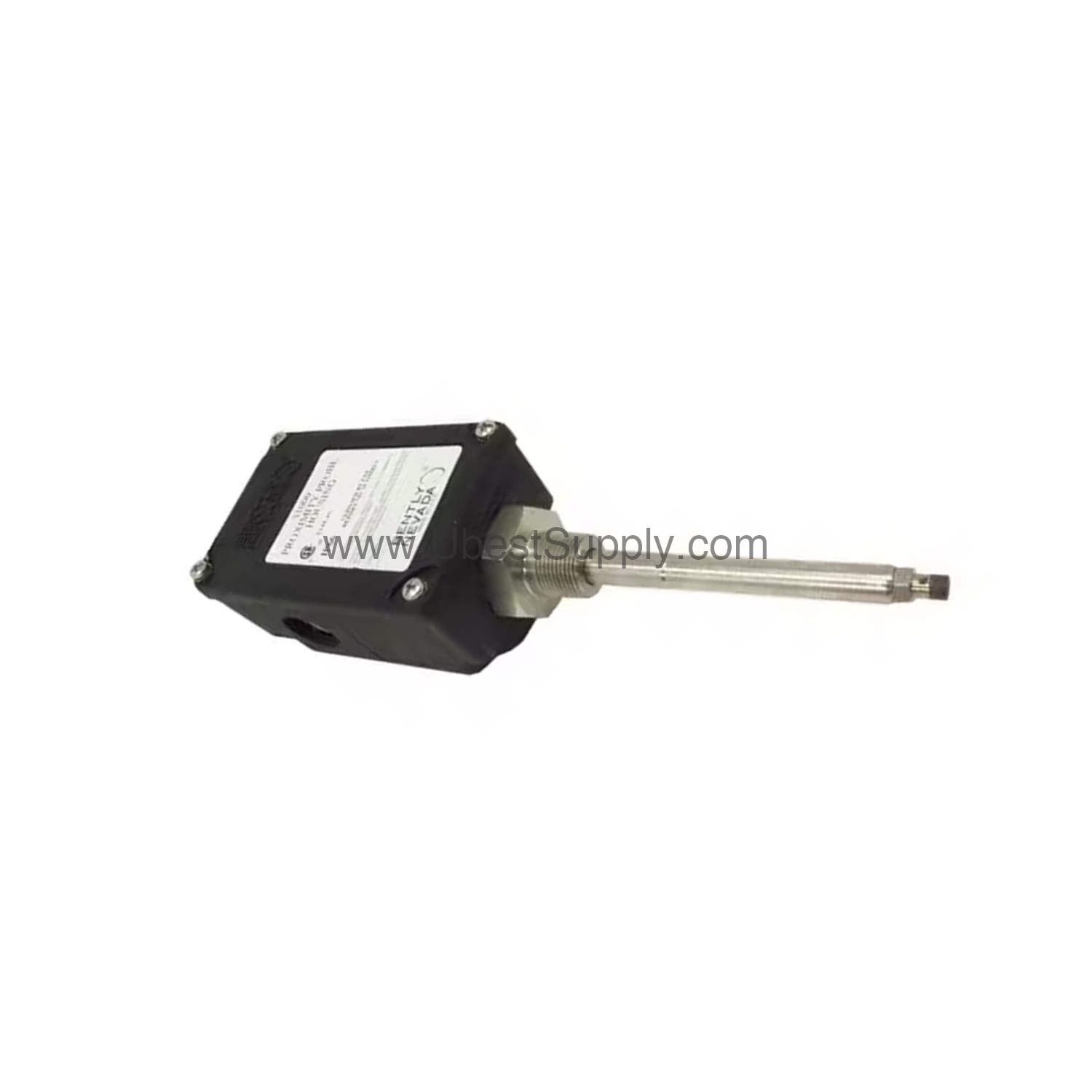

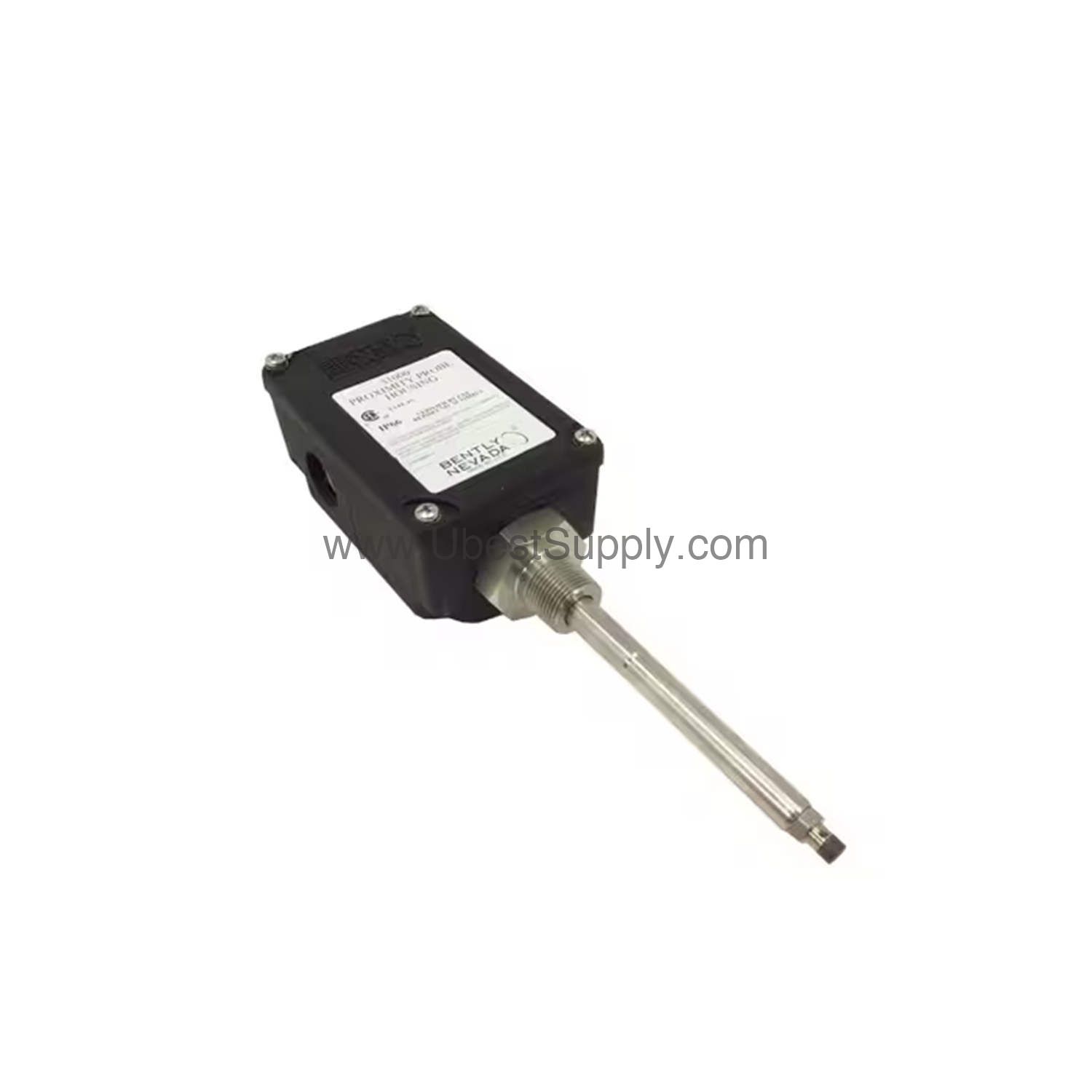

When reliable vibration monitoring is critical, the 32000-16-05-00-080-03-02 from Bently Nevada delivers a robust housing solution for 3300 XL 8 mm proximity probes. This 31000 series housing is engineered for harsh industrial environments, offering a glass-reinforced PPS body with conductive fibers for electrostatic dissipation. Its compact design and stainless steel components ensure long-term durability, making it a dependable choice for rotating machinery protection.

Key Features and Technical Specifications

• Probe Option: 16 3300 XL 8 mm probe with connector
• Cable Length: 0.5 m (20 in)
• Probe Penetration: 80 mm
• Mounting Thread: 3/4-14 NPT
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel (sleeve and retaining chain)
• Outer Sleeve and Screws: AISI 303 stainless steel
• O-Ring Material: Neoprene®
• Weight: 1.2 kg (2.6 lb)

One distinctive feature is the housing's impact strength. Certified by BASEEFA to withstand two separate 4 Joule impacts at -39°C and 115°C, and verified by CSA to withstand a 7 Joule impact at room temperature, this housing offers exceptional resilience in extreme conditions.

Applications and Use Cases

This housing is ideal for vibration monitoring on pumps, motors, fans, and other rotating equipment. Its IP66 rating ensures protection against dust and water ingress, making it suitable for outdoor or washdown environments. The Type 4X rating adds corrosion resistance, which is essential in chemical or marine settings. With a wide temperature range, it performs reliably in both freezing and high-heat operations.

Installation and Setup

Mounting the 32000-16-05-00-080-03-02 is straightforward. The 3/4-14 NPT thread allows secure attachment to standard mounting fixtures. For proper installation, ensure the probe penetration is set to 80 mm and the cable length is 0.5 m. The housing includes two plugs, one M20 fitting, and one cable seal grip with grommets for armored probe cable, simplifying cable routing. Always follow Bently Nevada's recommended torque of 29.4 N·m (260 in·lb) for the retaining nut to ensure a secure fit.

Maintenance and Reliability

Regular inspection of the housing and O-ring is recommended to maintain its protective ratings. Check for signs of wear on the stainless steel sleeve and retaining chain. The conductive PPS material helps prevent static buildup, reducing the risk of damage in hazardous areas. With proper care, this housing offers extended service life, minimizing downtime and replacement costs.

Compatibility and Integration

This housing is designed for use with Bently Nevada 3300 XL 8 mm proximity probes. It integrates seamlessly with Bently Nevada monitoring systems, ensuring accurate vibration data collection. The housing's standardized mounting thread and probe options make it compatible with existing installations.

Common Issues and Troubleshooting

If you encounter signal interference, verify that the probe cable is properly shielded and grounded. Check the O-ring for damage that could compromise the IP66 seal. Ensure the mounting thread is clean and free of debris before installation. For persistent issues, consult the official Bently Nevada documentation or contact Petro Auto Tech for technical support.

Frequently Asked Questions

Q: What is the temperature range of the 32000-16-05-00-080-03-02?

A: The housing operates from -51°C to +105°C (-60°F to +221°F).

Q: What probe does this housing support?

A: It supports a 3300 XL 8 mm probe with a connector.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT.

Q: What protection ratings does it have?

A: It has Type 4X (CSA certified) and IP66 ratings.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg (2.6 lb).
