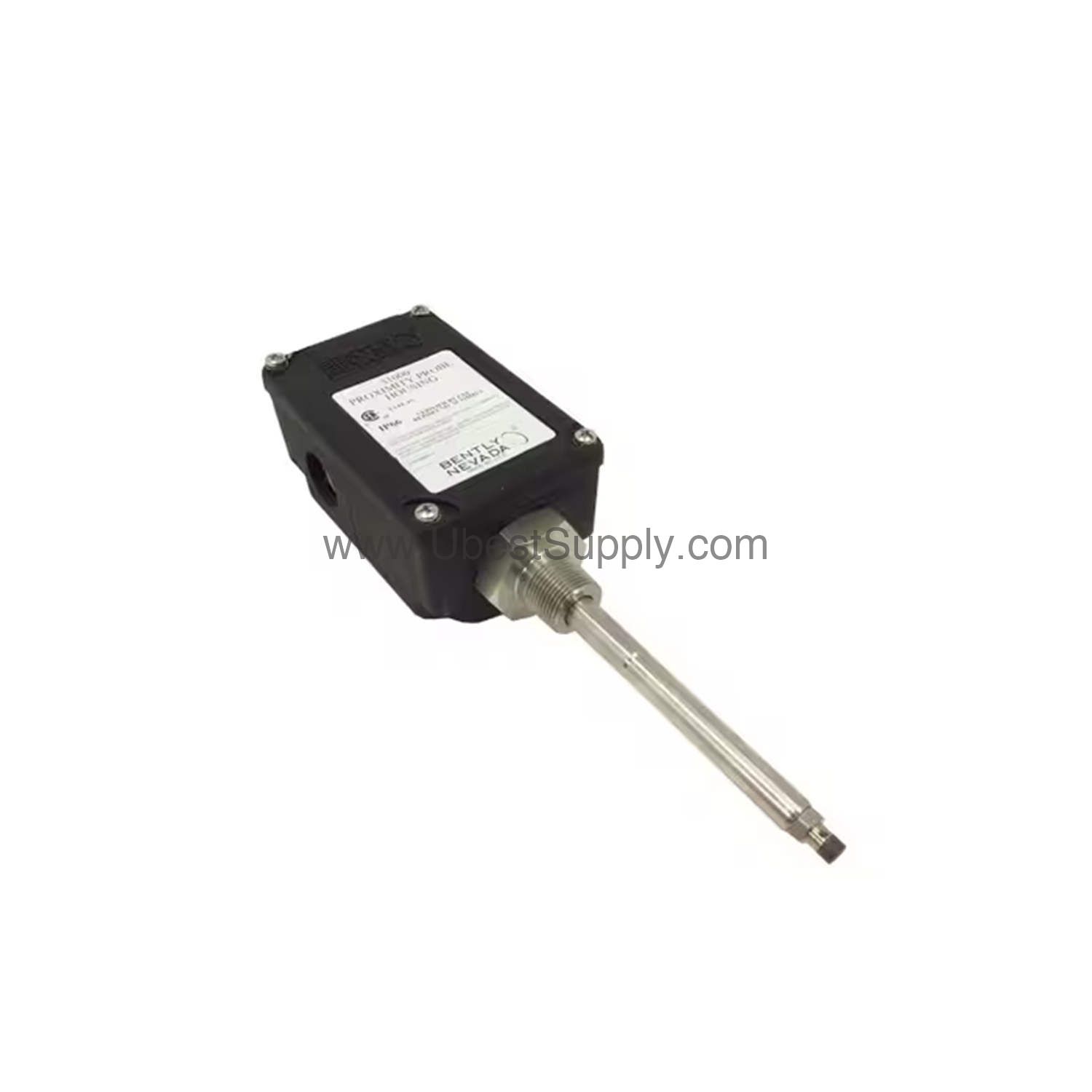

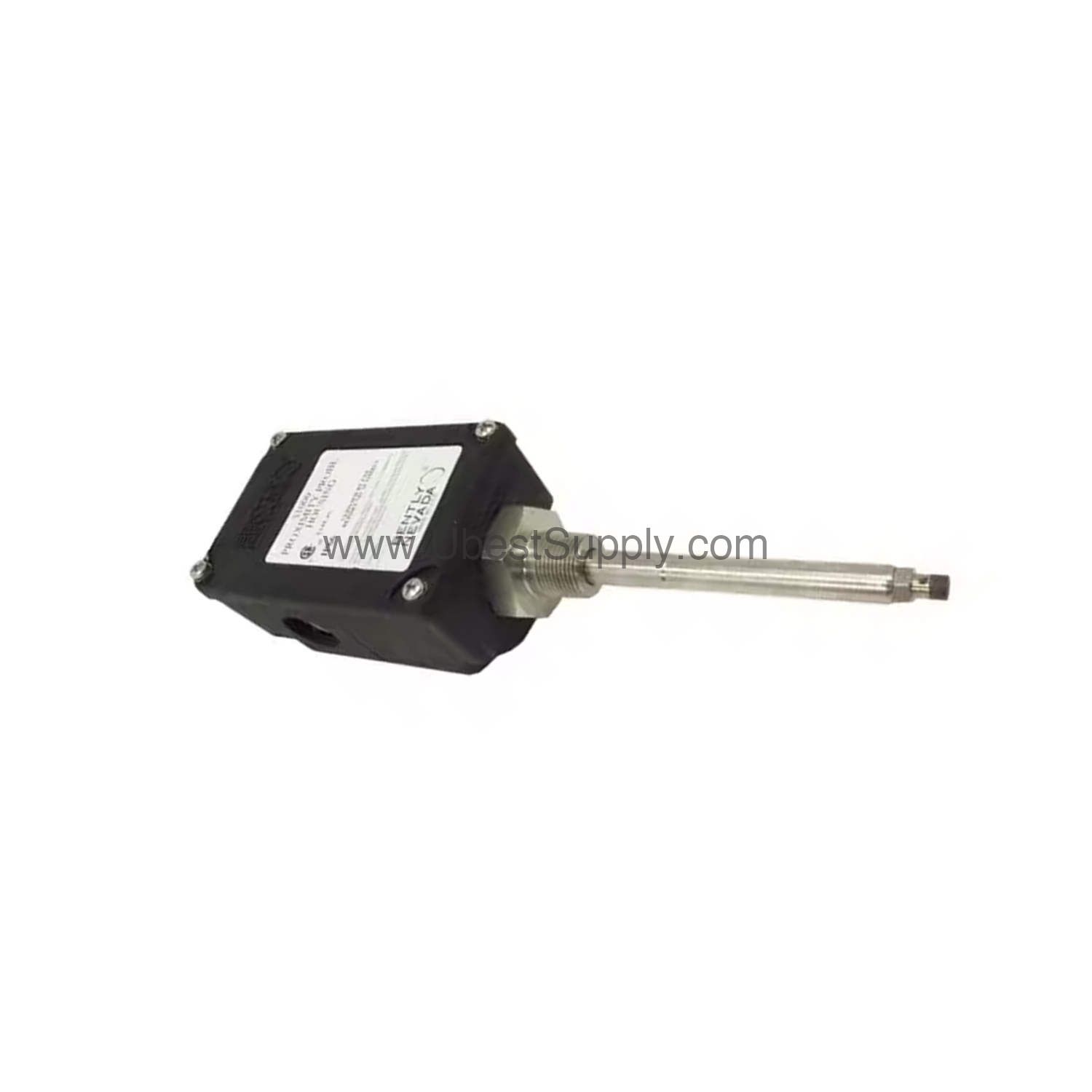

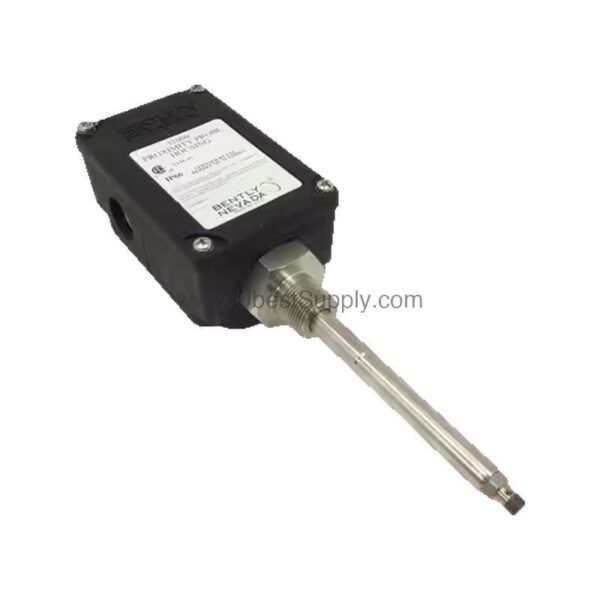

32000-16-05-05-080-03-02 | Bently Nevada 0.5m Cable 8mm Probe Housing

Introduction to the 32000-16-05-05-080-03-02

When vibration monitoring demands reliable probe protection, the 32000-16-05-05-080-03-02 from Bently Nevada delivers. This metric proximity probe housing is engineered for industrial environments where accuracy and durability are non-negotiable. Designed for use with the 3300 XL 8 mm probe, it ensures stable mounting and secure cable routing.

Manufactured in the U.S.A., this housing meets rigorous standards. Its glass-reinforced PPS thermoplastic body contains conductive fibers, providing electrostatic dissipation for hazardous areas. With a temperature rating from -51°C to +105°C, it withstands extreme conditions without compromising performance.

Key Features and Technical Specifications

The 32000-16-05-05-080-03-02 offers a range of features that simplify installation and enhance reliability. Each specification is carefully chosen to support long-term operation.

• Probe Option: 3300 XL 8 mm probe with connector (option 16).
• Cable Length: 0.5 metre probe cable (option 05).
• Standoff Adapter: 50 mm standoff (option 05).
• Probe Penetration: 80 mm penetration depth (option 080).
• Fittings: Two plugs, M20 fitting, and one cable seal grip with grommet for armored probe cable (option 03).
• Mounting Thread: 3/4-14 NPT (option 02), required for standoff adapter.
• Protection Ratings: Type 4X (CSA certified) and IP66 (verified).
• Housing Material: Glass-reinforced PPS thermoplastic with conductive fibers.
• Sleeve Material: AISI 304 stainless steel for sleeve and retaining chain.
• Outer Sleeve and Screws: AISI 303 stainless steel.
• O-Ring Material: Neoprene® for effective sealing.
• Impact Strength: Certified to withstand 4 Joule impacts at -39°C and 115°C; 7 Joule at ambient.
• Temperature Range: -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg.

These specs ensure that the housing performs reliably in demanding applications, from rotating machinery to process lines.

Industry Applications and Use Cases

The 32000-16-05-05-080-03-02 is ideal for vibration monitoring in turbines, compressors, pumps, and other critical rotating equipment. Its rugged construction makes it suitable for oil and gas, power generation, and chemical processing plants. The IP66 rating protects against dust and water ingress, while the Type 4X rating ensures corrosion resistance in washdown environments.

For example, in a petrochemical facility, this housing can safeguard proximity probes on high-speed compressors, providing accurate shaft vibration data. The 80 mm penetration allows flexible mounting, and the 3/4-14 NPT thread simplifies installation in existing ports.

Installation and Setup Guide

Proper installation is crucial for accurate measurements. Begin by verifying the mounting thread size (3/4-14 NPT) matches your equipment. Use the included fittings: two plugs, M20 fitting, and cable seal grip. Ensure the probe cable (0.5 metre) is routed without sharp bends to avoid damage.

When attaching the standoff adapter (50 mm), confirm the probe penetration (80 mm) aligns with your measurement target. Tighten all screws to the recommended torque, but avoid over-tightening the PPS housing. For hazardous areas, follow local regulations and the manufacturer's guidelines.

Maintenance and Reliability

Regular inspection of the 32000-16-05-05-080-03-02 ensures long service life. Check the O-ring for signs of wear and replace if necessary. Verify that the cable seal grip remains tight to maintain the IP66 rating. Clean the exterior with a soft cloth; avoid harsh solvents that could damage the PPS material.

The stainless steel components resist corrosion, but periodic checks for loose screws are recommended. With proper care, this housing can provide years of reliable service, reducing downtime and maintenance costs.

Compatibility and Integration

The 32000-16-05-05-080-03-02 is specifically designed for Bently Nevada 3300 XL 8 mm proximity probes. It integrates seamlessly with Bently Nevada monitoring systems, ensuring accurate signal transmission. The 0.5 metre cable length is suitable for close-coupled installations, while the M20 fitting allows standard conduit connections.

For existing systems, this housing can replace older units without major modifications. Verify compatibility with your probe model and mounting configuration before ordering.

Common Questions and Answers

Q: What is the temperature range of the 32000-16-05-05-080-03-02?

A: The housing operates from -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

Q: Does the housing include mounting hardware?

A: Yes, it comes with two plugs, an M20 fitting, and a cable seal grip with grommet for armored cable.

Q: What is the probe penetration depth?

A: The probe penetration option is 80 mm, allowing flexible positioning.

Q: Is the housing rated for hazardous areas?

A: Yes, it meets CENELEC standard EN50014 for electrostatic dissipation of plastic materials in hazardous locations.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg, which is lightweight for easy handling.

Product Support and Availability

At Petro Auto Tech, we stock the 32000-16-05-05-080-03-02 and are ready to ship. Our team can assist with technical questions and order processing. Contact us for current availability and lead times.
