170BAM09600 | Schneider 4-20 mA Modicon Momentum I/O Module

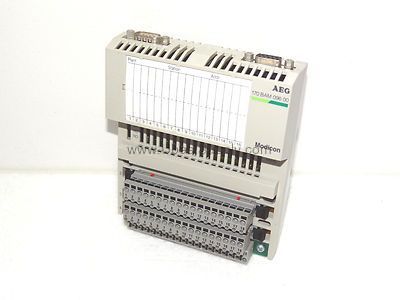

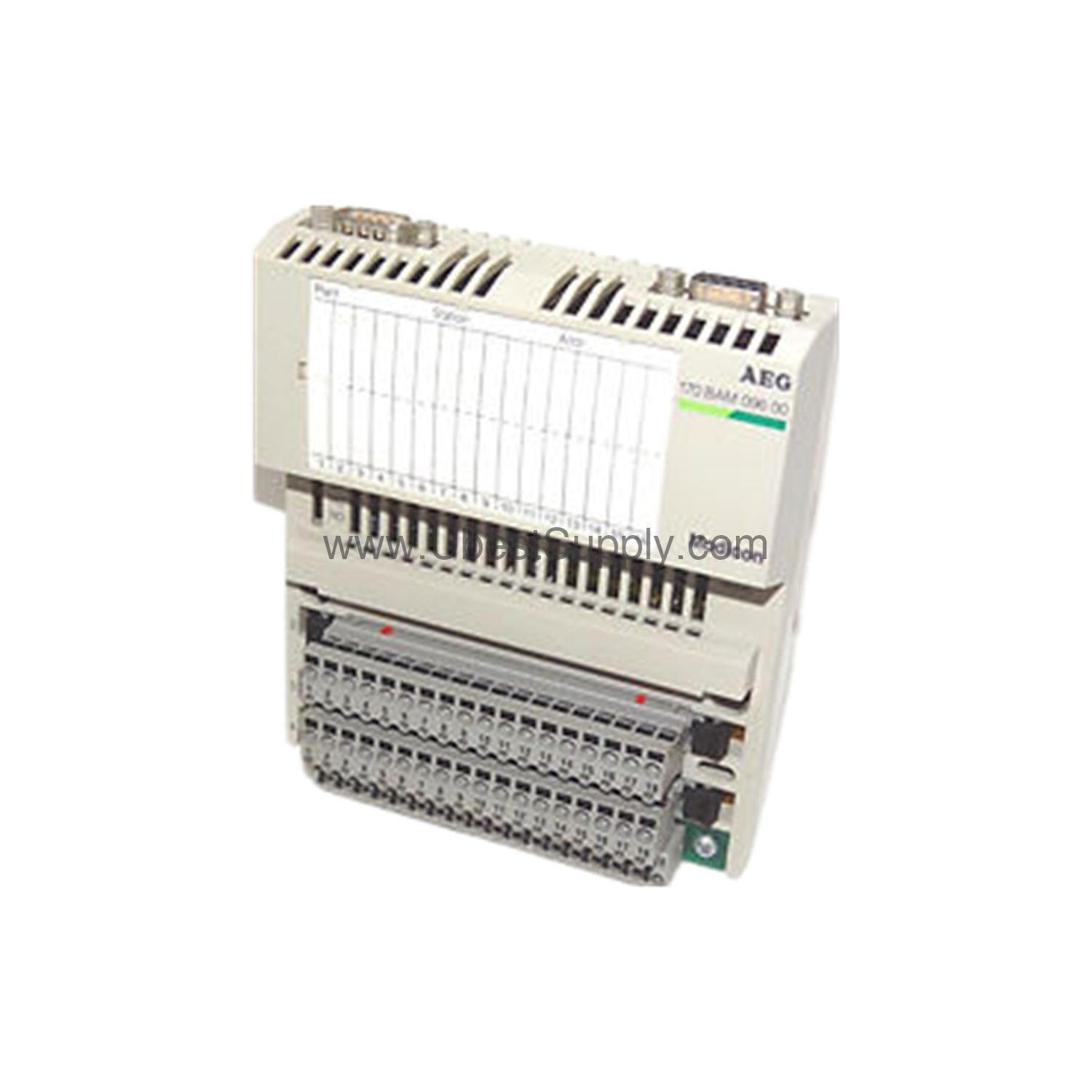

Introduction to the Schneider 170BAM09600 I/O Module

When your control system demands reliable analog signal handling, the 170BAM09600 from Schneider Electric delivers consistent performance. This I/O module, part of the Modicon Momentum family, is engineered for efficient data interfacing in automated environments.

With a current rating of 4 to 20 mA and a voltage rating of 0 to 10 V DC, the 170BAM09600 supports a wide range of industrial sensors and actuators. Its compact design and robust specifications make it a practical choice for system integrators and maintenance teams alike.

Key Features & Technical Specifications

The 170BAM09600 offers a balanced set of features that contribute to both performance and cost efficiency:

• Current rating of 4 to 20 mA ensures compatibility with standard analog loops.
• Voltage rating of 0 to 10 V DC accommodates various input devices.
• Four inputs and two outputs provide flexible I/O configuration.
• Operating temperature range of 0 to 40 degrees Celsius suits typical industrial settings.
• Humidity tolerance up to 80% RH (non-condensing) enhances reliability in damp environments.
• Maximum operating altitude of 1000 meters without derating supports elevated installations.
• Lightweight design at 0.50 lbs (0.23 kg) simplifies mounting and reduces panel load.

These specifications directly influence operational costs. For instance, the wide temperature and humidity ranges reduce the need for climate-controlled enclosures, saving energy and maintenance expenses.

Applications & Use Cases

The 170BAM09600 is well-suited for process control, machine monitoring, and data acquisition tasks. In a typical scenario, it interfaces with analog sensors to transmit critical process values to a PLC or DCS. Because it handles both 4-20 mA and 0-10 V signals, it offers versatility across different sensor types.

Moreover, its compact footprint allows for dense I/O placement, which can lower panel space requirements and associated costs. Whether you are upgrading an existing line or designing a new system, this module provides a cost-effective solution.

Installation & Setup

Installing the 170BAM09600 is straightforward. Mount the module securely on a DIN rail or panel, ensuring adequate clearance for wiring and airflow. Connect the analog signals according to your system's wiring diagram, observing proper polarity and shielding practices to minimize noise.

Because the module operates at altitudes up to 1000 meters without derating, you can install it in high-altitude facilities with confidence. Always follow the manufacturer's guidelines for electrical connections and grounding to ensure safe and reliable operation.

Maintenance & Reliability

Routine inspection of the 170BAM09600 helps maintain long-term performance. Check for signs of moisture accumulation, especially in environments with high humidity. Although the module tolerates up to 80% RH non-condensing, preventing condensation is key to avoiding corrosion.

Periodically verify that all connections remain tight and that the module is free from dust or debris. Such simple maintenance steps can extend the service life of the module and reduce downtime, translating into lower total cost of ownership.

Compatibility & Integration

The 170BAM09600 is part of the Modicon Momentum series, which is known for its integration flexibility. It can be used with Schneider Electric PLCs and other control systems that accept analog I/O modules. The 4-20 mA and 0-10 V signal ranges are industry standards, ensuring compatibility with a broad array of field devices.

For specific controller compatibility and configuration details, refer to the official Schneider documentation or contact Petro Auto Tech for expert guidance.

Troubleshooting & Common Issues

If the module does not respond as expected, first verify that the power supply and signal wiring are correct. Check that the input signals are within the 4-20 mA or 0-10 V ranges. Also, confirm that the ambient temperature and humidity are within specified limits.

Should issues persist, consult the troubleshooting section of the user manual or reach out to Petro Auto Tech's technical support for assistance.

FAQ about the 170BAM09600

Q: What is the current rating of the 170BAM09600?

A: The current rating is 4 to 20 mA.

Q: How many inputs and outputs does this module have?

A: It has four inputs and two outputs.

Q: What is the operating temperature range?

A: The module operates from 0 to 40 degrees Celsius.

Q: Can the 170BAM09600 be used at high altitudes?

A: Yes, it can operate at altitudes up to 1000 meters without derating.

Product Support & Availability

The 170BAM09600 is available through Petro Auto Tech, a trusted industrial automation parts supplier. In stock and ready to ship, this module can be ordered with confidence. For pricing and delivery details, contact Petro Auto Tech directly.
