32000-29-05-10-072-07-02 | Bently Nevada 8 mm Probe Housing

Introduction to the 32000-29-05-10-072-07-02

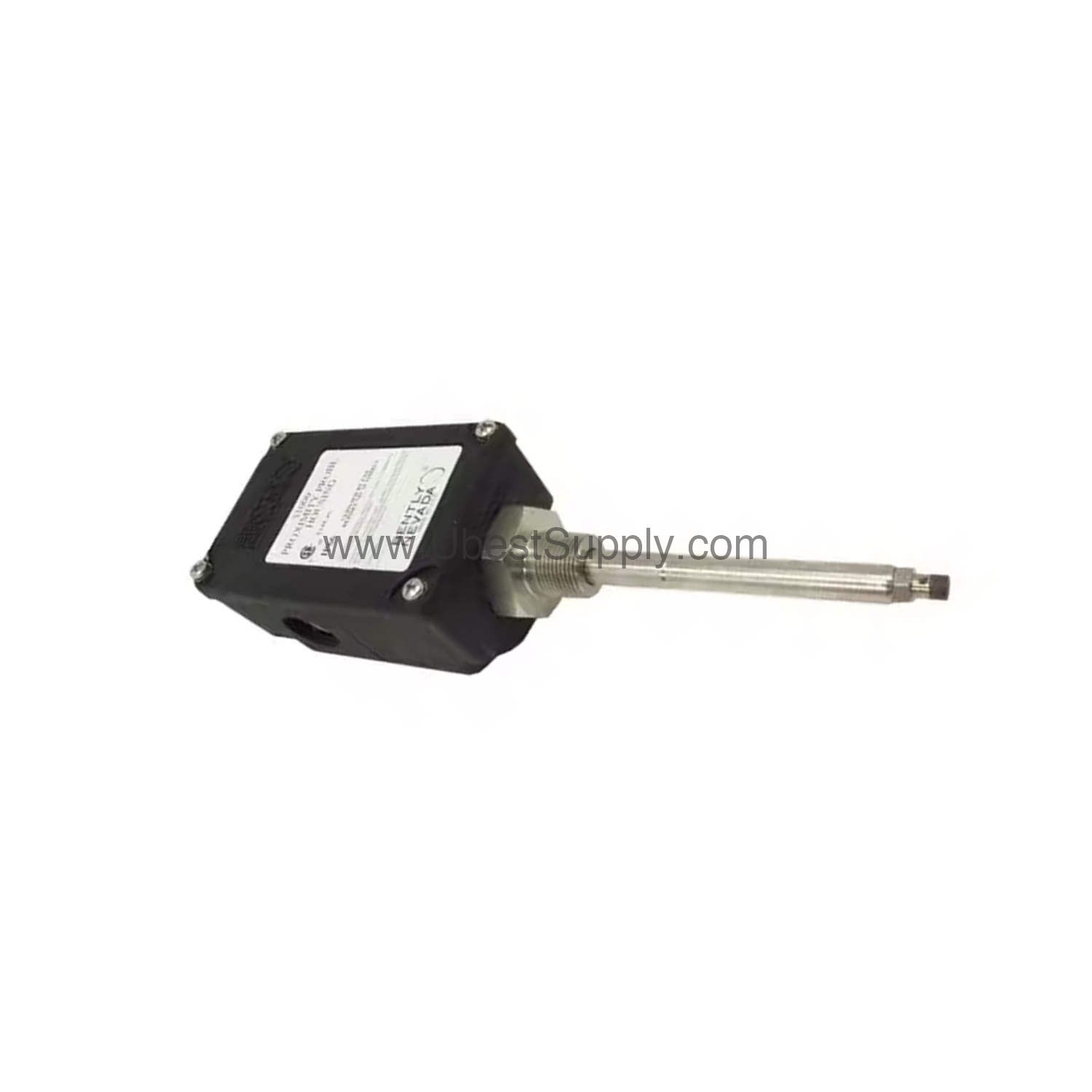

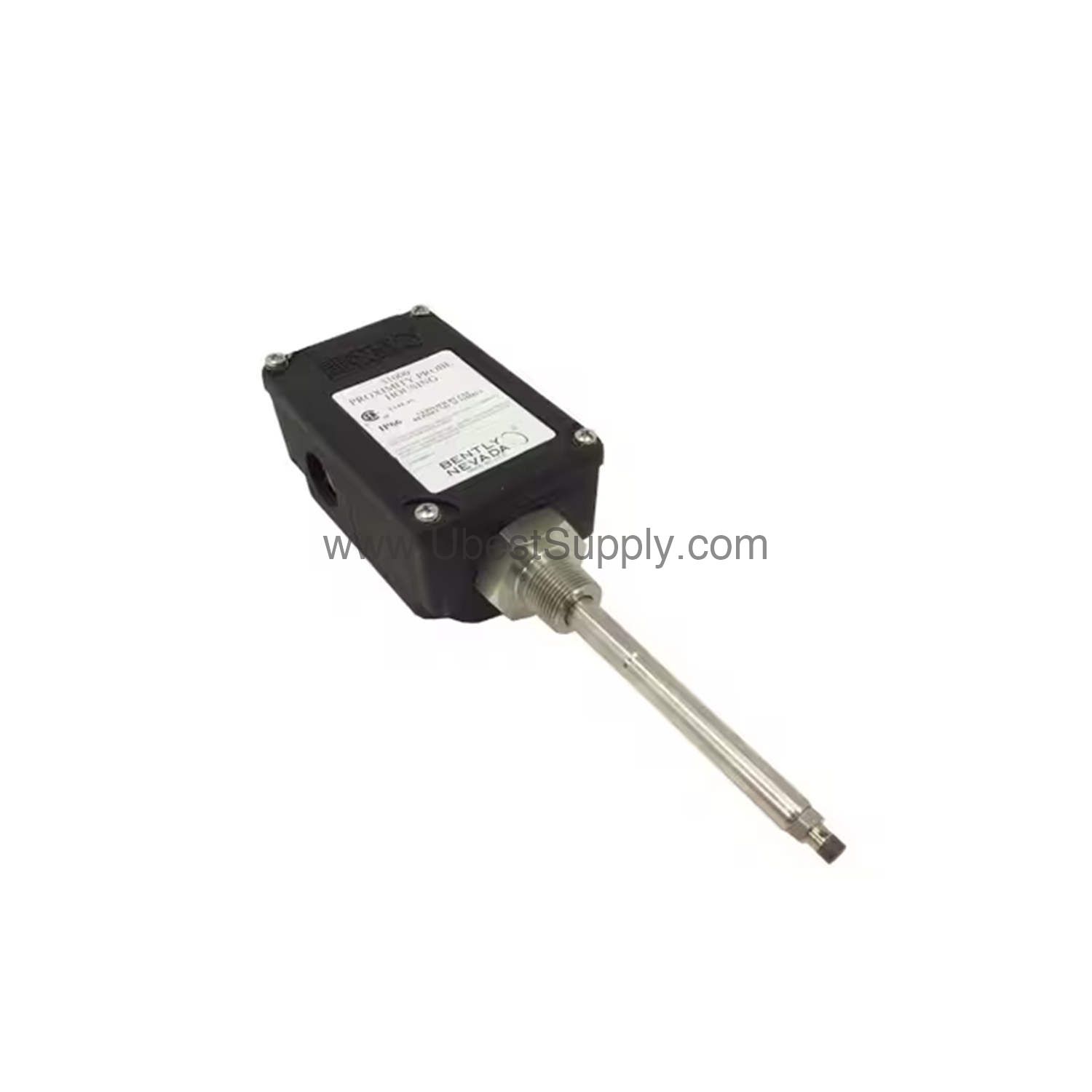

When you need a reliable housing for a proximity probe in demanding industrial environments, the Bently Nevada 32000-29-05-10-072-07-02 is a solid choice. This metric housing is designed to protect a 3300 XL 8 mm probe with connector, ensuring accurate vibration and position monitoring. It is built for durability and performance, making it a dependable component for your machinery protection system.

As part of the Bently Nevada 32000 series, this housing combines robust construction with practical design. It is engineered to withstand harsh conditions while maintaining the integrity of your measurement system. Whether you are upgrading existing equipment or installing a new system, this housing offers the reliability you expect from a leading brand.

Key Features and Technical Specifications

The 32000-29-05-10-072-07-02 is packed with features that enhance its performance and longevity. Here are the key specifications you need to know:

• Probe Option: 3300 XL 8 mm probe with connector protector
• Cable Length: 0.5 metre
• Standoff Adapter: 100 mm
• Probe Penetration: 72 mm
• Fittings: One PG21 x M20 fitting and two plugs
• Mounting Thread: 3/4-14 NPT (required for standoff adapter)
• Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
• Sleeve Material: AISI 304 stainless steel
• Outer Sleeve and Screws: AISI 303 stainless steel
• O-Ring Material: Neoprene®
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg

One standout feature is the housing's impact strength. It is certified by BASEEFA to withstand two separate 4 Joule impacts at extreme temperatures, and CSA verified a 7 Joule impact at room temperature. This makes it exceptionally resilient in tough environments.

Applications and Use Cases

The 32000-29-05-10-072-07-02 is ideal for vibration monitoring on rotating machinery such as pumps, motors, and turbines. Its rugged design ensures reliable operation even in harsh industrial settings. For example, in a petrochemical plant, this housing can protect the probe from corrosive elements and physical damage, ensuring continuous monitoring. Additionally, its temperature rating makes it suitable for both cold and hot environments, from arctic conditions to high-heat processes.

Installation and Setup

Installing the 32000-29-05-10-072-07-02 is straightforward, but attention to detail is crucial. First, ensure the mounting thread (3/4-14 NPT) matches your installation point. The standoff adapter is required for proper positioning, so verify the 100 mm length fits your application. When connecting the probe cable, use the provided PG21 x M20 fitting and plugs to seal the housing securely. Always follow the manufacturer's manual for torque specifications and wiring guidelines to avoid damage.

Maintenance and Reliability

To keep the 32000-29-05-10-072-07-02 performing at its best, regular inspection is recommended. Check the housing for cracks or wear, especially after any impact or extreme temperature exposure. The stainless steel sleeve and screws resist corrosion, but it's wise to verify their condition periodically. The Neoprene® O-ring should be inspected for signs of degradation, as it maintains the seal against moisture and contaminants. By following these simple steps, you can extend the service life of your housing and avoid unexpected downtime.

Compatibility and Integration

The 32000-29-05-10-072-07-02 is designed to work seamlessly with Bently Nevada monitoring systems. It is compatible with the 3300 XL 8 mm probe, ensuring accurate data transmission. The housing's design allows for easy integration into existing setups, whether you are retrofitting or building new installations. For specific compatibility details, refer to the official Bently Nevada documentation or contact Petro Auto Tech for assistance.

Common Questions About the 32000-29-05-10-072-07-02

Q: What is the temperature range for this housing?

A: The housing operates from -51°C to +105°C, making it suitable for extreme conditions.

Q: Does it come with the probe included?

A: Yes, the option includes a 3300 XL 8 mm probe with connector protector.

Q: What mounting thread is required?

A: The mounting thread is 3/4-14 NPT, which is necessary for the standoff adapter.

Q: How heavy is the housing?

A: It weighs 1.2 kg, which is lightweight for its robust construction.

Support and Availability

The 32000-29-05-10-072-07-02 is available through Petro Auto Tech. We offer fast shipping and competitive pricing on this and other Bently Nevada products. Contact us for current availability and lead times.
