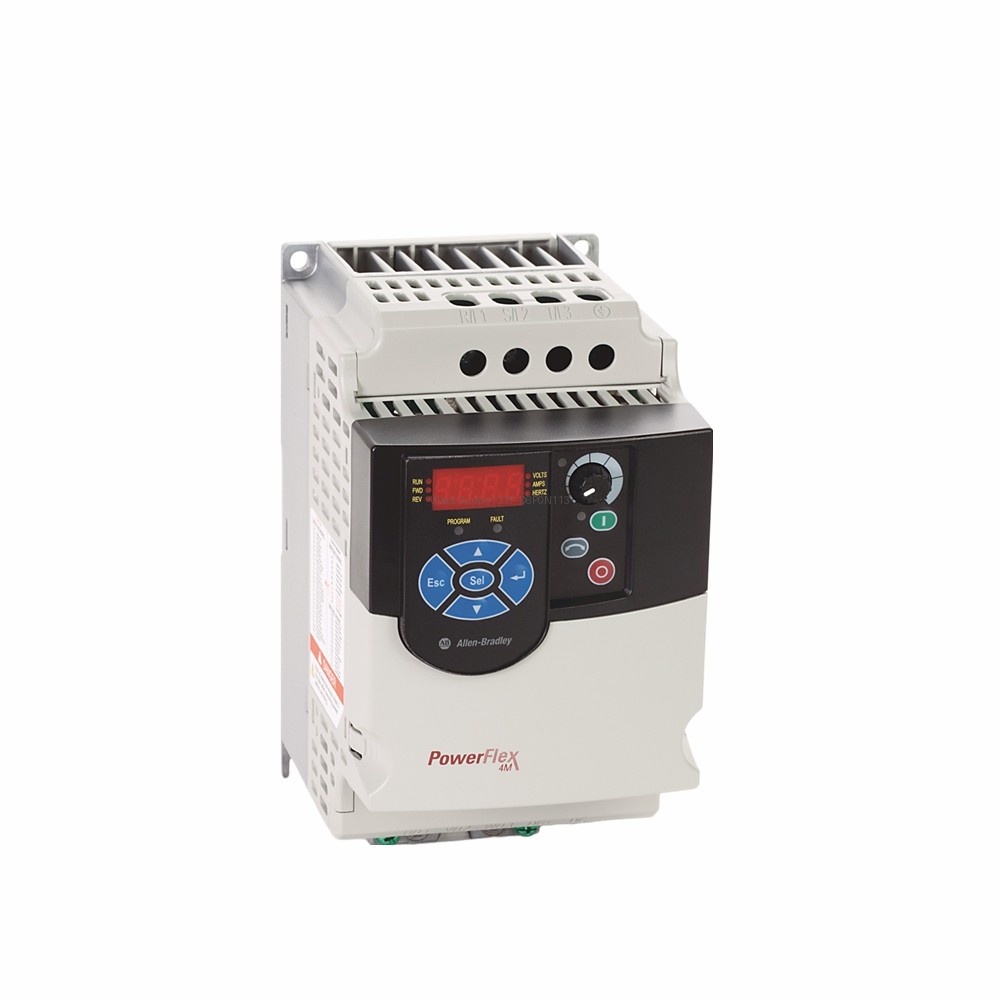

Allen-Bradley PowerFlex 4M Drive 22F-D6P0N113 3 HP

Product Overview

The Allen-Bradley 22F-D6P0N113 is a compact adjustable frequency AC drive. It belongs to the PowerFlex 4M series. This unit provides 3.0 HP of output power. It operates on a 380-480 VAC, 3-phase input. The drive includes an internal CE compliant EMC filter. This feature helps reduce electrical noise. It comes with a standard fixed keypad with an LCD display. The interface is easy to use for basic setup.

Application Scenarios

This drive is ideal for simple motor speed control. It works well for fans, pumps, and conveyors. It fits into packaging machines and material handling systems. The compact size allows for flexible installation. You can mount it on a DIN rail or a panel. It suits applications that need reliable variable torque control. The RS485 port supports Modbus RTU communication. This makes it easy to integrate into larger systems.

Technical Specifications

The input voltage range is 340 to 528 VAC. It draws 6.2 Amperes of input current. The input power rating is 5.2 kVA. The output voltage is 0-460 VAC. The continuous output current is 6.0 Amperes. The drive uses a Volts/Hertz control method. It has five 24 VDC discrete inputs. It also has two analog inputs for 0-10V or 4-20mA signals. Two Form C relay outputs are included. The unit weighs only 1.5 kg. It operates at an ambient temperature of 40 degrees Celsius.

Installation & Maintenance Guide

Install the drive in a clean, dry location. Ensure proper airflow around the enclosure. The unit has an IP20 rating. Use a 10 Ampere fuse for circuit protection. You can mount it directly on a panel or a DIN rail. Do not install the braking option as this model lacks it. Check all connections for tightness during setup. The drive requires minimal routine maintenance. Keep the cooling fins free of dust. Always disconnect power before servicing.

Packing List

One Allen-Bradley PowerFlex 4M drive. One standard fixed keypad module. One Quick Start guide. The unit is shipped in protective packaging. We use FedEx, UPS, or DHL for delivery.
