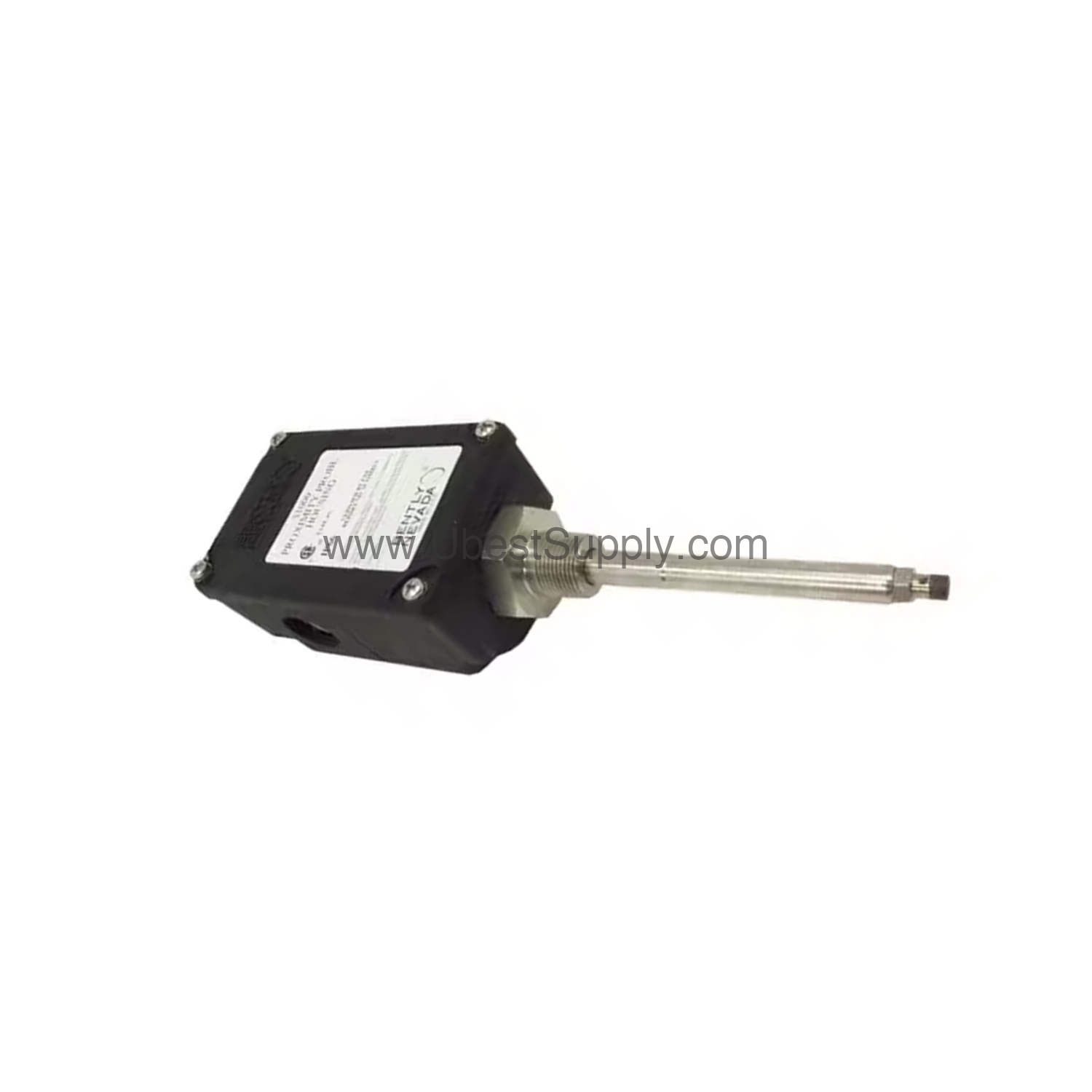

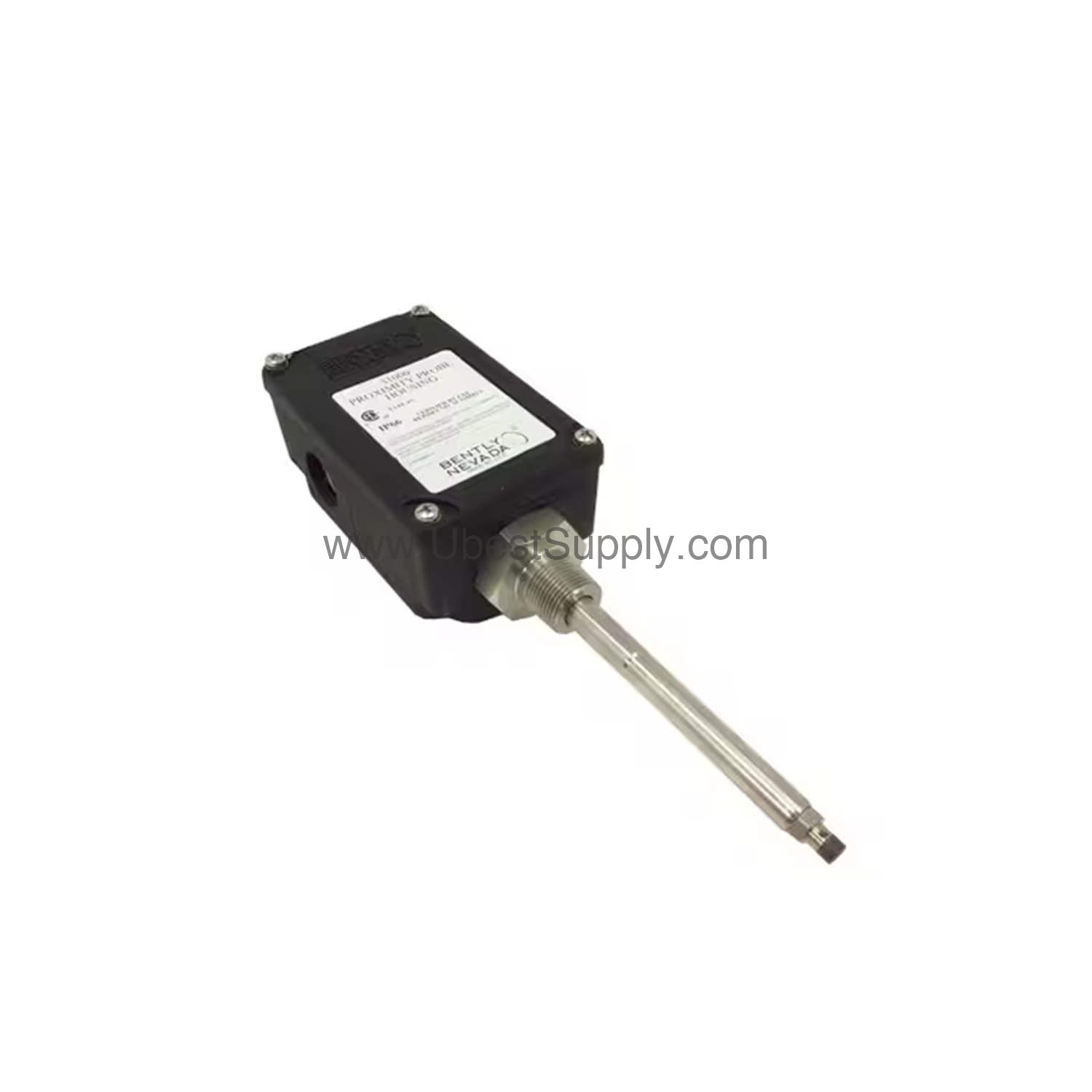

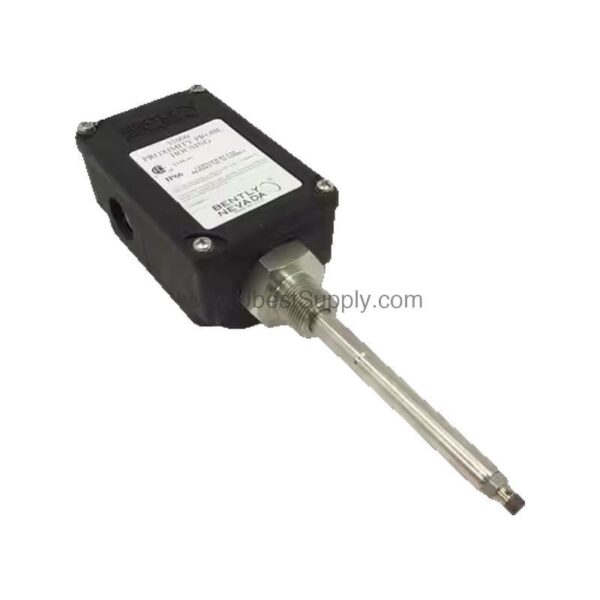

32000-29-05-10-080-07-02 | Bently Nevada 0.5m Cable 8mm Probe Housing

Introduction to the Bently Nevada 32000-29-05-10-080-07-02

When machine reliability matters, the 32000-29-05-10-080-07-02 from Bently Nevada provides a robust housing solution for proximity probes. This 32000 Metric Proximity Probe Housing is engineered to protect the sensing element while maintaining accurate measurements. Consequently, it supports predictive maintenance strategies that reduce unplanned downtime.

Specifically, this model includes a 3300 XL 8 mm probe with connector, a 0.5 metre cable, a 100 mm standoff adapter, and an 80 mm probe penetration. Therefore, it suits applications requiring precise gap measurements in tight spaces. Additionally, the housing meets stringent protection ratings, making it suitable for harsh environments.

Key Features and Technical Specifications

The 32000-29-05-10-080-07-02 offers several features that enhance its durability and performance. For instance, its glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic housing contains conductive fibers, providing electrostatic dissipation. Moreover, the sleeve and retaining chain are made of AISI 304 stainless steel, while the outer sleeve and exterior screws use AISI 303 stainless steel. Consequently, corrosion resistance is excellent.

• Probe option: 3300 XL 8 mm probe with connector protector.
• Cable length: 0.5 metre.
• Standoff adapter: 100 mm.
• Probe penetration: 80 mm.
• Fittings: One PG21 x M20 fitting and two plugs.
• Mounting thread: 3/4-14 NPT (required for standoff adapter).
• Temperature rating: -51°C to +105°C (-60°F to +221°F).
• Weight: 1.2 kg.

Furthermore, the housing has been certified by BASEEFA to withstand two separate 4 Joule impacts at -39°C and 115°C, and CSA verified a 7 Joule impact at ambient temperature. Hence, it is built to survive mechanical shocks.

Installation and Mounting Guidance

Proper installation is critical for accurate readings. The 3/4-14 NPT mounting thread is required when using the standoff adapter, ensuring a secure fit. During setup, verify that the probe penetration depth matches the 80 mm specification. Additionally, ensure the cable length of 0.5 metre is sufficient for routing to the connector. Use the provided PG21 x M20 fitting and plugs to seal the enclosure properly. As a result, you maintain the IP66 rating.

Before mounting, inspect the O-ring (Neoprene®) for any damage. A proper seal prevents moisture ingress. Moreover, torque the fitting to the manufacturer's recommended value to avoid over-tightening. Consequently, you preserve the housing's integrity.

Maintenance and Reliability Tips

Routine inspection of the housing and its components is essential. Periodically check the retaining chain and sleeve for wear. Additionally, verify that the exterior screws remain tight. Since the housing is rated for temperatures from -51°C to +105°C, it can operate in extreme conditions. However, avoid exposing it to temperatures beyond this range to prevent damage.

For long-term reliability, clean the exterior with a soft cloth. Do not use harsh solvents that could degrade the PPS material. Furthermore, inspect the cable for cuts or abrasions. If any damage is found, replace the assembly promptly. Therefore, you minimize the risk of probe failure.

Applications and Use Cases

This housing is commonly used in rotating machinery monitoring, such as turbines, compressors, and pumps. Because it accommodates an 8 mm probe, it is ideal for measuring shaft vibration and axial position. Moreover, its robust construction makes it suitable for oil and gas, power generation, and petrochemical facilities. Consequently, it helps maintenance teams detect early signs of bearing wear or misalignment.

Additionally, the Type 4X and IP66 ratings allow installation in washdown areas or outdoor locations. Therefore, you can deploy it in environments with high humidity or dust. In summary, the 32000-29-05-10-080-07-02 is a versatile solution for condition monitoring.

Compatibility and Integration

The 3300 XL 8 mm probe is part of the Bently Nevada 3300 XL family, which is widely used with monitoring systems. Therefore, this housing is compatible with standard Bently Nevada proximity transducers. However, always verify compatibility with your specific monitor. For integration, connect the probe cable to a compatible extension cable and driver. Then, the signal can be processed by a vibration monitor.

Since no communication protocols are specified, this housing is purely mechanical. Thus, it does not affect signal transmission. Nevertheless, ensure that the probe and cable are properly grounded to avoid electrical noise.

FAQ

Q: What is the temperature rating of the 32000-29-05-10-080-07-02?

A: The housing is rated for -51°C to +105°C (-60°F to +221°F).

Q: What mounting thread is required for the standoff adapter?

A: The mounting thread is 3/4-14 NPT, which is required when ordering the standoff adapter.

Q: What is the probe penetration depth?

A: The probe penetration option is 80 mm.

Q: What materials are used in the housing construction?

A: The housing is glass-reinforced PPS with conductive fibers, and the sleeve and retaining chain are AISI 304 stainless steel.

Q: What is the weight of the housing?

A: The weight is 1.2 kg.

Product Support and Availability

For assistance with the 32000-29-05-10-080-07-02, contact Petro Auto Tech. We are an industrial automation parts supplier. Please verify current lifecycle status and availability before ordering. Our team can provide datasheets and technical support.
