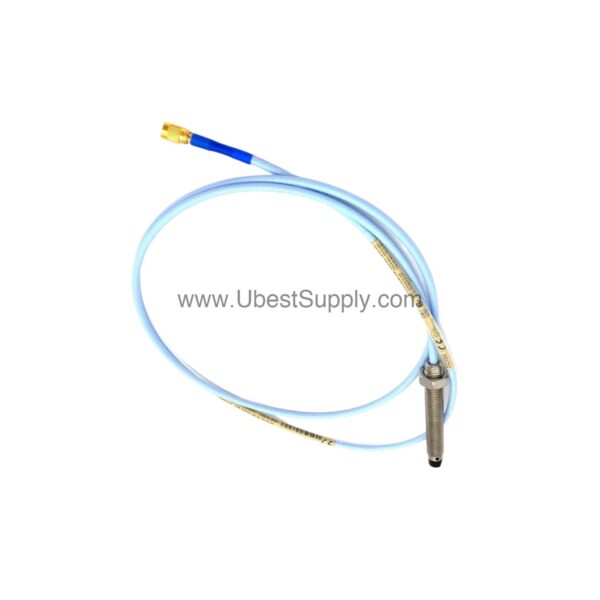

330101-00-12-10-01-CN | Bently Nevada 8 mm Probe 3/8-24 UNF

Introduction to the Bently Nevada 330101-00-12-10-01-CN

When machinery vibration threatens uptime, the 330101-00-12-10-01-CN from Bently Nevada provides a robust sensing solution. This 8 mm probe uses a 3/8-24 UNF thread for secure mounting. It is designed for permanent installation in rotating equipment. The probe helps you detect shaft vibration and position changes early. Consequently, you can address issues before they escalate into costly failures.

This model is part of the 3300 XL series, known for rugged construction. The probe tip is molded with patented TipLoc technology for a stronger bond. Additionally, the CableLoc design offers 330 N (75 lbf) pull strength. These features enhance reliability in demanding industrial environments.

Key Features and Technical Specifications

The 330101-00-12-10-01-CN includes several engineered features that improve performance and durability.

• 8 mm probe diameter with thicker PPS encapsulation for ruggedness.
• 3/8-24 UNF thread for straightforward installation.
• Minimum unthreaded length of 0.0 inches.
• Overall case length option: 12 - 1.2 inches.
• Total length option: 1.0 metre (3.3 feet).
• Miniature coaxial ClickLoc connector with connector protector.
• Country Specific Approval for China (CN).
• Nominal probe DC resistance: 7.59 ± 0.50 ohms for 1.0 metre length.
• Linear range: 2 mm (80 mils), starting at approximately 0.25 mm (10 mils).
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±5% for standard 1 or 5 meter systems.
• Probe tip material: Polyphenylene sulfide (PPS).
• Probe case material: AISI 303 or 304 stainless steel.
• Operating temperature range: -52°C to +177°C (-62°F to +350°F).

These specifications ensure accurate vibration measurement across a wide range of conditions. The stainless steel case provides corrosion resistance. Moreover, the PPS tip withstands harsh environments.

Applications and Use Cases

The 330101-00-12-10-01-CN is ideal for monitoring rotating machinery such as turbines, compressors, and pumps. It measures shaft relative vibration and position. This data is critical for predictive maintenance programs. By detecting abnormal vibration early, you can schedule repairs during planned downtime. Therefore, the probe helps minimize unplanned outages and extends equipment life.

In addition, the probe works well in high-temperature areas up to +177°C. This makes it suitable for many industrial processes. The robust design withstands physical abuse, reducing replacement frequency.

Installation and Setup

Proper installation is essential for accurate readings. First, mount the probe using the 3/8-24 UNF thread. Ensure the target surface is clean and within the recommended gap. For radial vibration, set the gap to approximately -9 Vdc, which corresponds to about 1.27 mm (50 mils). Use the provided ClickLoc connector for a secure cable attachment.

Field wiring should use 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded triad cable. Keep the maximum length between the Proximitor Sensor and the monitor at 305 meters (1,000 feet). Longer runs may cause signal rolloff at high frequencies. Therefore, follow the frequency response graphs in the manual.

Maintenance and Reliability

Regular inspection of the probe and cable is recommended. Check for physical damage or loose connections. The probe is designed to seal differential pressure using a Viton O-ring. However, probes are not pressure tested before shipment. If your application requires pressure seal verification, contact Bently Nevada's custom design department.

Humidity testing shows less than 3% change in Average Scale Factor after 56 days at 93% humidity. This ensures stable performance in moist environments. Additionally, the stainless steel case resists corrosion. Consequently, the probe offers long service life with minimal upkeep.

Troubleshooting and Common Issues

If readings are erratic, first check the cable connection. Ensure the ClickLoc connector is fully seated. Next, verify the gap voltage is within the linear range. The linear range begins at approximately 0.25 mm (10 mils) from the target. If the gap is too large or too small, readings may be inaccurate.

Another common issue is signal noise from long cable runs. Keep field wiring under 305 meters to avoid high-frequency rolloff. Also, use shielded triad cable to reduce electromagnetic interference. If problems persist, consult the official Bently Nevada documentation or contact Petro Auto Tech for assistance.

Product Support and Availability

The 330101-00-12-10-01-CN is available through Petro Auto Tech. We stock genuine Bently Nevada parts to ensure quality and reliability. For current pricing and lead times, contact our sales team. We are ready to help you integrate this probe into your monitoring system.
