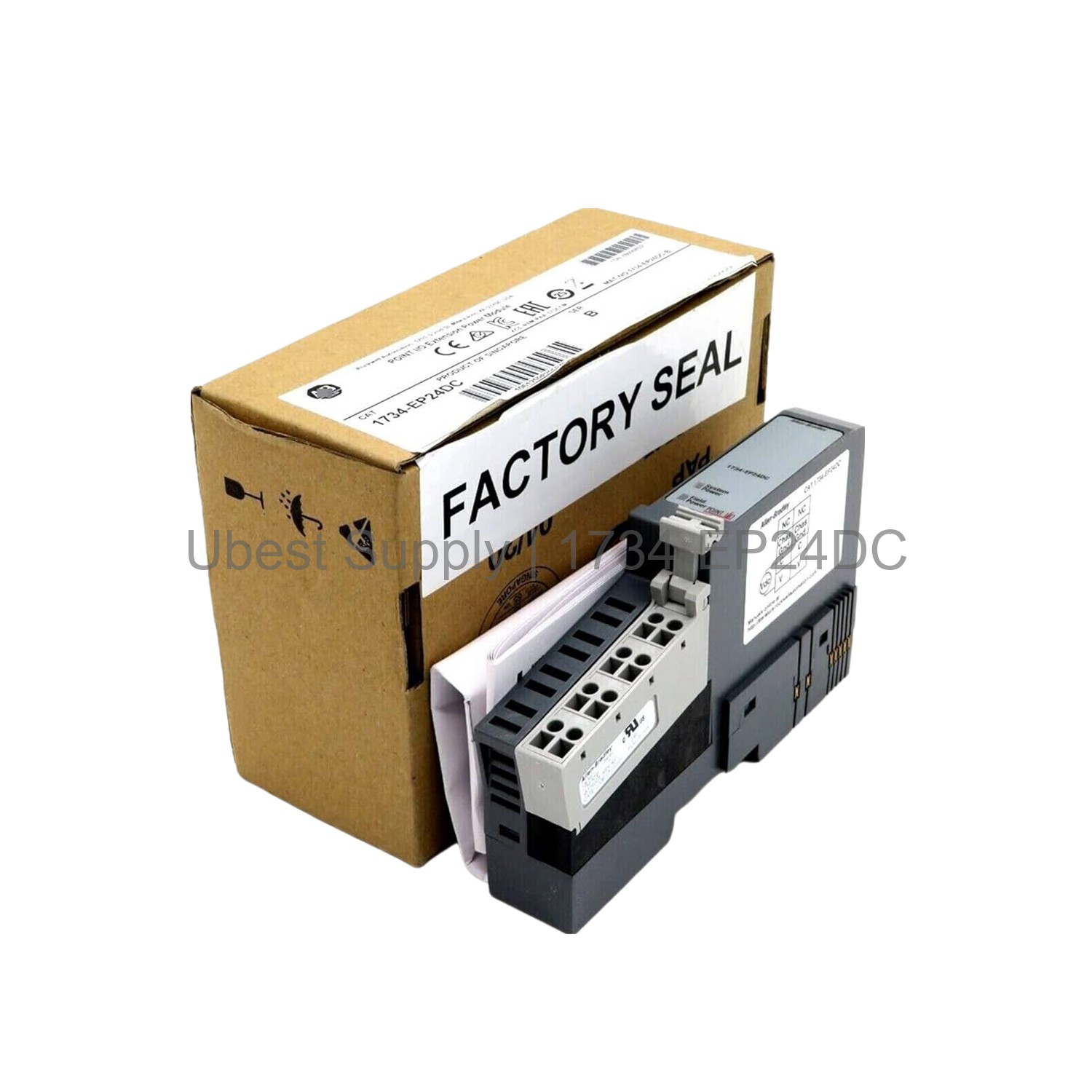

Allen-Bradley 1734-EP24DC POINT I/O Expansion Power Supply

Product Overview

The Allen-Bradley 1734-EP24DC is an expansion power supply for POINT I/O systems. It passes field power to modules on the right side. This unit extends backplane bus power to support up to 17 I/O modules. It separates field power from the left side module. The dark gray color allows easy visual identification. This module works with any 1734 POINT I/O adapter.

Application Scenarios

Use this power supply in distributed control systems. It creates new voltage partitions for field devices. You can install it in new or existing POINT I/O racks. It helps expand the system without adding a new adapter. Typical applications include factory automation, process control, and material handling.

Technical Specifications

The input voltage range is 10 to 28.8V DC nominal 24V. Maximum power consumption is 9.8W at 28.8V. Power dissipation is 3.0W at 28.8V. Thermal dissipation equals 10 BTU per hour. The module provides POINTBus output current. Horizontal mounting gives 1A at 10-19.2V input and 1.3A at 19.2-28.8V. Vertical mounting gives 1A at 10-28.8V. Inrush current is 6A for 10 milliseconds. It has reverse polarity protection. Supply current rating is 10A. Isolation voltage is 50V continuous. Operating temperature ranges from -13 to 140 degrees Fahrenheit. Nonoperating temperature is -40 to 185 degrees Fahrenheit. Relative humidity range is 5 to 95 percent without condensation. Operating vibration is 5g at 10-500 Hz. Operating shock is 30g. Nonoperating shock is 50g.

Installation & Maintenance Guide

Mount the module horizontally or vertically. Follow the orientation of the POINT I/O system. Install the module on a DIN rail. Connect input power to the terminals. Observe proper polarity. The unit includes a status indicator for field power and 5V system power. If input voltage drops out for 10 ms at maximum load, output stays within spec. No routine maintenance required. Always disconnect power before servicing.

Packing List

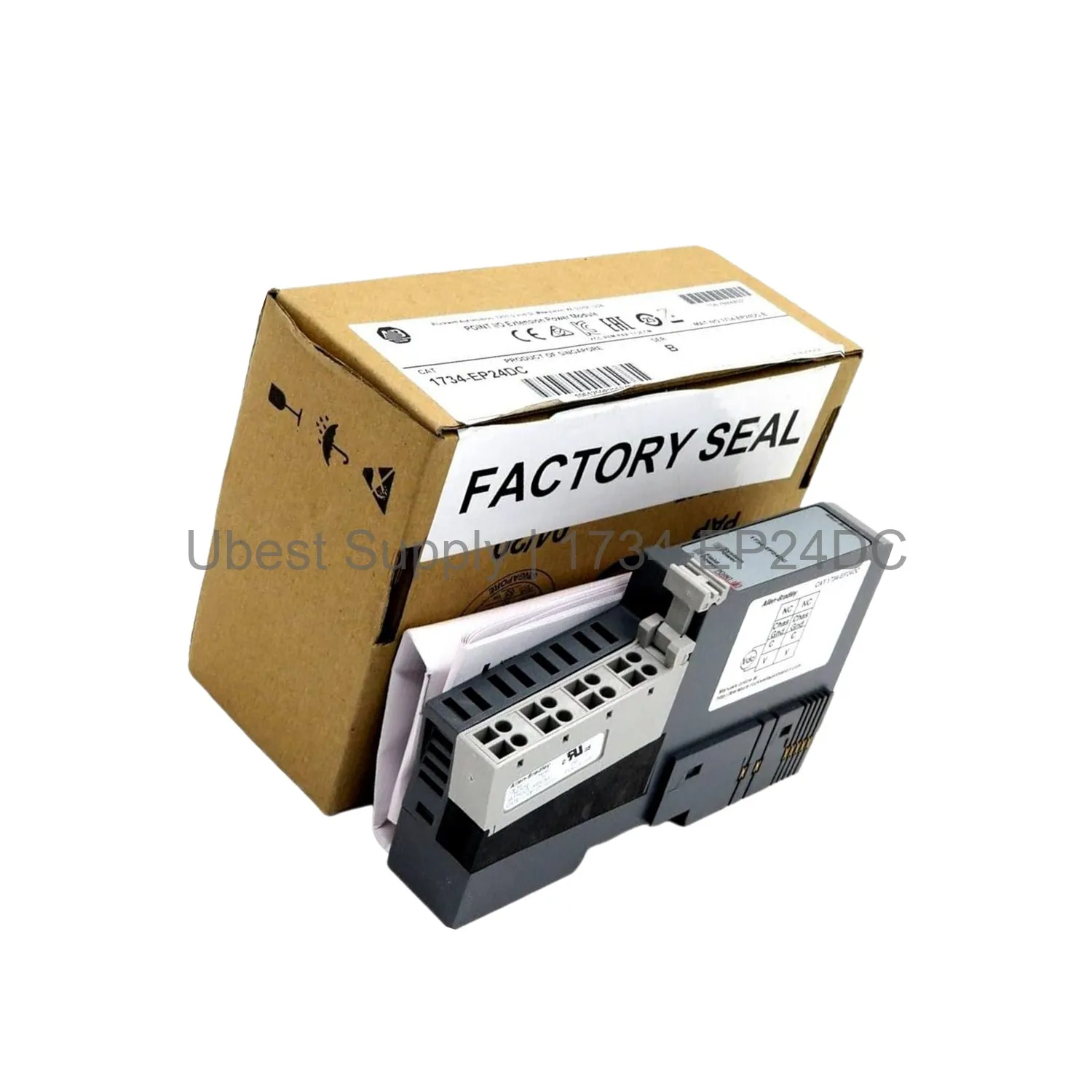

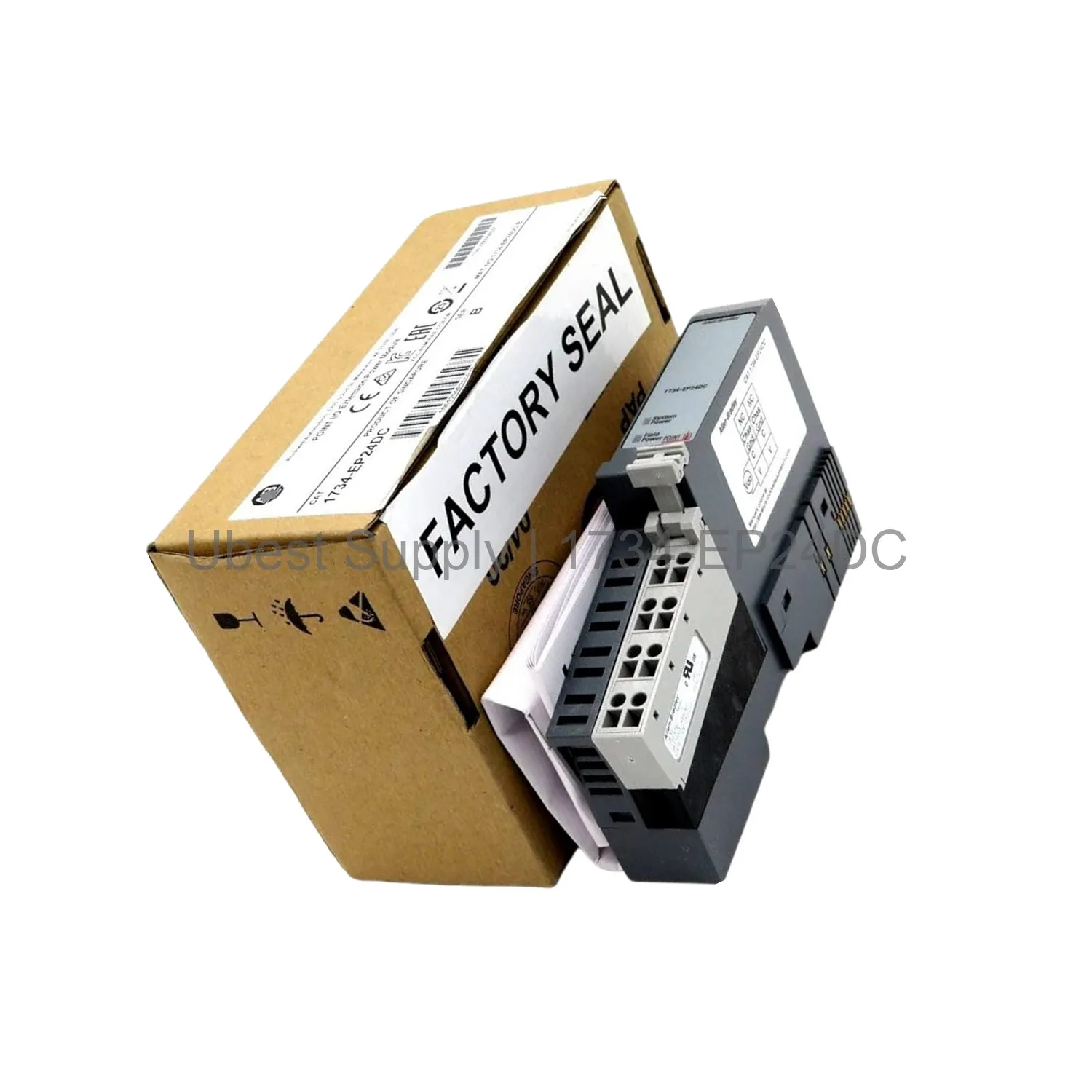

The package includes one 1734-EP24DC expansion power supply unit. It also includes installation instructions. No additional hardware is required for DIN rail mounting. Shipping is via Fedex, UPS, or DHL.
