ABB TU814V1: Procurement Guide

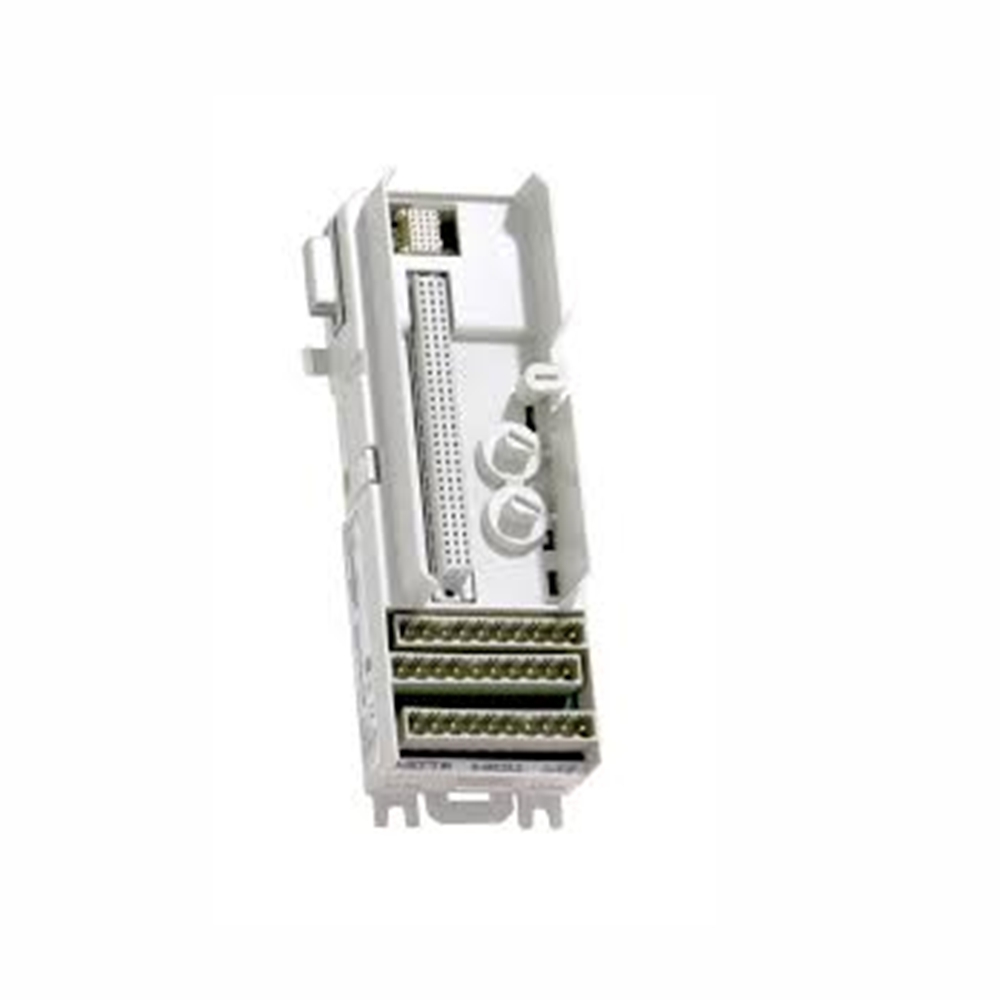

The ABB TU814V1 is a compact Module Termination Unit (MTU) from the S800 I/O series. It serves as a reliable interface between field I/O signals and the control system in process automation. This unit supports up to 16 I/O channels and two process voltage connections, making it a practical choice for distributed control architectures.

Core Value

Many industrial facilities face signal degradation and wiring errors when connecting field devices to controllers. The ABB TU814V1 directly addresses this challenge by providing a robust termination point with organized channel mapping. Consequently, engineers can reduce installation time and troubleshooting effort in applications like chemical processing and power generation. Specifically, its ability to handle 50 V and 2 A per channel ensures compatibility with common sensors and actuators.

Technical Insights

The ABB TU814V1 MTU operates with a maximum rated voltage of 50 V and a maximum rated current of 2 A per channel. These parameters allow it to support both digital and analog signals from proximity switches, pressure transmitters, and valve positioners. Furthermore, the two separate process voltage connections enable independent power supply for different signal loops, which minimizes electrical noise interference. Additionally, the compact footprint of this module termination unit simplifies panel layout and reduces overall cabinet space requirements. Therefore, maintenance teams can replace individual channels without disrupting adjacent wiring. This design directly contributes to higher system uptime in industries such as oil and gas and water treatment.

Installation and Maintenance Guide

When mounting the ABB TU814V1, always place it on a standard DIN rail inside a clean, dry enclosure. First, ensure the backplane bus connector aligns correctly with the adjacent S800 I/O module to guarantee reliable data communication. Second, use shielded twisted-pair cables for process voltage connections to prevent electromagnetic interference. Third, label each channel clearly according to the I/O mapping diagram before wiring field devices. For routine maintenance, inspect the screw terminals quarterly and retighten any loose connections. Never exceed the 2 A per channel limit, as this can damage the internal circuitry.
