Introduction to the ABE7R16S210

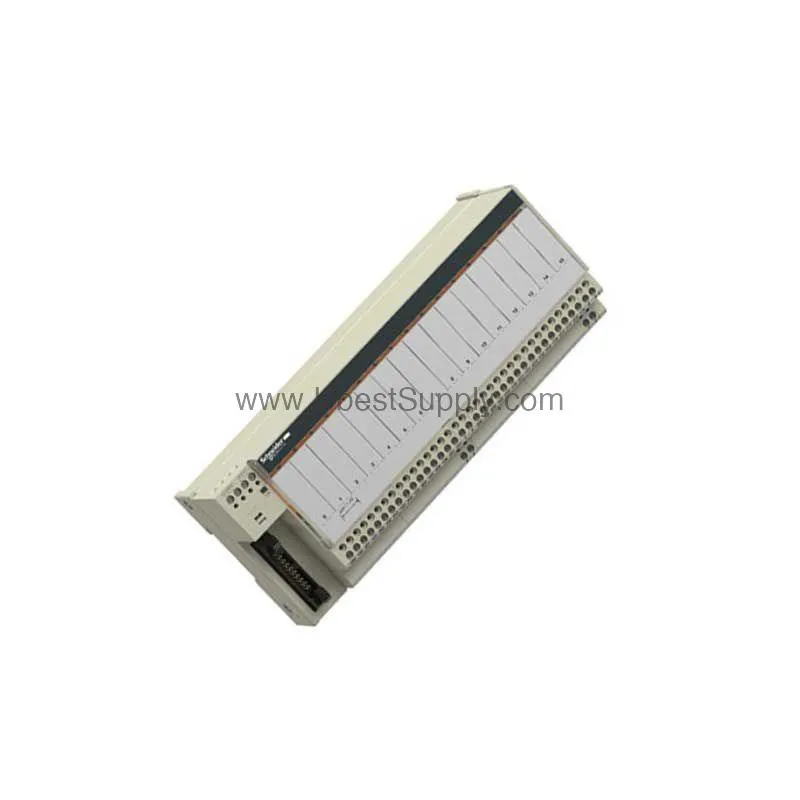

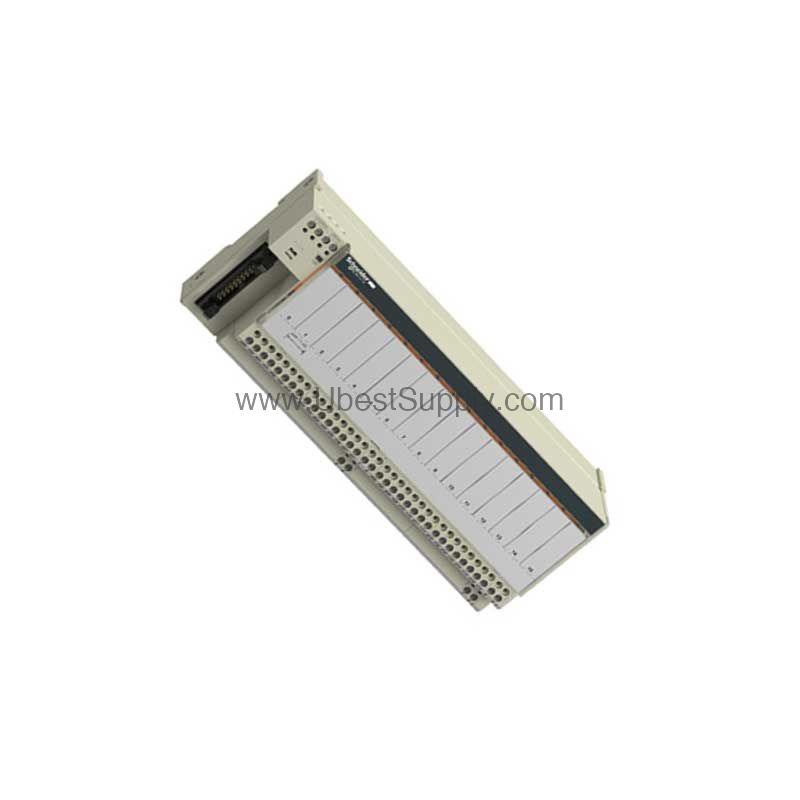

As industrial automation evolved from hardwired relay panels to modular PLC systems, the need for robust, field-proven output interfaces remained constant. The ABE7R16S210 from Schneider Electric meets this demand with a 16-channel electromechanical output relay sub-base designed for the Modicon ABE7 range. It delivers dependable switching for preactuator loads in demanding environments.

Key Features and Technical Specs of the ABE7R16S210

• Rated supply voltage: 24 V DC for the PLC end.
• 16 channels with 2 terminals per channel.
• Maximum current per output common: 10 A.
• Current per channel: 5 A for preactuator end.
• Minimum switching current: 10 mA at >= 5 V.
• Switching frequency: <= 0.5 Hz at rated load, <= 10 Hz no load.
• Maximum switching voltage: 250 V AC 50/60 Hz and 30 V DC.
• Contact type: 1 NO per channel for preactuator end.
• IP degree of protection: IP2X.
• Ambient air temperature for operation: -5 to 60 °C.

A standout spec is the electrical reliability of 1e-008, meaning fewer than one failure per 100 million operations, which directly reduces unexpected downtime.

Applications and Use Cases for the ABE7R16S210

In manufacturing lines, the ABE7R16S210 controls solenoid valves and indicator lights with its 16 independent relay outputs. Its volt-free polarity distribution allows flexible wiring for diverse loads. For example, in a packaging machine, it reliably switches actuators at 0.5 Hz, ensuring consistent cycle times. The wide operating temperature range also suits unheated factory floors.

Installation and Setup of the ABE7R16S210

Mount the sub-base on a 35 mm symmetrical DIN rail using the included clips, or fix it to a solid plate with the optional kit. The removable terminal block simplifies wiring: tighten each screw to 0.6 N·m using a flat 3.5 mm screwdriver. Connect the 24 V DC supply to the PLC end terminals, and route load wires to the preactuator end. Always verify polarity for volt-free operation.

Maintenance and Reliability of the ABE7R16S210

With a mechanical durability of 20 million cycles and electrical durability of 500,000 cycles at rated loads, the ABE7R16S210 offers long service life. Inspect the relay contacts periodically for wear, especially in high-frequency switching applications. The IP2X enclosure protects against solid objects, while the -40 to 80 °C storage range ensures safe standby. Follow the manufacturer's manual for routine checks.

Compatibility and Integration of the ABE7R16S210

This sub-base integrates seamlessly with Modicon ABE7 systems. It works with any PLC that provides a 24 V DC output to drive the relay coils. The volt-free contacts allow connection to various load voltages up to 250 V AC or 30 V DC. For detailed system compatibility, refer to the official Schneider documentation.

FAQ about the ABE7R16S210

Q: What is the rated supply voltage for the ABE7R16S210?

A: The rated supply voltage is 24 V DC for the PLC end.

Q: How many channels does the ABE7R16S210 have?

A: It has 16 channels, each with 2 terminals.

Q: What is the maximum switching voltage for the relay contacts?

A: The maximum switching voltage is 250 V AC 50/60 Hz or 30 V DC.

Q: What is the operating temperature range for the ABE7R16S210?

A: The ambient air temperature for operation is -5 to 60 °C.

Q: Is the ABE7R16S210 still in production?

A: Please verify current lifecycle status and availability with Petro Auto Tech before ordering.
