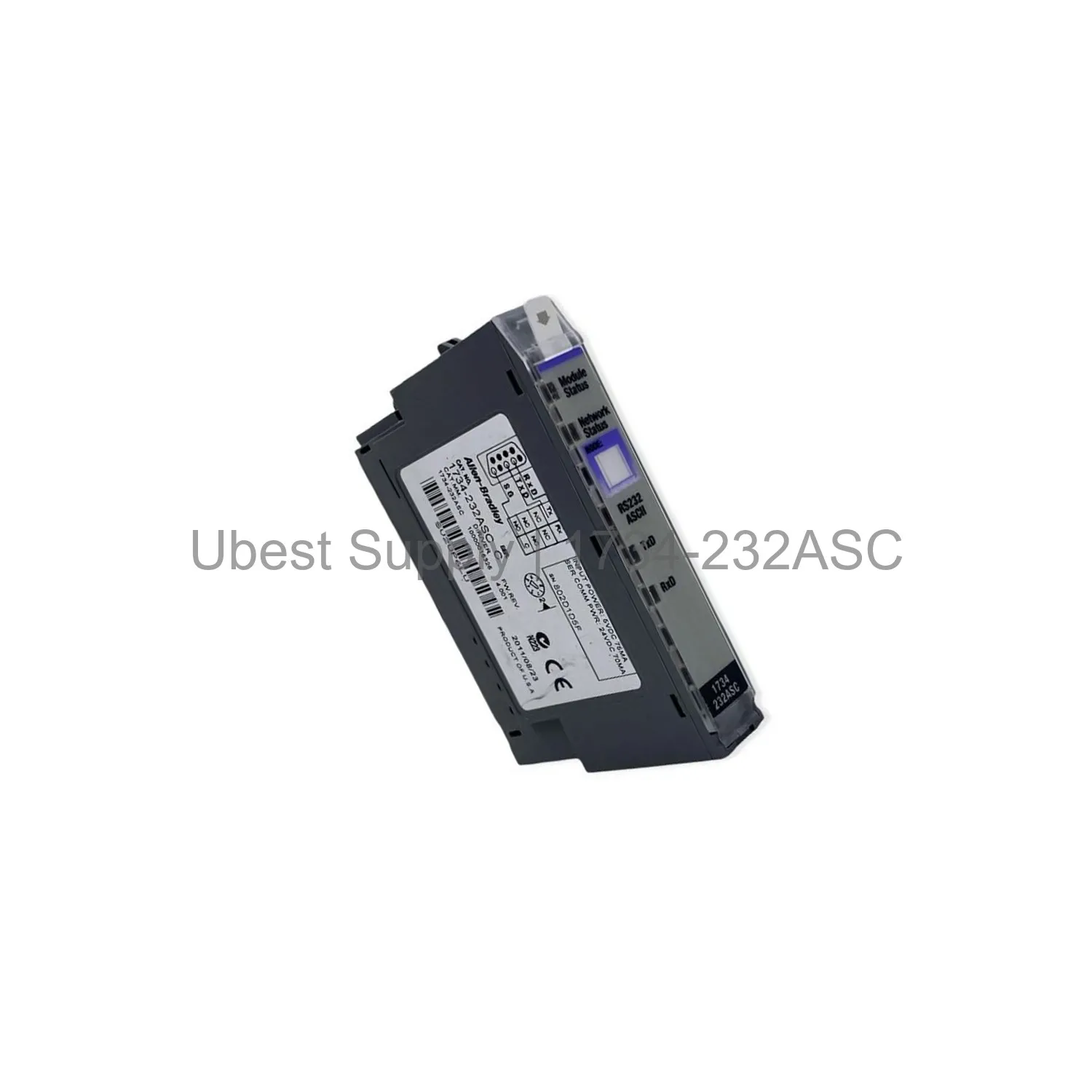

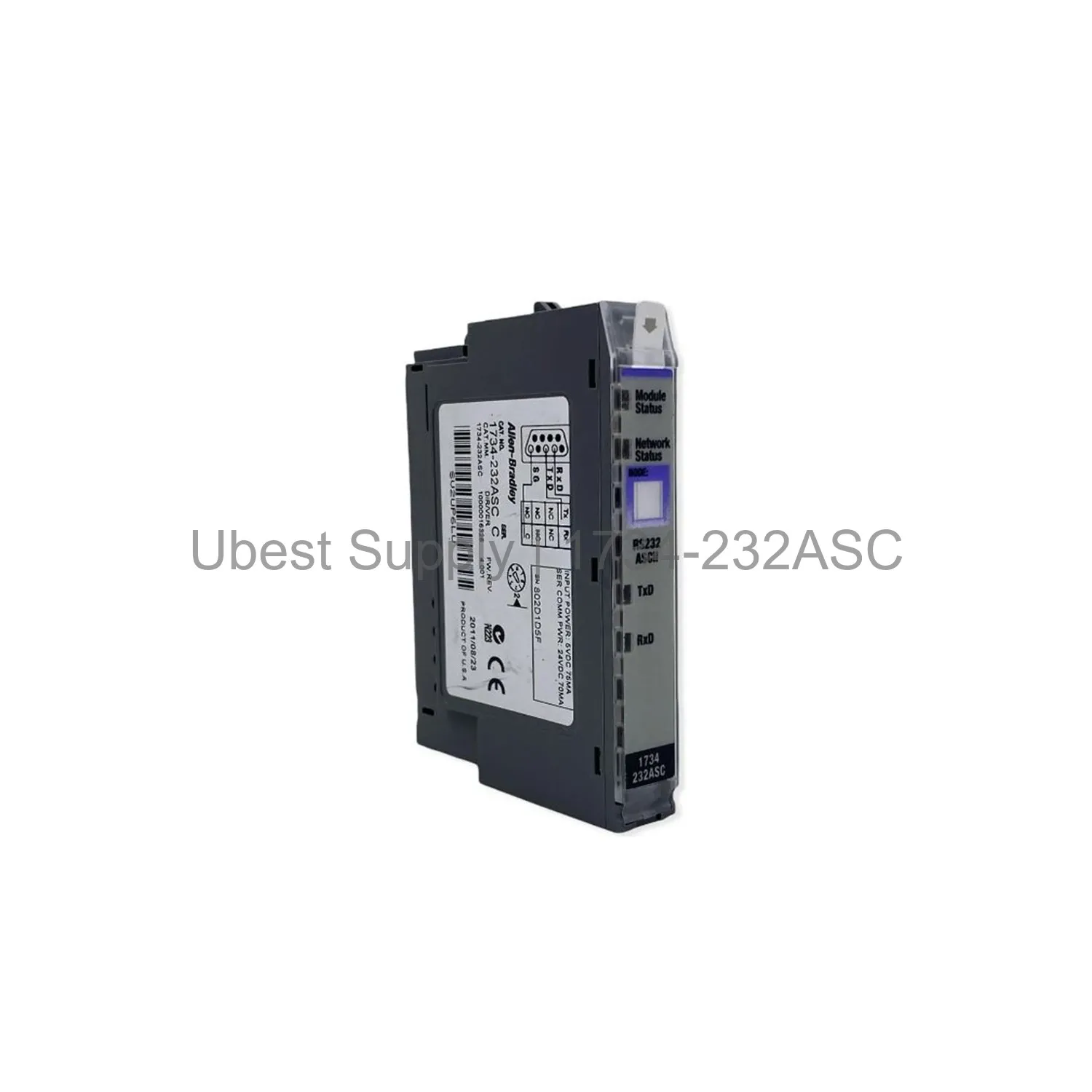

Allen-Bradley 1734-232ASC POINT I/O ASCII Communication Module

Product Overview

The 1734-232ASC is an Allen-Bradley POINT I/O ASCII communication module. It provides one full-duplex RS232 terminal. This terminal supports ASCII protocol communication. The module accepts +3 to +25V DC as ON signal. It accepts -3 to -25V DC as OFF signal. It supports character framing like 8N1 and 7E1. Common baud rates include 9600, 1200, and 38.4k. This module uses a compact design. It fits easily on a DIN rail. The logic side has status indicators. One green/red module status LED shows health. One green/red network status LED shows connection. Two green TXD and RXD LEDs show data activity. The module draws 15mA at 24V DC. Maximum power dissipation is 0.75W at 28.8V DC. Thermal dissipation reaches 2.5 BTU/hr. The external DC voltage range is 10 to 28.8V DC. Nominal supply voltage is 24V DC. The module has a PointBus current draw of 75mA at 5V DC. It works with 1734-TB or -TBS wiring bases. Keyswitch position is 2. Dimensions are 56 x 12 x 75.5 mm. Operating temperature is -20 to 55°C. Storage temperature is -40 to 85°C. Humidity range is 5% to 95% non-condensing. The enclosure has open-style rating.

Application Scenarios

This module connects to barcode readers in industrial settings. It works in point-of-sale systems. Manufacturers use it for automated sorting. It supports quality assurance applications. The 1734-232ASC reads ASCII data from scanners. It sends data to a PLC or controller. This allows real-time product tracking. The module improves efficiency in assembly lines. It can handle multiple character framings. This gives flexibility for different devices. The compact size saves panel space. The module supports vertical or horizontal mounting. It works with DeviceNet, EtherNet/IP, and PROFIBUS adapters. The change-of-state connections reduce network traffic. The removal and insertion under power feature avoids downtime. Users can replace the module without powering down. This makes maintenance easier. The module also supports auto device replacement. This speeds up system recovery.

Technical Specifications

Manufacturer: Rockwell Automation / Allen-Bradley
Product Family: 1734 POINT I/O
Module Type: ASCII communication module
No. of Ports: 1 full-duplex RS232
Supported Protocols: ASCII
Serial Character Framing: 7N2, 7E1, 7O1, 8N1, 8N2, 8E1, 8O1, 7E2, 7O2
Communication Speeds: 9600, 1200, 2400, 4800, 19.2k, 38.4k
Supply Current: 15mA @ 24V DC
Power Dissipation: 0.75W maximum @ 28.8V DC
Thermal Dissipation: 2.5 BTU/hr maximum @ 28.8V DC
External DC Voltage Range: 10-28.8V DC
PointBus Current Draw: 75mA @ 5V DC
Indicators: 1 green/red module status, 1 green/red network status, 2 green TXD/RXD
Dimensions: 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)
Operating Temperature: -20 to 55°C (-4 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative Humidity: 5% to 95% non-condensing
Wiring Base Compatibility: 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS
Keyswitch Position: 2

Installation & Maintenance Guide

Mount the module to a compatible wiring base. Use the 1734-TB or -TBS base. Align the keyswitch to position 2. Slide the module onto the base. Ensure proper locking. Connect the RS232 cable to the terminal block. Provide an external DC power supply of 24V nominal. The power range is 10 to 28.8V DC. Check the module status LED after power-up. The LED should show solid green. Configure the communication parameters in your system. Set baud rate and character framing as needed. Use the software to set start and end delimiters. The module supports up to 128 characters per record. For maintenance, you can remove the module under power. This is the RIUP feature. Simply unlock and slide out. Replace with a new module. System auto-recovers with ADR. Keep the area free from dust. Check connectors periodically. The module does not need regular calibration.

Packing List

Each package includes the 1734-232ASC ASCII communication module. Also includes a documentation manual. The module is individually packed. Dimensions and weight are minimal. We ship via Fedex, UPS, or DHL. Choose your preferred carrier at checkout. The module arrives ready for installation.
