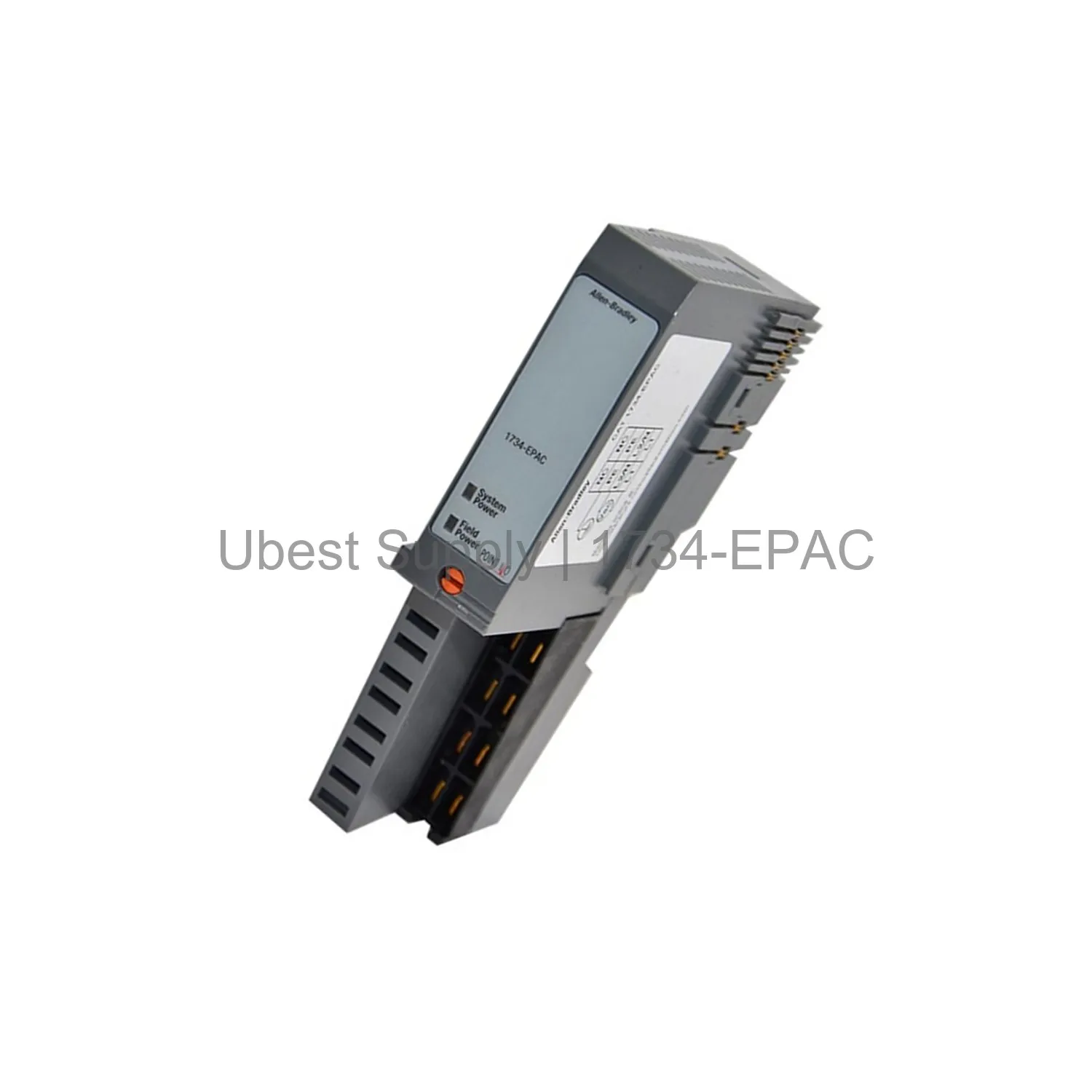

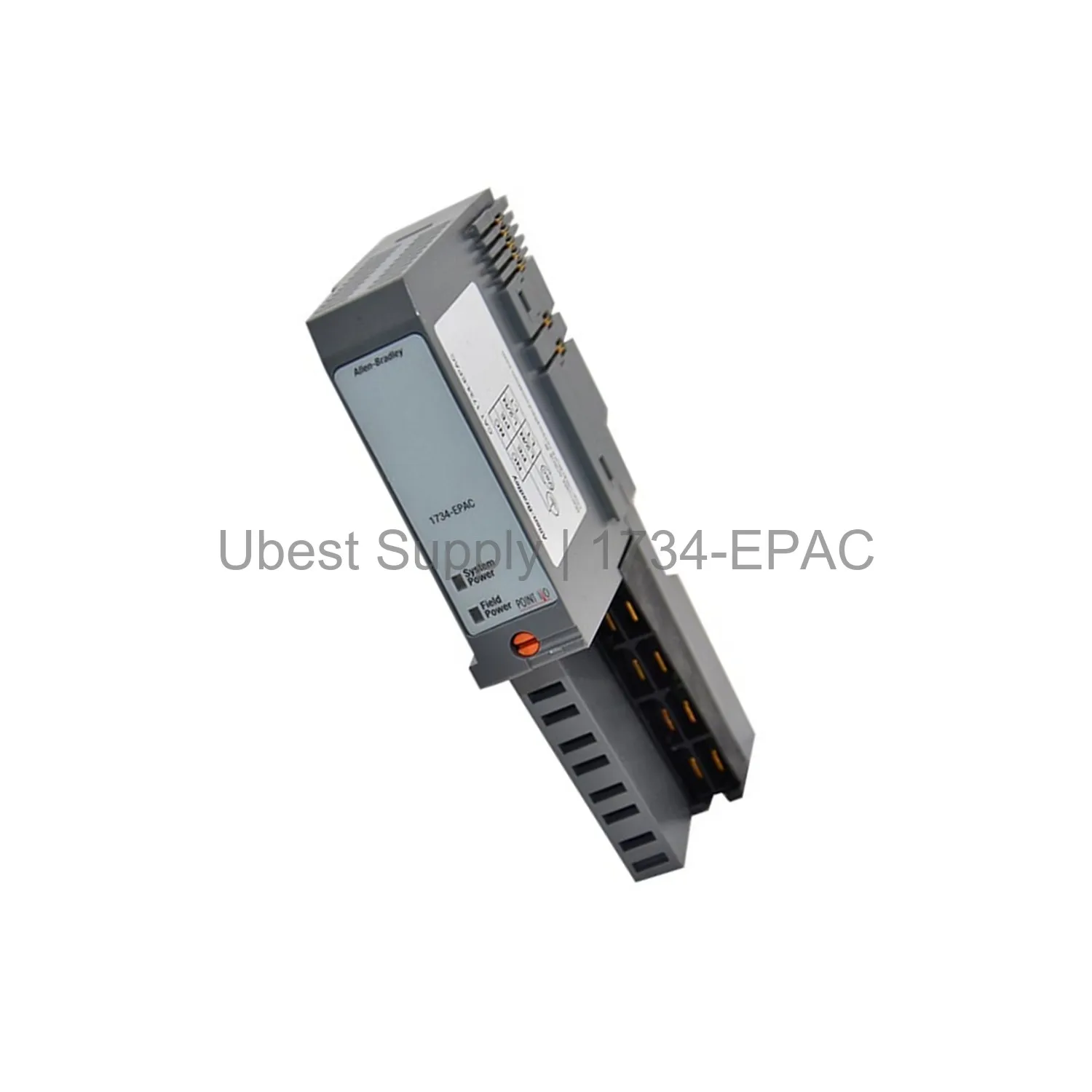

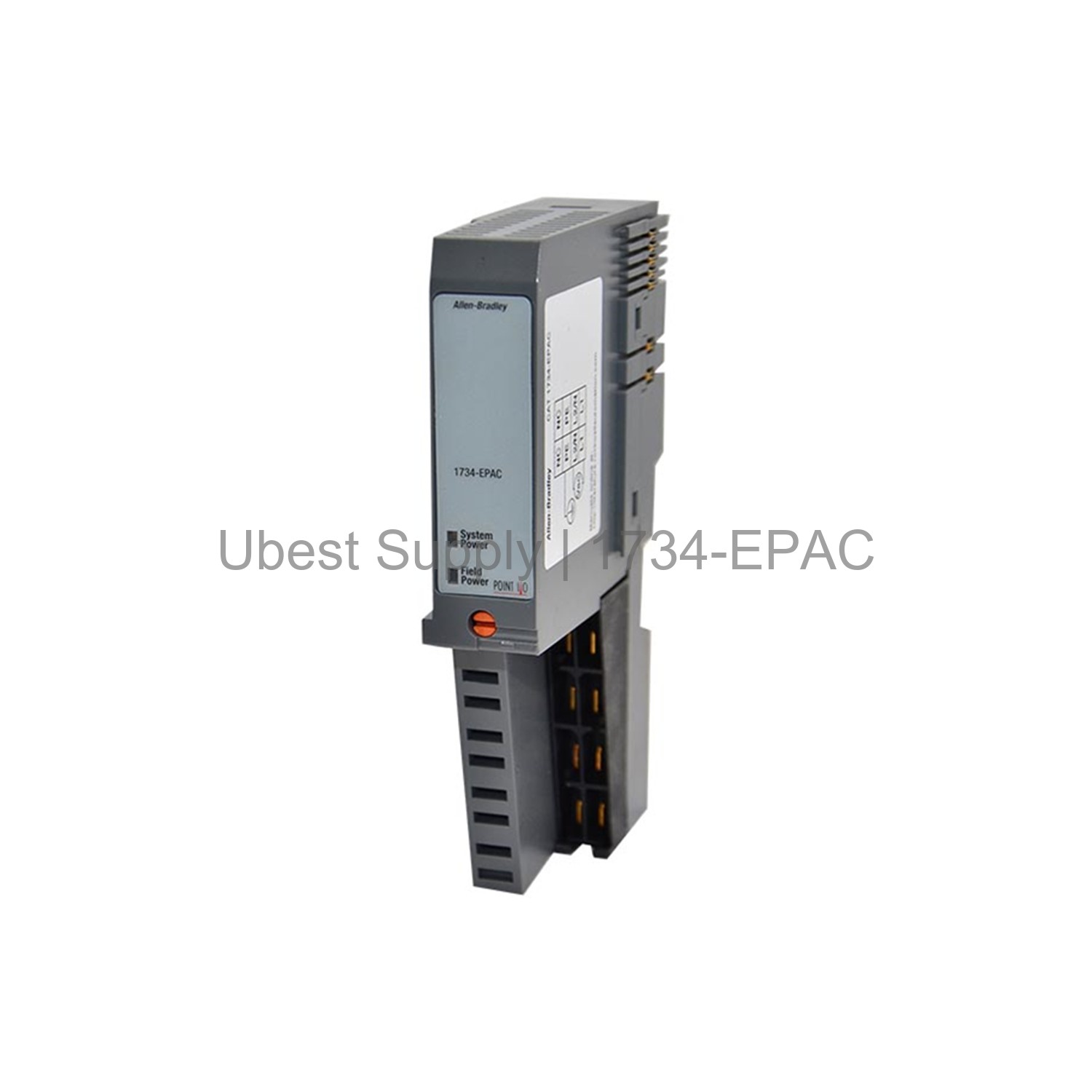

Allen-Bradley 1734-EPAC POINT I/O Expansion Power Supply

Product Overview

The Allen-Bradley 1734-EPAC is a POINT I/O Expansion Power Supply. It provides field power to I/O modules. This unit works with 120 or 240 Volts AC. It supports 4 to 17 modules. The exact number depends on DIN-rail position and current needs.

You can use multiple 1734-EPAC units with POINT I/O adapters. This builds a complete system. The power supply separates field power. It creates logical partitions between input and output modules. This groups modules by function.

Application Scenarios

Use this power supply in industrial automation. It works with Allen-Bradley POINT I/O systems. Common applications include manufacturing lines. It also works in process control. The unit powers sensors and actuators. It ensures stable field voltage.

Separate power sections for safety. Group output modules away from input modules. This reduces electrical noise. The 1734-EPAC works in cabinets or panels. It fits standard DIN rails.

Technical Specifications

Field power: 120 or 240 Volts AC. Inrush current: 2 amps for 6 milliseconds. Overvoltage protection: MOV and fuse. Power supply current: 10 amps. Isolation voltage: 264 Volts continuous. Power consumption: 15.1 Watts max. Power dissipation: 8.4 Watts max.

Input voltage range: 85 to 264 Volts AC. Frequency: 50 to 60 Hertz. Thermal dissipation: 28.7 BTU/hour. Two green indicators show field power and 5V system power. Certifications: cULus, CE, C-Tick.

Installation & Maintenance Guide

Turn off all field power before wiring. This prevents electrical arcs. Mount the unit on a DIN rail. Connect field power wires. Check polarity and voltage. Use proper fuse ratings. Do not exceed 55°C operating temperature. Keep humidity below 95% noncondensing.

Inspect the 1734-EPAC regularly. Clean dust from vents. Verify indicator lights. Replace if damaged. Use only Allen-Bradley approved parts.

Packing List

Each unit includes: one 1734-EPAC Expansion Power Supply, one installation guide, and necessary mounting hardware. No cables or fuses included. Ship via FedEx, UPS, or DHL.
