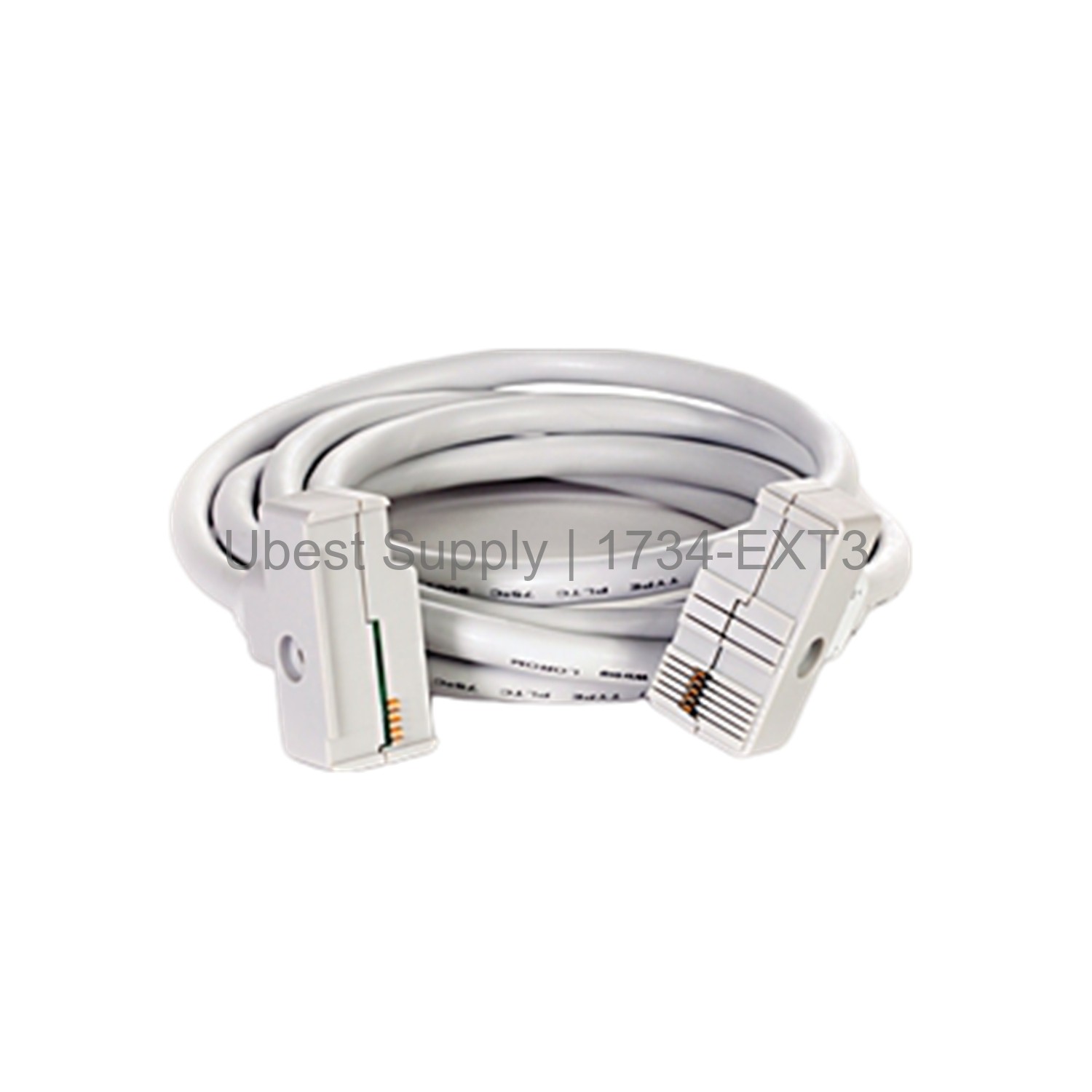

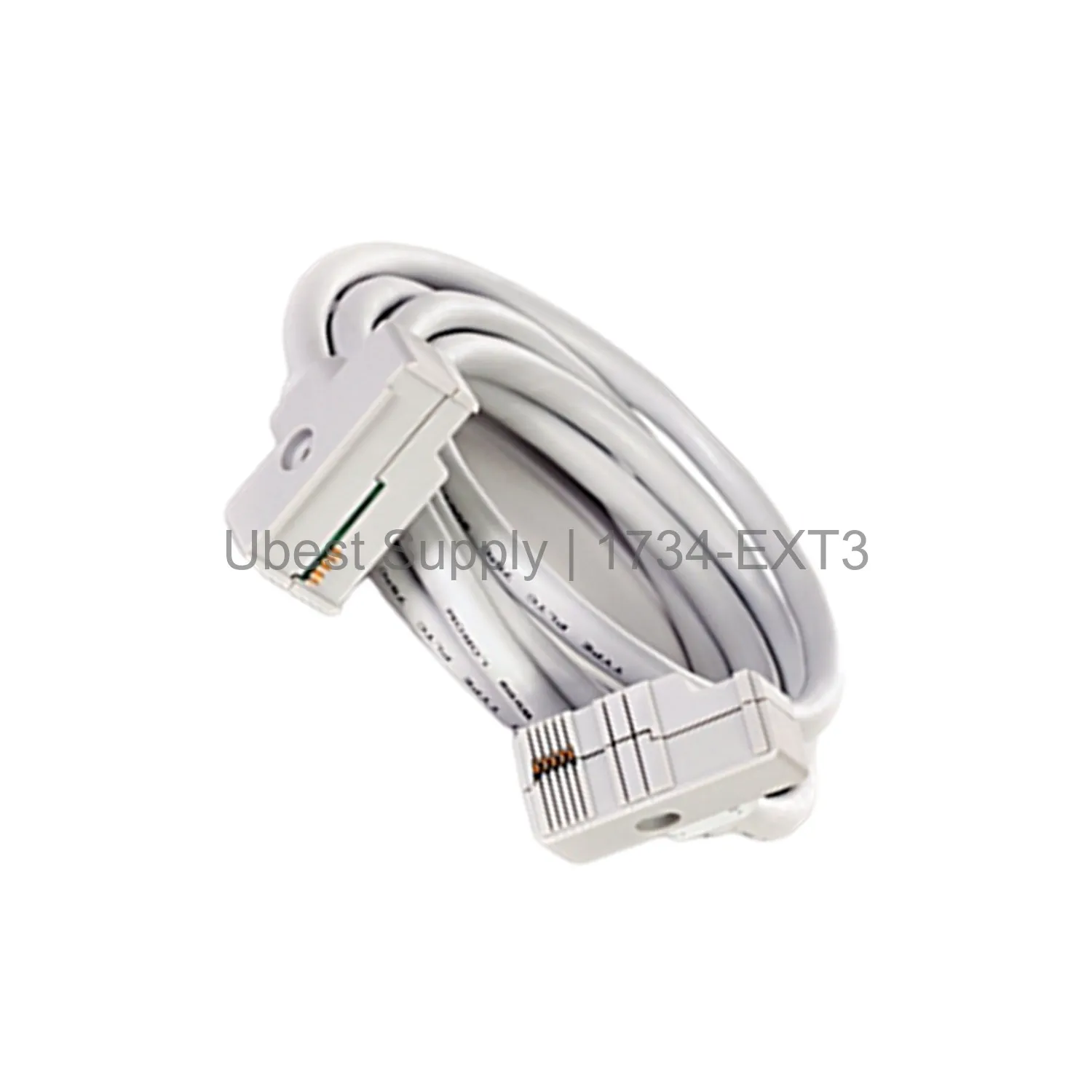

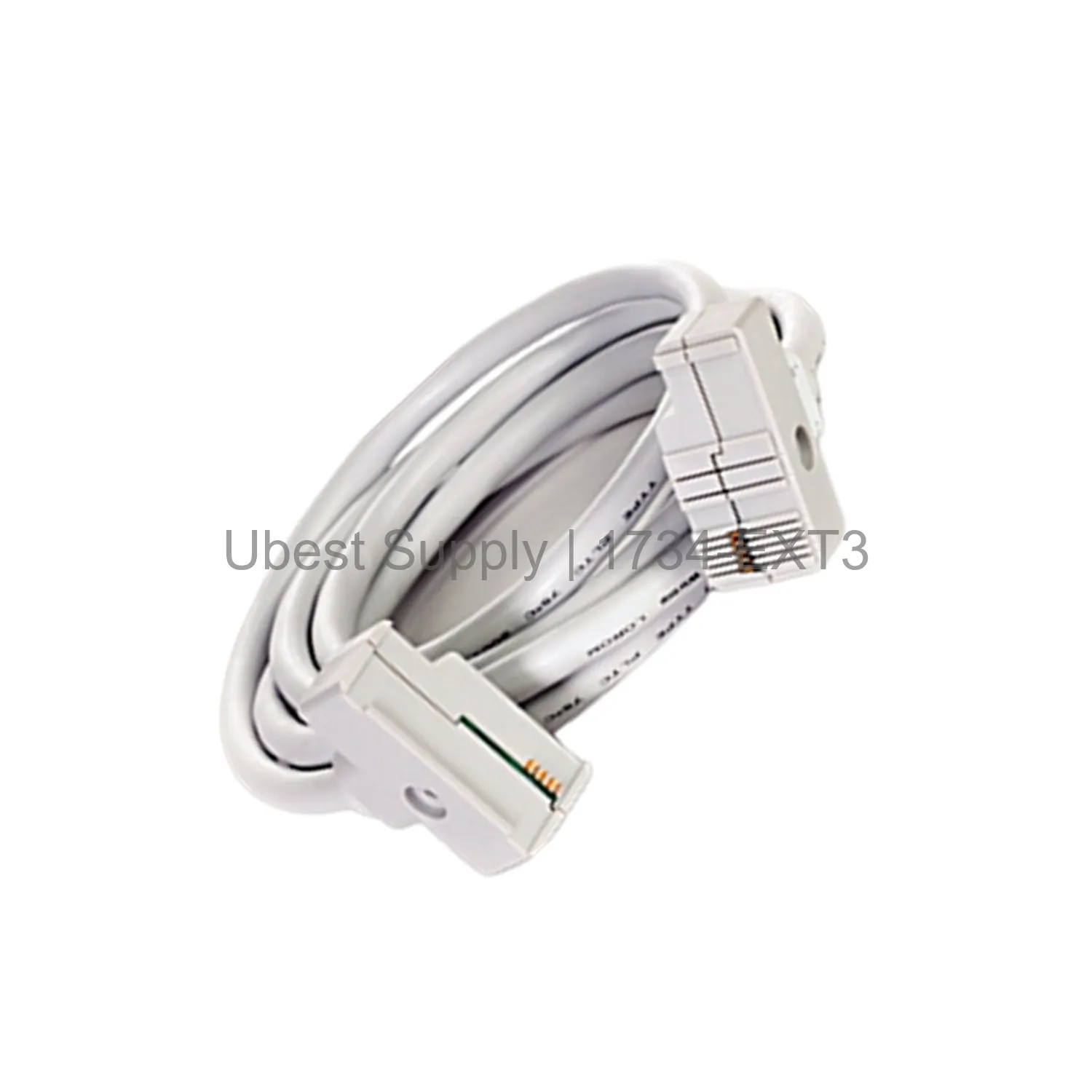

Allen-Bradley 1734-EXT3 POINT I/O Extension Cable 3m

Product Overview

The Allen-Bradley 1734-EXT3 is a POINT I/O extension cable. It measures 3 meters long. This cable connects POINT I/O modules to adapters. It supports RIUP operation. Users can insert modules while the system runs. This cable uses open-style connectors. It works with 1794 modular POINT I/O systems. These systems offer low cost of ownership. They provide flexibility in control system design.

Application Scenarios

The 1734-EXT3 works in cabinet applications. It connects I/O modules to networks. Use it with DeviceNet, Ethernet/IP, ControlNet, or Profibus adapters. It supports analog, digital, RTD, and thermocouple I/O. Specialty modules like RS-232 and encoders also work. This cable enables flexible system layouts. It is ideal for distributed I/O architectures. The POINT I/O system accepts up to 63 modules per node. That equals 504 channels maximum. The system supports six I/O types. It also supports four adapter types. This cable is key for system expansion. It helps reduce wiring complexity. It enhances system scalability. Choose the 1734-EXT3 for reliable connections. It meets industrial standards for durability.

Technical Specifications

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number: 1734-EXT3
• Series: POINT I/O
• Type: POINTBus extension cable
• Length: 3 meters
• Connectors: Open-style at both ends
• RIUP: supported
• Compatible with 1794 modular POINT I/O

Installation & Maintenance Guide

Install the 1734-EXT3 inside the cabinet. Connect one end to the adapter module. Connect the other end to the I/O module bank. Ensure the cable is not stressed. Avoid sharp bends. Verify connections are secure before powering on. The RIUP feature allows removal under power. Replacement is straightforward. Use only recommended torque values. Keep cable away from heat sources. Follow local electrical codes. The open-style connectors allow easy field wiring. No special tools are required. Installation is quick and simple. This saves time and reduces errors. The cable jacket provides good protection. It resists oil and abrasion. Use in industrial environments with confidence.

Packing List

• 1x Allen-Bradley 1734-EXT3 extension cable (3 meters)
• Documentation (if applicable)

Shipping via FedEx, UPS, or DHL.
