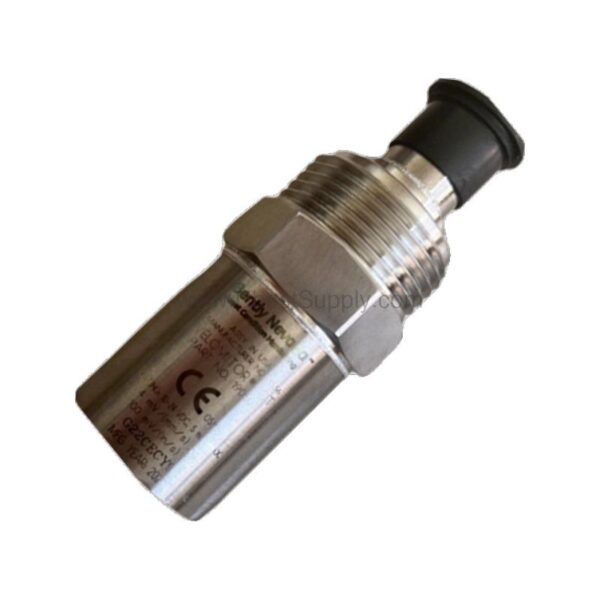

190501-04-00-04 | Bently Nevada Velomitor CT Velocity Transducer

Introduction to the 190501-04-00-04 Velomitor CT Velocity Transducer

When you need precise vibration measurement in demanding industrial environments, the 190501-04-00-04 from Bently Nevada provides a dependable solution. This Velomitor CT Velocity Transducer is engineered to deliver accurate velocity data, helping you monitor machinery health and avoid unplanned downtime.

With a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, this transducer converts mechanical vibration into a clear electrical signal. Its robust design and agency approvals make it suitable for hazardous areas, ensuring safety without compromising performance.

Key Features & Technical Specifications

The 190501-04-00-04 stands out for its comprehensive specifications, each traceable to the official datasheet. Below are the core parameters that define its capabilities:

• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%.
• Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB; 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB.
• Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B.
• Dynamic Output Impedance: <400 Ω typical.
• Broadband Noise: 0.229 mm/s (0.009 in/s) pk.
• Base Strain Sensitivity: 0.43 mm/s/μstrain (0.017 in/s/μstrain).
• Maximum Cable Length: 305 metres (1,000 ft.) with part number 02173006, no signal degradation.
• Operating Temperature: -40°C to +85°C (-40°F to +185°F).
• Shock Limit: 5000 g pk, maximum.
• Humidity Limit: 100% condensing, non-submerged.

These specs highlight the transducer's accuracy and durability. For example, the wide frequency response ensures you capture both low-speed and high-speed machinery vibrations, while the high shock limit protects the sensor during transient events.

Applications & Use Cases

In rotating machinery such as pumps, fans, and compressors, the 190501-04-00-04 provides real-time velocity data that supports predictive maintenance. Its intrinsic safety approvals (Ex ia IIC T4, AEx ia IIC T4) allow installation in explosive atmospheres, making it a versatile choice for oil and gas, chemical, and power generation plants.

Moreover, the transducer's ability to operate in 100% condensing humidity means it can be used in washdown areas or coastal environments without failure. By integrating this sensor into your condition monitoring system, you gain early warning of bearing wear, unbalance, or misalignment, thereby reducing costly repairs.

Installation & Setup

Proper installation is critical for accurate readings. The 190501-04-00-04 comes with a mounting hardware option of 4 stud M6x1 with a 3/8-in 24 adapter, and a MIL-C-5015 connection interface. Follow these general guidelines:

• Mount the transducer on a flat, clean surface to ensure good mechanical coupling.
• Apply the specified mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) to avoid over-stressing the stud.
• Orient the transducer as needed; it works in any orientation.
• Route cables away from high-temperature sources to maintain signal integrity.

Always refer to the official Bently Nevada installation manual for detailed wiring and mounting instructions specific to your application.

Maintenance & Reliability

To ensure long-term reliability, inspect the transducer periodically for physical damage or loose mounting. Because the internal electronics are isolated from the case, the sensor is less susceptible to ground loops, enhancing measurement stability.

The 316L stainless steel case and connector provide excellent corrosion resistance, making the device suitable for harsh chemical environments. With no moving parts, the Velomitor CT design minimizes wear, offering years of maintenance-free operation.

Regularly verify the output bias voltage (10.1 Vdc ± 1.0 Vdc) to confirm the sensor is functioning correctly. If readings drift, check the cable and connections before replacing the unit.

Compatibility & Integration

The 190501-04-00-04 is designed to work with Bently Nevada monitoring systems and other data acquisition platforms that accept velocity transducer inputs. Its MIL-C-5015 connector ensures a secure, standardized interface.

The maximum cable length of 305 meters (1,000 ft.) allows flexible placement of monitoring electronics away from the machine, which is beneficial in large plants. The transducer's low output impedance (<400 Ω) ensures signal integrity over long cable runs.

Troubleshooting & Common Issues

If you encounter erratic readings, first check the mounting torque and ensure the stud is tight. Loose mounting can cause spurious signals. Also, verify that the cable is not damaged and that the connector is properly seated.

Another common issue is electrical noise. Although the transducer has a magnetic field susceptibility of <0.0068 mm/s/gauss, avoid routing cables near high-voltage lines. If noise persists, use shielded cable and proper grounding per the manual.

FAQ about the 190501-04-00-04

Q: What is the sensitivity of the 190501-04-00-04?

A: The sensitivity is 3.94 mV/mm/s (100 mV/in/s) ±5%, ensuring accurate velocity measurement.

Q: Can this transducer be used in hazardous areas?

A: Yes, it has intrinsic safety approvals including Ex ia IIC T4 and AEx ia IIC T4, suitable for Class I, Division 1, Groups A, B, C, D.

Q: What is the maximum cable length?

A: The maximum cable length is 305 meters (1,000 ft.) using part number 02173006, with no signal degradation.

Q: What is the operating temperature range?

A: It operates from -40°C to +85°C (-40°F to +185°F), suitable for extreme environments.

Q: How do I verify the transducer is working correctly?

A: Check the output bias voltage; it should be 10.1 Vdc ± 1.0 Vdc between Pin A and Pin B.

Product Support & Availability

The 190501-04-00-04 is available through Petro Auto Tech, your trusted industrial automation parts supplier. We ensure genuine Bently Nevada products with fast delivery. Contact our team for current availability and lifecycle status.

For technical support, consult the official Bently Nevada documentation or reach out to Petro Auto Tech for expert guidance.
