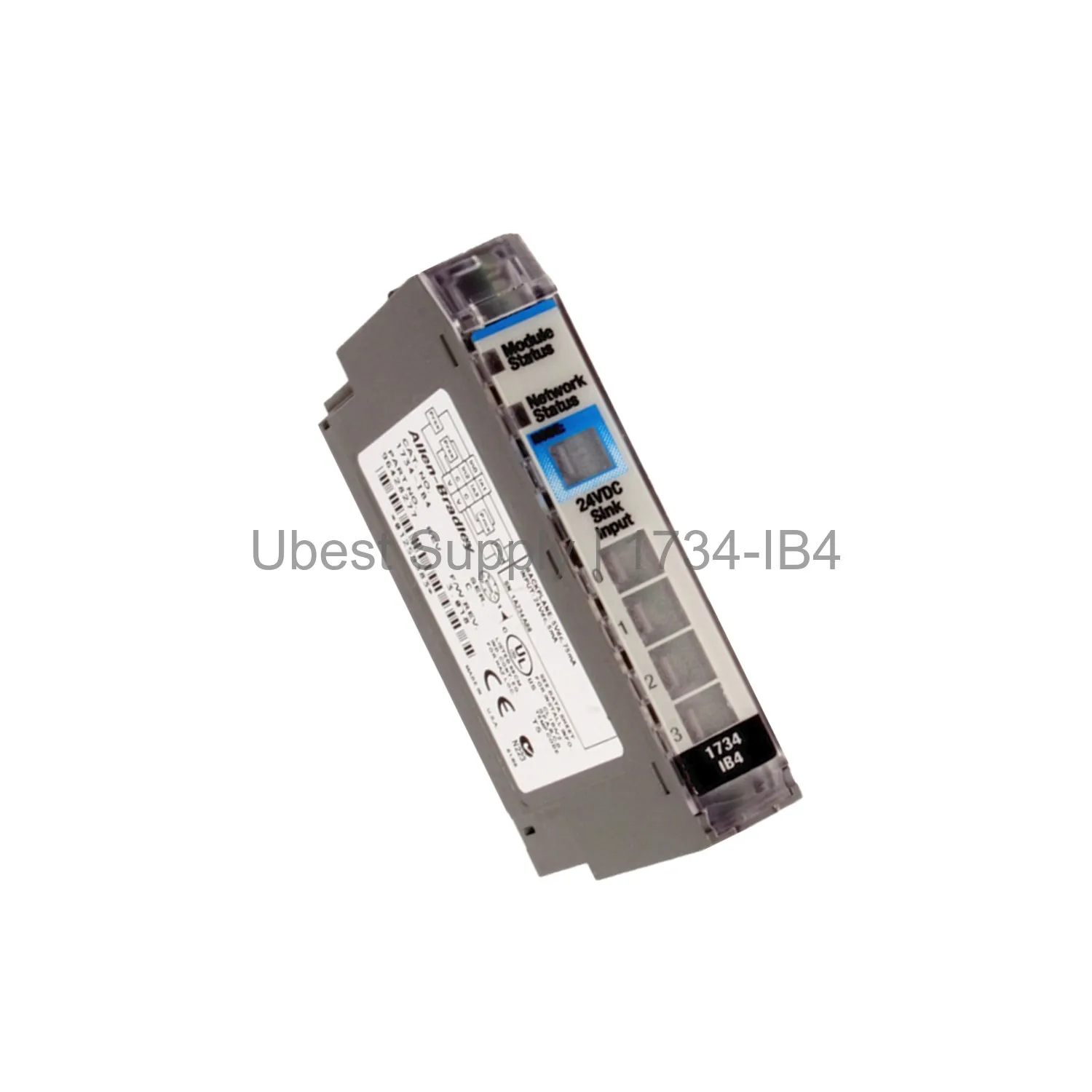

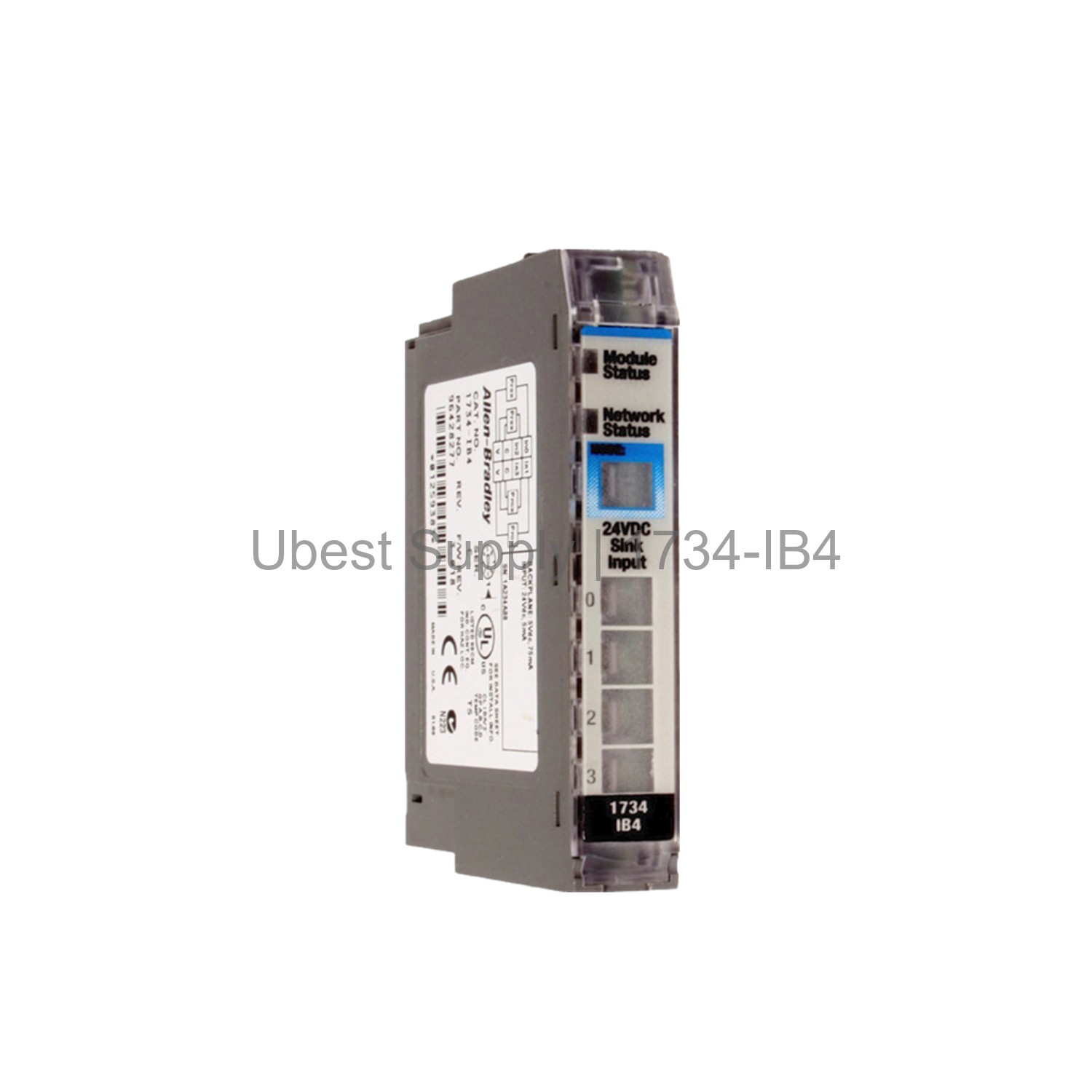

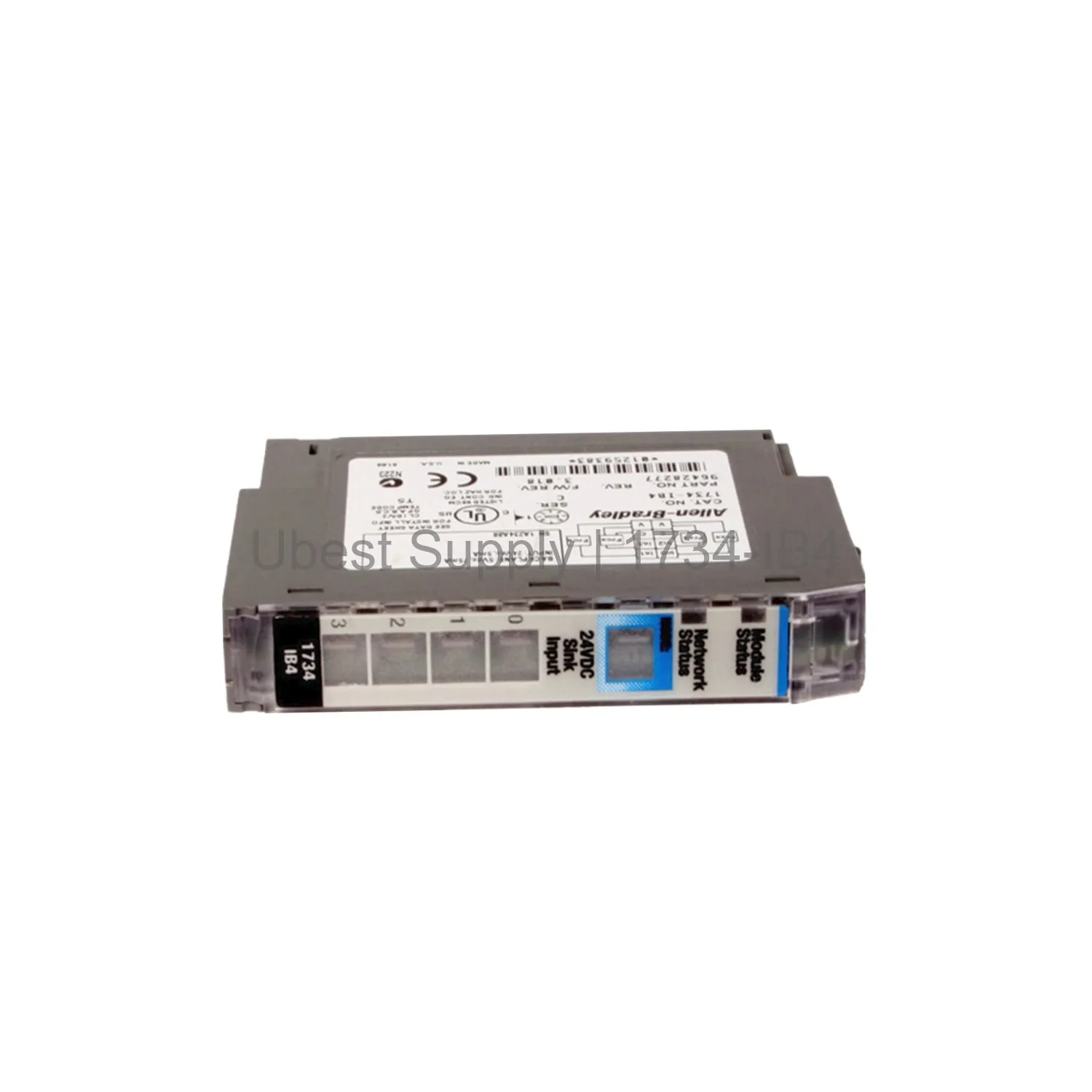

Allen-Bradley 1734-IB4 POINT I/O Sinking Input Module 4-Channel

Product Overview

The Allen-Bradley 1734-IB4 is a digital DC sinking input module. It belongs to the POINT I/O family. This module provides four sinking input channels. It operates with a 12/24VDC voltage category. The module consumes only 1 Watt of power. It dissipates 3.4 BTU/hour of heat. The 1734-IB4 works with any POINT I/O communication adapter. It supports two-wire or three-wire input signals. The module has a compact form factor. It measures 56 x 12 x 75.5 mm. The weight is just 31.8 grams. This module is DIN rail mountable. Use zinc-plated steel DIN rail for proper grounding. Avoid aluminum or plastic rails. They may corrode and cause poor grounding.

Application Scenarios

The 1734-IB4 is designed for distributed I/O architectures. It connects to PLC-based control systems. Use it to monitor digital signals from sensors. Common applications include factory automation, material handling, and packaging. The module accepts 24VDC signals from push buttons, limit switches, and proximity sensors. It works with any POINT I/O communication adapter. This creates a flexible and scalable I/O network. The module is ideal for space-constrained panels. Its low density saves cost per point. You can mix it with other POINT I/O modules.

Technical Specifications

Inputs: 4 sinking channels. Input voltage: 12/24VDC nominal. On-state voltage range: 10 to 28.8VDC. Off-state voltage max: 5VDC. On-state current: 2 mA min, 4 mA nominal, 5 mA max. Off-state current max: 1.5 mA. Input impedance: 3.6 kΩ nominal, 4.7 kΩ max. Input filter time: 0.5 ms hardware plus 0 to 63 ms user-selectable. POINTBus current: 75 mA at 5VDC. Power dissipation: 1 Watt. Thermal dissipation: 3.4 BTU/hour. Isolation voltage: 50V continuous. Keyswitch position: 1. Enclosure: open-style. Weight: 31.8 g. Dimensions: 56 x 12 x 75.5 mm. Status indicators: module status, network status, input 0-3 status.

Installation & Maintenance Guide

Mount the module on a DIN rail. Attach the rail every 200 mm using appropriate anchors. Use zinc-plated yellow chromate steel DIN rail. Make all connections to the removable terminal block (RTB) at the bottom. The RTB accepts 2-wire or 3-wire sensors. Set the keyswitch to position 1 before installation. The module communicates via the POINTBus backplane. No separate power supply is needed for the module. Power comes from the communication adapter. The front panel shows status LEDs. Write the node address manually in the writable area. For maintenance, inspect the LEDs for fault indications. Replace the module if an unrecoverable fault occurs.

Packing List

1 x Allen-Bradley 1734-IB4 POINT I/O module. 1 x Removable terminal block (RTB). 1 x Installation instructions. No additional accessories included. Shipping via Fedex, UPS, or DHL.
