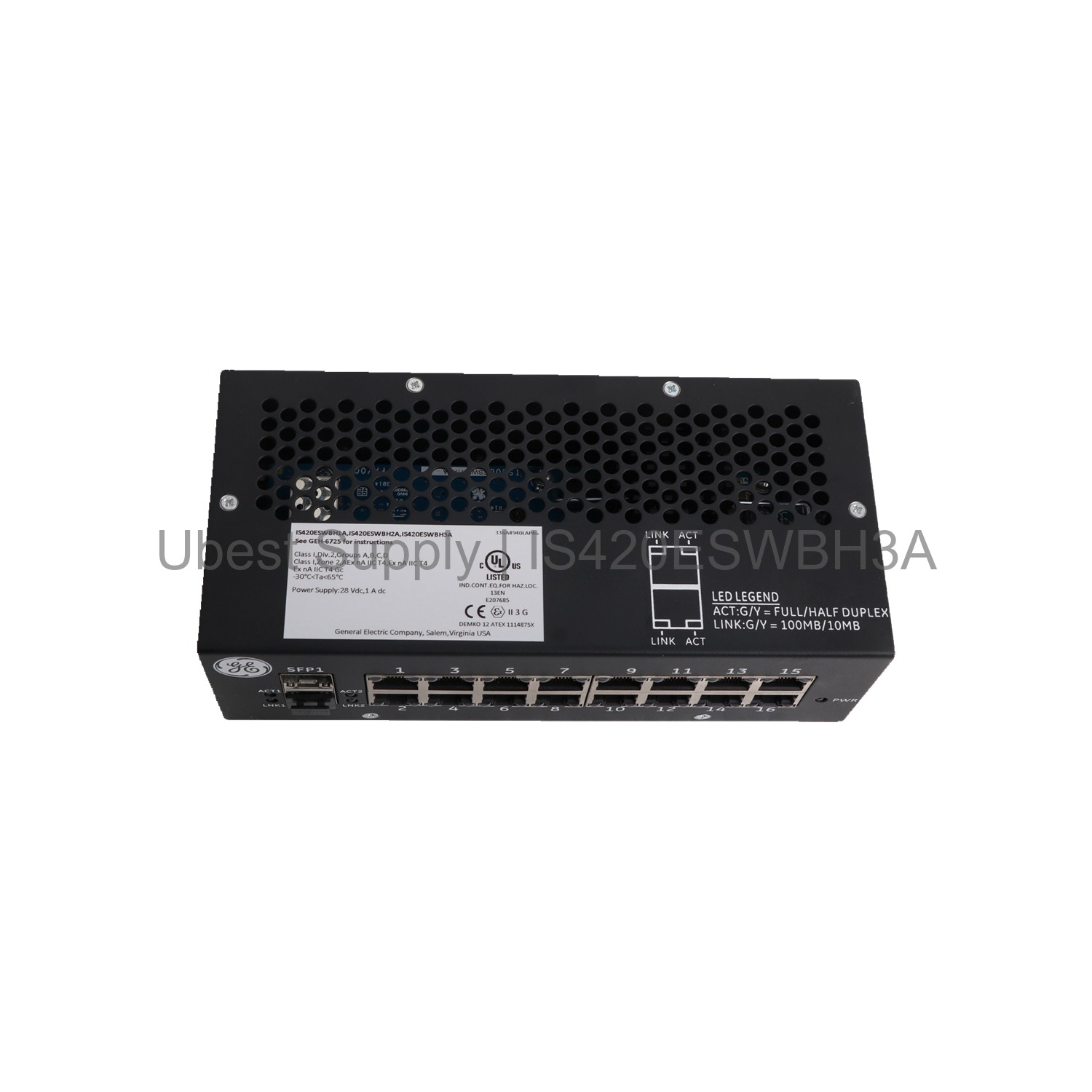

GE IS420ESWBH3A Mark VIe Ethernet Switch Module

Product Overview

The GE IS420ESWBH3A is a Mark VIe Series Ethernet Switch. It is part of the IS420 series. This switch uses the ESWB product acronym. It has a conformal coating for protection. This is a Group three Mark VIe Series product. It carries an A-rated primary functional revision. The H3 grouping means it uses no fiber port components.

Application Scenarios

This switch works in industrial control systems. It connects devices in a network. It is ideal for Mark VIe turbine control systems. Use it in power generation plants. It also fits oil and gas facilities. The switch handles harsh environments well.

Technical Specifications

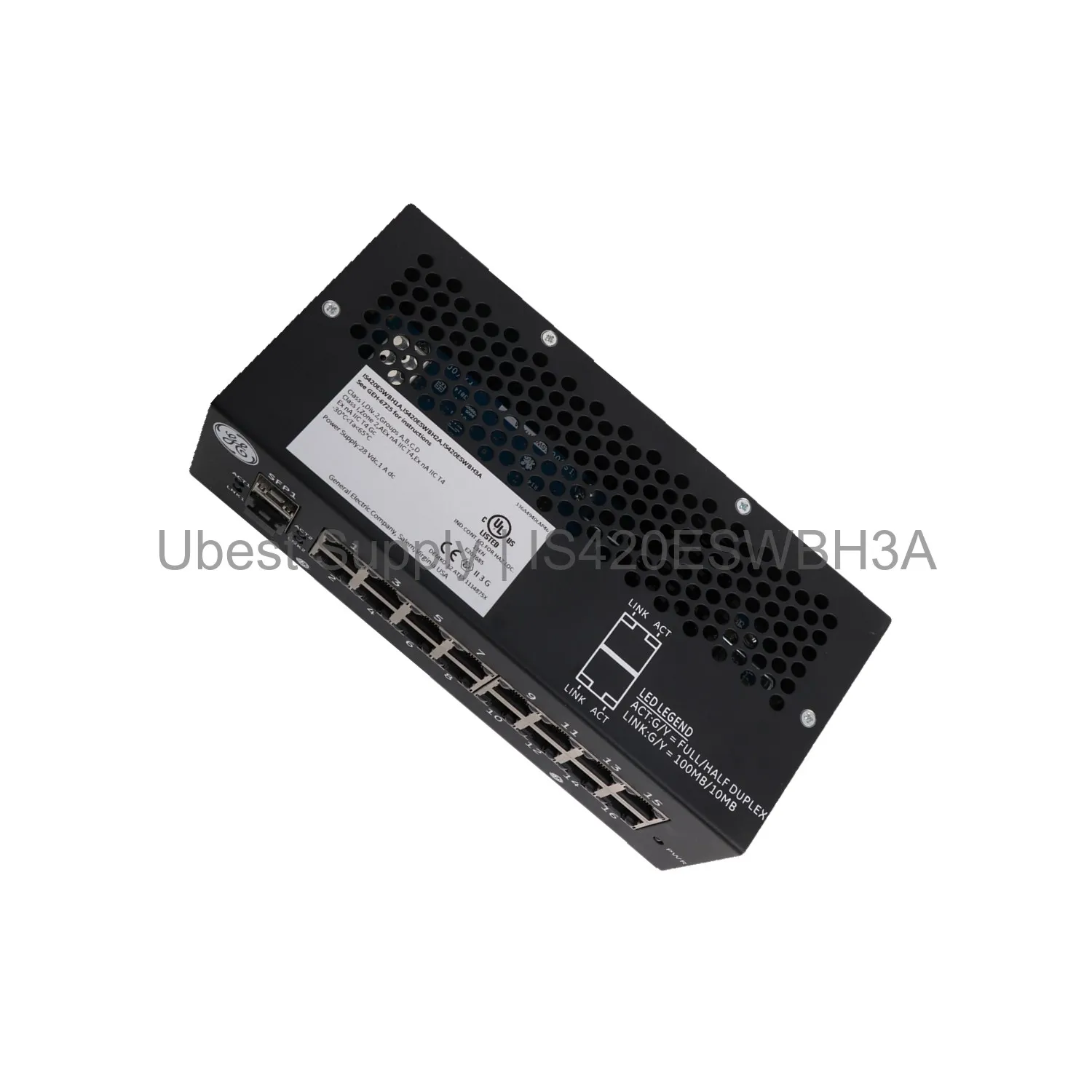

The IS420ESWBH3A has LED indicators. A power LED shows the unit is on. Activity and link LEDs show port status. A solid yellow link LED means a 10 MB link. A solid green link LED means a 100 MB link. No LED light means there is no link. The board uses a special modular assembly.

Installation & Maintenance Guide

Mount the switch on a DIN rail. Use it in parallel or perpendicular setups. You need specific clips for mounting. Use clip 259B2451BVP1 or 259B2451BVP4. You can also panel mount the device. Check the link LEDs for network status. Keep the area clean for best performance.

Packing List

The package includes one GE IS420ESWBH3A switch. It also includes mounting clips. The clips are models 259B2451BVP1 and 259B2451BVP4. An installation guide is included.
