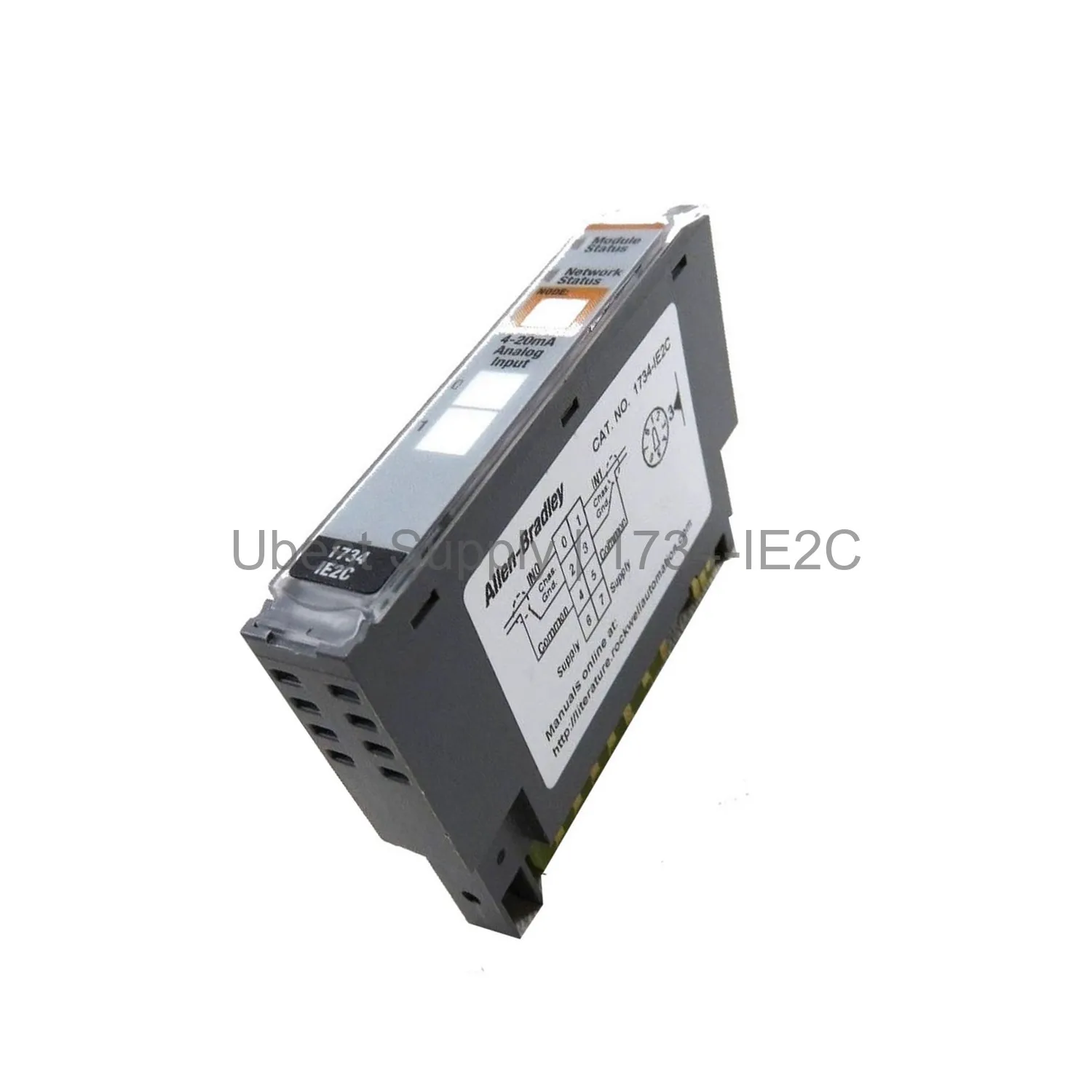

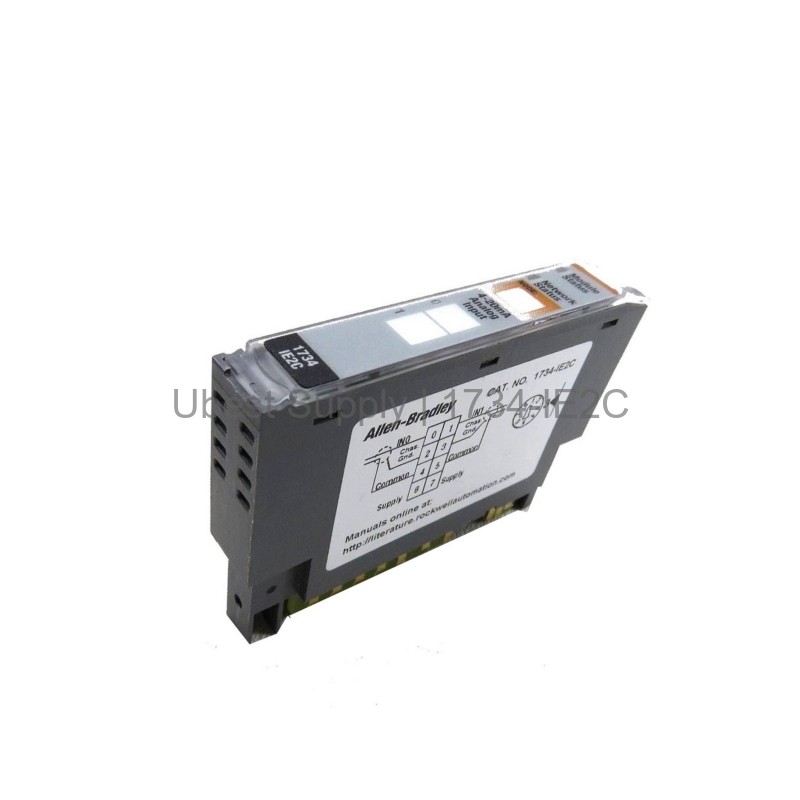

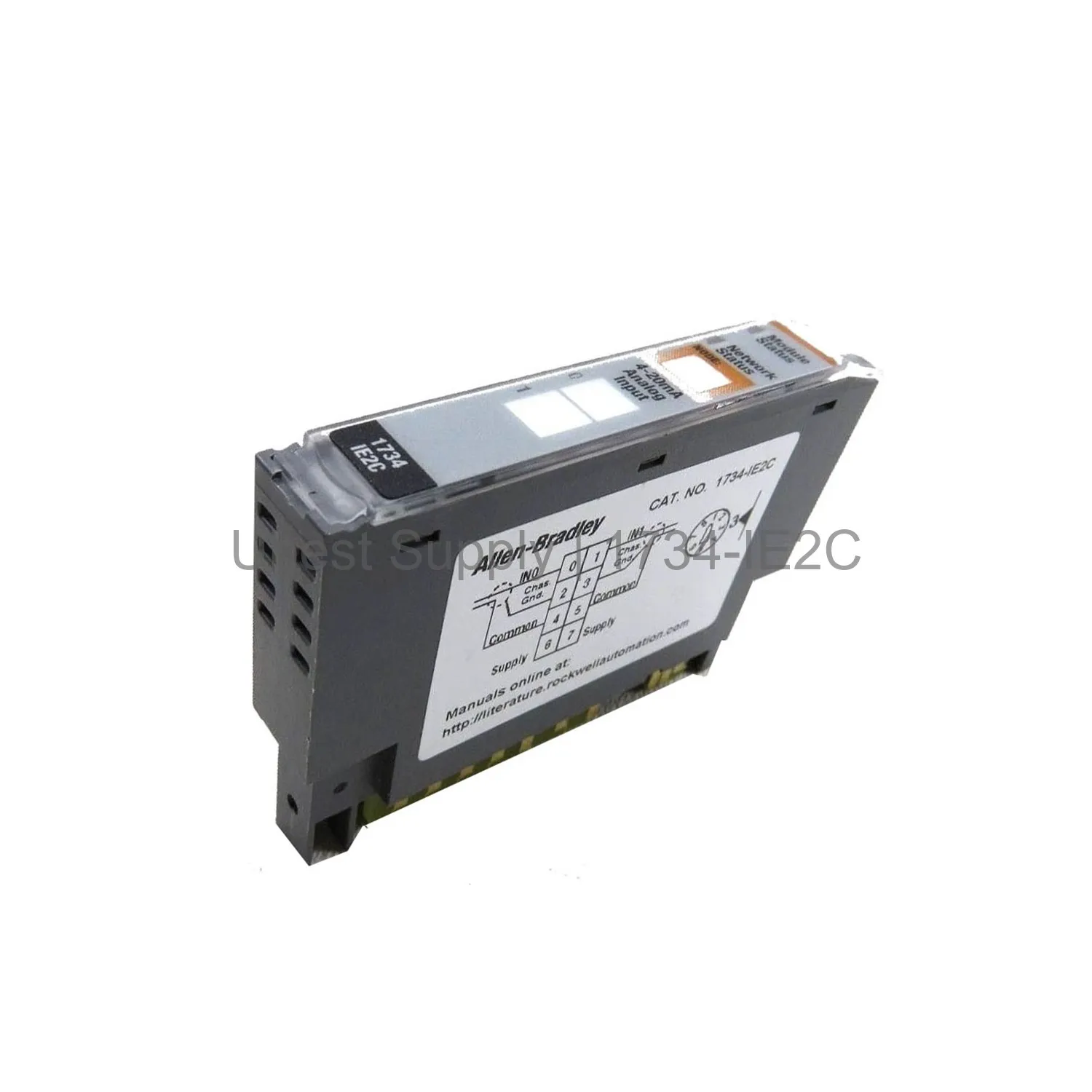

Allen-Bradley 1734-IE2C Analog Input Module - Two 4-20 mA Channels

Product Overview

The 1734-IE2C is a current input analog module from Allen-Bradley. It belongs to the POINT I/O family. This module has two single-ended, non-isolated channels. Each channel accepts 0-20 mA or 4-20 mA signals. It offers 16-bit resolution across 0 to 21 mA. The module uses Delta-Sigma conversion. It stores data in signed integer format. Absolute accuracy is 0.1% Full Scale at 25 °C. The module draws 75 mA at 5V DC. It dissipates 0.6 W at 28.8V DC. The compact size is 56 x 12 x 75.5 mm. It weighs just 0.036 kg. You can mount it horizontally or vertically on a 35 mm DIN rail.

Application Scenarios

This module suits many industrial applications. It works with any POINT I/O communication adapter. Use it with ControlNet, DeviceNet, or EtherNet/IP networks. It fits Allen-Bradley controllers like ControlLogix and CompactLogix. Typical uses include process monitoring and control. It reads current signals from sensors and transmitters. The module handles 4-20 mA loops in factory automation. It also works in building management systems. The high resolution ensures precise measurements.

Technical Specifications

Manufacturer: Rockwell Automation. Resolution: 16 bits – over 0...21 mA, 0.32 μA/cnt. Input channels: two single-ended, non-isolated. Output signals: 0-20 mA, 4-20 mA. Absolute accuracy: 0.1% Full Scale @ 25 °C. Input step response: 80 ms @ 50 Hz notch, 70 ms @ 60 Hz, 16 ms @ 250 Hz, 8 ms @ 500 Hz. Input update rate: 120 ms @ 50 Hz, 100 ms @ 60 Hz, 24 ms @ 250 Hz, 12 ms @ 500 Hz. Current draw: 75 mA @ 5V DC. Power dissipation: 0.6 W @ 28.8V DC. Voltage range: 10 to 28.8V DC. Current: 10 mA. Isolation: 50V continuous, 2550V DC for 60 seconds. Enclosure type: open-style. Keyswitch position: 3. Compatible bases: 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS. Wire size: 22 to 14 AWG shielded copper. Weight: 0.036 kg. Dimensions: 56 x 12 x 75.5 mm.

Installation & Maintenance Guide

Install the module on a terminal base first. Choose 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS. Set the keyswitch to position 3. Then snap the module onto the base. Mount the assembly on a 35 mm DIN rail. You can mount it vertically or horizontally. Use shielded twisted-pair wires for signals. Strip wires to the correct length. Connect them to the appropriate terminals. Apply power between 10 and 28.8V DC. The module requires no calibration. It comes factory calibrated. For maintenance, check connections regularly. Keep the area clean. Replace the module if it fails.

Packing List

Each package contains one 1734-IE2C analog input module. It does not include a terminal base. The module is an open-style device. We ship via FedEx, UPS, or DHL. The product is new in original packaging. No additional accessories are included.
