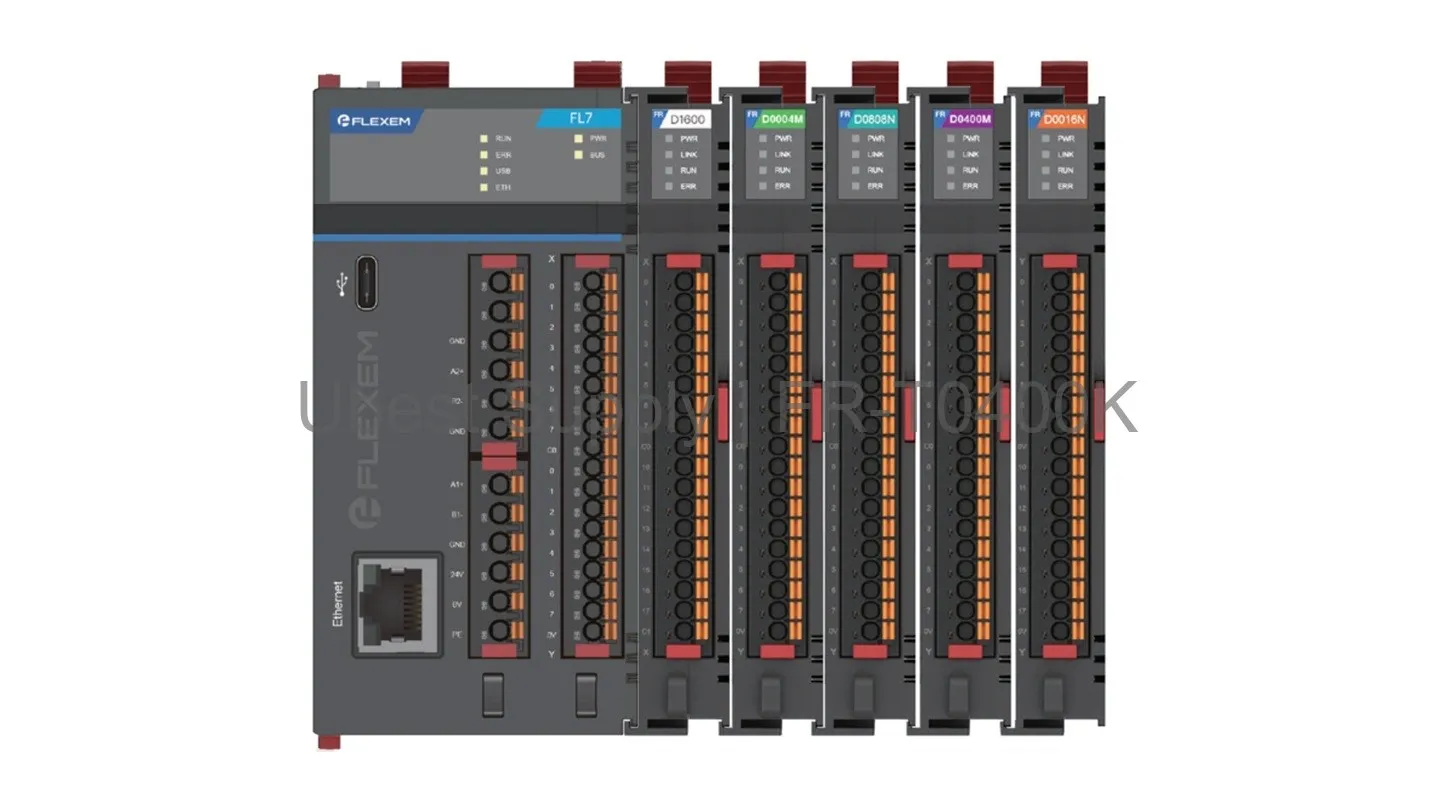

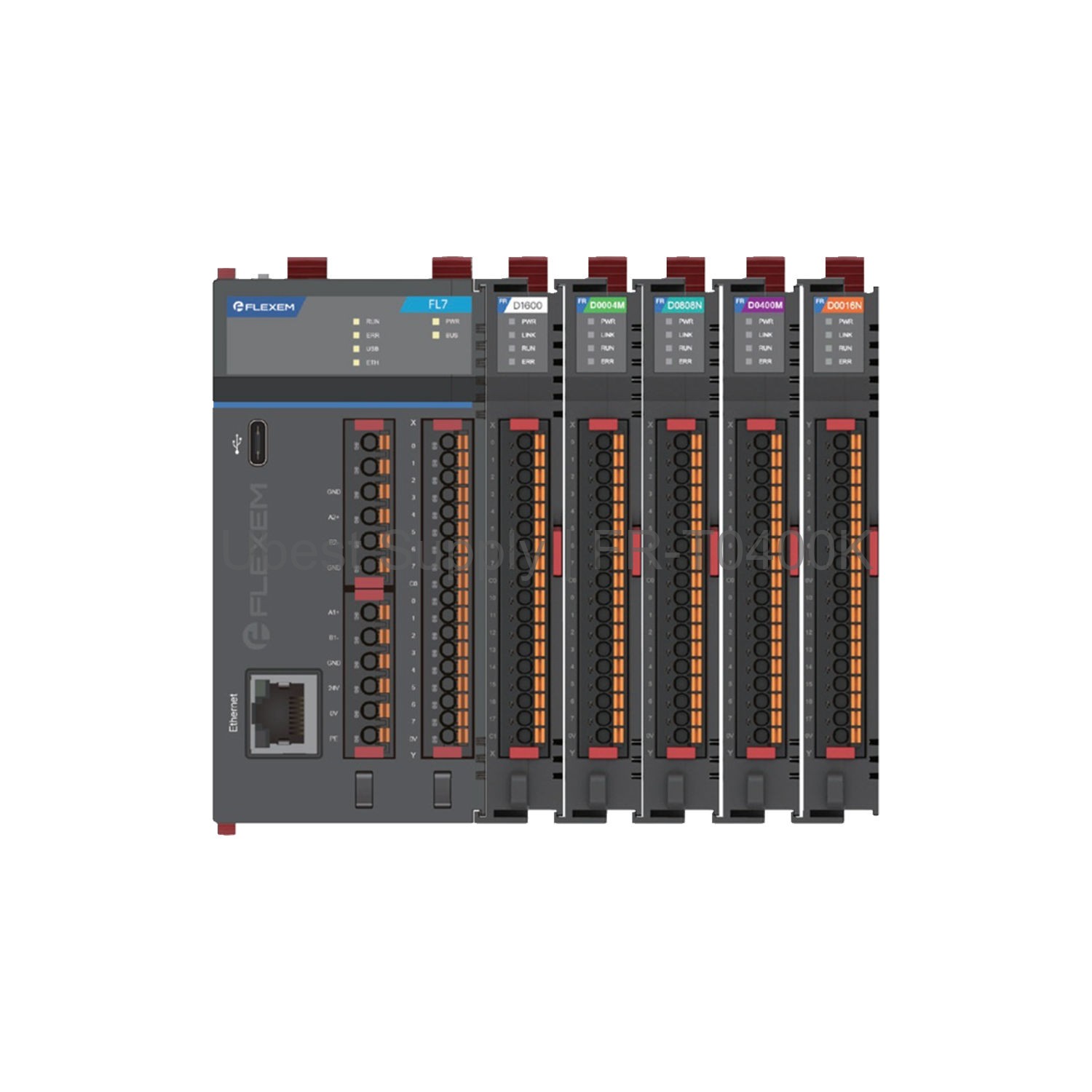

Flexem FR-T0400K Temperature Acquisition Module 4-Channel Thermocouple

Product Overview

The Flexem FR-T0400K is a reliable temperature acquisition module. It offers four input channels for precise temperature monitoring. This module supports a wide range of sensor types. You can use K, J, R, S, B, E, T, N, or C type thermocouples. It also works with NTC thermistors and RTDs like PT700 and PT1000. The device delivers high measurement accuracy. At 25°C ambient, thermocouple accuracy is ±0.5% or ±1°C. NTC accuracy is ±0.1% or ±1°C. The module is compact and lightweight. It measures just 111 by 18 by 76 mm. It weighs only 65 grams. This makes it easy to integrate into tight spaces. The power draw is low at 50 mA at 5.0 Vdc. This module is ideal for industrial automation systems.

Application Scenarios

The FR-T0400K fits many industrial applications. Use it in process control systems. It works well in manufacturing plants. It is perfect for temperature monitoring in ovens. It can track heat in furnaces and kilns. The module suits HVAC system management. It helps in energy management solutions. It is also good for laboratory test setups. The wide sensor support makes it versatile. You can adapt it to different temperature ranges. It handles both low and high temperature needs. This makes it a flexible choice for engineers.

Technical Specifications

The module has four input channels. It accepts thermocouples types K, J, R, S, B, E, T, N, and C. It also reads NTC thermistors and RTDs. The measurement range for PT700 is -200 to 850°C. For PT1000 it is -200 to 600°C. Cu50 covers -50 to 150°C. NI100 ranges from -60 to 180°C. Cu100 covers -50 to 150°C. NI1000 ranges from -60 to 180°C. Accuracy for thermocouples is ±0.5% or ±1°C. For NTC it is ±0.1% or ±1°C. Power consumption is 50 mA at 5.0 Vdc. Dimensions are 111 by 18 by 76 mm. The weight is 65 grams.

Installation & Maintenance Guide

Install the module on a DIN rail. Ensure the power supply is off. Connect the sensor wires to the correct terminals. Use the proper sensor type setting. Check all connections for tightness. Power on the device and verify readings. Perform regular calibration checks. Keep the module clean and dry. Avoid exposure to extreme vibrations. Replace damaged cables immediately. Follow the manual for specific steps. This ensures long-term reliable operation.

Packing List

The package includes one Flexem FR-T0400K module. It comes with a user manual. A quick start guide is included. No cables or sensors are provided. Please order them separately. The module is packed securely. It is ready for immediate use.
