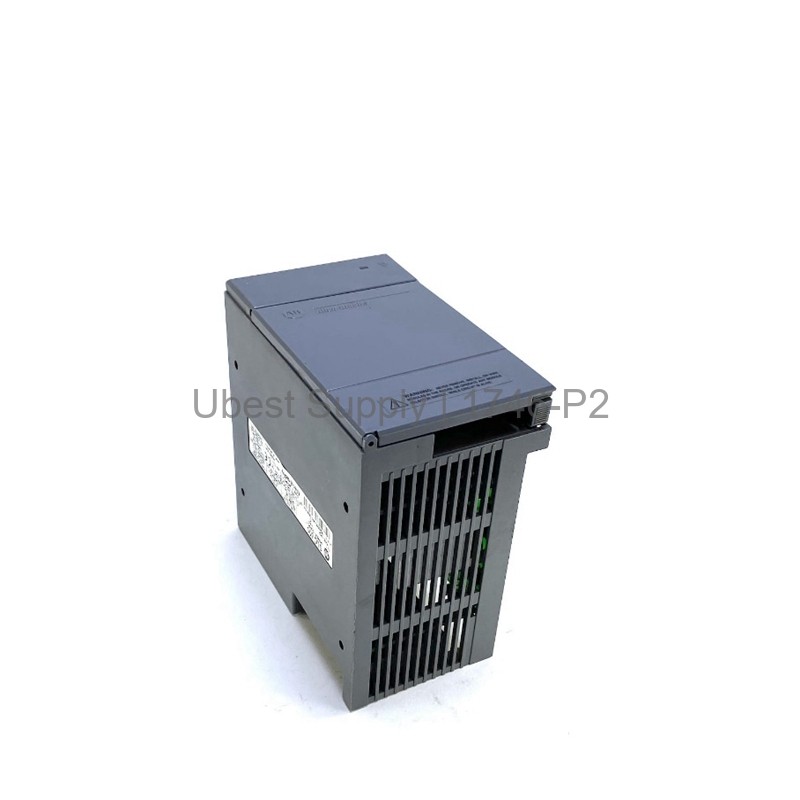

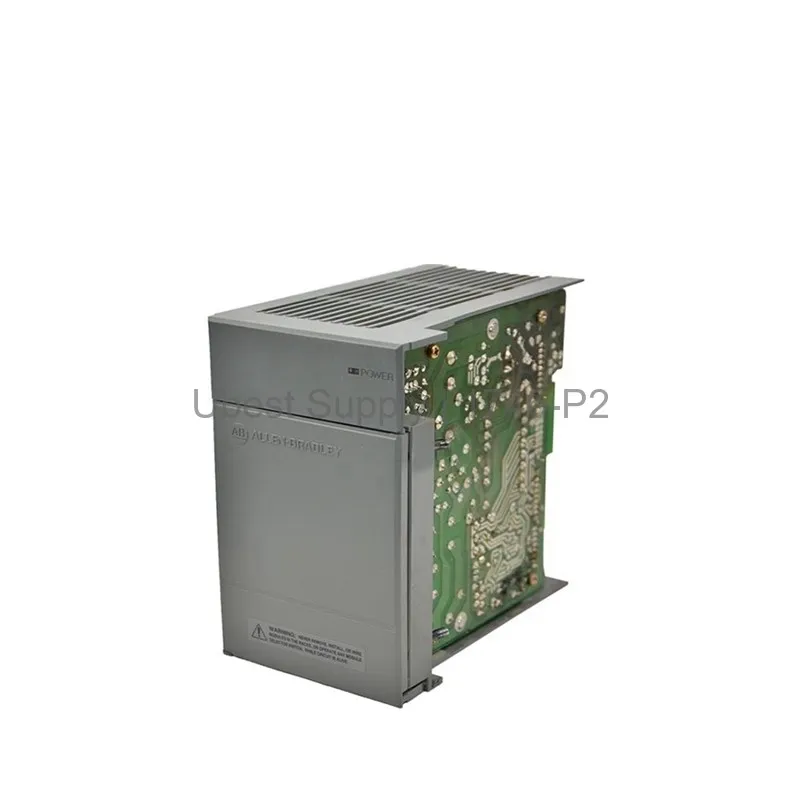

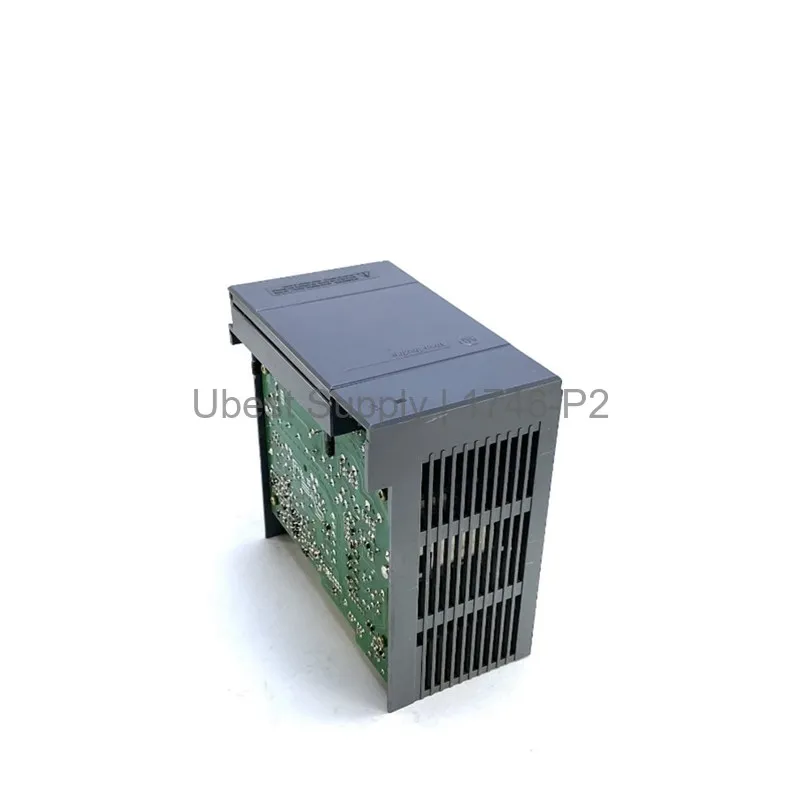

Allen-Bradley 1746-P2 Power Supply SLC 500 5A

Product Overview

The Allen-Bradley 1746-P2 is a power supply module for the SLC 500 system. It delivers stable power to the chassis. This unit accepts 120 to 220 Volts AC input. It provides 5 amps at 5 Volts DC. It also supplies 0.96 amps at 24 Volts DC. The module is built for industrial environments. It ensures your system runs without interruption.

Application Scenarios

This power supply works with any 1746 chassis. It is ideal for factory automation lines. Use it in material handling systems. It supports packaging machinery operations. It is perfect for process control applications. The module fits in discrete manufacturing setups. It also works in hybrid production facilities.

Technical Specifications

The 1746-P2 has an input power of 70 Watts. The input voltage range is 120 to 220 Volts AC. The typical line power requirement is 180VA. The inrush current is 20 Amps. The backplane current at 5 Volts is 5 amps. The internal current capacity is 5 A at 5V dc. It also has 0.96 A at 24V dc. The output voltage range is 18 to 30 Volts DC. The CPU hold up time is 20 ms at full load. It is 3000 ms at no load. The backplane current at 24 Volts is 0.46 Amps. The frequency range is 47 to 63 Hertz. The operating temperature is 0 to 60 Celsius. The unit weighs 1.1 kg or 2.5 lbs. The dimensions are 5.5 x 3.3 x 5.7 inches. It requires a 1746-F1 fuse or equivalent.

Installation & Maintenance Guide

Install the module in a 1746 chassis only. Ensure the chassis is powered off first. Slide the unit into the correct slot. Secure it with the locking tabs. Connect the AC power to the input terminals. Verify the voltage range matches your supply. Check the fuse for proper rating. Keep the area clean and dry. Do not block the ventilation slots. Regularly inspect for dust buildup. Replace the fuse if the unit fails. Use only a 1746-F1 fuse or equivalent. Always disconnect power before maintenance.

Packing List

1 x Allen-Bradley 1746-P2 Power Supply Module. 1 x Installation Guide. No additional cables included. The unit is securely packed for shipping. We ship via Fedex, UPS, or DHL.
