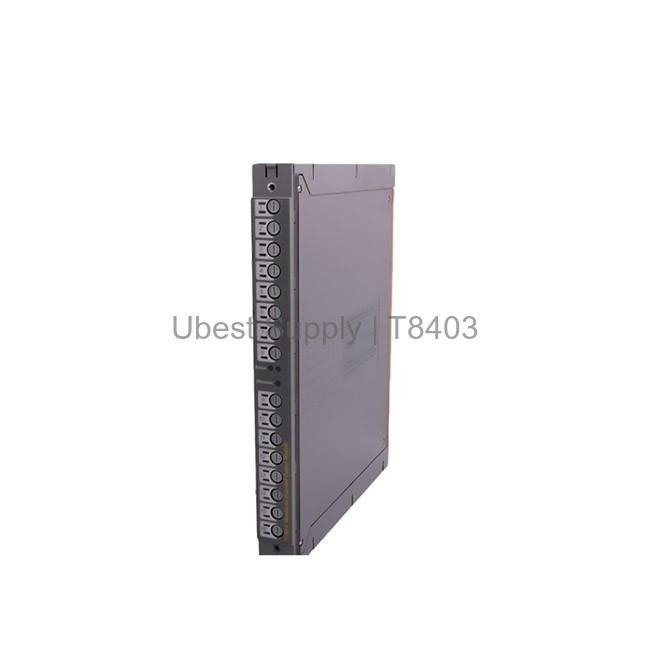

ICS Triplex T8403 Trusted TMR 24Vdc Digital Input Module

Product Overview

The ICS Triplex T8403 is a Trusted TMR module. It provides 40 digital input channels. This module uses Triple Modular Redundancy (TMR). It ensures high system availability. The T8403 operates on a 20-32 Vdc supply. It draws up to 20 W of power. This module suits harsh industrial environments. It is certified for Ordinary, HazLoc, ATEX, and IECEx. The input range is 0-40 Vdc. This makes it versatile for many signals. The T8403 is a key part of the Trusted system. It delivers safe and reliable operation.

Application Scenarios

This module works in safety instrumented systems. It is ideal for process industries. Use it in oil and gas plants. It fits chemical processing facilities. The T8403 works in power generation. It is great for turbine control systems. Use it for emergency shutdown systems. It handles fire and gas detection. The module works in critical machinery protection. It is perfect for high-availability applications. The TMR design prevents single-point failures. This makes it a top choice for safety.

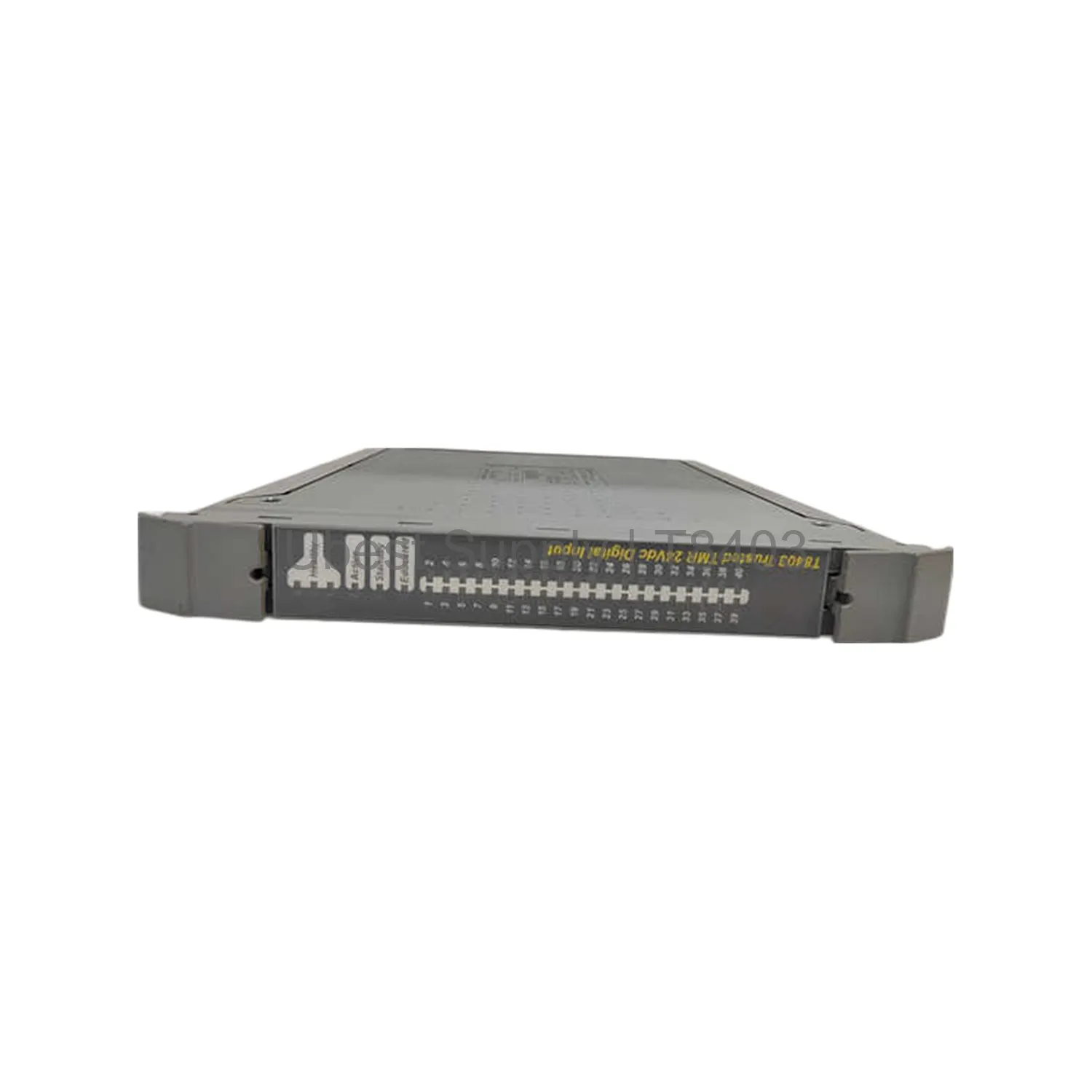

Technical Specifications

The T8403 has 40 digital input channels. It uses TMR architecture for fault tolerance. The supply voltage range is 20-32 Vdc. The module consumes 20 W of power. Input voltage rating is 0-40 Vdc. It has certifications for Ordinary locations. It also holds HazLoc, ATEX, and IECEx approvals. The module is part of the Trusted series. It offers high noise immunity. The operating temperature range is wide. This ensures stable performance in tough conditions.

Installation & Maintenance Guide

Mount the T8403 on a standard DIN rail. Ensure proper grounding before use. Connect the 24 Vdc supply to the module. Wire field inputs to the terminal blocks. Follow the manual for correct wiring. Do not exceed the voltage ratings. Check all connections are tight. Use shielded cables for noisy environments. Perform regular visual inspections. Keep the module clean and dry. Replace the module only with a qualified unit. Always power down before maintenance.

Packing List

The package includes one ICS Triplex T8403 module. It comes with a user manual. A warranty card is also included. The module is packed in an anti-static bag. It is shipped in a protective box. The package is sealed for safety. No additional accessories are included. Ensure all items are present upon receipt.
