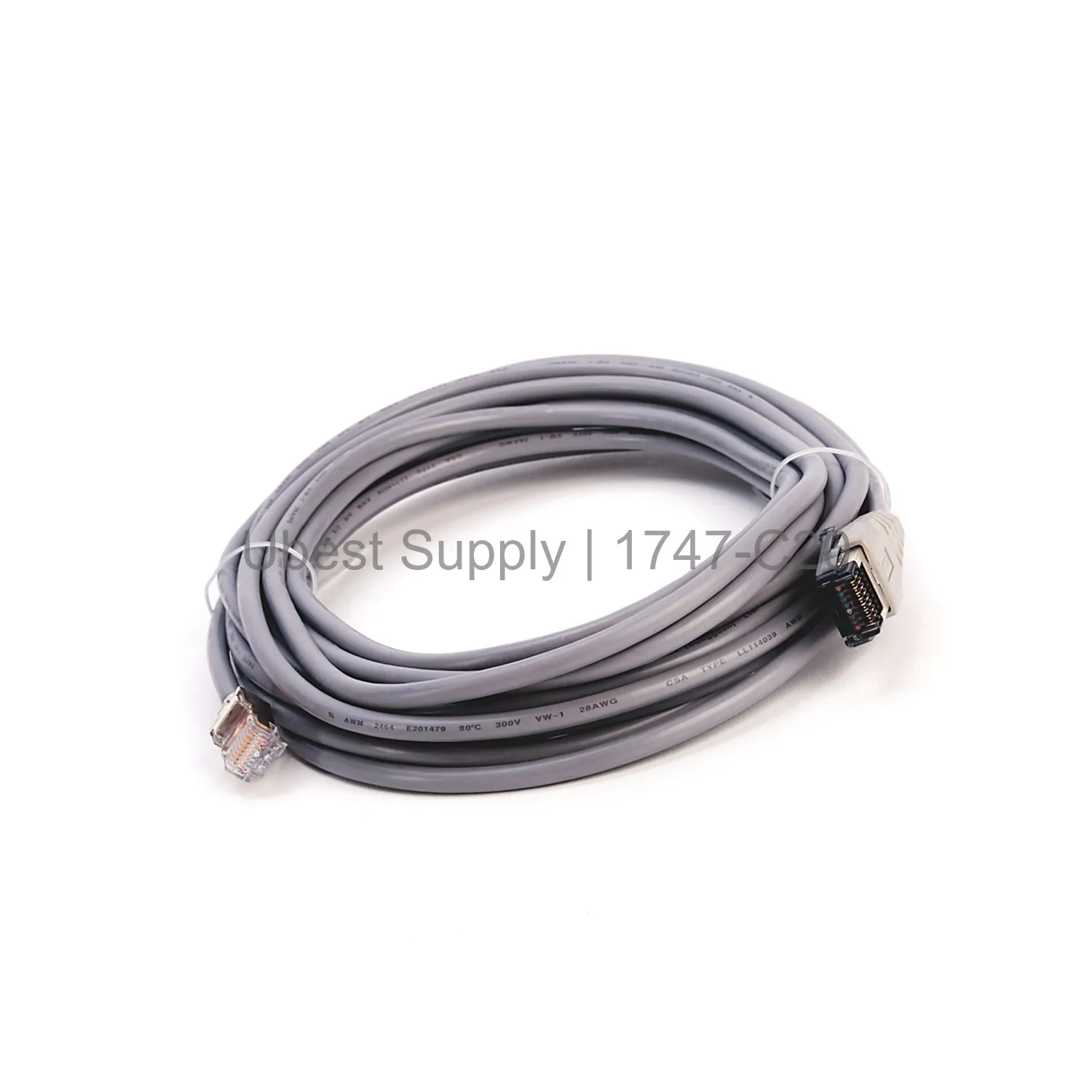

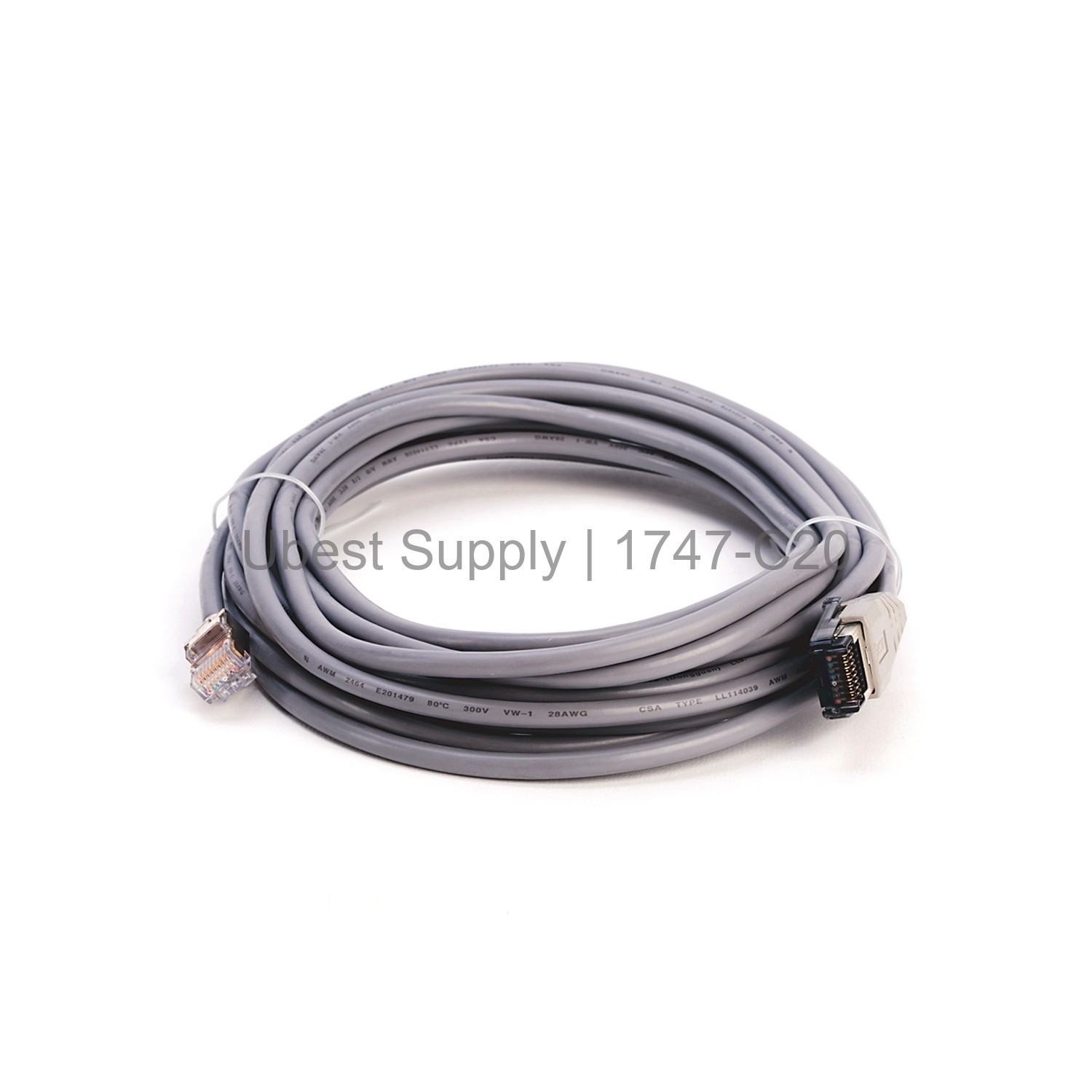

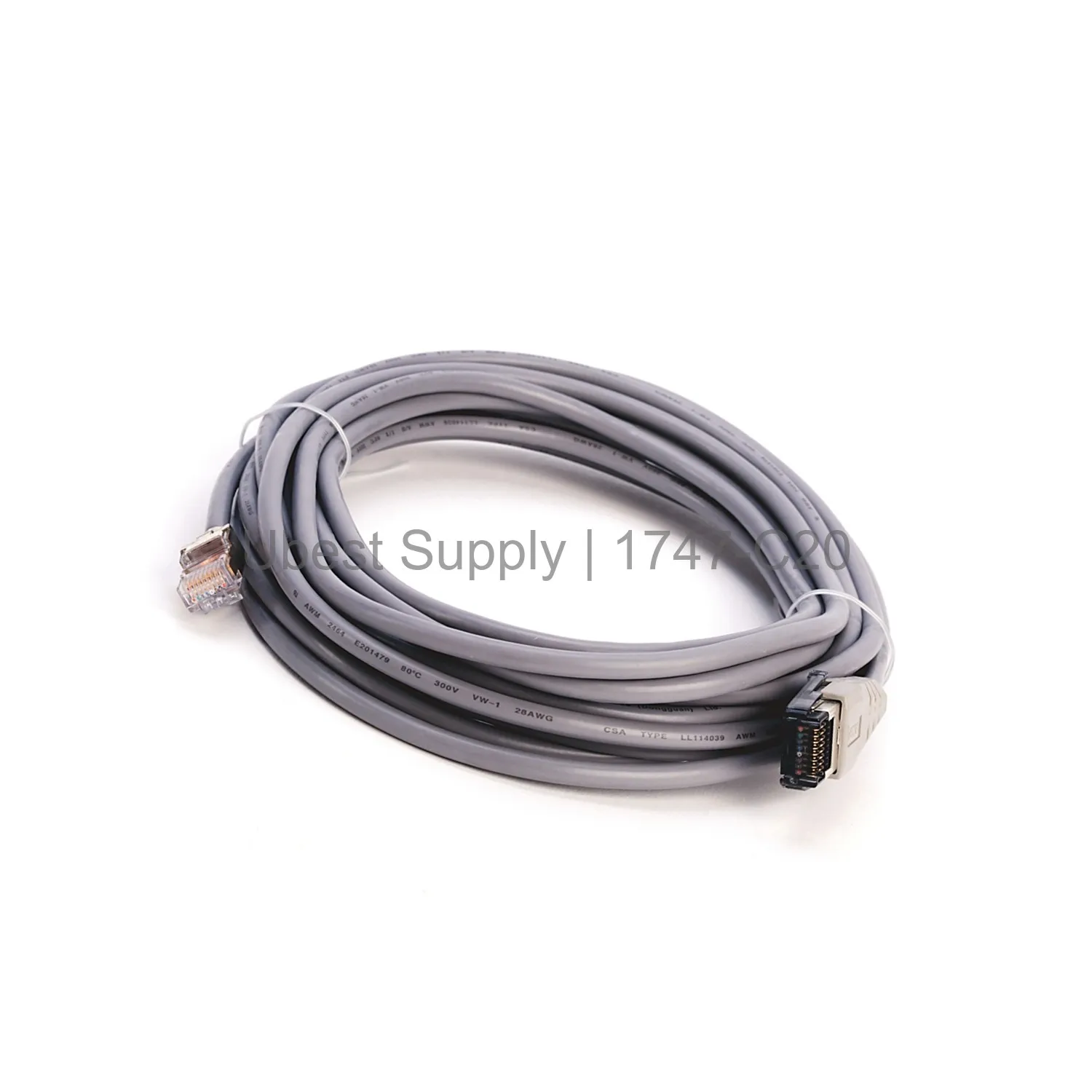

Allen-Bradley 1747-C20 SLC 500 Programming Cable 20 ft

Product Overview

The Allen-Bradley 1747-C20 is a programming and communication cable for SLC 500 controllers. It measures 6.09 meters (20 feet). This cable supports the DH-485 communication protocol. It is built with clip-on connectors for secure attachment. The cable also features EMI protection and 1500V DC isolation. This ensures reliable data transmission in industrial settings.

Application Scenarios

Use this cable to program SLC 500 controllers. Connect it to a 1747-AIC Isolated Link Coupler. It also works with the 1747-PIC Personal Interface Converter. You can interface with a 1747-DTAM-E Data Table Access Module. These connections allow easy monitoring and control. This cable is ideal for factory automation lines and machine control systems.

Technical Specifications

• Manufacturer: Allen-Bradley
• Series: SLC 500
• Product Type: Programming / Communication Cable
• Length: 6.09 m (20 ft)
• Communication Protocol: DH-485
• Isolation Voltage: 1500V DC
• EMI Protection: Yes
• Connector Type: Clip-on
• Supported Accessories: 1747-AIC, 1747-PIC, 1747-DTAM-E

Installation & Maintenance Guide

Connect the clip-on end to the SLC 500 controller. Attach the other end to your programming device. Ensure the connection is firm. Do not force the clip. Check for damage before each use. Clean the connector with a dry cloth. Store the cable in a clean, dry area. Avoid sharp bends or heavy pulling. Test communication after each installation.

Packing List

• 1x Allen-Bradley 1747-C20 Cable (20 ft)
• 1x User Guide

Shipping is available via FedEx, UPS, or DHL.
