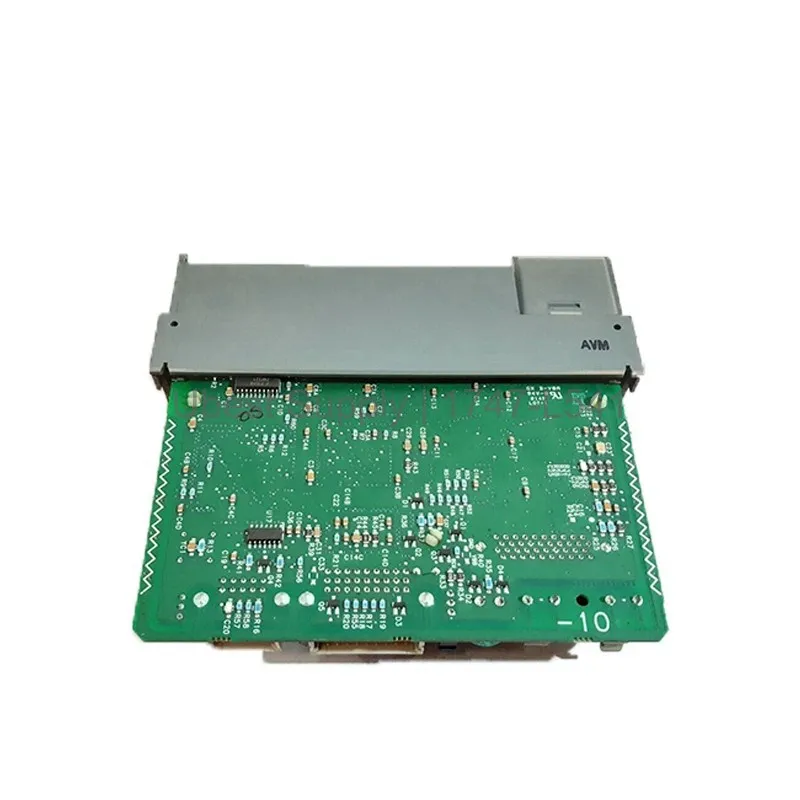

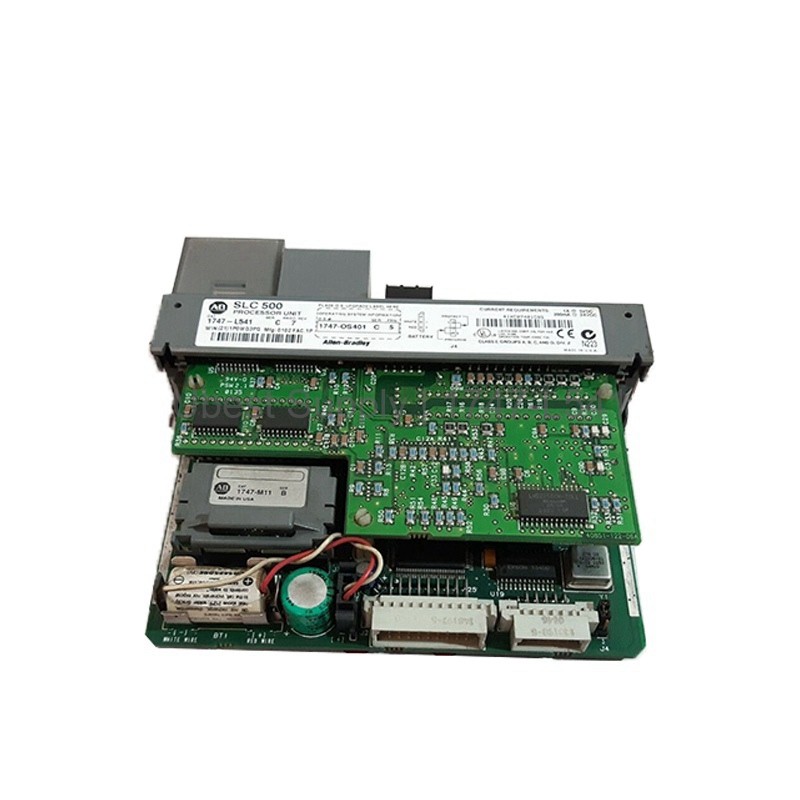

Allen-Bradley 1747-L541 SLC 5/04 Processor 16 KB

Product Overview

The Allen-Bradley 1747-L541 is a powerful SLC 5/04 processor. It belongs to the SLC 500 series. This module offers 16 KB of battery-backed RAM. It handles up to 4096 input and output points. The processor includes a built-in Data Highway Plus (DH+) channel. It also has an RS-232 port for flexible communication. This model supports extended messaging and high-speed data transfer. The program scan time is 0.9 ms per keyword. The I/O scan time is just 0.225 milliseconds. It is ideal for medium to large control applications.

This controller uses a 3-chassis rack system. It supports up to 30 module slots. The backplane current load is 1 Amp at 5 Volts DC. It also draws 200 mA at 24 Volts DC. The processor has a 1-millisecond Selectable Timed Interrupt. It also features a 0.5-millisecond Discrete Input Interrupt. These features make it highly responsive for critical processes.

Application Scenarios

The 1747-L541 is perfect for HVAC control systems. It works well in SCADA applications. It is also common in material handling lines. The processor supports distributed I/O setups. You can use it with a communication adapter on the CPU rack. It also works with a scanner on remote I/O racks. The DH+ network supports multi-drop topology. The RS-232 port can connect to DF1 or DH-485 networks. You can also use it for Modbus RTU communication. This flexibility makes it suitable for many industrial environments.

Technical Specifications

Manufacturer: Rockwell Automation. Brand: Allen-Bradley. Part Number: 1747-L541. Series: SLC 500. Module Type: SLC 5/04 Processor. Inputs: 4096. Outputs: 4096. Analog I/O: 480. User Memory: 16,000 Words. Memory Type: Battery Backed-RAM. Backup Memory: 1747-M13. Program Scan Time: 0.9 ms/K. I/O Scan Time: 0.225 ms. Communication: Data Highway Plus (DH+), RS-232. Ambient Temperature: 0 to 60 degrees Celsius. Battery: 1747-BA. UPC: 10662468653029. UNSPSC: 32151705.

Installation & Maintenance Guide

Mount the processor in an SLC 500 rack. Connect it to the electronic backplane. Install a compatible power supply. Set the DH+ node address to 1 by default. Configure the RS-232 port for your network. Default settings include 19.2 Kbaud and CRC error check. Use the 3-position key switch for Run, Remote, or Program mode. Replace the 1747-BA battery every year. Use the 1747-M13 memory module for backup. Keep the ambient temperature below 60 degrees Celsius.

Packing List

1 x Allen-Bradley 1747-L541 SLC 5/04 Processor. 1 x 1747-BA Battery. 1 x 1747-M13 Memory Module. 1 x Quick Start Guide. Shipping via FedEx, UPS, or DHL.
