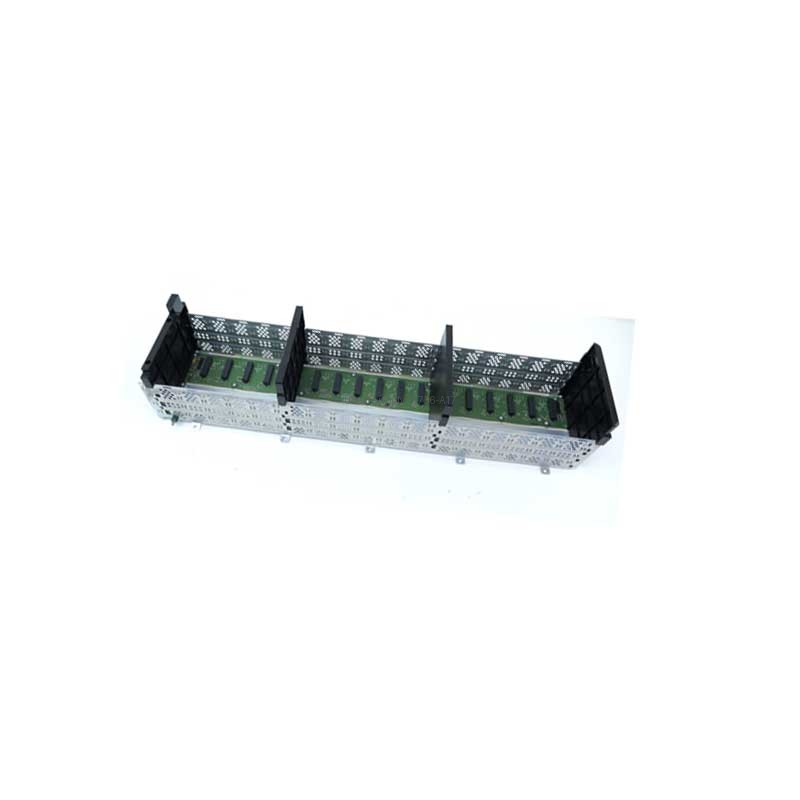

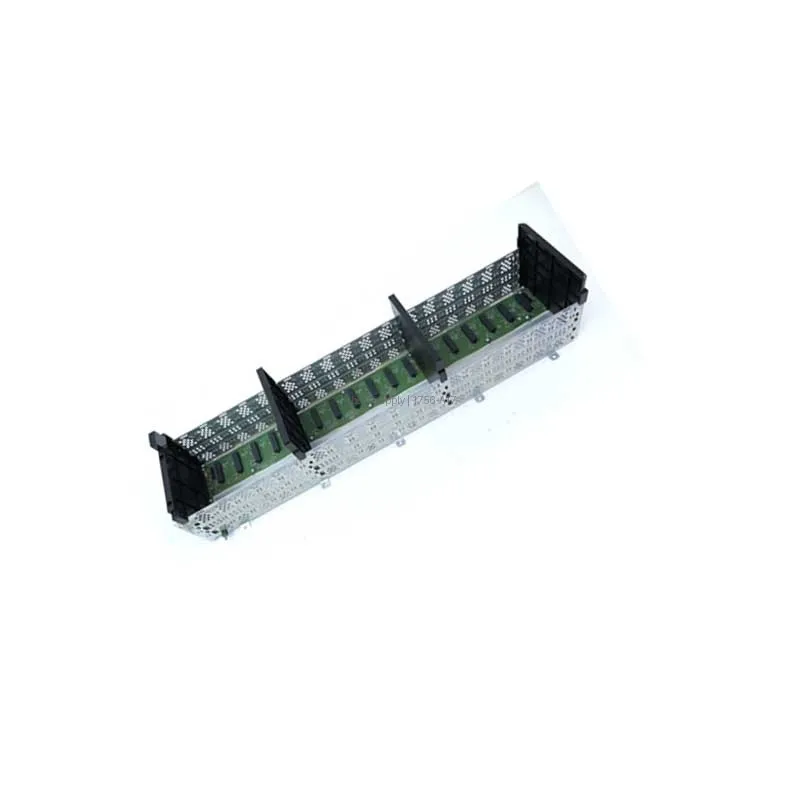

Allen-Bradley 1756-A17 17 Slot ControlLogix Chassis

Product Overview

The Allen-Bradley 1756-A17 is a robust 17-slot chassis. It belongs to the ControlLogix series. This chassis provides a sturdy backplane for your modules. It supports a maximum power dissipation of 6 Watts. The 1756-A17 is designed for panel mounting. It offers reliable performance in industrial environments.

Application Scenarios

This chassis is ideal for large control systems. It works well in manufacturing plants. Use it for process control applications. It fits in discrete manufacturing lines. The 1756-A17 is suitable for material handling. It also supports complex automation tasks. Its 17 slots allow for many I/O modules. This makes it perfect for system expansion.

Technical Specifications

The chassis has 17 slots for modules. It delivers 1.5 A at 1.2 VDC backplane current. It provides 4 A at 3.3 VDC. The 5.1 VDC backplane current is 15 A. It offers 2.8 A at 24 VDC. The operating temperature range is 0°C to +60°C for Series B. Series C operates from -25°C to +60°C. Storage temperature is -40°C to +85°C. The unit weighs 4.8 pounds (2.2 kilograms). Its dimensions are 30 x 36 x 8 inches.

Installation & Maintenance Guide

Mount the chassis horizontally on a panel. Use the ten mounting tabs for secure attachment. Connect the functional earth ground with 8 AWG wire. Use 14 AWG wire for protective earth ground. Ensure proper ventilation around the unit. Keep the relative humidity between 5 and 95 percent. Do not install in a closed enclosure. Regular inspection helps maintain performance.

Packing List

You will receive one 1756-A17 chassis. It includes mounting hardware. The package contains installation instructions. No modules are included with this chassis. The product ships in a protective box. Shipping is via FedEx, UPS, or DHL.
