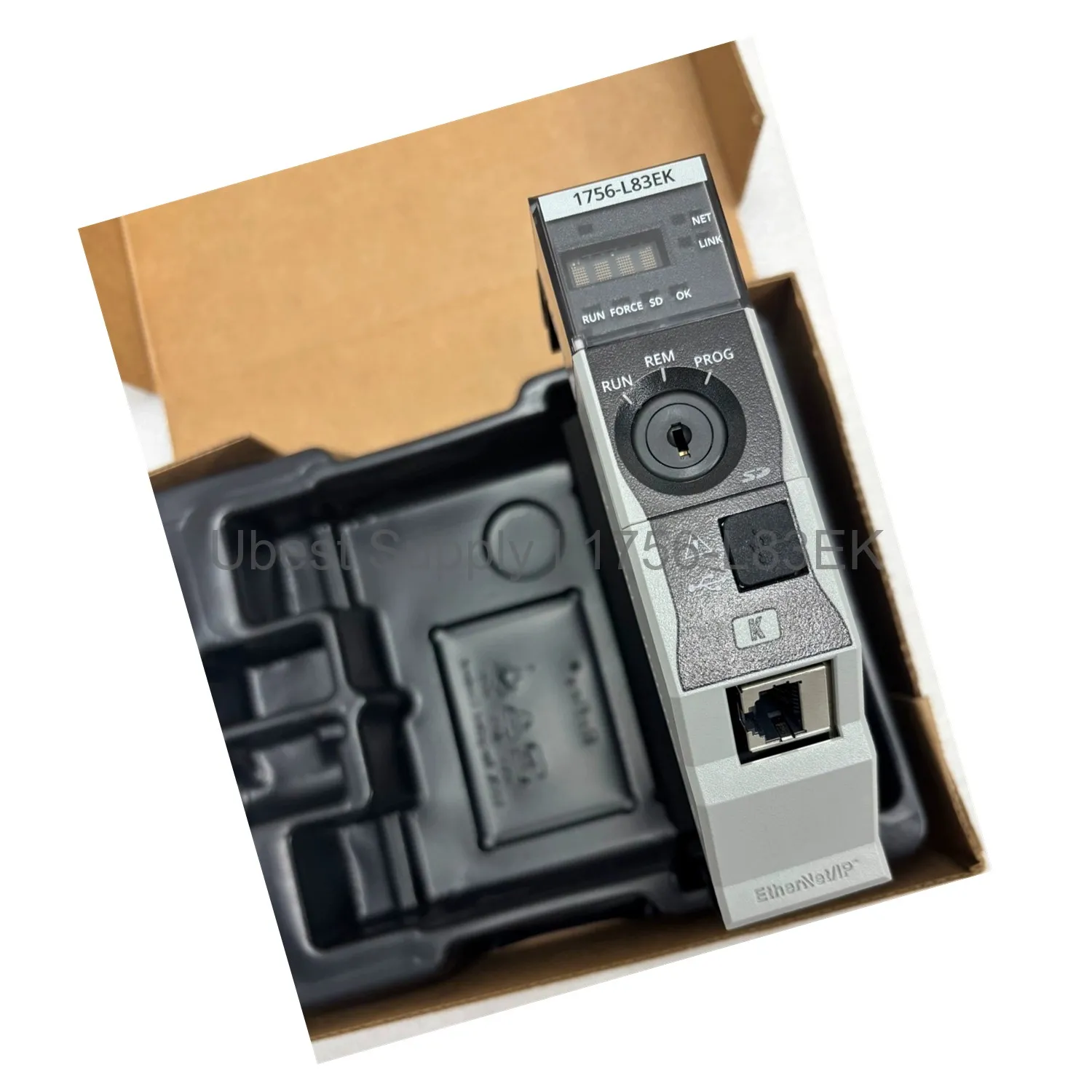

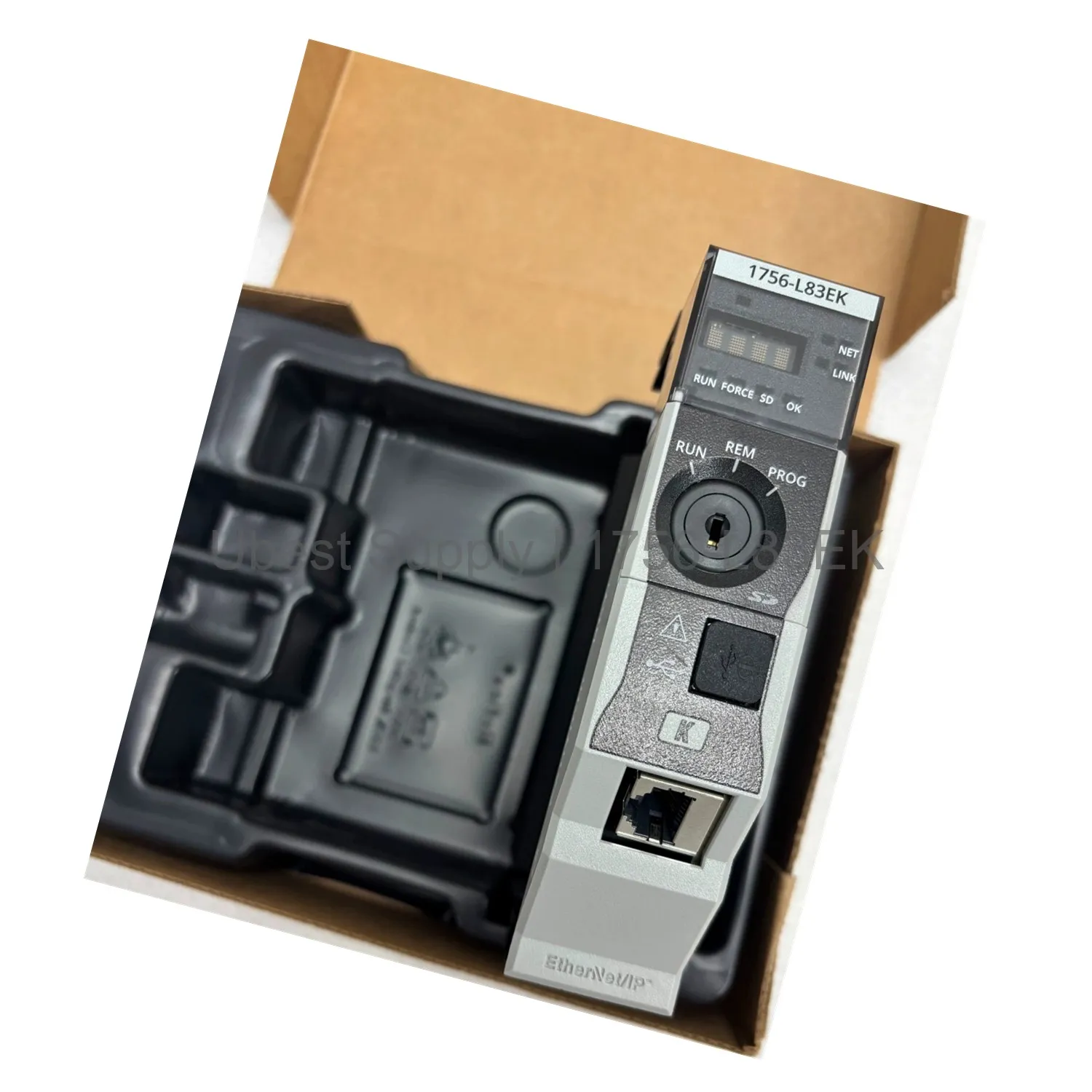

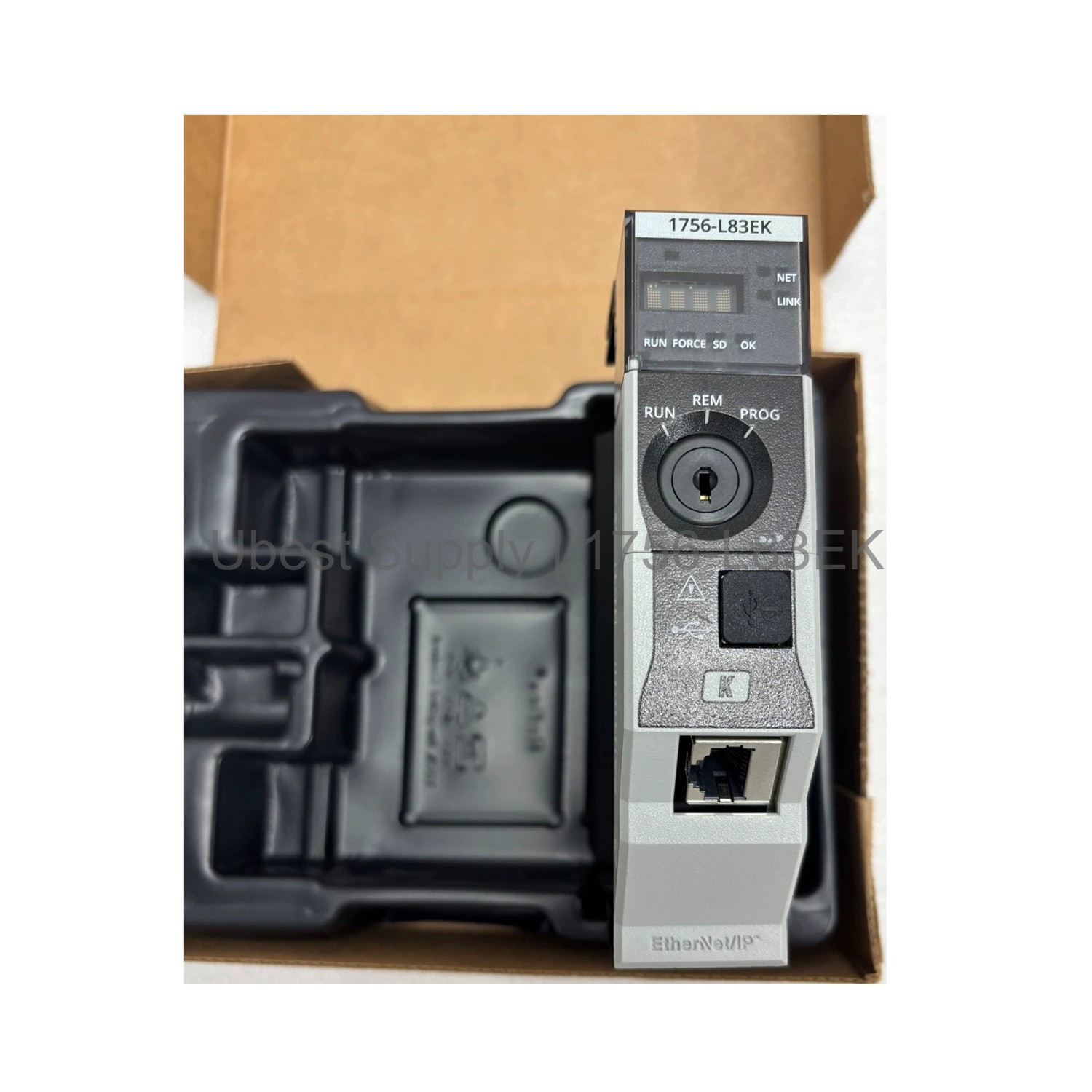

Allen-Bradley 1756-L83EK ControlLogix Logix5580 Processor

Product Overview

The Allen-Bradley 1756-L83EK is a powerful ControlLogix Logix5580 processor module. It offers 10 MB of user memory for demanding applications. This module supports up to 32 tasks for flexible control. It includes a USB port and a 1GB Ethernet port for fast communication. The unit can handle up to 100 EtherNet/IP devices. It features a 4-character alphanumeric display for status checks. This controller works with the Studio 5000 design environment. The conformal coating protects against harsh environments.

Application Scenarios

This processor works well in complex manufacturing lines. It manages high-speed assembly and packaging systems. The module controls material handling and conveyor networks. It fits into oil and gas processing applications. The device supports water and wastewater treatment plants. It handles batch control in chemical production. The processor works for discrete and process control tasks. It is ideal for large-scale industrial automation projects.

Technical Specifications

The module draws 5.0 mA from a 1.2V DC supply. It draws 1.20 mA from a 5.1V supply. Total power dissipation is 6.2 Watts. Thermal dissipation reaches 21.2 BTU per hour. The isolation voltage is 50 Volts continuous. The unit uses an open-style enclosure. Communication speed is 12 MB per second. The processor supports 100 or 250 Ethernet nodes. User memory is 10 MB for logic and data. The module communicates via USB and Ethernet ports.

Installation & Maintenance Guide

Install the module into a ControlLogix chassis. Ensure the chassis power is off before insertion. Align the module with the backplane connector. Secure the module with the locking screws. Connect the USB cable for local programming. Attach the Ethernet cable to the 1GB port. Use Studio 5000 software for configuration. Monitor the display for diagnostic codes. Keep the enclosure area clean and dry. Replace the module only with an identical model.

Packing List

One Allen-Bradley 1756-L83EK processor module. One quick start guide. One warranty card. No cables are included. No mounting hardware is included. The product ships in anti-static packaging. Shipping is done via FedEx, UPS, or DHL. Contact support for any missing items.
