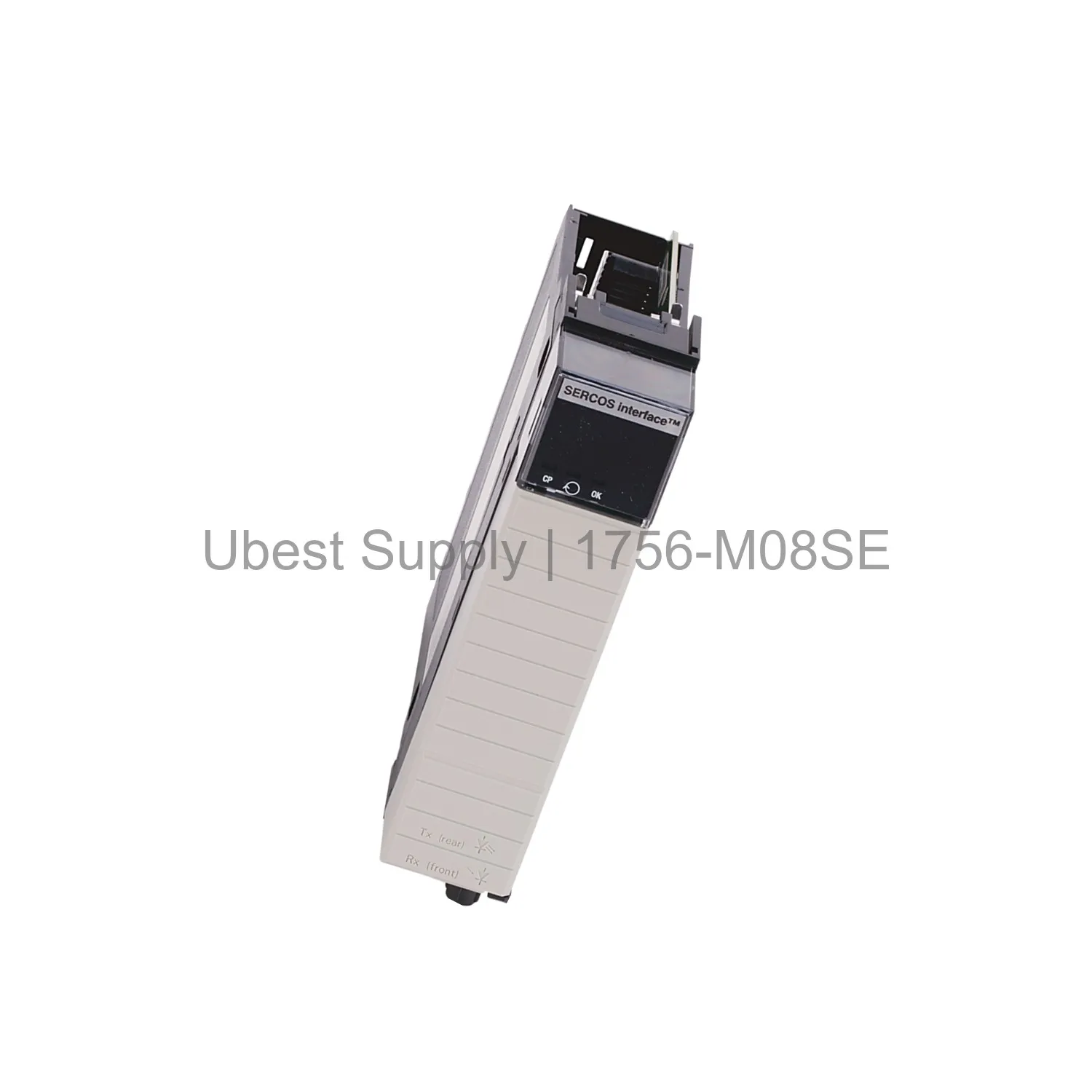

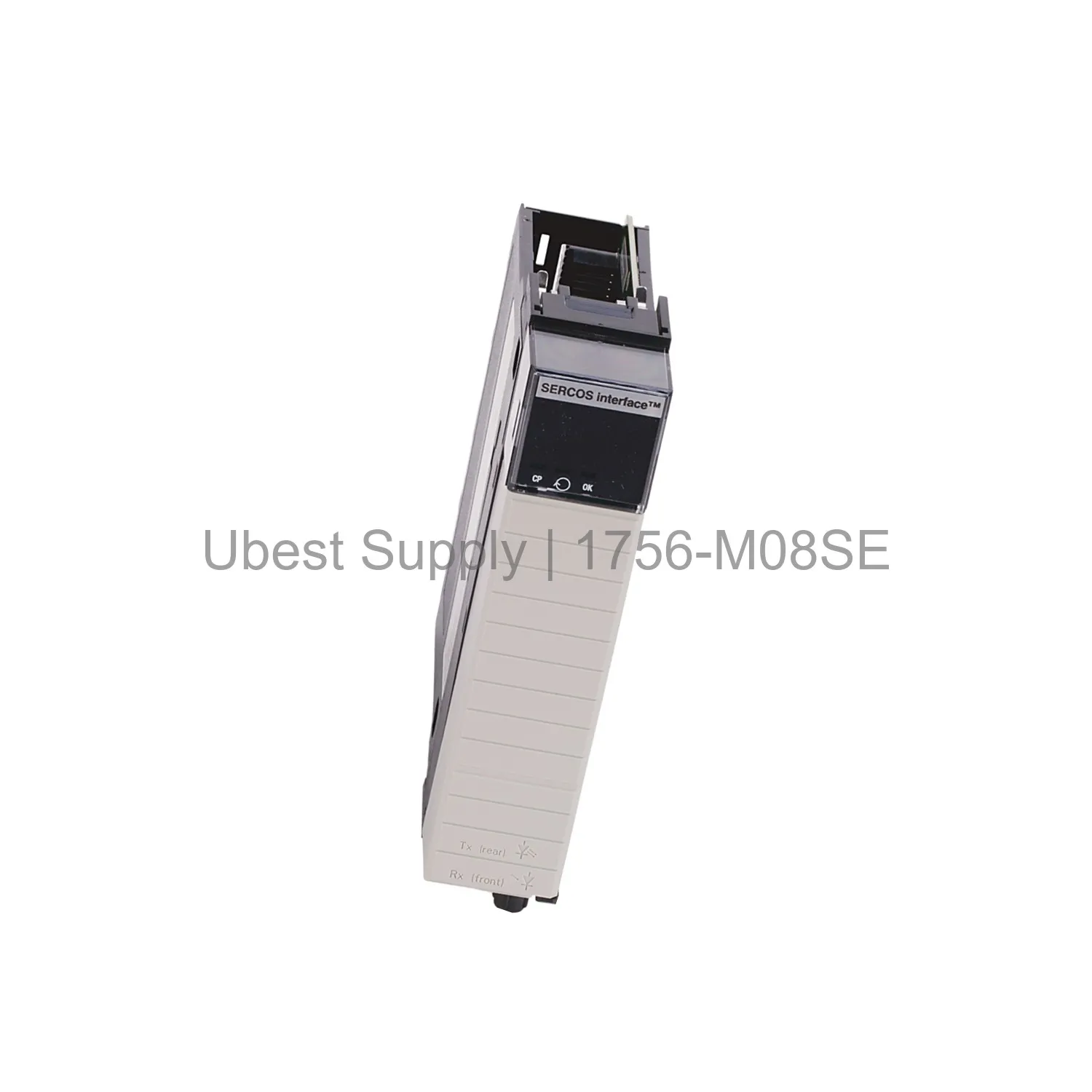

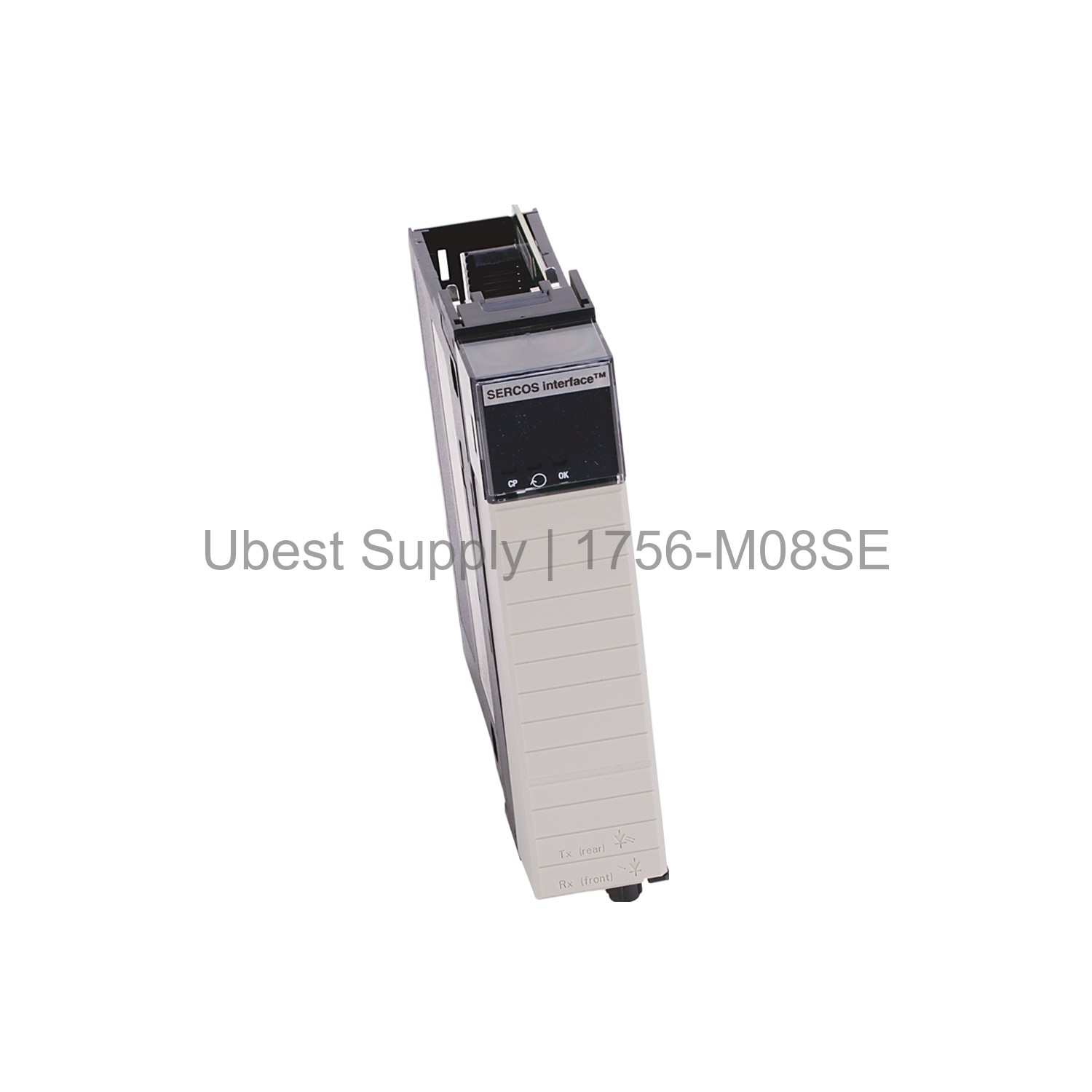

Allen-Bradley 1756-M08SE ControlLogix 8 Axis SERCOS Servo Module

Product Overview

The Allen-Bradley 1756-M08SE is a SERCOS interface module. It belongs to the ControlLogix family. This module connects a ControlLogix rack to SERCOS drives. It supports up to eight axes. The data rate can be 4 Mbps or 8 Mbps. It works with Kinetix 2000, 6000, 7000, and Ultra3000 drives. You can control position, velocity, and torque. The module uses fiber optic cables for communication. It offers reliable noise immunity.

Application Scenarios

Use this module in precision motion control. It fits packaging machines, printing presses, and assembly lines. It works well in high-speed automation. The module handles multi-axis coordination. It is ideal for robotic control. It also suits conveyor systems. The 1756-M08SE integrates with existing ControlLogix systems. It helps reduce wiring costs.

Technical Specifications

The module uses 5.0 Watts of power. It draws 760 milliamps from the 5V backplane. It draws 2.5 milliamps from the 24V backplane. The thermal dissipation is 21.2 BTU-hour. The isolation voltage is 50 Volts continuous. It supports SERCOS cycle times from 0.5 ms to 2 ms. It fits chassis like 1756-A4, A7, A10, A13, and A17. It works with standard and redundant power supplies.

Installation & Maintenance Guide

Install the module into any slot of a ControlLogix chassis. Use plastic or glass fiber optic cables. Connect the cables to the SERCOS drives. Configure the module using RSLogix 5000 software. Set the data rate and cycle time. You can change drive control modes. The module requires no interconnected wiring. Keep the enclosure clean and free of dust. Check the fiber optic cables for damage.

Packing List

1 x Allen-Bradley 1756-M08SE Module. 1 x Installation Guide. No cables are included. Order fiber optic cables separately. Use catalog numbers 2090-SCEPxx-0 or 2090-SCVPxx-0. Use FedEx, UPS, or DHL for shipping. Ensure proper packaging to avoid damage.
