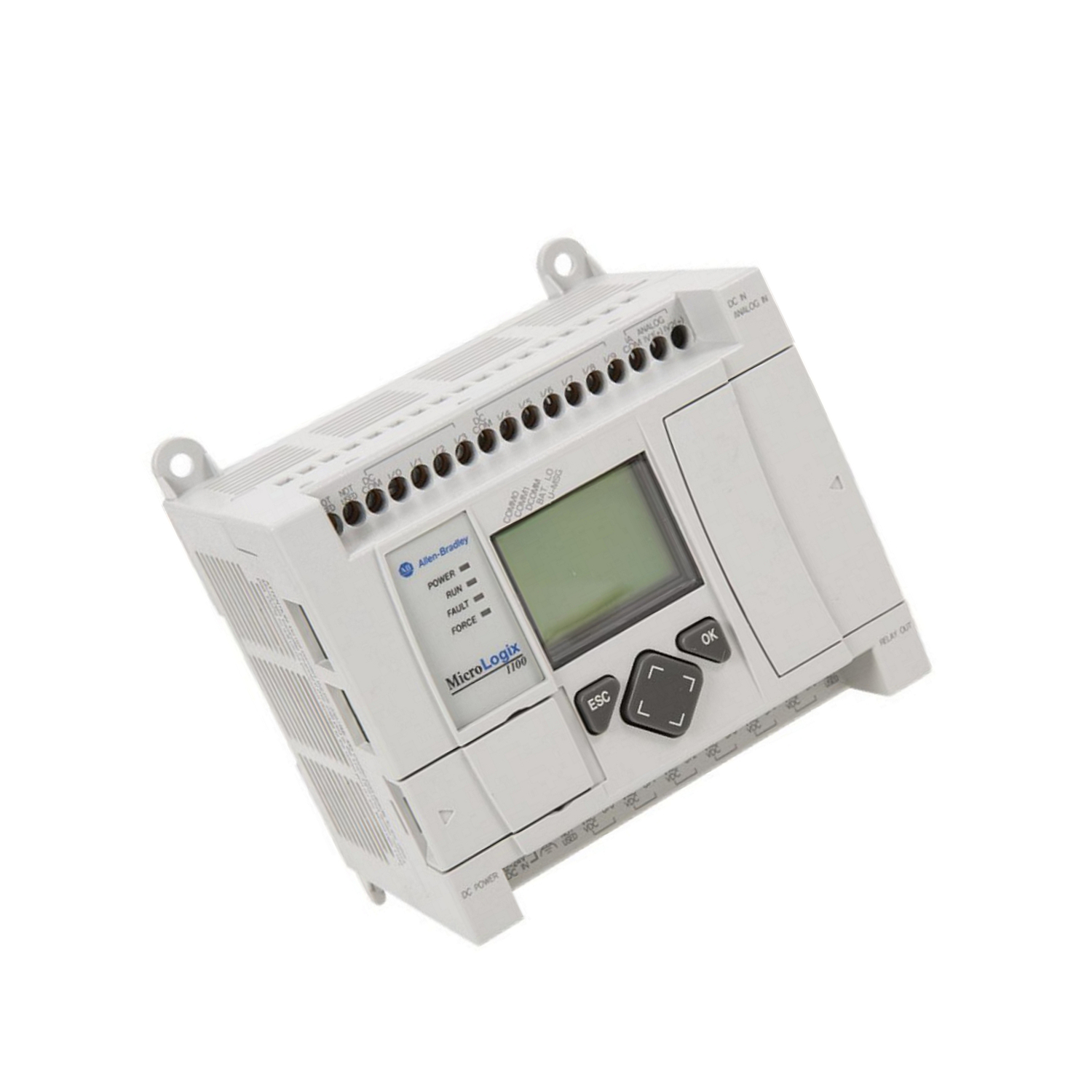

Allen-Bradley 1763-L16AWA MicroLogix 1100 PLC Controller

Product Overview

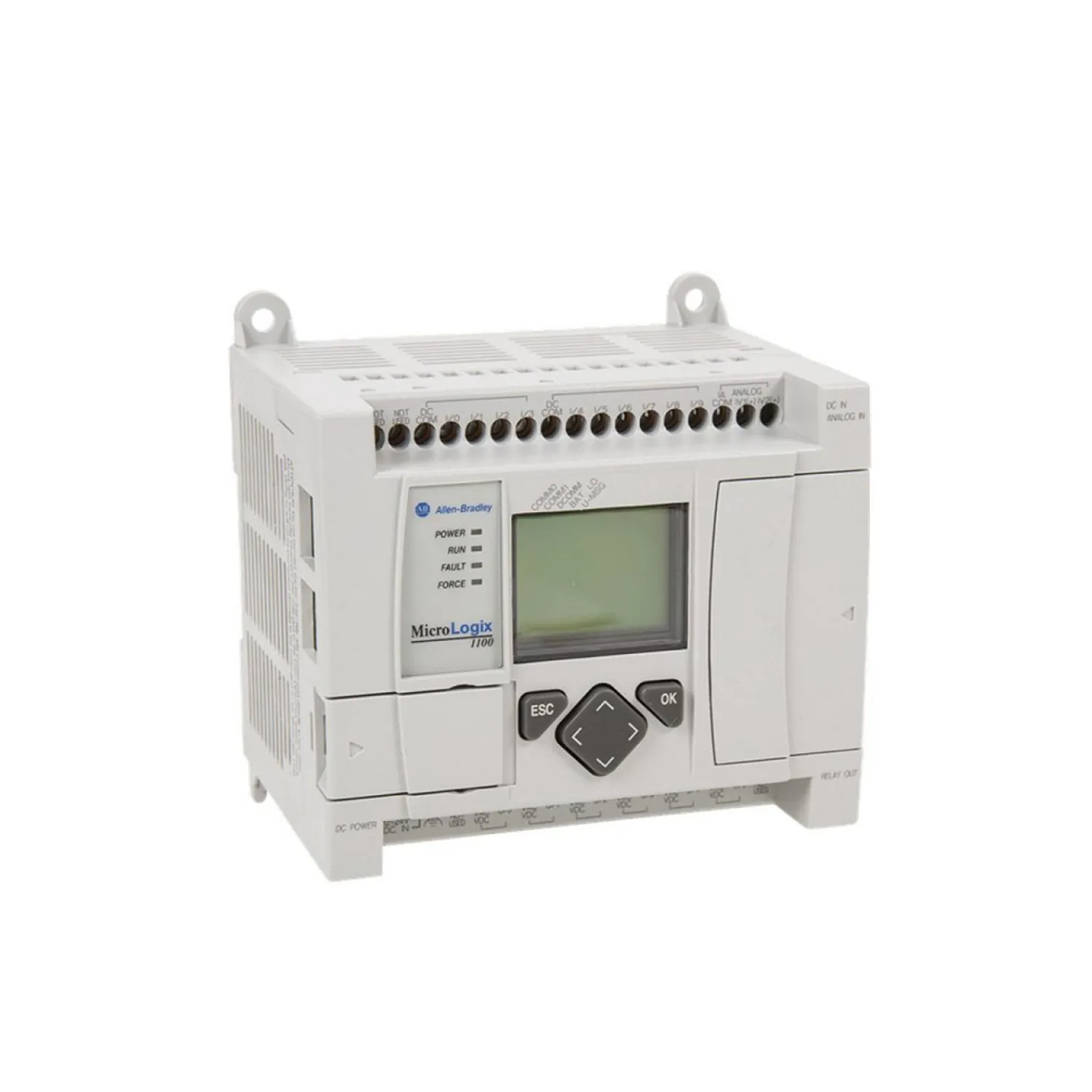

The 1763-L16AWA is an Allen-Bradley MicroLogix 1100 programmable controller. It is a compact unit with integrated I/O. This controller has twelve 120VAC digital inputs. It also has two 0-10VDC analog inputs. The six relay outputs handle up to 10A. The controller includes RS232 and Ethernet ports. The built-in LCD screen shows status. This unit works with 120-240VAC power. It consumes 46VA. The 1763-L16AWA is part of the Bulletin 1763 family. It is designed for small-scale automation tasks.

Application Scenarios

This controller suits many industrial tasks. Typical uses include material handling and packaging. It works with general machinery and printing equipment. Food and beverage processing also benefit. Water and wastewater systems use it. Clutch and brake control is another application. Position control tasks are also possible. The unit needs a protective enclosure. This reduces environmental and electrical interference.

Technical Specifications

Input power: 120-240VAC. Digital inputs: ten 120VAC. Analog inputs: two 0-10VDC. Analog resolution: 10-bit unsigned integer. Outputs: six relay channels. Each relay handles 10A. Switching voltage up to 240VAC or 125VDC. Communication: RS232/485 and Ethernet. Ethernet speed: 10/100 Mbps. Dimensions: 3.5 x 4.33 x 3.43 inches. Weight: approximately 0.5 kg.

Installation & Maintenance Guide

Mount the controller in a rated enclosure. Follow local electrical codes. Use copper conductors only. Ensure proper grounding. The RS232/485 port must use floating references. For Ethernet, use CAT5 cable. Program via RSLogix 500 software. Check the LCD for diagnostics. Periodic cleaning is required. Do not expose to moisture or dust.

Packing List

Each shipment includes: one 1763-L16AWA controller, one user manual, and one power connector. No cables are included. The unit is packed in antistatic foam. Ship via FedEx, UPS, or DHL.
