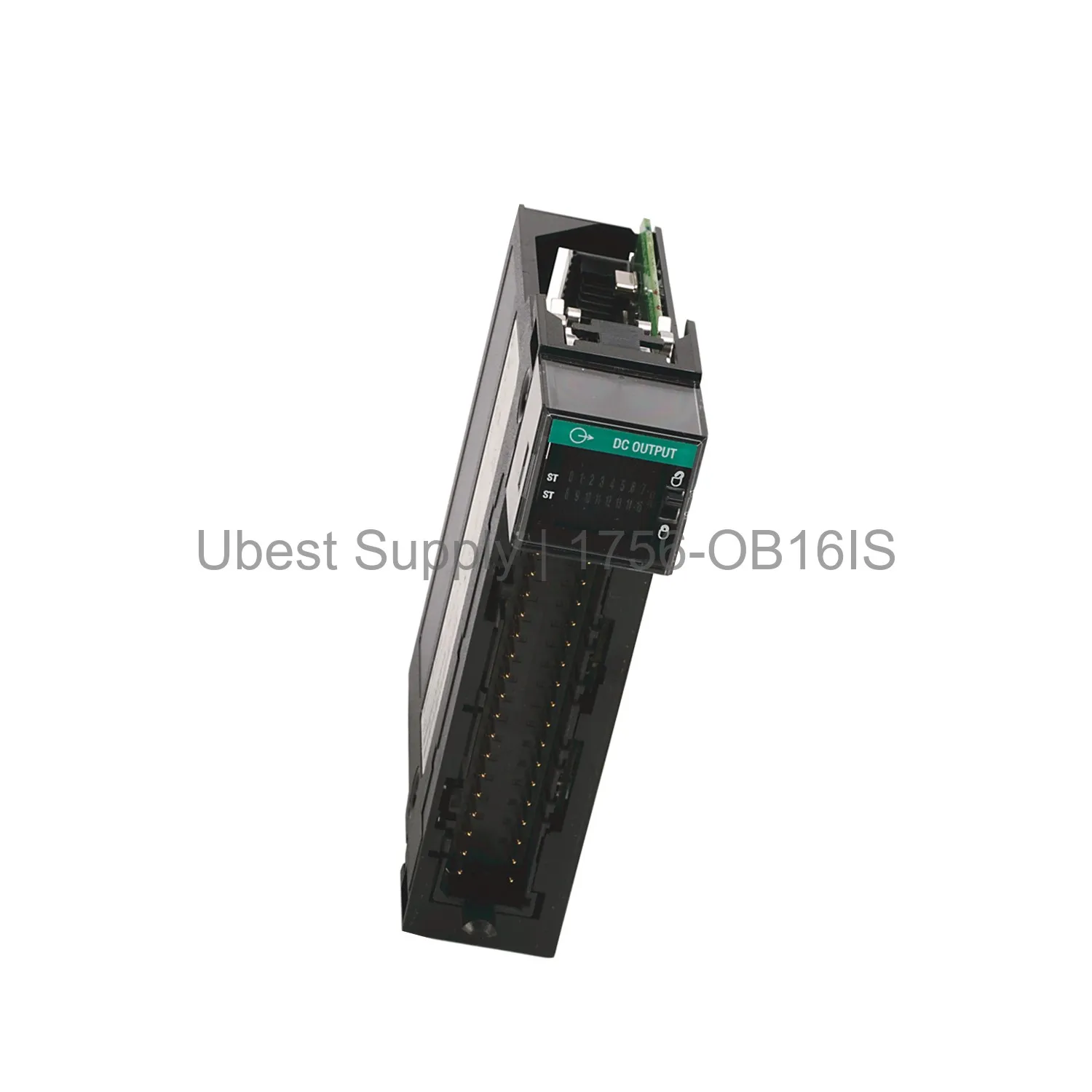

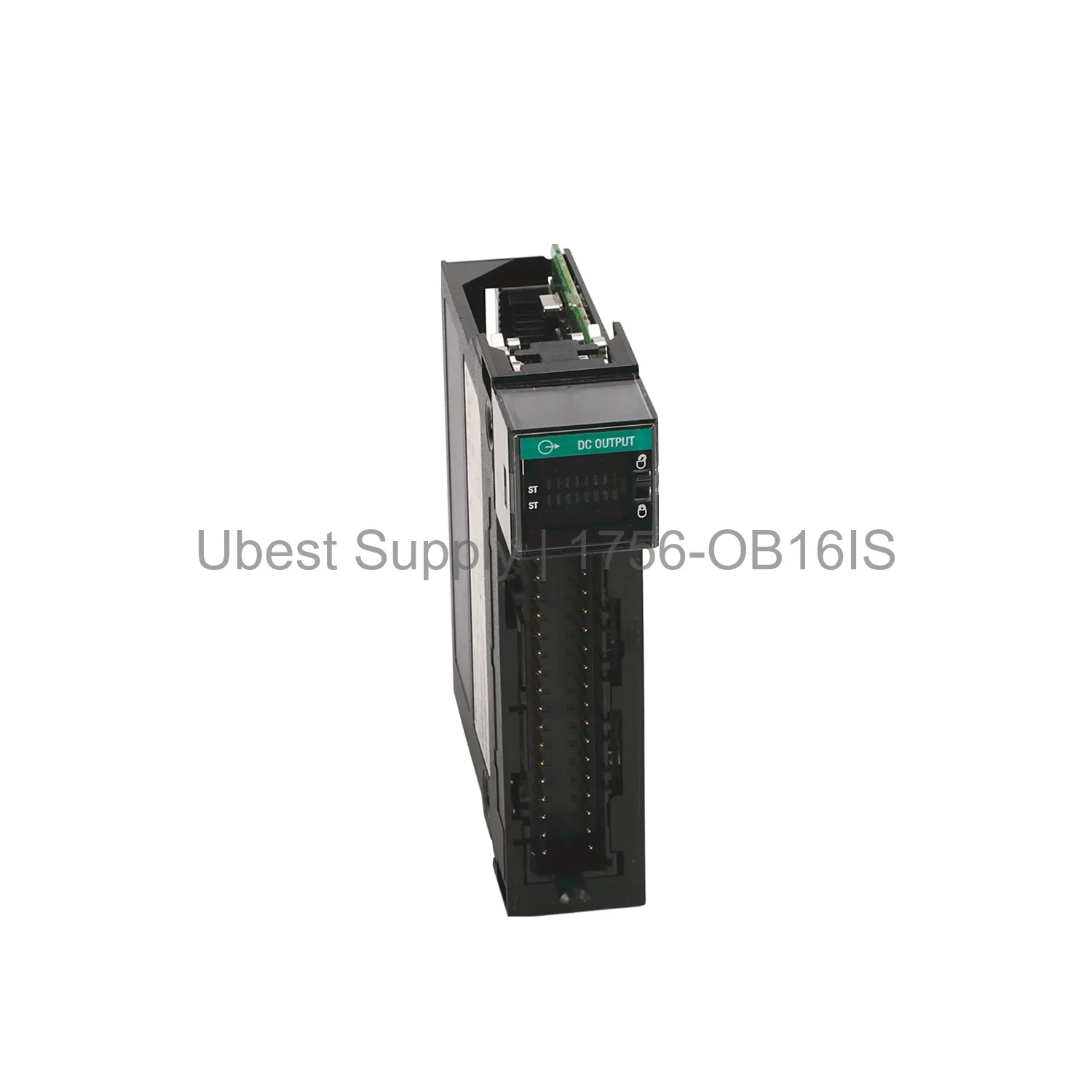

Allen-Bradley 1756-OB16IS ControlLogix Isolated Output Module

Product Overview

The Allen-Bradley 1756-OB16IS is a high-performance ControlLogix I/O module. It provides 16 individually isolated outputs. This module also features 8 scheduled outputs. It operates on a 12/24 Volts DC sink/source voltage category. The operating voltage range is 10-30 Volts DC. This module is ideal for precise industrial control tasks.

Application Scenarios

This module is perfect for complex automation systems. It works well in discrete manufacturing environments. Use it for high-speed packaging lines. It is suitable for material handling systems. The 1756-OB16IS supports CIP Sync architecture. This makes it ideal for coordinated motion control. It also works in applications needing electrical isolation. Use it to protect sensitive control circuits.

Technical Specifications

The module draws 350 milliamperes from the 5.1 Volt bus. It draws 2.5 milliamperes from the 24 Volt bus. Maximum power dissipation is 3.3 Watts at 60 Celsius. It features a pilot duty rating of 2 A (DC-13SQ). The enclosure type is none (open-style). It uses a 36-pin connector for wiring. The UPC code is 10612598164544.

Installation & Maintenance Guide

Install the module into a ControlLogix chassis. Ensure the chassis power is off before installation. Align the module with the backplane connector. Secure it with the locking screws. Wire the outputs using the 36-pin connector. Use copper wiring rated for 75 degrees Celsius. Torque terminal screws to 0.8 Nm. Do not exceed the specified voltage and current ratings. Regularly check for loose connections. Keep the module free from dust and moisture.

Packing List

Your order includes one Allen-Bradley 1756-OB16IS module. It also includes the 36-pin removable terminal block. The package contains installation instructions. We ship via FedEx, UPS, or DHL. Your order will be professionally packed for safe transit.
