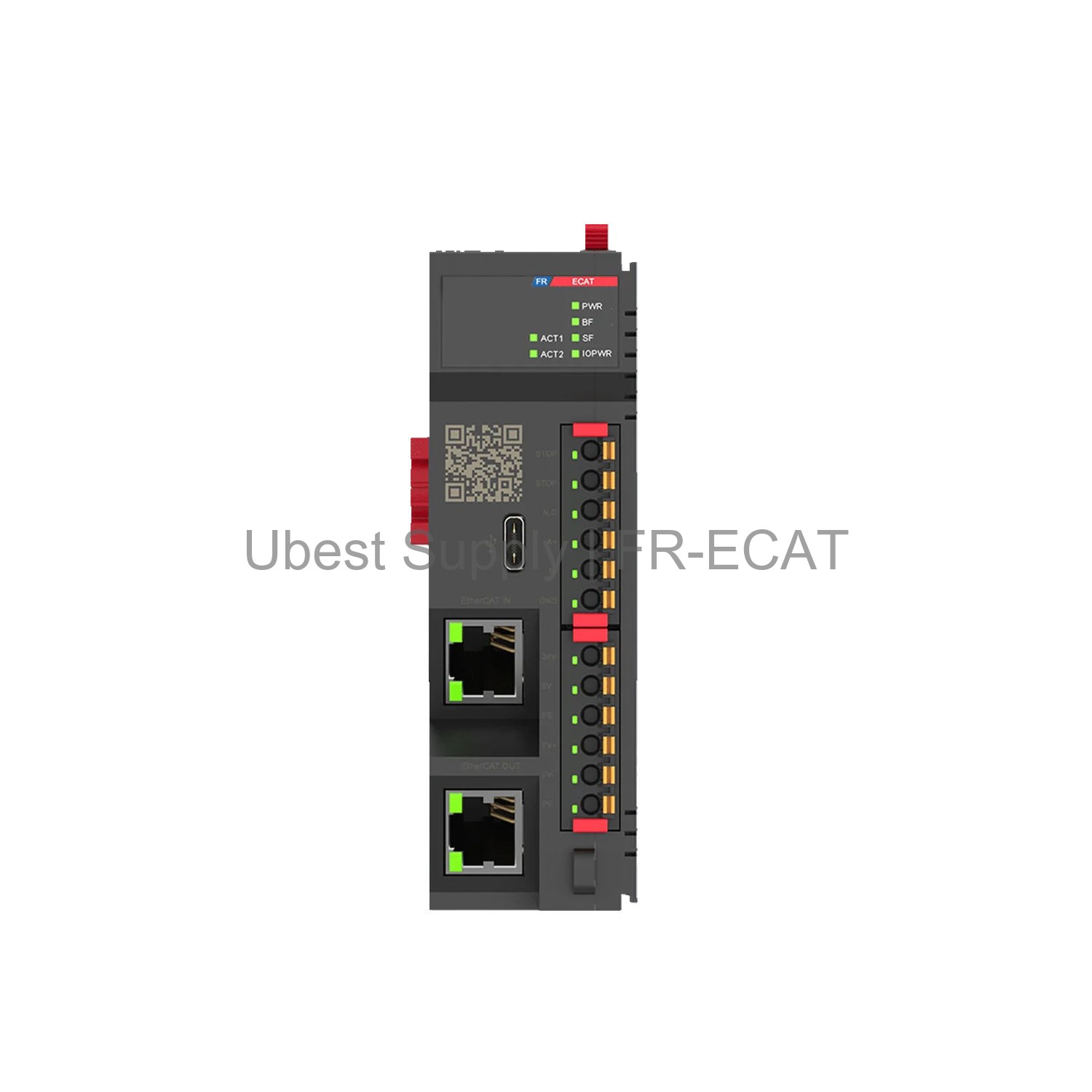

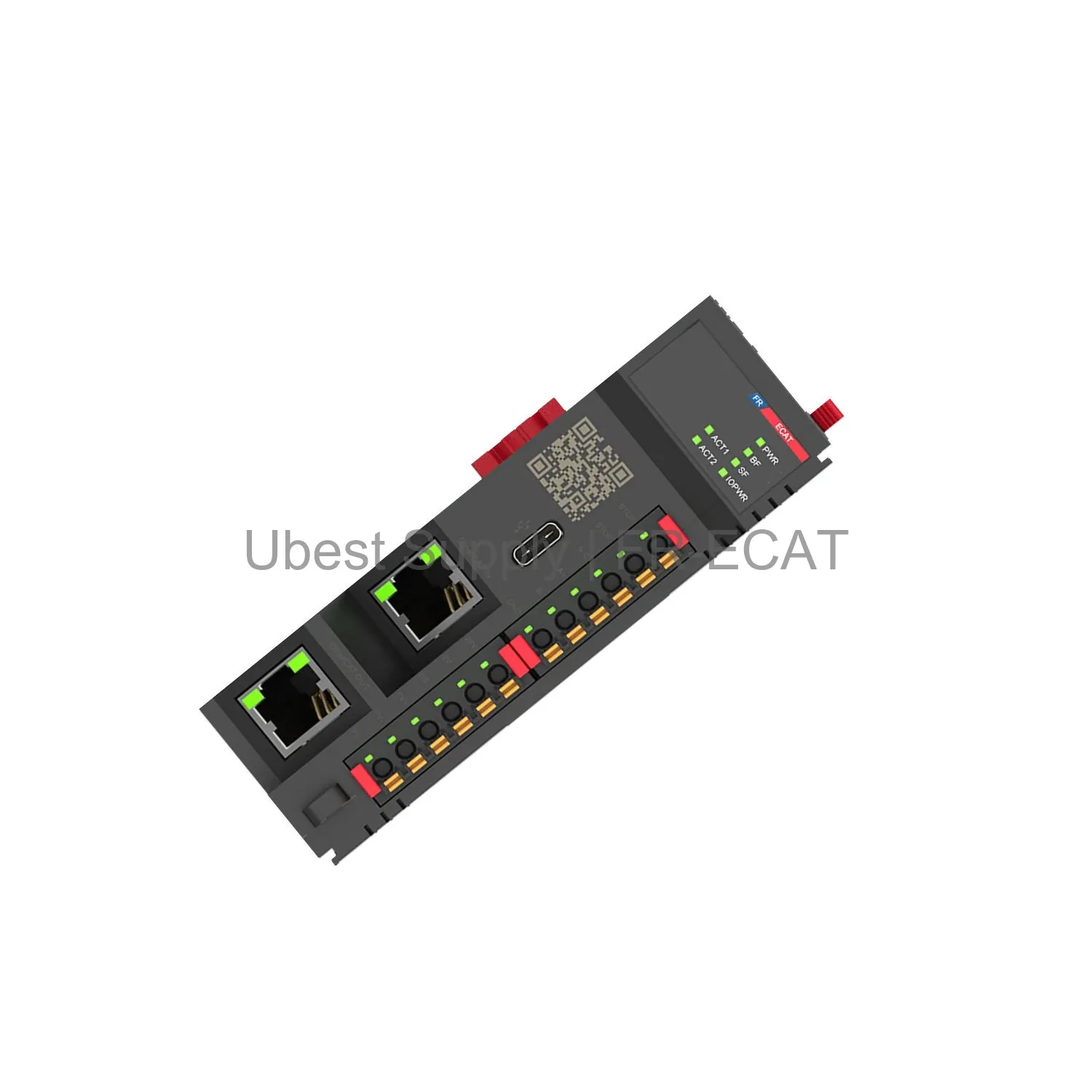

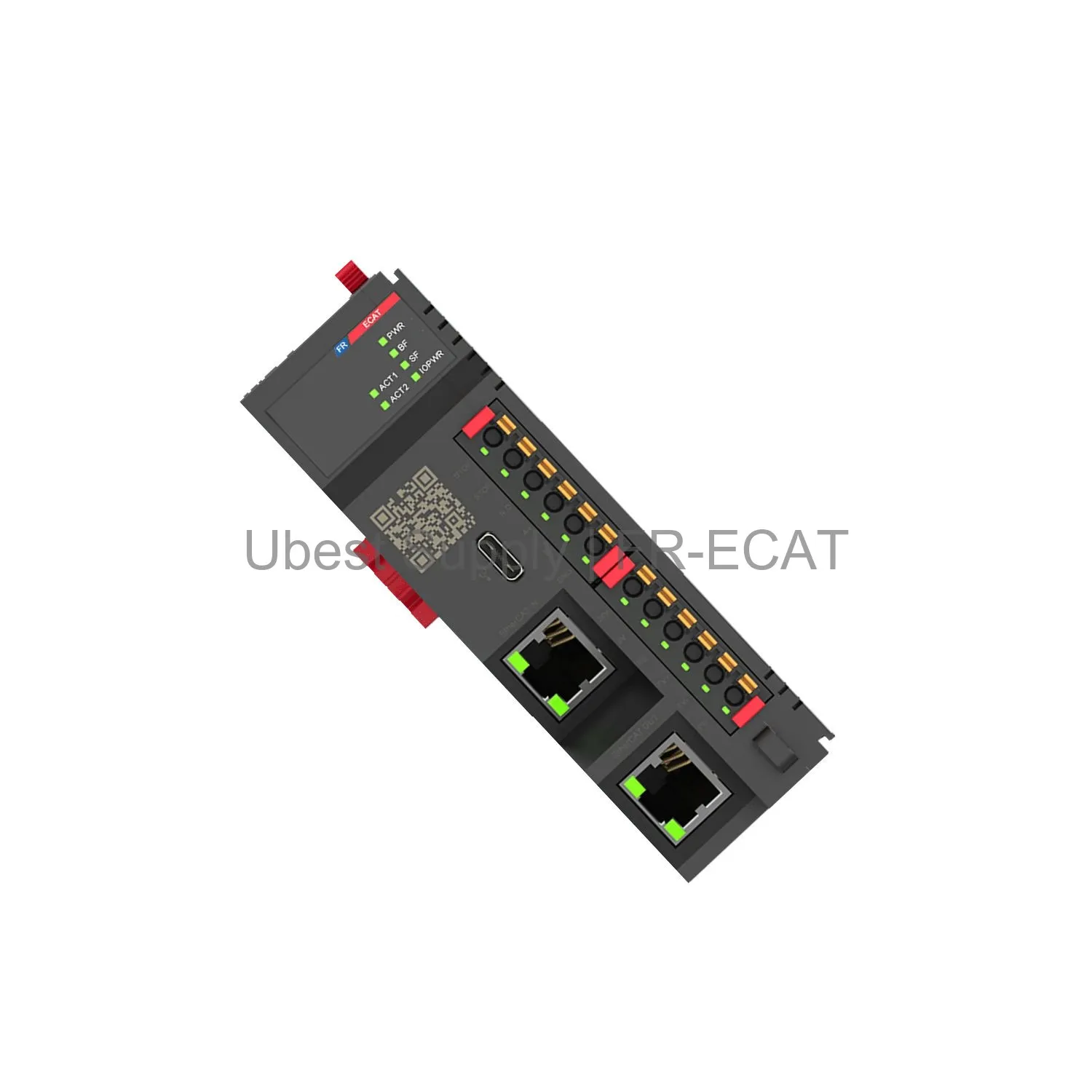

Flexem FR-ECAT EtherCAT Bus Coupler 36mm Slim Design

Product Overview

The Flexem FR-ECAT is a high-performance EtherCAT bus coupler. It connects field devices to an EtherCAT network. This device supports a wide power range from 9 to 36 VDC. Normal operation uses 24 VDC. It includes overcurrent protection and anti-reverse connection protection. The coupler consumes only 110 mA at 24 VDC. It provides galvanic isolation for reliable signal transfer. The field power supply range is 22 to 28 VDC. Maximum field power current is 8 A DC. This unit supports up to 31 extension modules. It uses wires up to 1.5 mm² (AWG 16). The compact design saves space in control panels.

Application Scenarios

The FR-ECAT works well in factory automation. Use it for machine control and process automation. It fits into material handling systems. It is ideal for packaging machinery. Use it in robotics and assembly lines. The coupler suits distributed I/O applications. It connects sensors and actuators to a central controller. It performs well in harsh industrial environments. The wide temperature range supports many climates.

Technical Specifications

Power supply: 9 to 36 VDC. Normal operation: 24 VDC. Power consumption: 110 mA at 24 VDC. Isolation: yes. Field power: 22 to 28 VDC. Field power current: max 8 A DC. Max extension modules: 31. Wire size: max 1.5 mm² (AWG 16). Installation: 35 mm DIN rail. Dimensions: 111 mm x 36 mm x 76 mm. Weight: 200 g. Operating temperature: -20 to 70 °C. Humidity: 5% to 95% non-condensing. Protection grade: IP20. Protocol: EtherCAT. Process data area input: max 1024 bytes. Process data area output: max 1024 bytes. Connector: 2 x RJ45. Speed: 10/100 Mbps. Max cable length: 100 m.

Installation & Maintenance Guide

Mount the coupler on a 35 mm DIN rail. Use a flathead screwdriver for installation. Connect the power supply to the correct terminals. Use shielded Ethernet cables for best performance. Keep the unit in a clean and dry area. Do not exceed the maximum current rating. Check all connections regularly. Replace damaged cables immediately. The device requires no routine maintenance. Ensure proper grounding for safety.

Packing List

1 x Flexem FR-ECAT EtherCAT bus coupler. 1 x product manual. 1 x connector plug. Please contact us for bulk orders. Shipping is via FedEx, UPS, or DHL.
