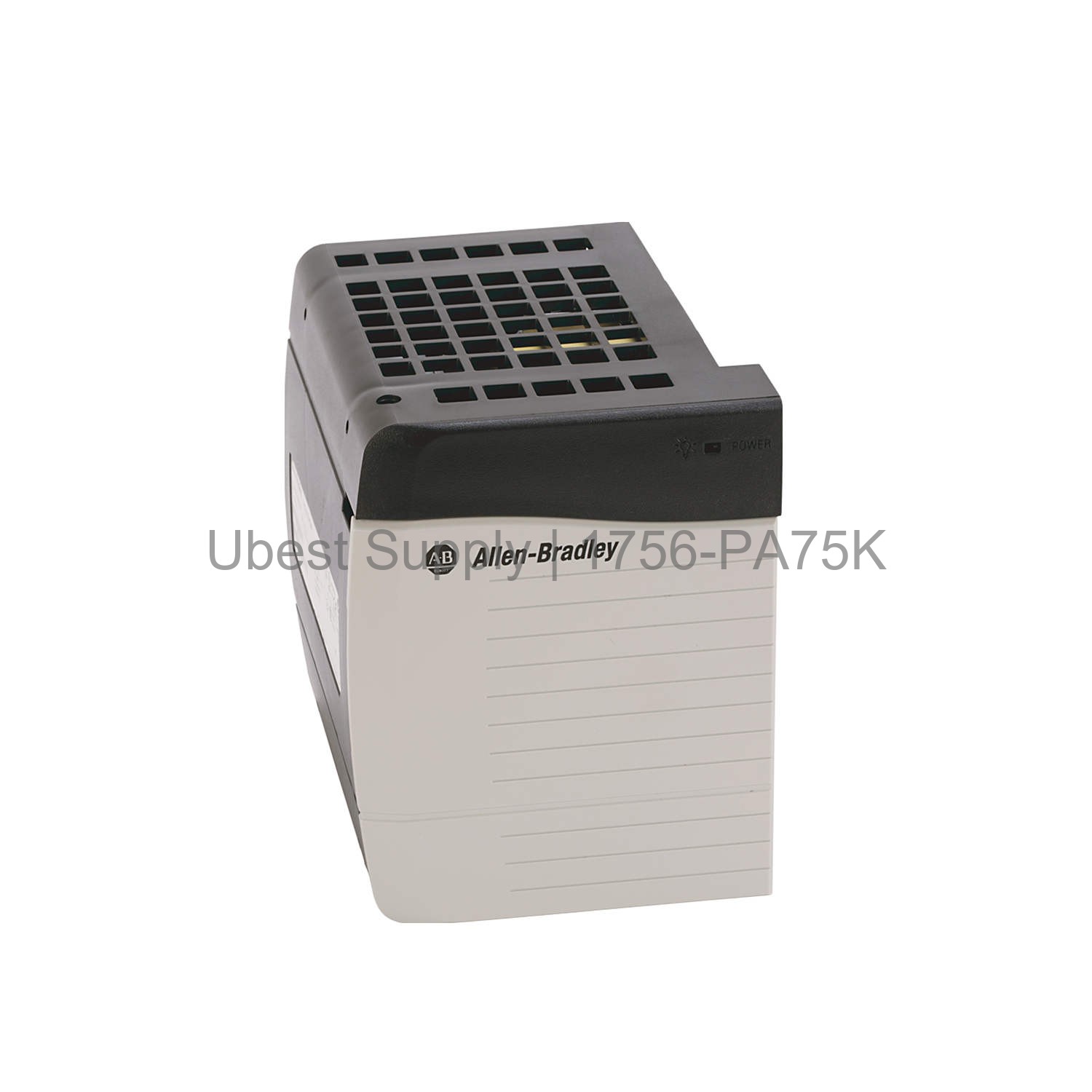

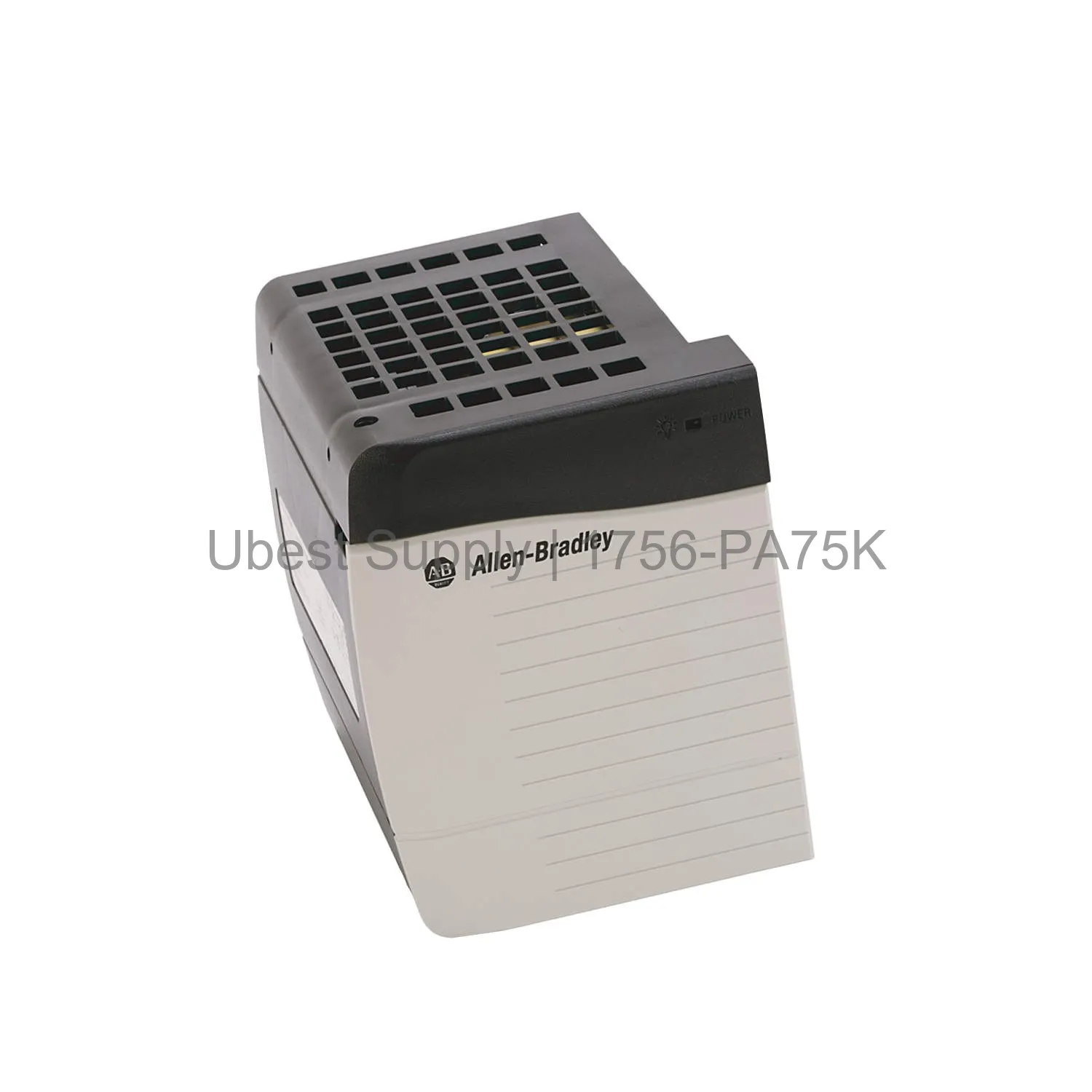

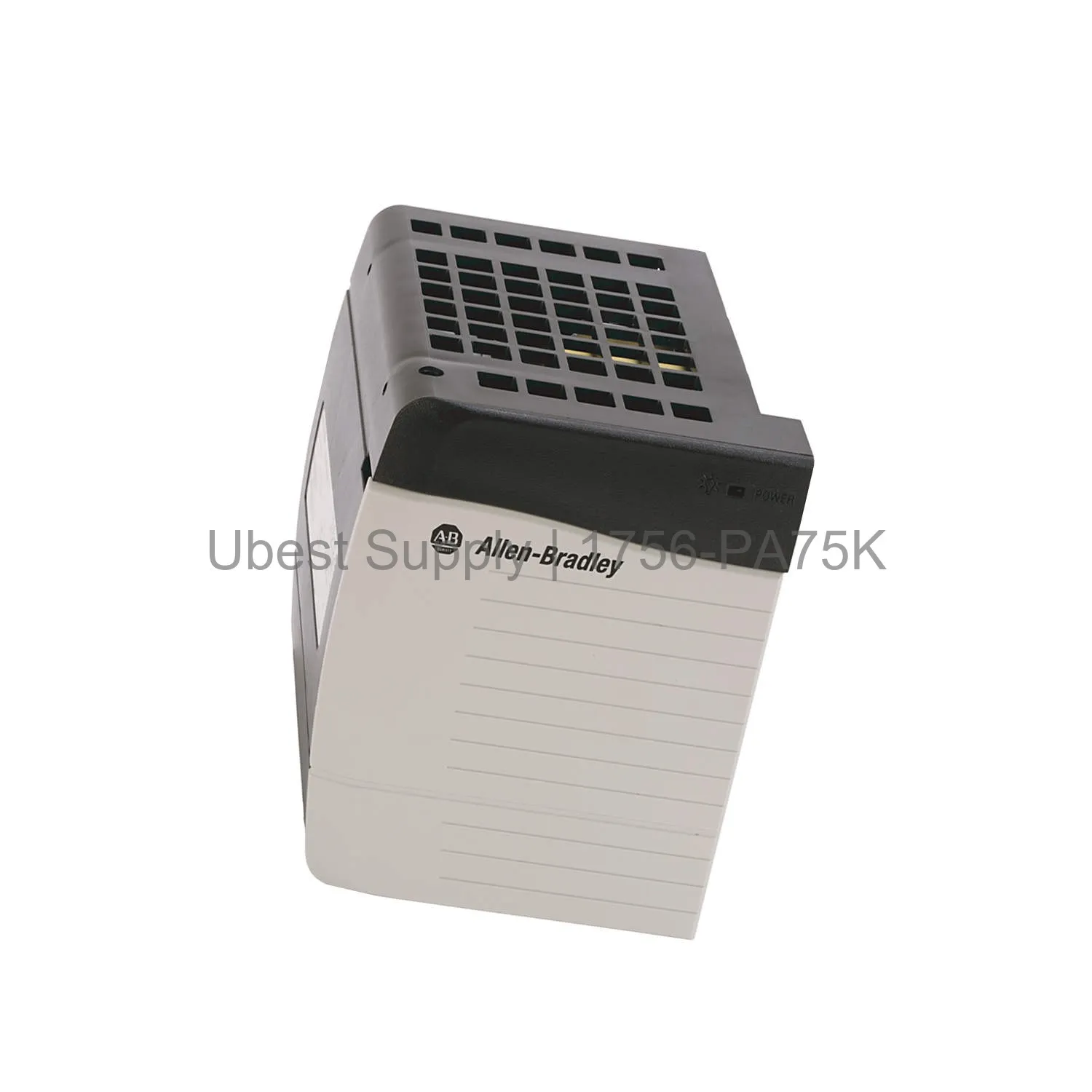

Allen-Bradley 1756-PA75K ControlLogix AC Power Supply Module

Product Overview

The Allen-Bradley 1756-PA75K is a ControlLogix AC power supply module. It delivers 75 Watts of power at 60 Celsius. This module fits in the left side of the chassis. It supports a wide input voltage range from 85 to 265 Volts AC. This makes it suitable for global applications. The module operates with an input frequency of 47 to 63 Hertz. It provides reliable power to your ControlLogix system. Use it to power backplanes and modules. It ensures stable operation in industrial environments.

Application Scenarios

This power supply works in many industrial settings. Use it in manufacturing plants and process control systems. It powers ControlLogix racks in assembly lines. It supports machine control and material handling. The module works in harsh factory floor conditions. Its wide voltage range handles unstable power grids. Use it in automotive, food and beverage, and packaging industries. It also fits in oil and gas applications. The 1756-PA75K is ideal for new builds or upgrades.

Technical Specifications

The module has an input voltage of 120-220 Volts AC. Its voltage range is 85-265 Volts AC. Input power is 100 Watts. Input frequency is 47-63 Hertz. Power output is 75 Watts at 60 Celsius. The chassis series is B. It mounts on the left side of the chassis. The module weighs 2.5 pounds or 1.1 kilograms. Its dimensions are 5.5 x 4.4 x 5.7 inches. Operating temperature is 32-140 Fahrenheit or 0-60 Celsius. It has no enclosure. This is a standard ControlLogix module.

Installation & Maintenance Guide

Install the module in the left slot of the chassis. Ensure the chassis is powered off before installation. Slide the module into the guides until it clicks. Tighten the screws to secure it. Connect the AC power cable to the input. Check the input voltage matches your supply. The module has no user-serviceable parts. Keep the area clean and free of debris. Monitor the LED indicators for status. Replace the module if it fails. Use only qualified personnel for installation.

Packing List

Each package includes one Allen-Bradley 1756-PA75K power supply module. It also includes a quick start guide. The module is packed in anti-static material. It ships in a secure box. Shipping is via FedEx, UPS, or DHL. Contact us for bulk orders. We ensure fast and safe delivery.
