200150-05-05 | Bently Nevada 100 mV/g Accelerometer for Trendmaster

Introduction to the Bently Nevada 200150-05-05 Accelerometer

When machinery vibration threatens uptime, the 200150-05-05 from Bently Nevada provides precise measurement. This general purpose accelerometer is designed for use with Trendmaster 2000 or Trendmaster Pro systems. It offers a sensitivity of 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, ensuring accurate data for predictive maintenance.

Key Features and Technical Specs of the 200150-05-05

• Sensitivity: 10.2 mV/(m/s²) ±12% at 80 Hz
• Measurement range: ±245 m/s² (±25 g)
• Frequency range: 10 to 1000 Hz (600 to 60,000 cpm)
• Mounted resonant frequency: >20 kHz
• Amplitude linearity: ±2% (1 to 10 g pk)
• Transverse sensitivity: ≤7%
• Settling time: ≤300 ms
• Excitation voltage: 4.7 to 5.5 Vdc
• Output bias voltage: +2.5 ± 0.23 Vdc
• Quiescent current: <800 µA

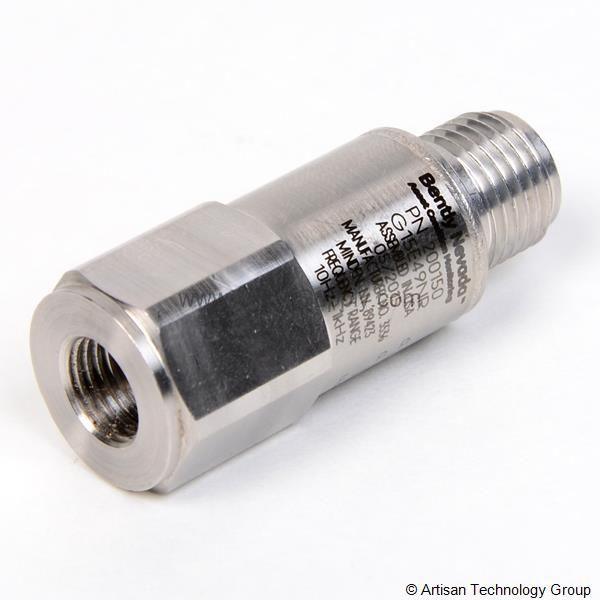

The 200150-05-05 uses a ceramic shear sensing element in a 316L stainless steel housing. Its compact size (17.5 mm hex x 45.7 mm height) and lightweight design (58 g) simplify installation in tight spaces.

Applications and Use Cases

Maintenance engineers rely on the 200150-05-05 for continuous vibration monitoring in rotating machinery. It excels in general industrial applications where early fault detection reduces downtime. The accelerometer's wide temperature range (-40 °C to +105 °C) suits harsh environments. With 100% condensing humidity tolerance, it performs reliably in wet conditions.

Installation and Setup

Mount the 200150-05-05 using its 3/8-24 female thread. Apply a mounting torque of 2.7 to 6.8 N·m (2 to 5 ft·lbf). The mounting stud option (05) includes a 3/8-24 to 1/4-28 UNF adapter with a 1-3/8 inch hex plate. Allow 24 hours cure time after installation for optimal performance. Positive signal polarity (SIG+ relative to SIG-) simplifies wiring.

Maintenance and Reliability

Routine inspection of the accelerometer's cable and connector ensures long service life. The hermetically sealed design (leak rate <5x10⁻⁸ atm·cc/s) prevents moisture ingress. With axial shock limit of 49,050 m/s² (5,000 g pk), the 200150-05-05 withstands mechanical shocks. Regular verification of output bias voltage (+2.5 ± 0.23 Vdc) confirms proper operation.

Compatibility and Integration

The 200150-05-05 works with Trendmaster 2000 and Trendmaster Pro systems. It uses the ProTIM option for standard acceleration-to-velocity channel type (-01). Multiple approvals (CSA, ATEX, IECEx) allow use in hazardous areas. The accelerometer's 100 mV/g output integrates seamlessly with Bently Nevada monitoring platforms.

Frequently Asked Questions about the 200150-05-05

What is the sensitivity of the 200150-05-05?

The sensitivity is 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, with a tolerance of ±12%.

What is the measurement range of this accelerometer?

The measurement range is ±245 m/s² (±25 g) for the accelerometer.

What temperature range can the 200150-05-05 handle?

It operates from -40 °C to +105 °C (-40 °F to +221 °F).

Is the 200150-05-05 suitable for hazardous environments?

Yes, it carries multiple approvals including CSA, ATEX, and IECEx.

What is the mounting thread size?

The mounting thread is 3/8-24 female.

Product Support and Availability

The Bently Nevada 200150-05-05 is available from Petro Auto Tech. In stock and ready to ship, it supports your vibration monitoring needs. Contact Petro Auto Tech for current lifecycle status and ordering details.
