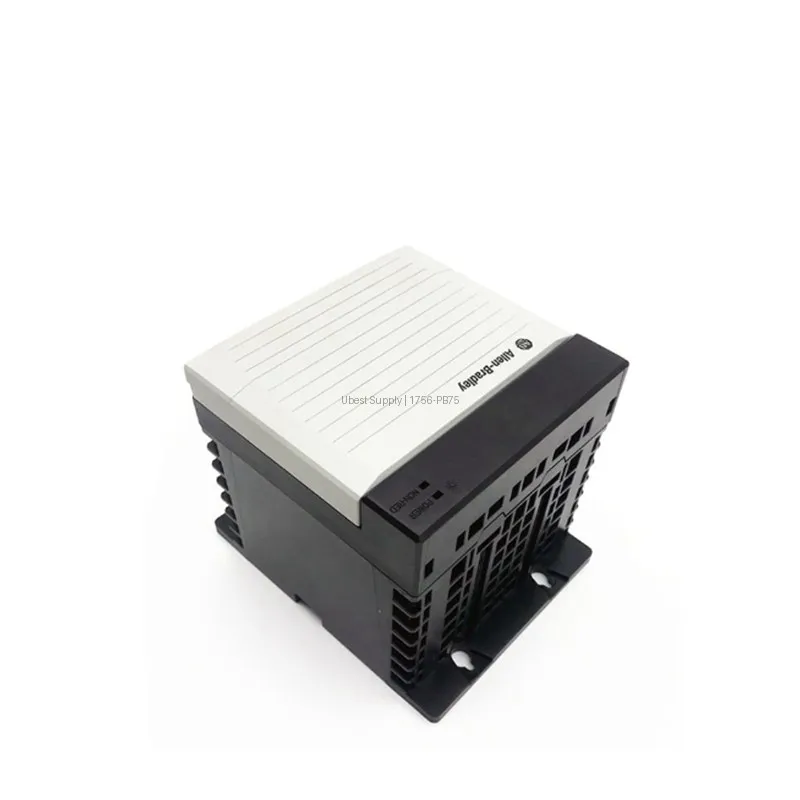

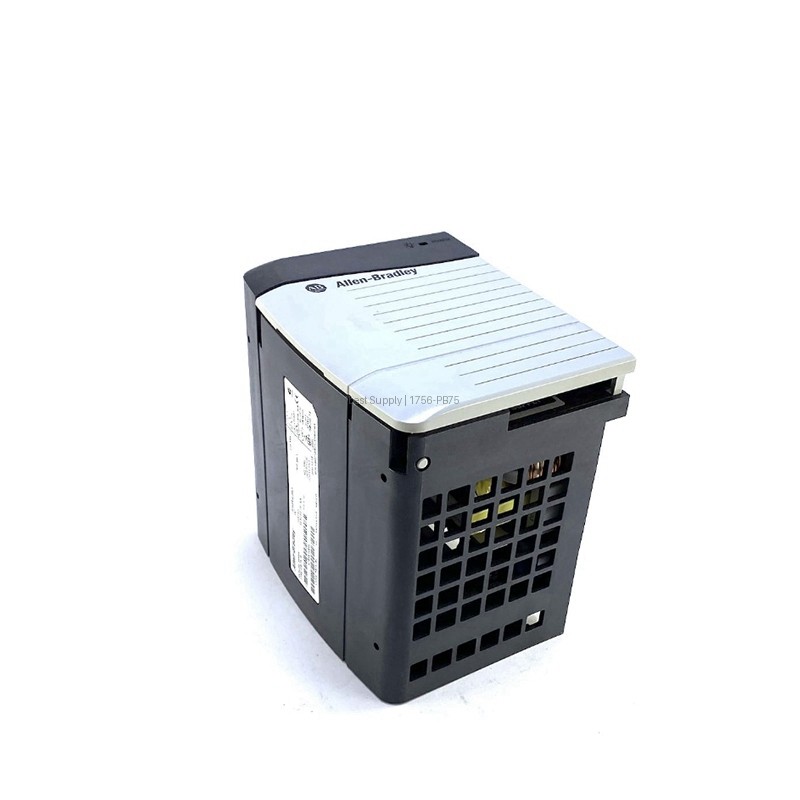

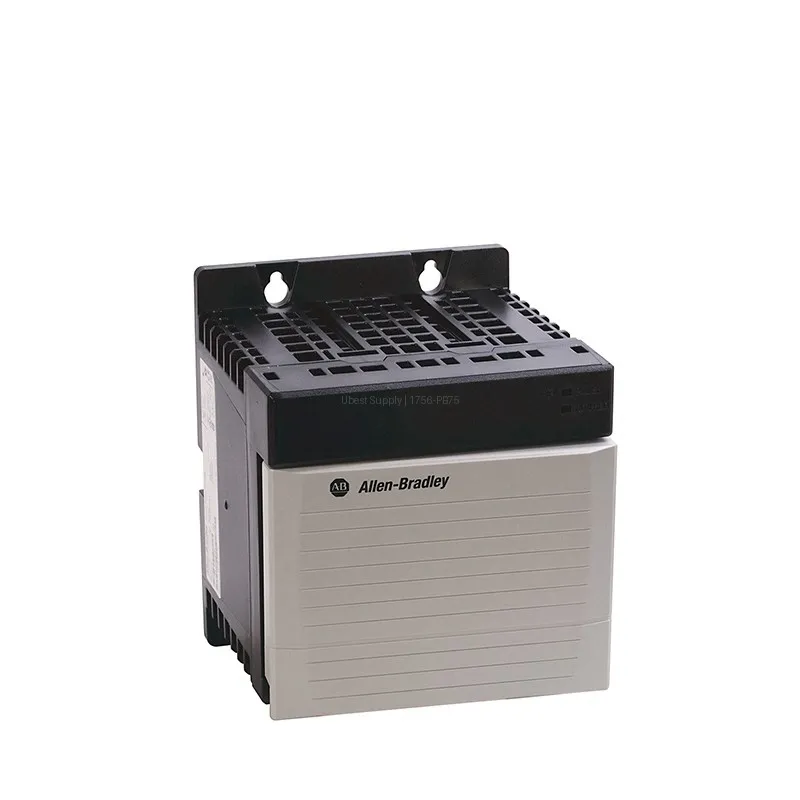

Allen-Bradley 1756-PB75 ControlLogix Power Supply 75W

Product Overview

The Allen-Bradley 1756-PB75 is a standard power supply for ControlLogix systems. It mounts on the left side of a 1756 chassis. This unit converts 24VDC input into reliable backplane power. It delivers 75 watts of output power. This module supports various chassis sizes.

Application Scenarios

This power supply works in industrial automation environments. It powers a ControlLogix rack for process control. It is ideal for discrete manufacturing applications. Use it in material handling systems. It also fits well in oil and gas operations. The 1756-PB75 ensures stable system operation.

Technical Specifications

The 1756-PB75 accepts 18-32VDC input voltage. It provides 1.5A at 1.2VDC. It also delivers 4A at 3.3VDC. The unit supplies 13A at 5.1VDC. It offers 2.8A at 24VDC. The maximum inrush current is 30 amperes. Hold-up time is 35 ms at 18VDC. It weighs 0.95 kg. Dimensions are 14.0 x 11.2 x 14.5 cm.

Installation & Maintenance Guide

Install this module in a 1756-A4, 1756-A7, 1756-A10, 1756-A13, or 1756-A17 chassis. It requires Series B or C chassis. Slide the unit into the left slot. Secure it with the locking tab. Ensure proper grounding before use. Check the input voltage range regularly. Keep the enclosure free of dust.

Packing List

Your order includes one 1756-PB75 power supply. It comes with a mounting bracket. A quick start guide is included. No additional cables are provided. We ship via FedEx, UPS, or DHL.
