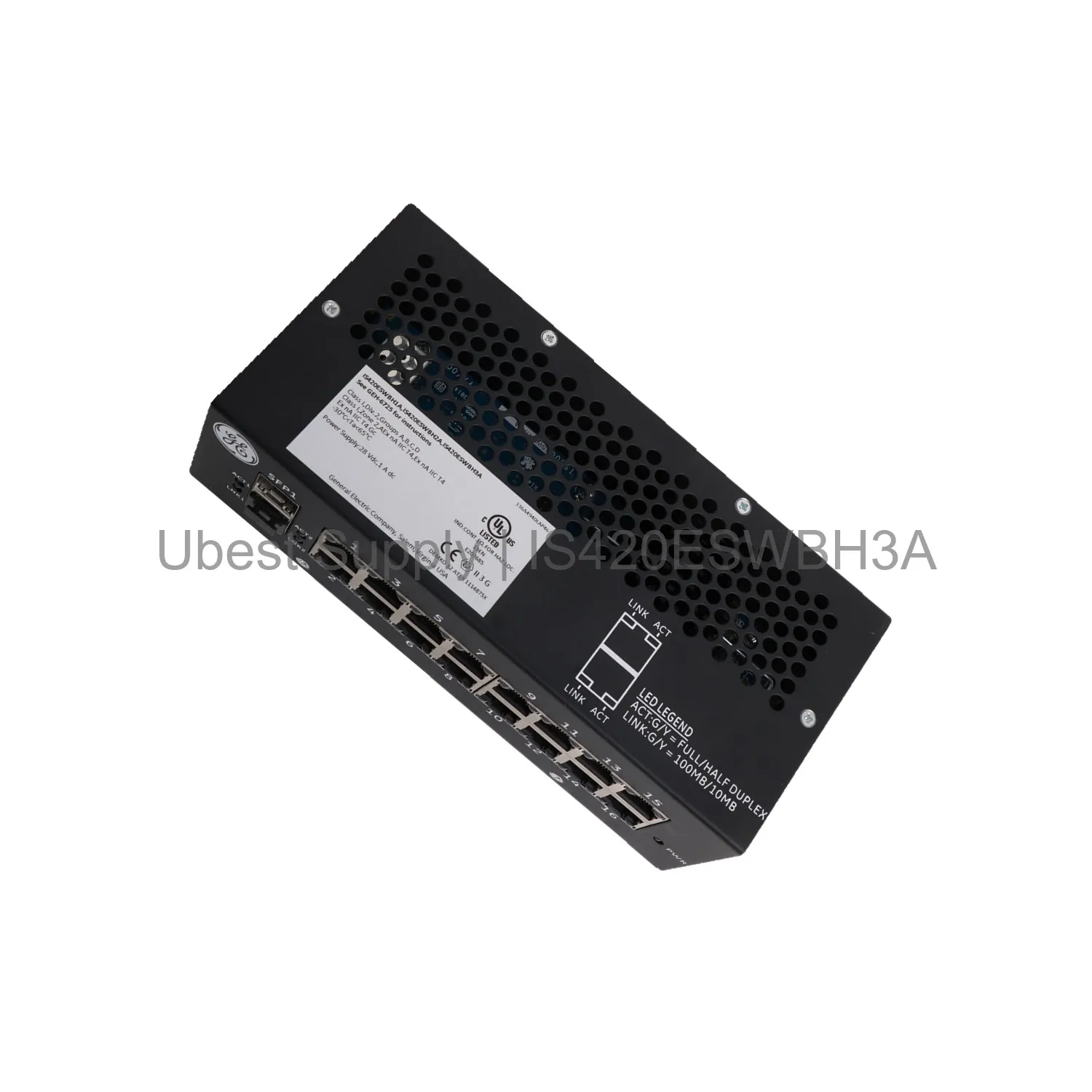

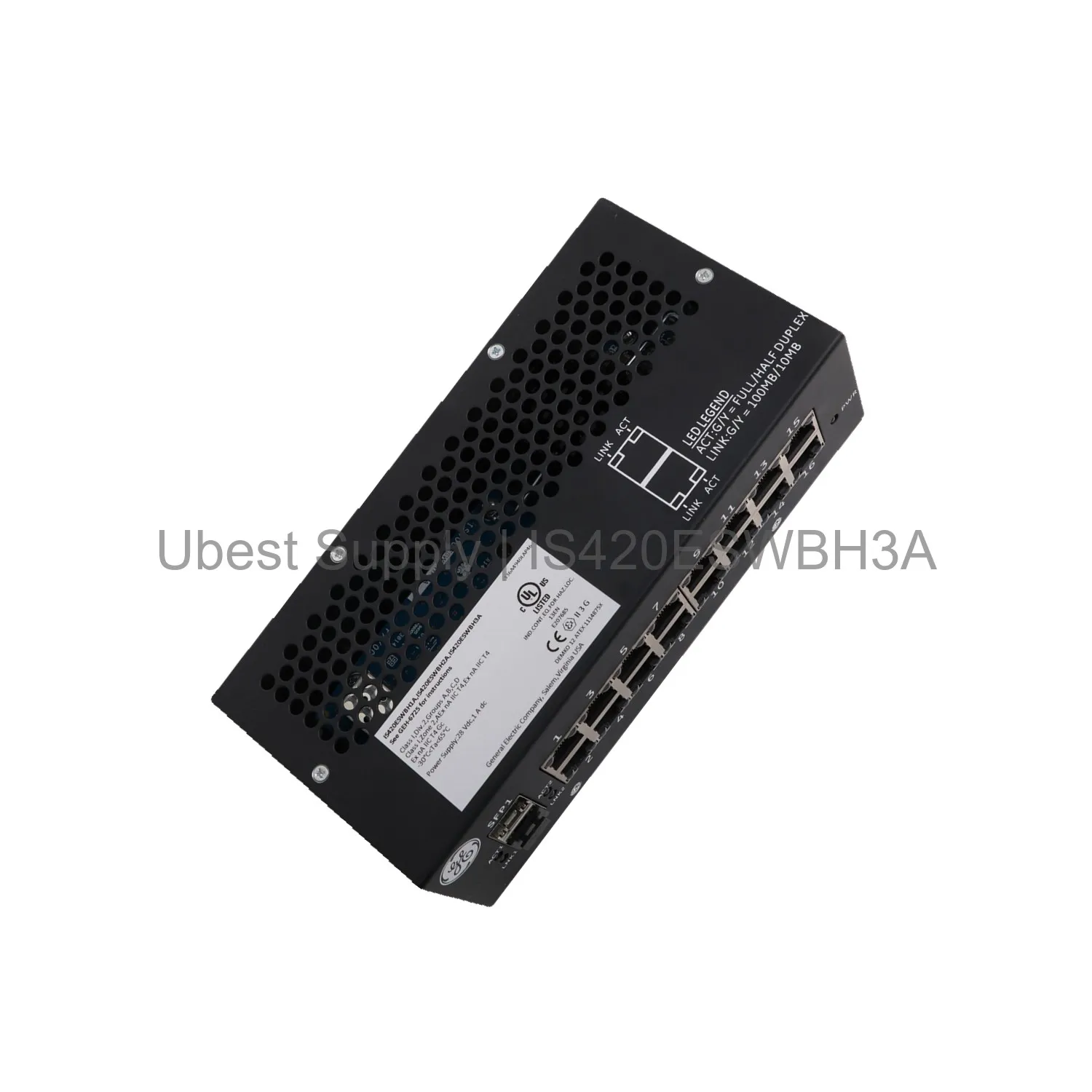

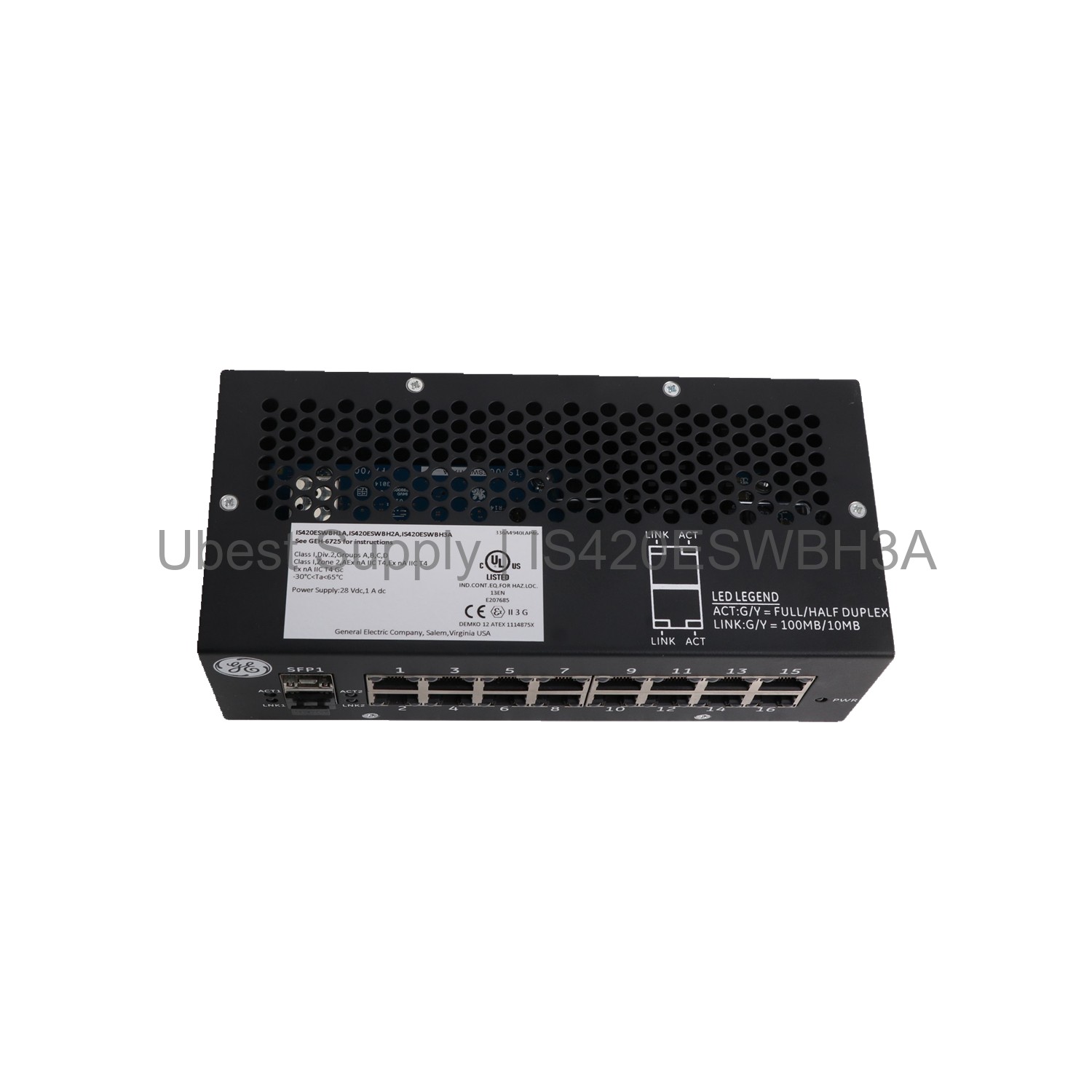

GE IS420ESWBH3A Mark VIe Series Ethernet Switch

Product Overview

The GE IS420ESWBH3A is a Mark VIe Series Ethernet Switch. It serves as a key part of industrial automation networks. This switch uses a conformal coated PCB for durability. The product number reveals its ESWB function and group three status. It is an A-rated primary revision board. The switch supports 10 MB and 100 MB links. It has clear LED indicators for easy status checks.

Application Scenarios

This switch works well in turbine control systems. It fits into Mark VIe Series assemblies. The device is ideal for factory floor networks. It connects PLCs and other automation gear. The IS420ESWBH3A handles data in harsh environments. Its conformal coating resists moisture and dust. Use it in power generation and industrial plants.

Technical Specifications

The switch has a power LED. It also has activity and link LEDs. A solid yellow link LED shows a 10 MB link. A solid green link LED shows a 100 MB link. No LED light means no link exists. The board does not use a single fiber port component. This is unique to the H3 group version. The device is a Mark VIe ESWB board variant.

Installation & Maintenance Guide

Mount the switch on a DIN rail. You can place it parallel or perpendicular. Use clip 259B2451BVP1 or clip 259B2451BVP4. Panel mounting is also possible. Check the link LEDs after setup. Ensure the correct clip is used for your rail. Keep the area clean for best airflow. The switch needs no regular maintenance. Just monitor the LED status.

Packing List

The package includes one GE IS420ESWBH3A switch. It comes with the required mounting clips. No cables or power supply are included. Shipping uses Fedex, UPS, or DHL. The unit is packed securely for transit.
