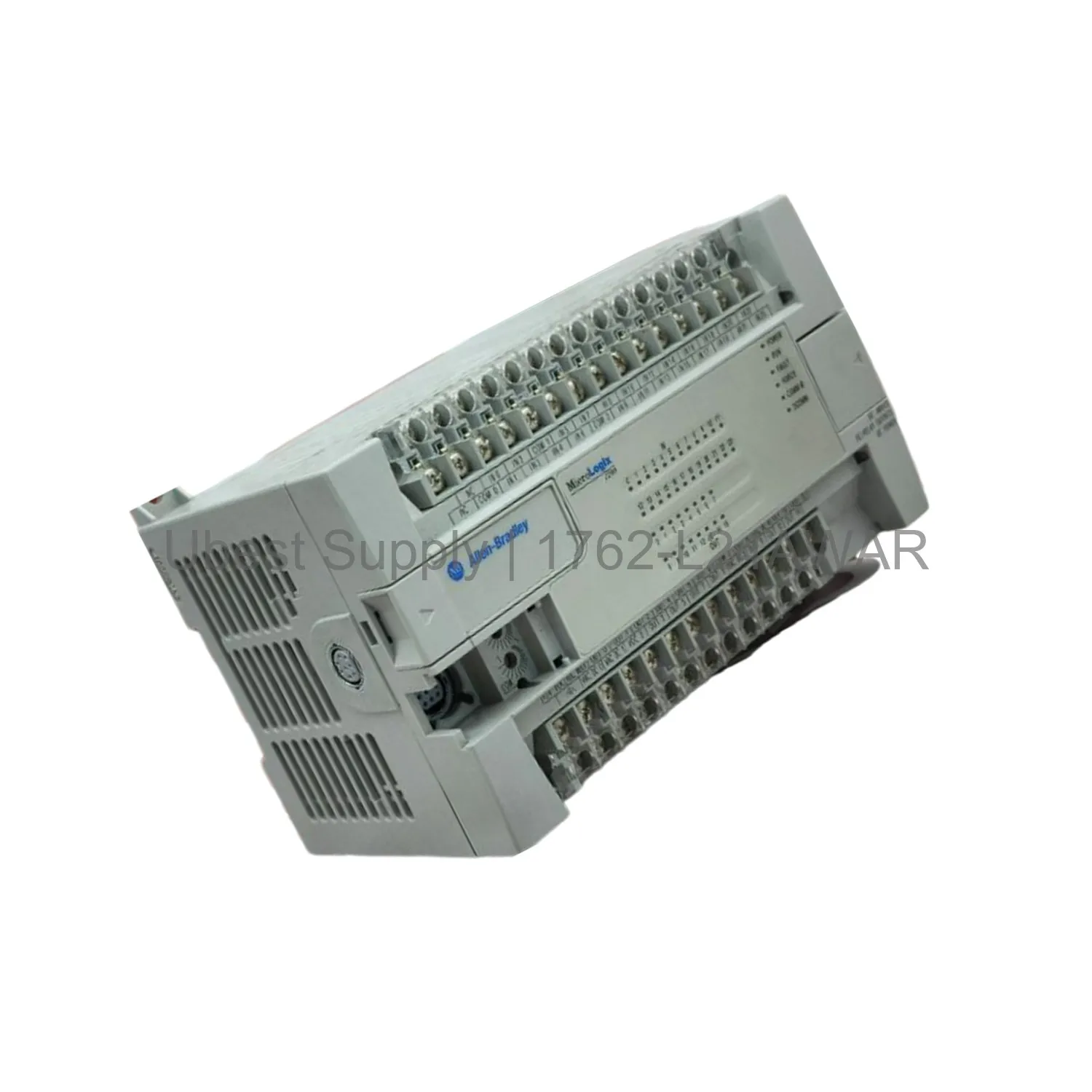

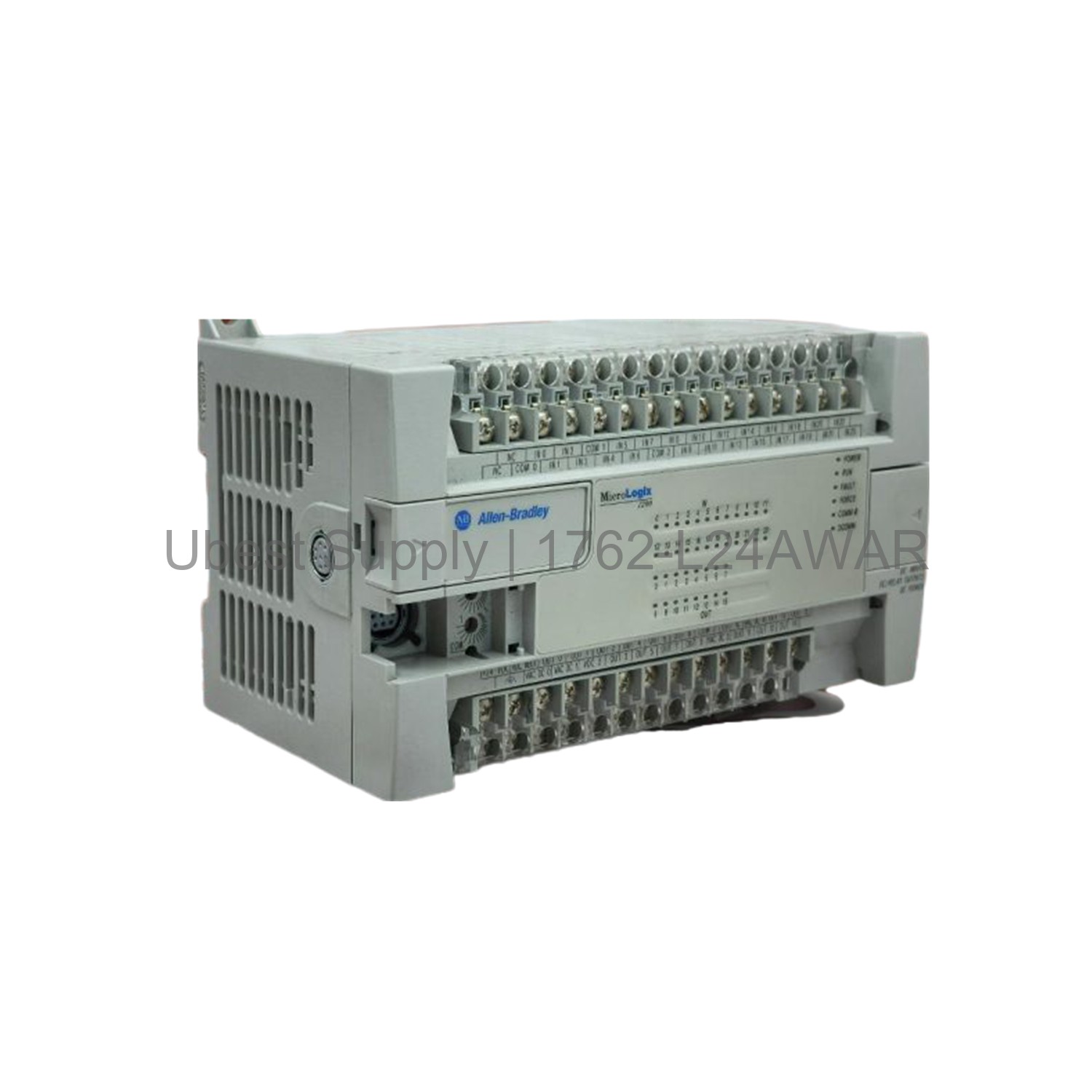

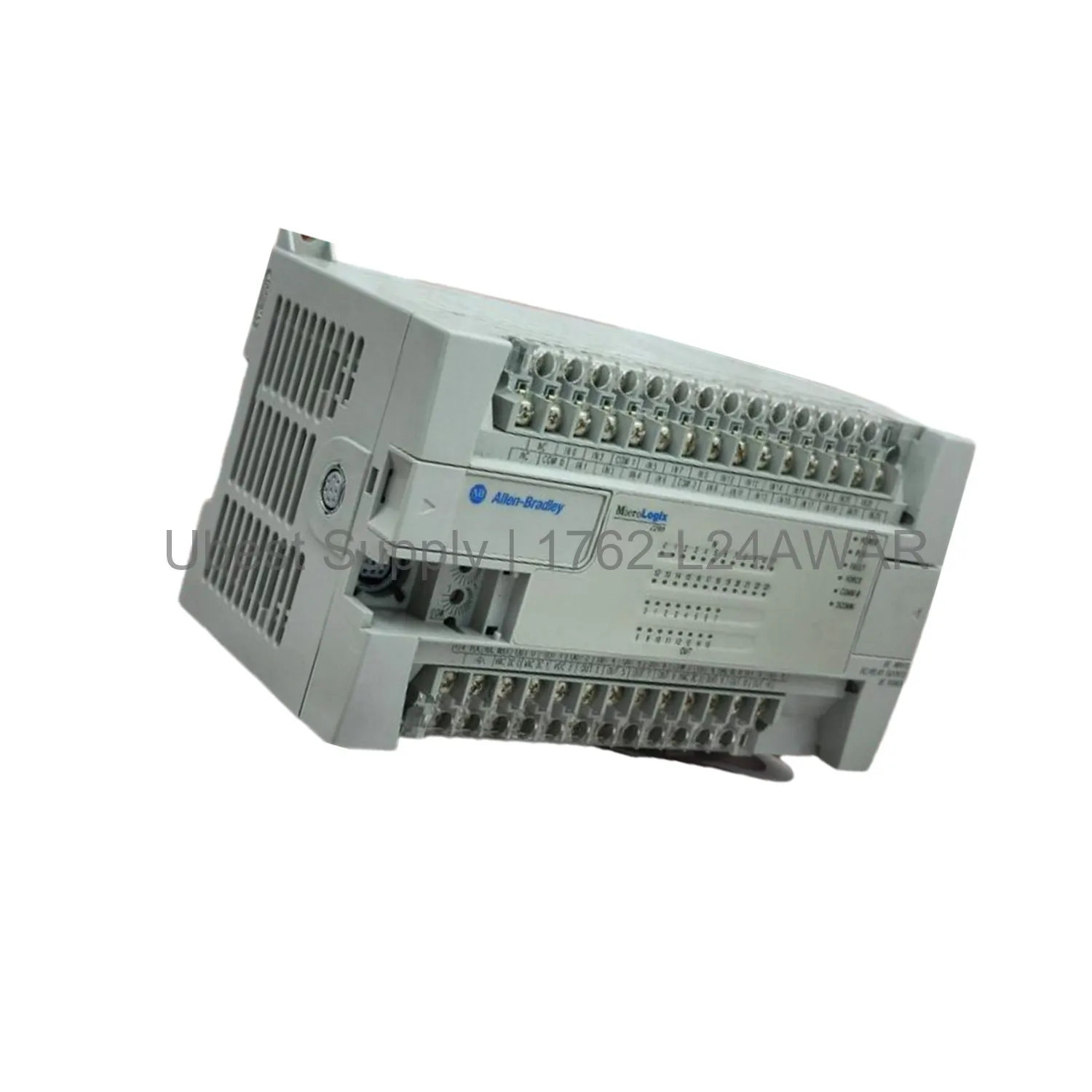

Allen-Bradley 1762-L24AWAR MicroLogix 1200 Controller

Product Overview

The Allen-Bradley 1762-L24AWAR is a MicroLogix 1200 controller. It provides 14 inputs at 120 Volts AC. The unit has 10 relay outputs. This controller supports both sinking and sourcing configurations. Its input power ranges from 120 to 240 Volts AC. The on-state voltage range is 79 to 132 Volts AC. The off-state voltage range is 0 to 20 Volts AC. Operating frequency is 47 to 63 Hertz. This model is designed for industrial automation environments. It offers reliable performance for machine control. The 1762-L24AWAR features a Programmer/HMI RS-232 port. This port supports DH Full-Duplex communications. It can respond to messages but cannot initiate them. The controller measures 3.5 x 4.33 x 3.43 inches.

Application Scenarios

Use the 1762-L24AWAR in manufacturing plants. It works well for packaging machinery. This controller can manage conveyor systems. It suits material handling applications. The relay outputs handle AC loads directly. The 120V AC inputs connect to sensors and switches. The controller fits in small control cabinets. It works for discrete control tasks. You can use it in simple automation cells. The 1762-L24AWAR is ideal for retrofit projects. It replaces older MicroLogix controllers. It supports standalone operation. The RS-232 port allows connection to HMIs. It also works with SCADA systems.

Technical Specifications

• Input Power: 120-240V AC
• Inputs: 14 at 120V AC
• Outputs: 10 Relay
• On-State Voltage: 79 to 132V AC
• Off-State Voltage: 0 to 20V AC
• On-State Current: Min 5mA at 79V, Nom 12mA at 120V, Max 16mA at 132V
• Off-State Leakage Current: 2.5 mA maximum
• Maximum Inrush Current: 250 mA at 120V AC
• Output Current Capability: 400 mA at 5V DC, 350 mA at 24V DC
• Operating Frequency: 47 to 63 Hertz
• Isolation Voltages: Input group to backplane, output group to backplane, input group to input group, output group to output group, power supply to backplane
• RS-232 Port: Programmer/HMI, DH Full-Duplex only
• Mounting Dimensions: 3.5 x 4.33 x 3.43 inches

Installation & Maintenance Guide

Install the controller on a flat surface. Use four mounting screws. Ensure adequate ventilation. Do not block the vents. Connect 120-240V AC to the power terminals. Use proper wire gauges. Connect input devices to the designated terminals. Connect output relays to the load. The RS-232 port uses a standard cable. Do not modify the port parameters. The 1762-L24AWAR has no user-serviceable parts. Replace the entire unit if faulty. Keep the environment clean. Avoid moisture and dust. Check connections periodically. Use only recommended replacement parts.

Packing List

• 1 x Allen-Bradley 1762-L24AWAR MicroLogix 1200 Controller
• 1 x User Manual (Quick Reference)
• No additional accessories included

Shipping via Fedex, UPS, or DHL. The package is securely padded.
