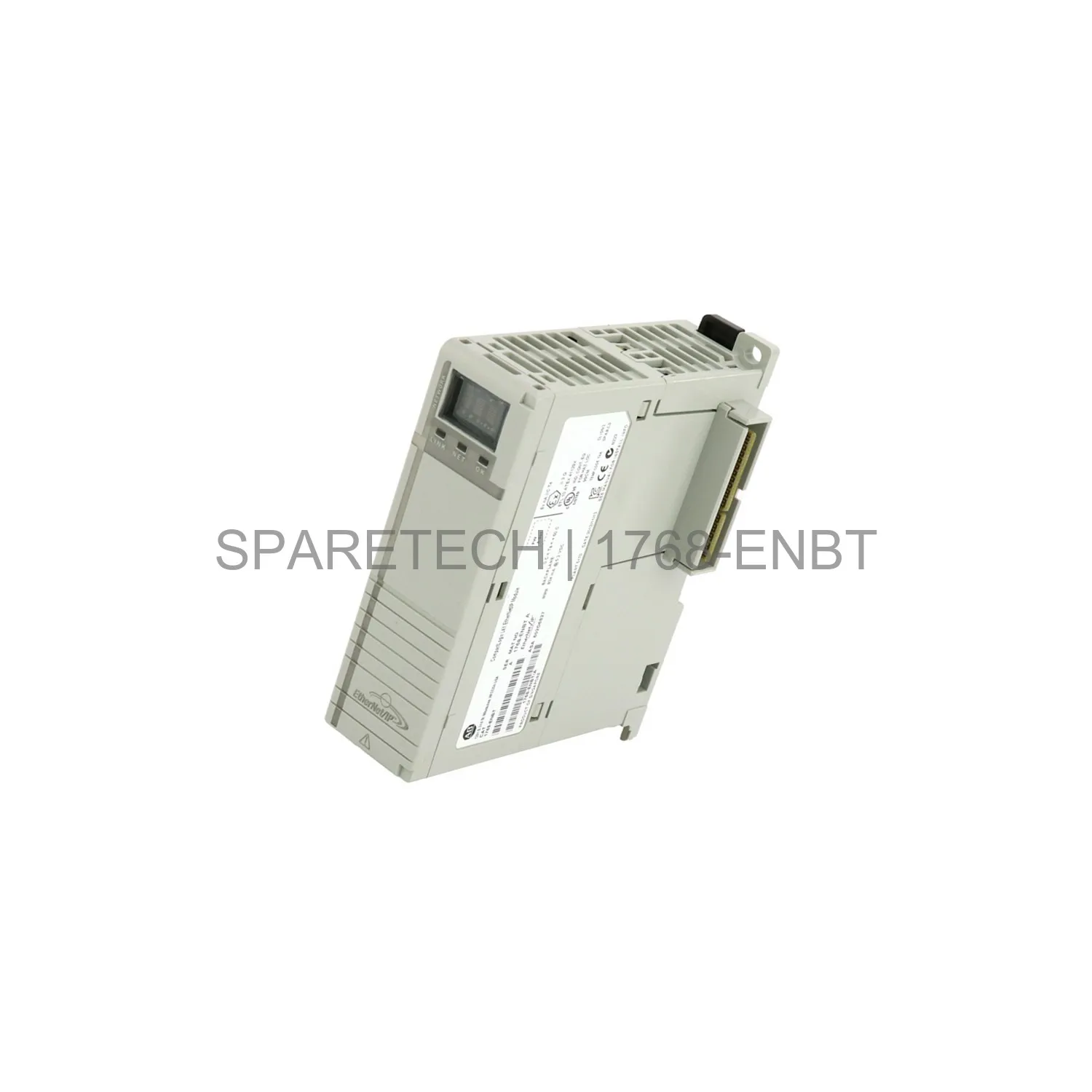

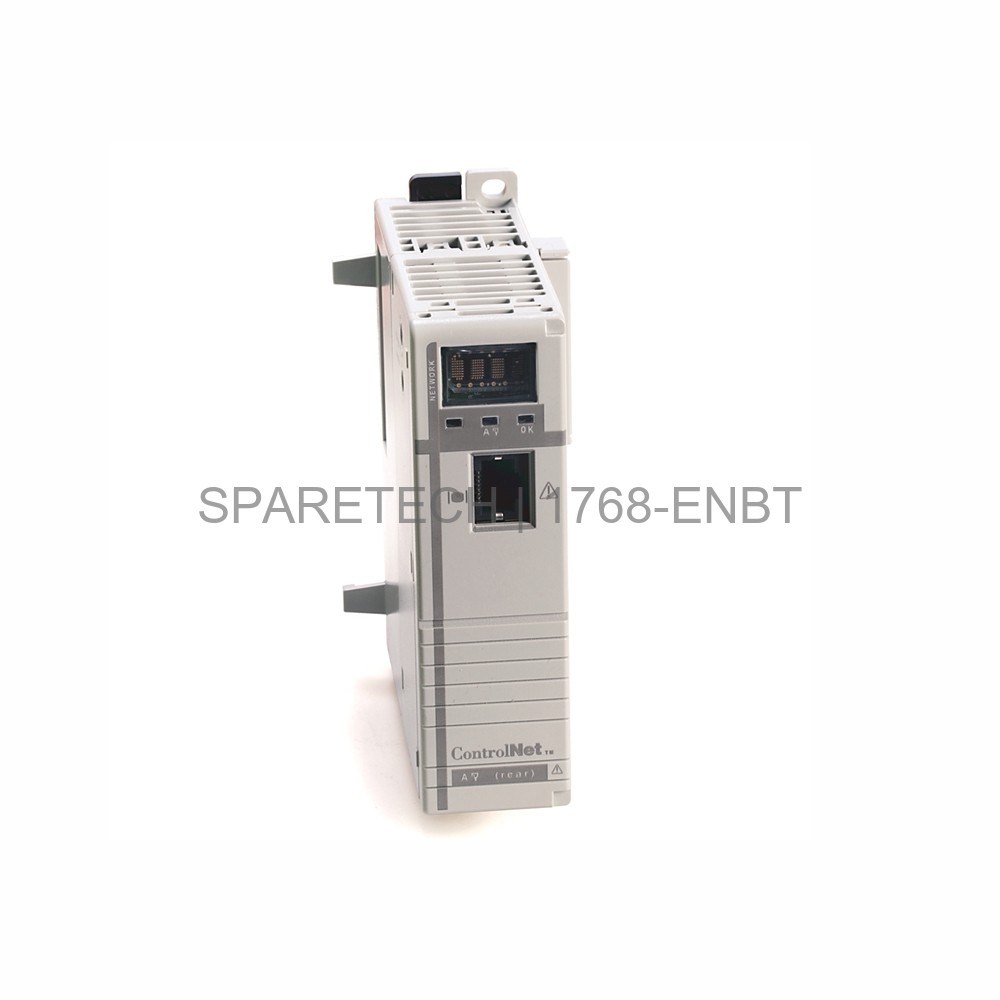

Allen-Bradley 1768-ENBT Ethernet/IP Communication Module

Product Overview

The Allen-Bradley 1768-ENBT is a communication module for CompactLogix systems. It provides Ethernet/IP connectivity. This module lets devices share data over a network. It works with 1768-L43 and 1768-L45 controllers. The module supports 10/100 Mbps speeds. It uses auto-negotiation for half or full duplex. One RJ45 port is available. The module fits in a single slot of a 1768 chassis.

Application Scenarios

Use the 1768-ENBT in industrial automation. Connect HMIs, SCADA systems, and other controllers. It works with PowerFlex drives, Kinetix servo drives, and ControlLogix platforms. The module also communicates with third-party devices. It is ideal for factory networking. Use it for remote monitoring and control. The module supports linear topology. It integrates easily into existing networks.

Technical Specifications

Module type: Ethernet communication. Manufacturer: Allen-Bradley. Ports: One (1) RJ45. Speed: 10/100 Mbps. Topology: Linear. Supported controllers: 1768-L43 and 1768-L45. Max instances: Two with L43, four with L45. Max CIP connections: 64. Max TCP/IP connections: 32. Cable: Cat5 or Cat6. Mounting: DIN rail or panel. Operating temperature: 0° to +60°C. Vibration: 5 g at 10-500 Hz. Shock: 30 g. Backplane current: 834 mA at 5.2V. Power consumption: 4.34 Watts. Weight: 2 lbs.

Installation & Maintenance Guide

Before handling, touch a grounded object. Wear a static-free wristband. Work in a static-free area. Mount the module on a DIN rail or panel. Connect using a Cat5 or Cat6 cable with RJ45 connectors. Use standard Ethernet switches. The module has three LED indicators: link, OK, and network status. Wait for LEDs to turn off before removing power. This saves data to memory. Use active voice for clarity. The module requires no special maintenance.

Packing List

One (1) Allen-Bradley 1768-ENBT module. One (1) installation guide. The module ships in protective packaging. Shipping weight is 2 pounds. Dimensions are 8 x 8 x 5 inches. We ship via Fedex, UPS, or DHL. All orders are handled with care.
