1756-BATA Allen-Bradley ControlLogix Battery Module

Product Overview

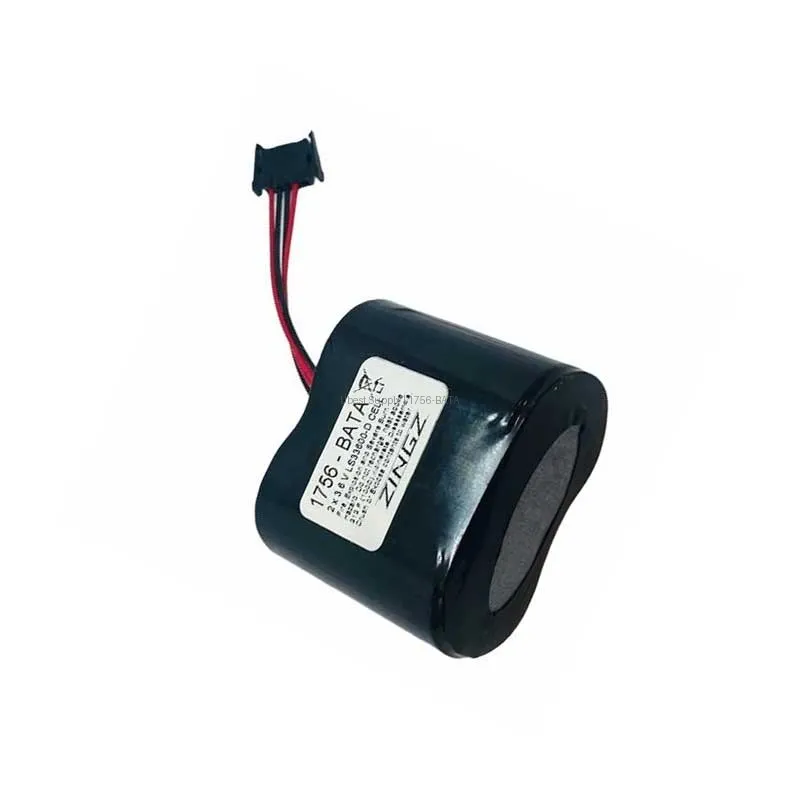

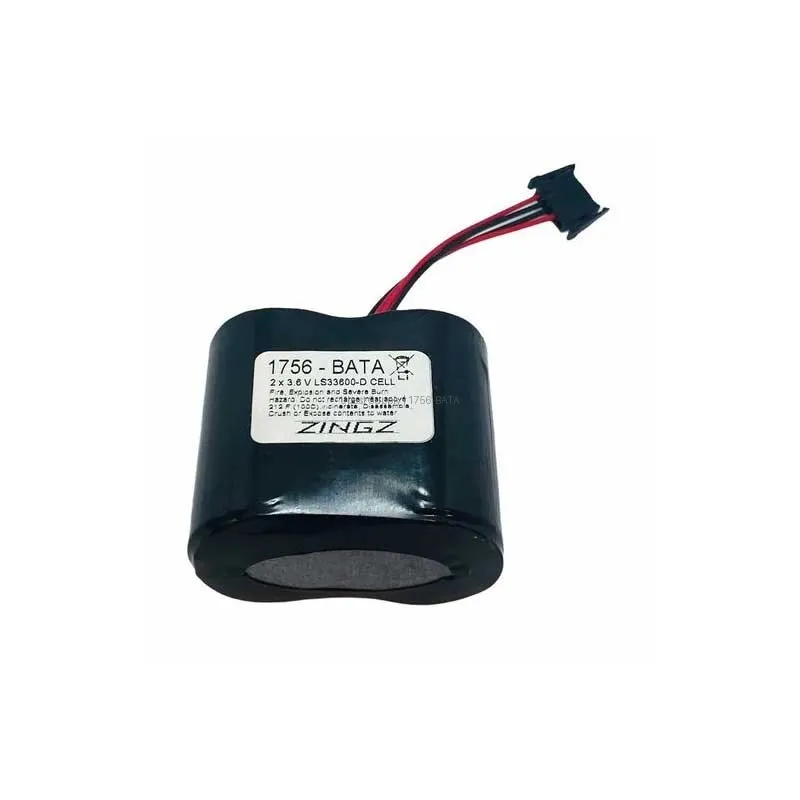

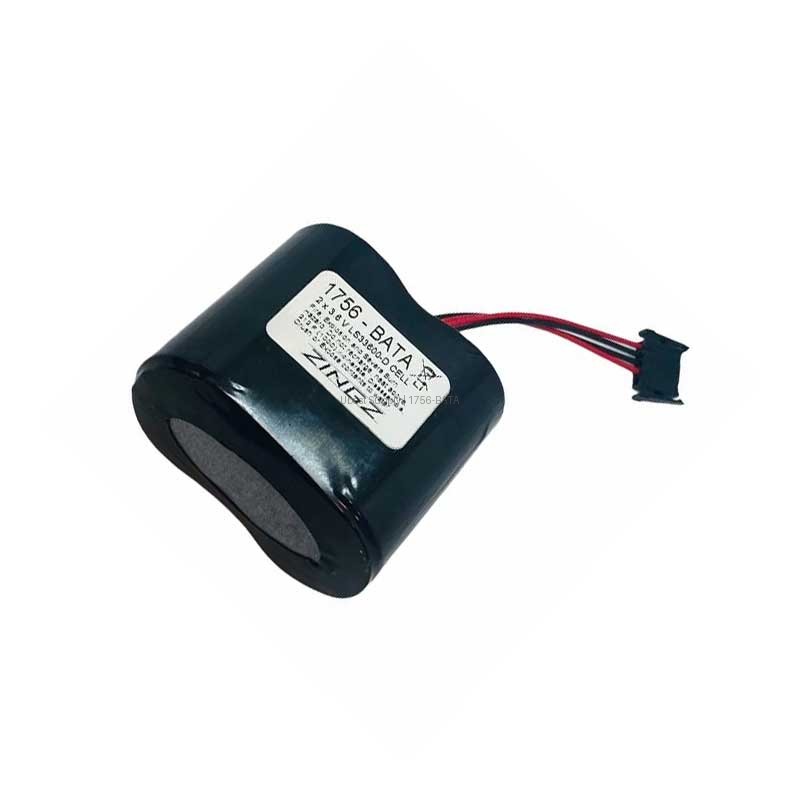

The Allen-Bradley 1756-BATA is a battery module for ControlLogix systems. It uses a 3.6V DC lithium battery. This module provides backup power for memory. It has a nominal capacity of 1.7 Ah. The module weighs 1.1 kilograms. Its dimensions are 2.65 x 1.34 x 2.44 inches. This battery works with 1756-L6x devices. It is a direct replacement for the 1756-BATM module. This battery has an average lifespan of 10 years.

Application Scenarios

This battery is ideal for industrial automation. It keeps your ControlLogix processor memory safe. Use it during power outages or maintenance. It works in harsh factory environments. The battery suits oil and gas applications. It is also great for manufacturing plants. Use it in water treatment facilities. It supports process control systems. This module is perfect for critical data retention.

Technical Specifications

The 1756-BATA has a voltage of 3.6 Volts DC. Its max current rating is 19,000 mA. The backplane current is 10 Amps at 5V DC. It draws 2.8 Amps at 24V DC. Max power dissipation is 4.5 Watts. It operates from 0 to 60 degrees Celsius. Storage range is -60 to +85 degrees Celsius. The battery has 2 cells with 5 grams each. Total lithium content is 10 grams. It uses wire leads for connection. The module mounts on a panel with a DIN rail lock.

Installation & Maintenance Guide

Mount the module horizontally on a panel. Use the DIN rail lock for secure placement. Connect the wire leads to your module. Use a 1-meter Category 3 rated cable. An adapter cable is required for external use. Replace the battery every 10 years. Check connections during routine maintenance. Always power down before installation. Follow Rockwell Automation guidelines for safety. Store the battery in a cool, dry place.

Packing List

The package includes one 1756-BATA battery module. It comes with a wire leads connector. The shipping box measures 20 x 24 x 8 inches. The product weight is 2.4 pounds. All items are securely packed. Shipping is via Fedex, UPS, or DHL. No additional accessories are included. The battery is ready for immediate use.
