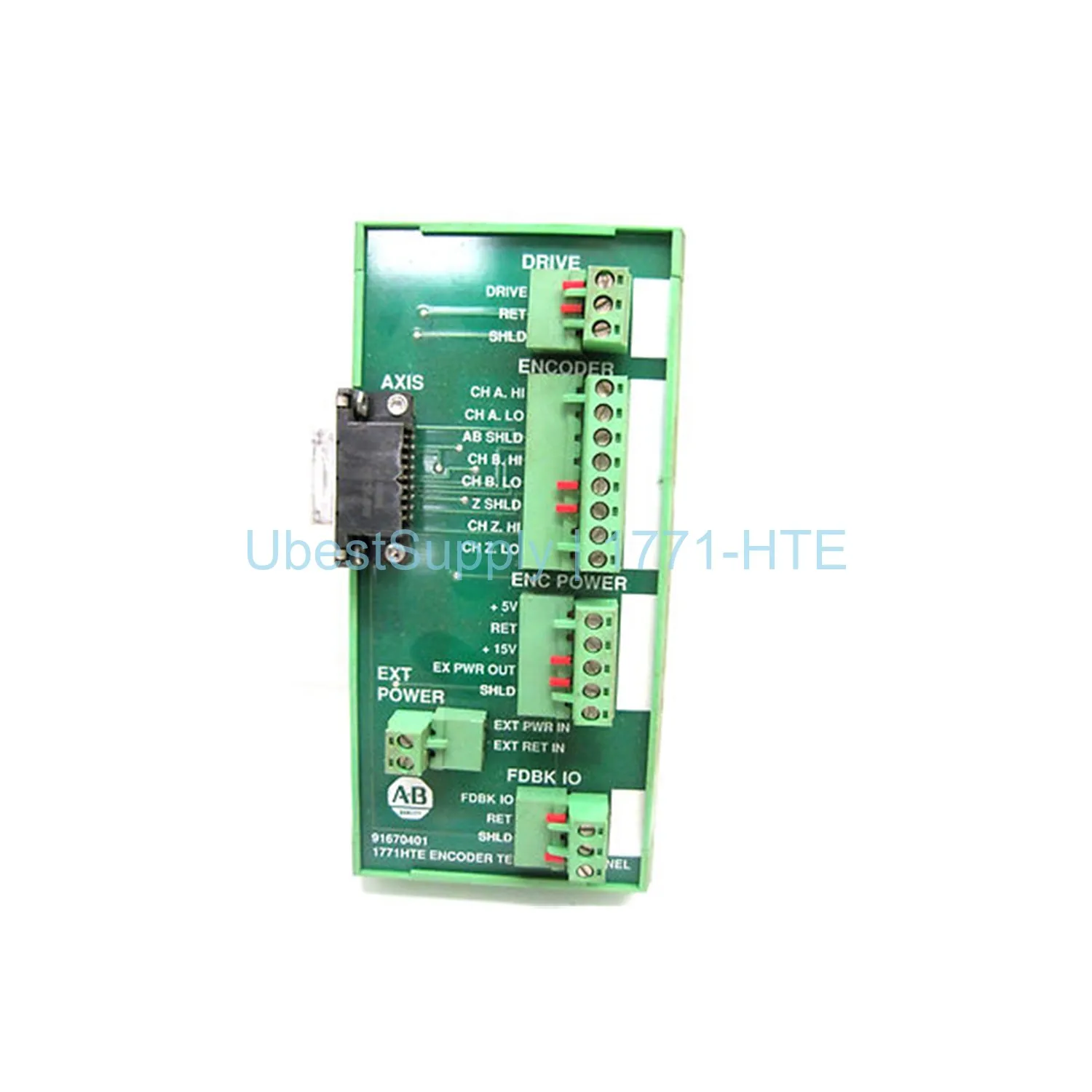

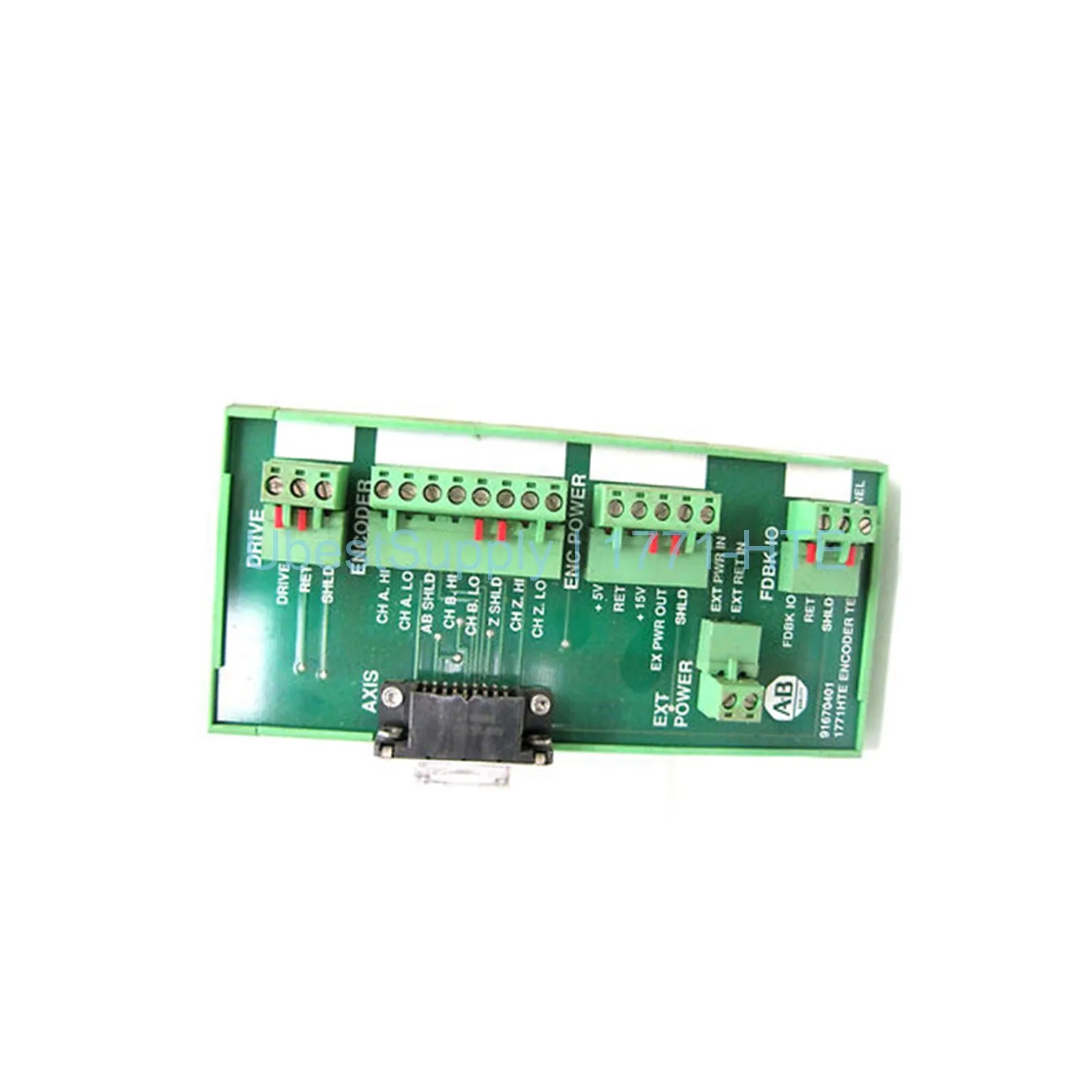

Allen-Bradley 1771-HTE Encoder Termination Module for PLC 5

Product Overview

The Allen-Bradley 1771-HTE is an encoder termination module. It works with PLC 5 systems. This module provides effective signal interfacing. It mounts on a DIN-type rail. The module uses a 24 V DC power supply. It supports cable lengths up to 85 feet. The connectors are pluggable for easy wiring. User connections go through termination panels.

Application Scenarios

This module is ideal for industrial automation. Use it in manufacturing plants. It works with PLC 5 controllers. The module fits in control panels. It handles encoder signals for motion control. Use it for position feedback. It is suitable for packaging, material handling, and assembly lines.

Technical Specifications

• Manufacturer: Allen-Bradley
• Series: PLC 5
• Product Type: Encoder Termination Module
• Mounting: DIN-type rail
• Power Supply Voltage: 24 V DC
• Maximum Cable Length from Controller: 10 cable feet (3 m)
• Cable Type: 16GA, 1 pair twisted, shielded
• Cable Lengths Supported: 85 ft
• Dimensions: 6.25 x 3 in. (15.8 cm x 7.5 cm)
• Connectors: Pluggable
• Max Cable Length with external power: 90 ft for +5 VDC encoders, +15 VDC encoders, and resolvers
• Max Cable Length without external power: 40 ft for +5 VDC encoders

Installation & Maintenance Guide

Mount the 1771-HTE on a DIN rail. Ensure the power supply is 24 V DC. Connect the cable to the controller. Keep the cable length under 10 feet from the controller. Use the specified 16-gauge twisted shielded cable. For longer distances, use external power. Check the connectors regularly. Keep the module clean and dry.

Packing List

• 1x Allen-Bradley 1771-HTE Encoder Termination Module
• Installation manual
• Mounting hardware
• Pluggable connectors

Shipping is via FedEx, UPS, or DHL.
