Allen-Bradley 1794-OM8 Flex I/O Digital Output Module 8 Outputs

Product Overview

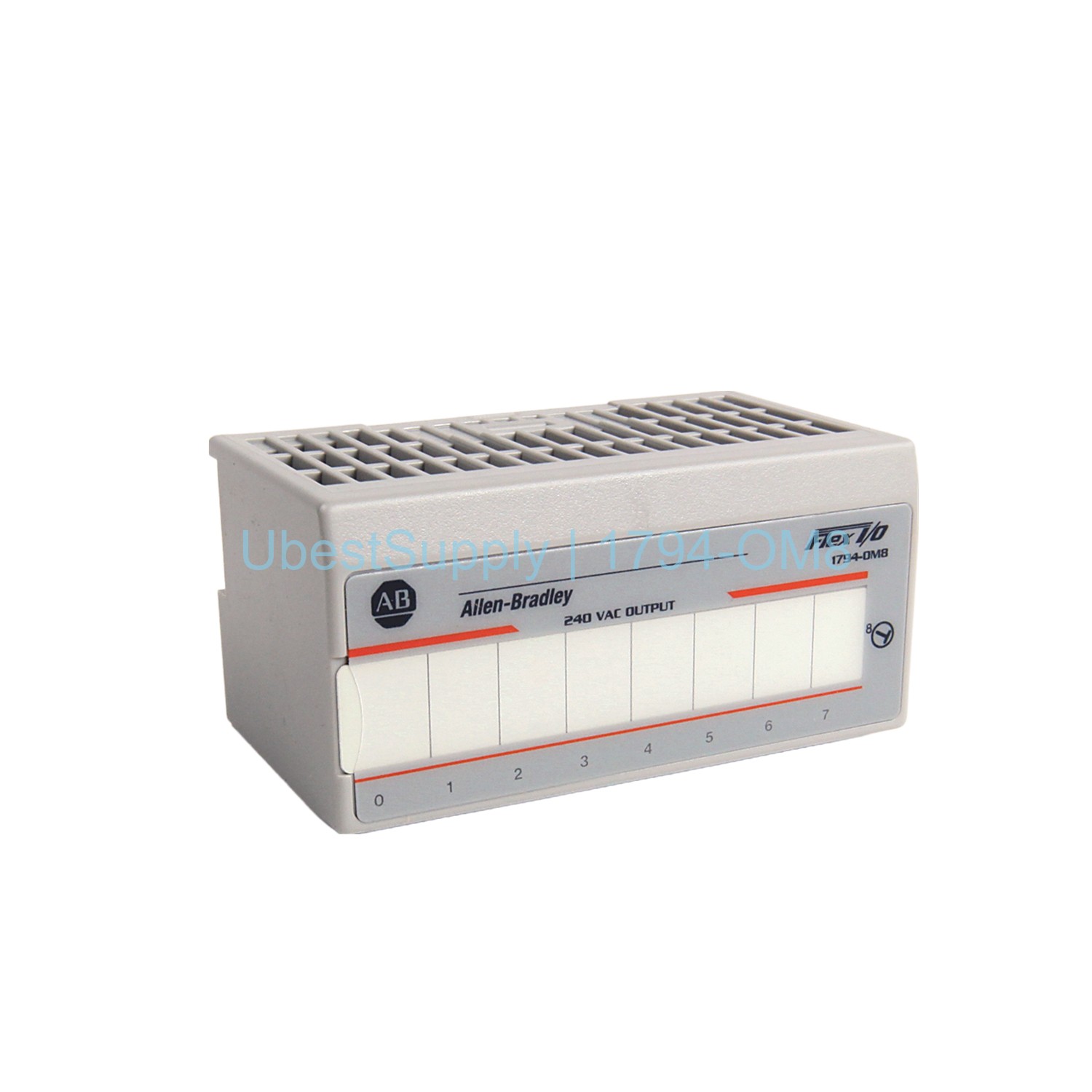

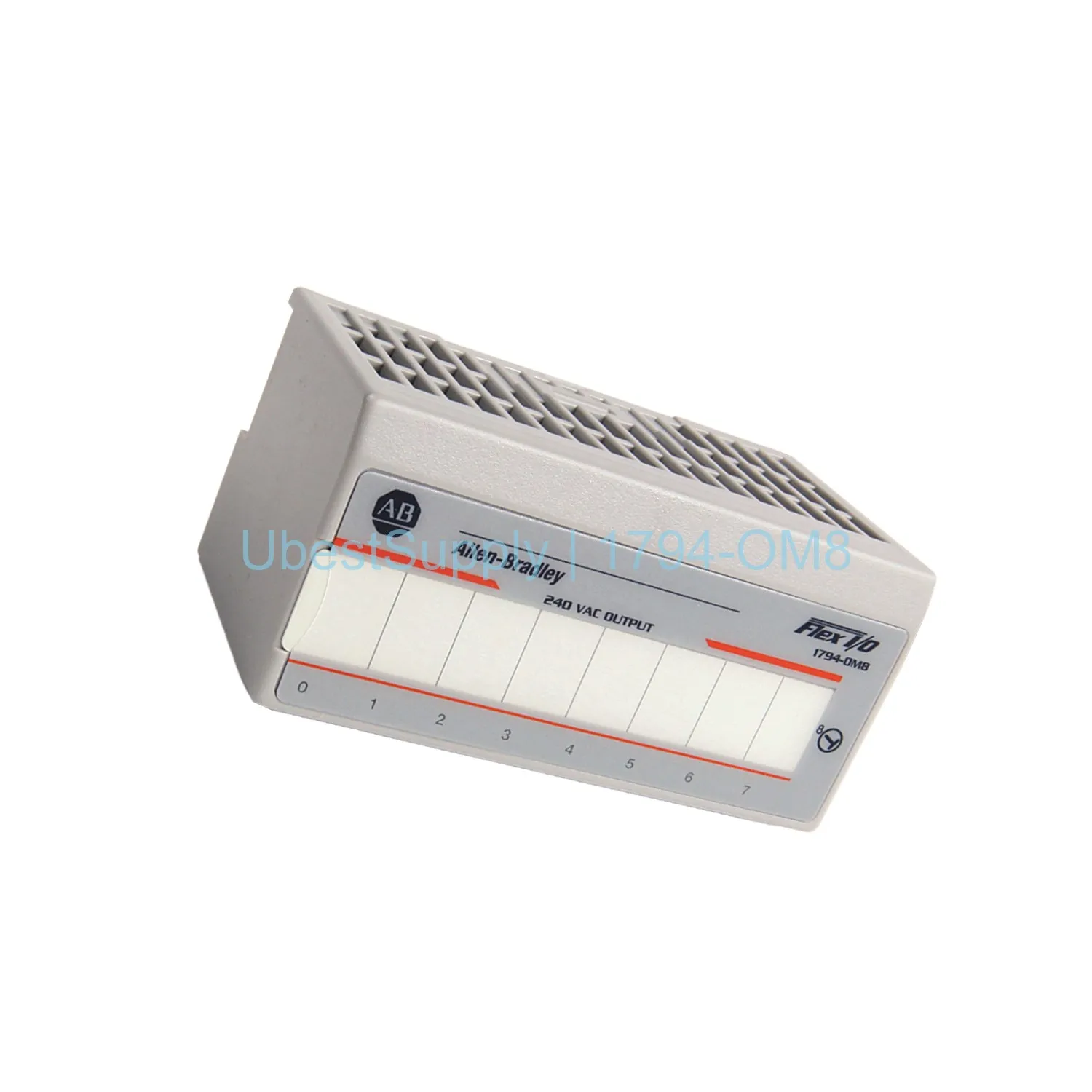

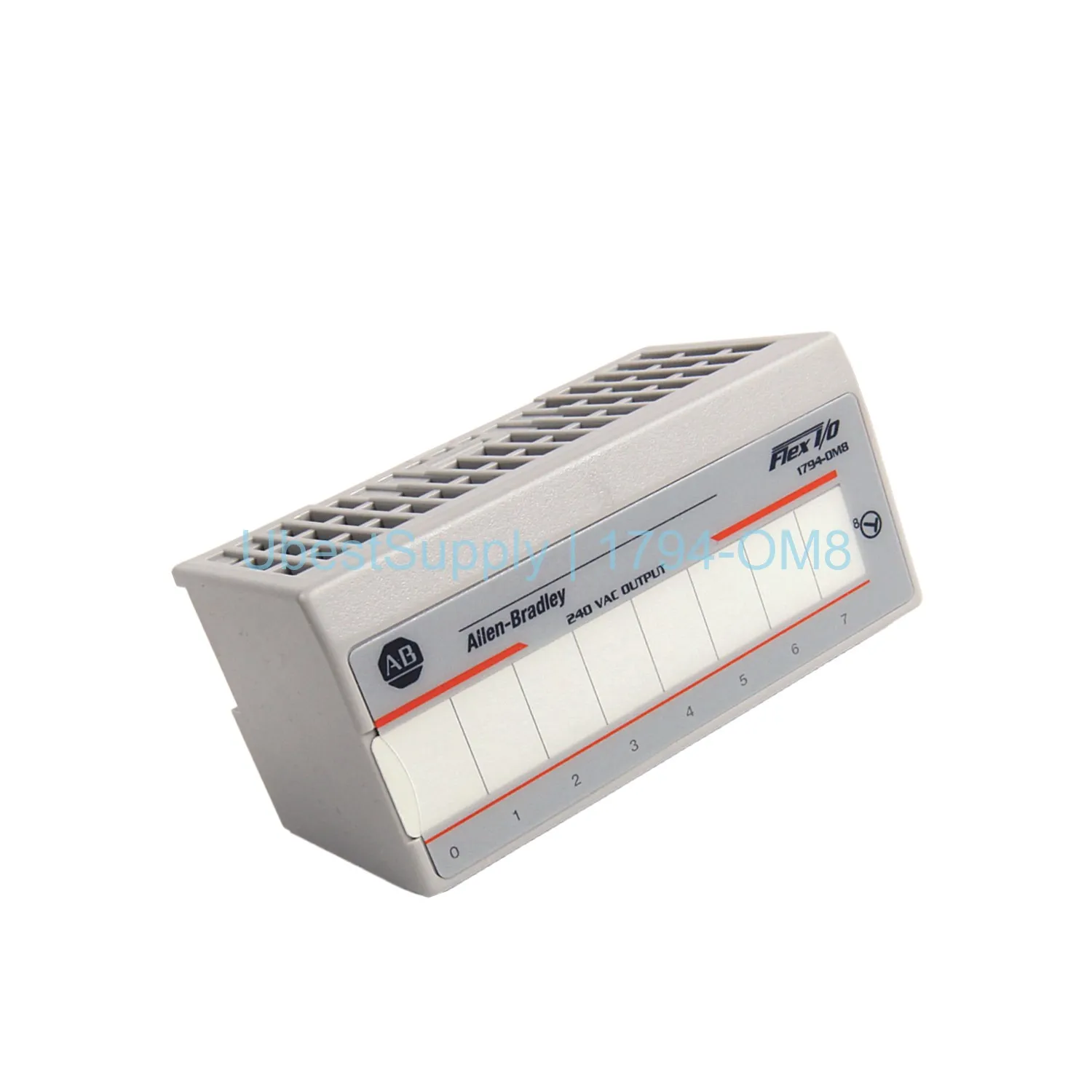

The 1794-OM8 is a Flex I/O Digital Output Module from Allen-Bradley. It features 8 nonisolated outputs. The module operates at 240V AC nominal voltage. Its output current rating is 4.0A per module. Each output handles up to 500mA. The on-state voltage drop is 1.5V AC at 0.5A. Off-state leakage is 2.5mA maximum. This module uses a terminal base for connections. It supports hot-swappable installation. You can insert or remove it under power. This saves time and avoids system restarts. The module works with various communication networks. Options include ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O. LED indicators show status for each channel. XT versions offer extreme environment operation. This reduces panel and maintenance costs.

Application Scenarios

Use the 1794-OM8 in manufacturing plants and industrial facilities. It controls AC loads like motors, valves, and solenoids. The module fits in Flex I/O systems. It connects to PLCs and DCS platforms. Typical applications include conveyor systems, packaging machines, and assembly lines. The module also works in harsh environments with XT options. Its hot-swap capability keeps production running during maintenance.

Technical Specifications

The module has 8 nonisolated outputs. Output voltage is 240V AC nominal. The voltage range is 159 to 264V AC. Output current rating is 4.0A per module. On-state current is 500mA per output maximum. On-state voltage drop is 1.5V AC at 0.5A. Off-state leakage is 2.5mA maximum. Isolation voltage is 250V continuous. Flexbus current is 60mA at 5V DC. Power dissipation is 5W at 0.5A. Thermal dissipation is 17.1 BTU/hr at 0.5A. Operating temperature range is 0 to 55°C. Relative humidity is 5 to 95% noncondensing. Terminal base compatibility includes 1794-TBN and 1794-TBNF. The module mounts on a DIN rail.

Installation & Maintenance Guide

Install the module on a DIN rail using the snap-on method. Use the correct terminal base for wiring. The module connects to field devices through the base. You can insert or remove the 1794-OM8 under power. This reduces downtime. Check the 16 yellow LEDs for status. They indicate output signal and device health. Keep the module within specified temperature and humidity. For extreme environments, use XT versions. Regular inspection ensures reliable operation. No special tools are required for maintenance.

Packing List

The package contains one Flex I/O Digital Output Module. It includes product documentation. No extra accessories are needed. The module is securely packed for shipping. We ship via FedEx, UPS, or DHL. Fast delivery is available.
