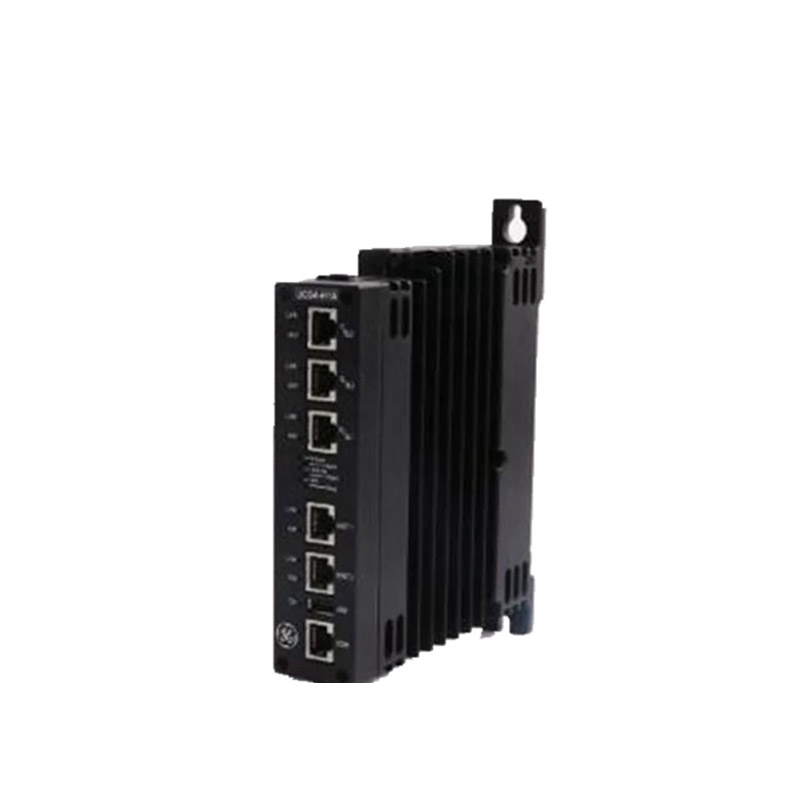

GE IS420UCSCH1B Mark VIe Controller for Non-SIF Loops

Product Overview

The GE IS420UCSCH1B is a Mark VIe controller. It is a non-safety device. It works with Safety control systems. It uses EGD protocol on the UDH Ethernet port. This controller handles non-SIF loops. It can also act as a simple gateway. It provides data via OPC UA Server. It also supports Modbus Master feedback signals. This flexibility meets many application needs.

Application Scenarios

Use this controller for non-safety loops. It connects to a Safety system for data sharing. It works well in turbine control systems. It fits in power generation plants. It is ideal for industrial automation. It serves as a communication gateway. It links legacy devices to modern networks. It supports both OPC UA and Modbus protocols.

Technical Specifications

The IS420UCSCH1B uses a UDH Ethernet port. It communicates via EGD protocol. It offers OPC UA Server capability. It also provides Modbus Master function. It operates as a non-safety controller. It interfaces with Safety control systems. It handles non-SIF loops effectively. It is a Mark VIe series product. It is built for harsh industrial environments.

Installation & Maintenance Guide

Mount the controller in a dry area. Connect the UDH Ethernet port. Configure the EGD protocol settings. Set up OPC UA or Modbus as needed. Test the connection to the Safety system. Ensure proper grounding for safety. Check firmware updates regularly. Clean the unit with a dry cloth. Do not expose it to moisture. Follow the GE manual for wiring.

Packing List

One GE Mark VIe controller IS420UCSCH1B. One installation guide. No additional cables included. Shipping via Fedex, UPS, or DHL.
