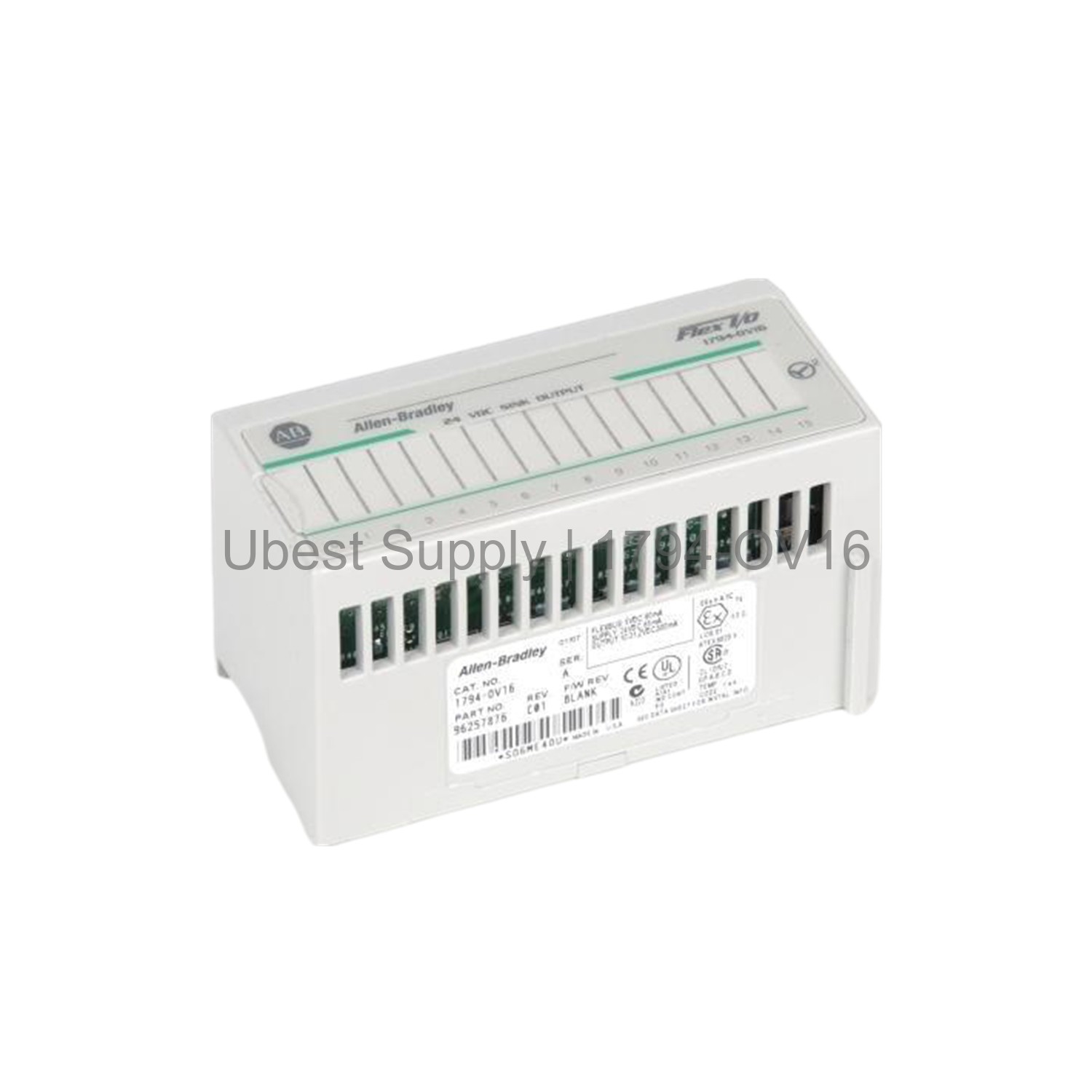

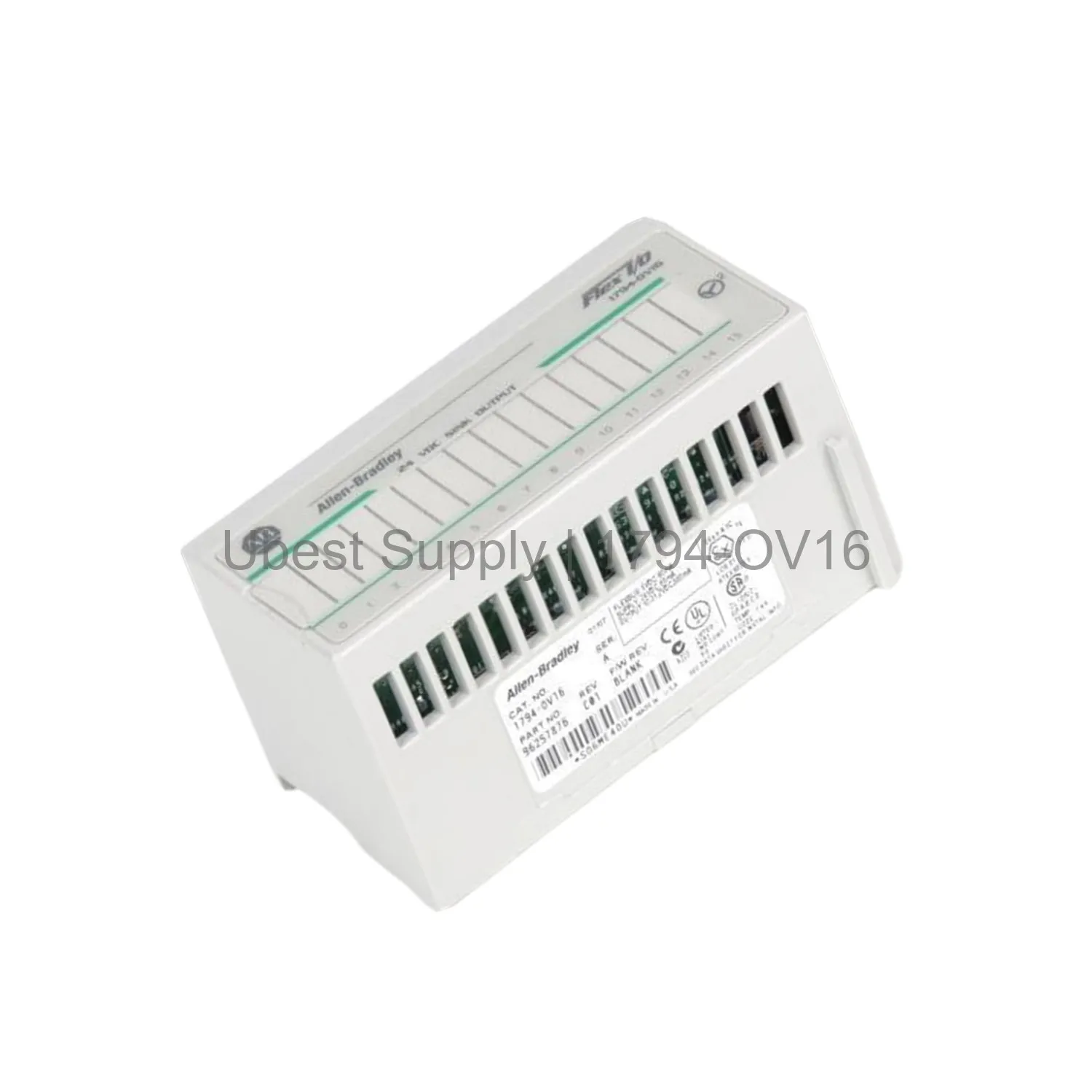

Allen-Bradley 1794-OV16 Digital Output Module 16 Sinking

Product Overview

The Allen-Bradley 1794-OV16 is a Flex I/O digital output module. It belongs to the 1794 series. It provides 16 sinking outputs rated at 24 Volts DC. Each channel supports up to 500 mA. The module is open and has an IP20 rating. It mounts on a DIN rail. The part number is 1794-OV16. This module connects field devices to the I/O bus. It allows insertion or removal under power. This saves time and avoids system restarts. The 1794-OV16 uses a terminal base unit like 1794-TB3.

Application Scenarios

This output module suits industrial automation systems. It controls actuators, valves, and indicators. It works in manufacturing, packaging, and material handling. The module communicates via ControlNet, DeviceNet, EtherNet/IP, or Universal Remote I/O. It operates in temperatures from 0 to 55 degrees Celsius. It handles 5 to 95% noncondensing humidity. Extreme environment XT versions are also available.

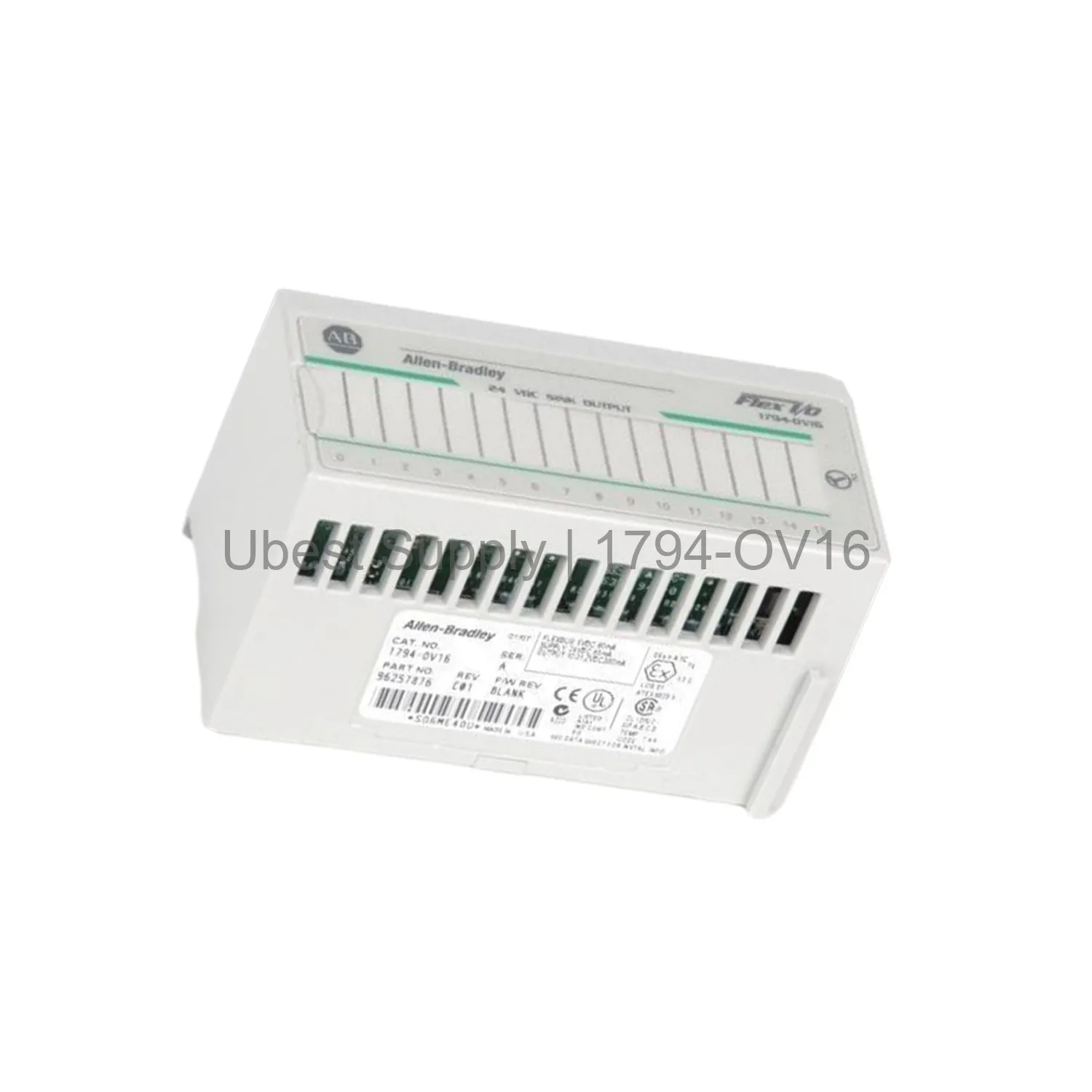

Technical Specifications

Outputs: 16 sinking. On-state voltage nominal: 24V DC. Range: 10 to 31.2V DC. Output current rating: 8.0A per module. On-state current max: 500 mA per channel. Off-state leakage: 0.5 mA max. On-state voltage drop: 0.2V DC max. FlexBus current: 80 mA. Power dissipation: 4.2W at 31.2V DC. Thermal dissipation: 14.3 BTU/hr. Output delay: 0.5 ms off-to-on, 1.0 ms on-to-off. External power supply: 10-31.2V DC with 5% AC ripple, 20-65 mA. The 1794-OV16 has 16 yellow LED indicators for channel status.

Installation and Maintenance Guide

Install the module onto a DIN rail. Snap it into place. Use compatible terminal base units 1794-TB3 or 1794-TB3S. Wire field devices to the screw clamp terminals. Ensure proper voltage and current ratings. The module can be inserted or removed under power. No direct wiring to the module simplifies replacement. For daisy-chaining, use designated terminals. Follow the manual for torque values. Protect from moisture and excessive vibration.

Packing List

One Allen-Bradley 1794-OV16 module. One installation guide. This product ships via Fedex, UPS, or DHL. The 1794-OV16 is packed securely for transit.
