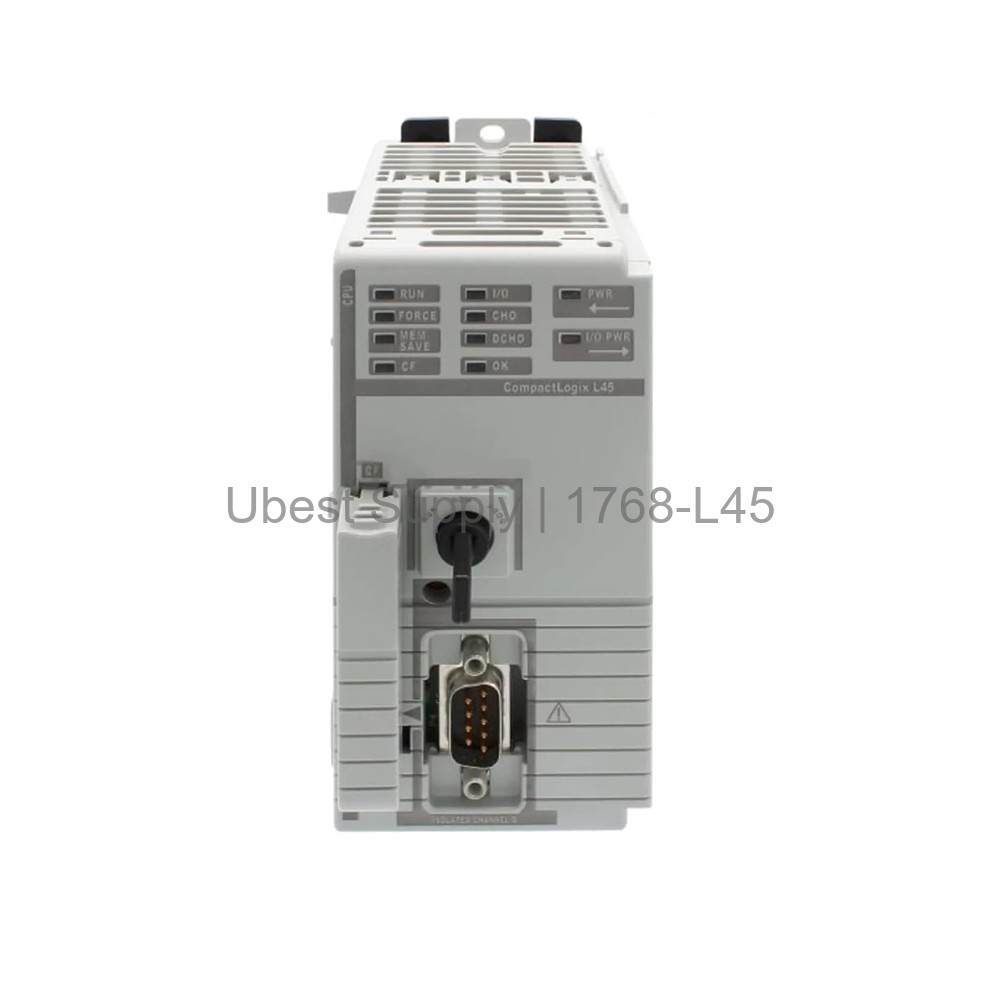

Allen-Bradley 1768-L45 CompactLogix Controller 3MB Memory

Product Overview

The 1768-L45 is a CompactLogix controller from Allen-Bradley. It offers a 3MB integrated memory. This module supports up to 30 I/O modules across 3 banks. It has one RS232 fully isolated communication port. The controller is designed for medium-sized automation tasks. It can expand with up to four 1768 modules. An optional CompactFlash adds non-volatile memory. The RS232 port supports DF1 and DH485 protocols at 38.4 Kbps. Use the 1747-CP3 or 1756-CP3 cable to connect.

Application Scenarios

This controller suits manufacturing lines and packaging systems. It works well for material handling and motion control. The 1768-L45 can manage I/O, network, and motion demands. It supports Kinetix drives via SERCOS interface modules. It is ideal for medium-sized automated production environments.

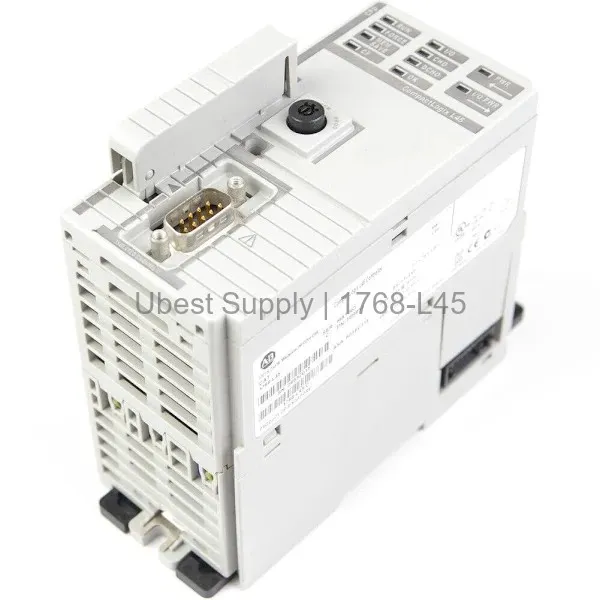

Technical Specifications

The 1768-L45 has 3MB memory allocation. It draws 2.0 Amps at 24 Volts backplane current. Power consumption is 48.0 Watts maximum. Power dissipation is 8.3 Watts. It operates at 0 to 60 degrees Celsius. It supports 10 to 500 Hz vibration at 5G. The isolation voltage is 30 Volts continuous. It is tested at 500 Volts AC for 60 seconds. The controller supports up to 30 1769 I/O modules. It can have up to 3 local I/O banks. Backplane current for 1769 modules is 2.0 A at 5.7 Volts. For 1768 modules, backplane current is 5.6 A at 5 Volts. Total backplane current is 7.6 Amps at 5.2 Volts. The dimensions are 131.6 x 67.4 x 121.8 millimeters. It weighs 0.34 kilograms. Operating humidity range is 5 to 95 percent non-condensing. It has a CISPR 11 Group 1, Class A emission standard. It is cUL-us certified for US and Canada.

Installation and Maintenance Guide

Mount the controller on a DIN rail or panel. Use M4 or 8 screws for panel mounting. Connect the programming cable 1747-CP3 or 1756-CP3. Ensure proper isolation for the RS232 port. Do not exceed the current draw limits. Keep the enclosure open for proper airflow. Operating temperature range is 0 to 60 degrees Celsius. Avoid condensation. The module supports up to 30G shock during operation and 50G non-operational. Use the 1784-CF128 CompactFlash for optional memory.

Packing List

The package includes one 1768-L45 controller. Also included are mounting hardware and documentation. The shipping weight is 2 pounds. Dimensions are 8x8x5 inches. We ship via Fedex, UPS, or DHL.
