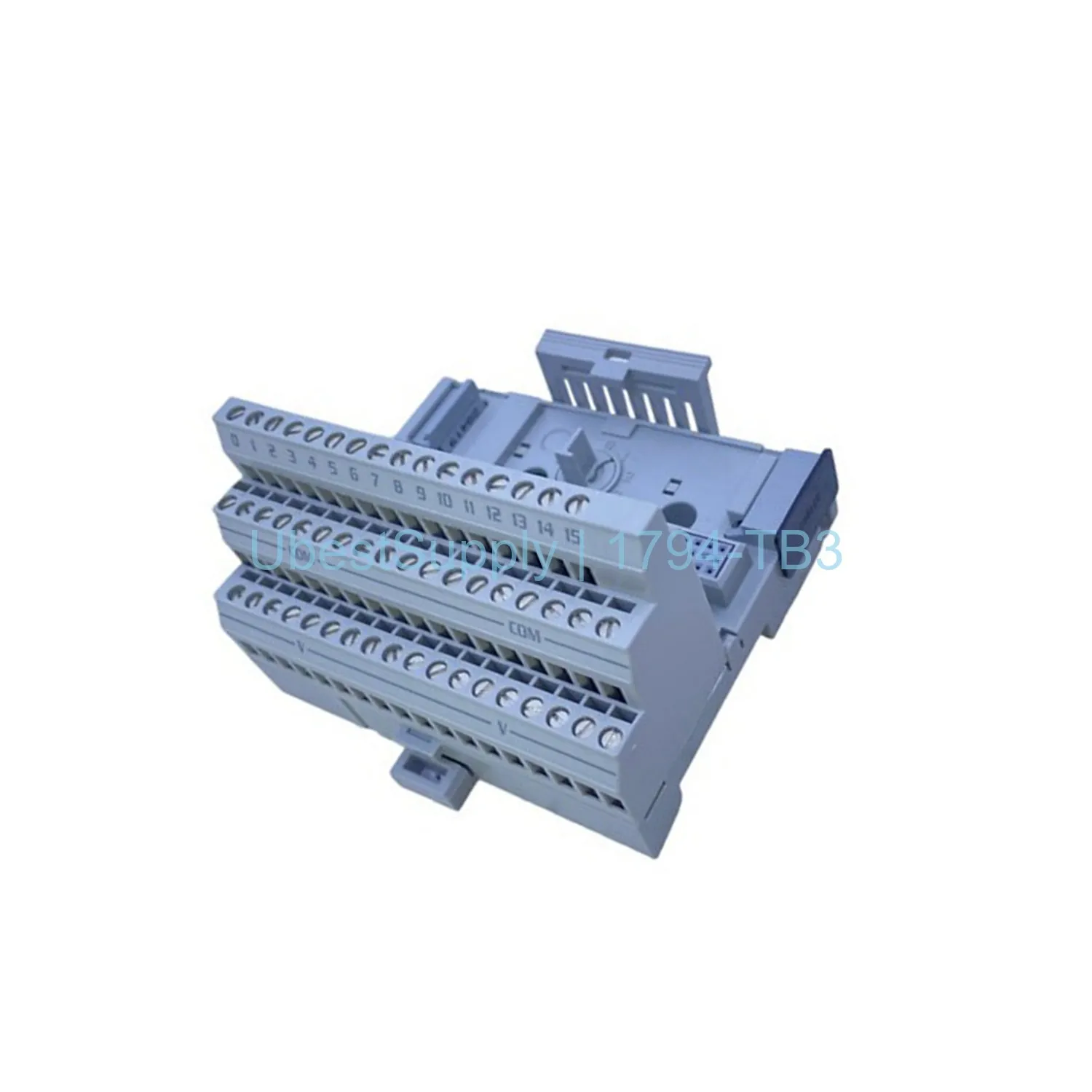

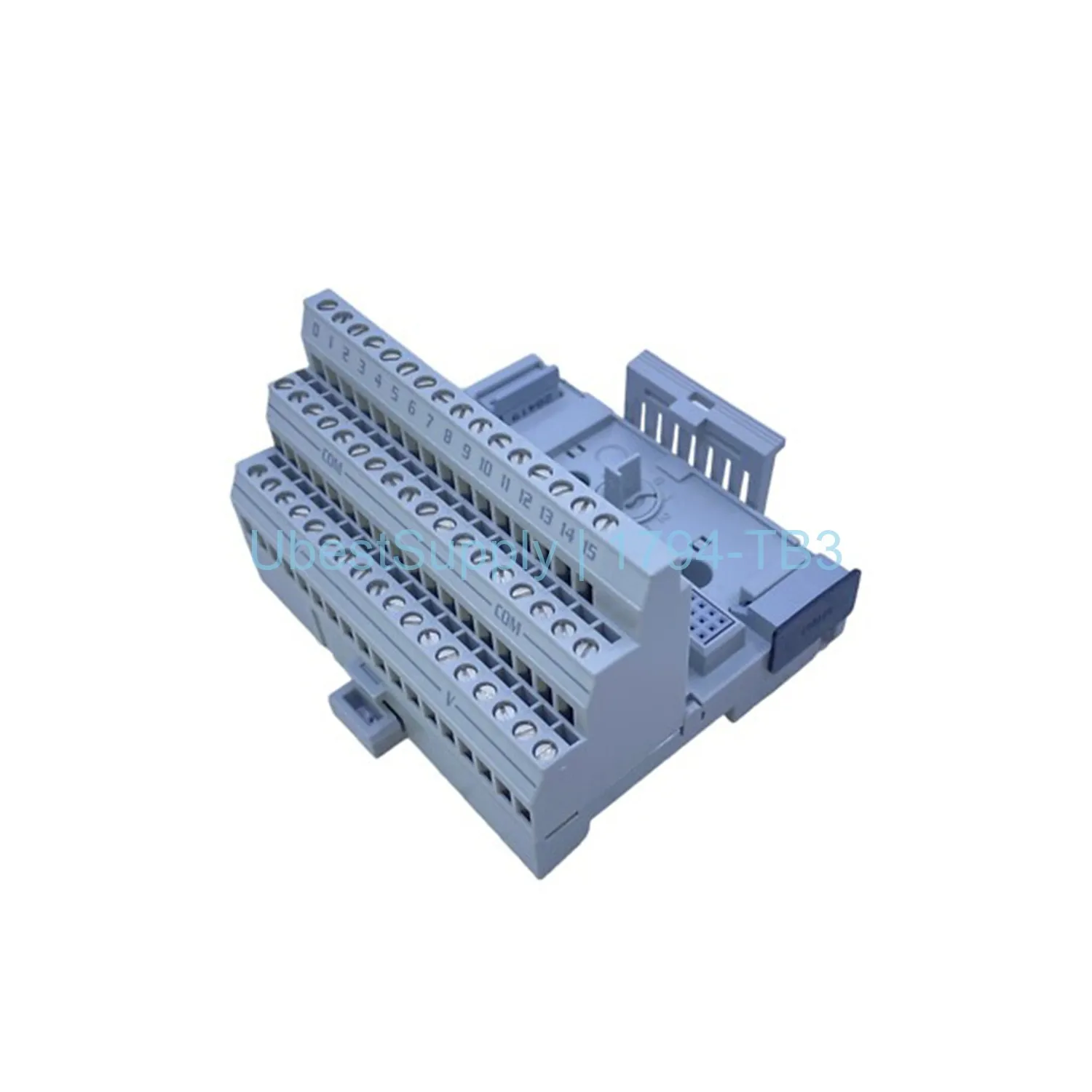

Allen-Bradley 1794-TB3 Flex I/O Terminal Base Unit

Product Overview

The Allen-Bradley 1794-TB3 is a terminal base unit for the Flex I/O platform. It provides 52 screw clamp terminals organized into three strips. This base unit handles up to 120 VAC and 10 Amperes. The 1794-TB3 draws 640 mA at 5 VDC from the backplane. Use it to terminate field device wiring and host compatible I/O modules.

Application Scenarios

Engineers use this terminal base in distributed control systems and remote I/O racks. It connects sensors, actuators, and other field devices to Flex I/O modules. Daisy-chaining allows multiple terminal bases to share power and common connections. Common applications include manufacturing lines, material handling, and process control.

Technical Specifications

• Voltage Rating: 120 VAC (max 132 VAC)
• Current Capacity: 10 Amperes
• Backplane Current Draw: 640 mA @ 5 VDC
• Number of Terminals: 52 (16 I/O, 18 common, 18 supply)
• Wire Size: 0.34 – 3.3 mm² (22–12 AWG)
• Isolation Voltage: 125V Continuous
• Dimensions: 94 x 94 x 69 mm
• Mounting: DIN Rail

Installation & Maintenance Guide

Install the 1794-TB3 on a DIN rail. Hook the top of the base over the rail. Slide it against the adjacent adapter module. Push the bottom until it locks. Tighten screw terminals to 0.56–0.79 Nm. Use terminals B-16 and B-33 for common. Use C-34 and C-51 for voltage supply. For daisy-chaining, connect C-34 (+) and B-16 (-) for supply in, and C-51 (+) and B-33 (-) for supply out. Always verify wiring before powering up.

Packing List

Each package includes one Allen-Bradley 1794-TB3 terminal base unit and a user manual. No additional accessories are required for basic installation. We ship via FedEx, UPS, or DHL.
