GE DS200FGPAG1A Gate Pulse Amplifier Board Mark VI

Product Overview

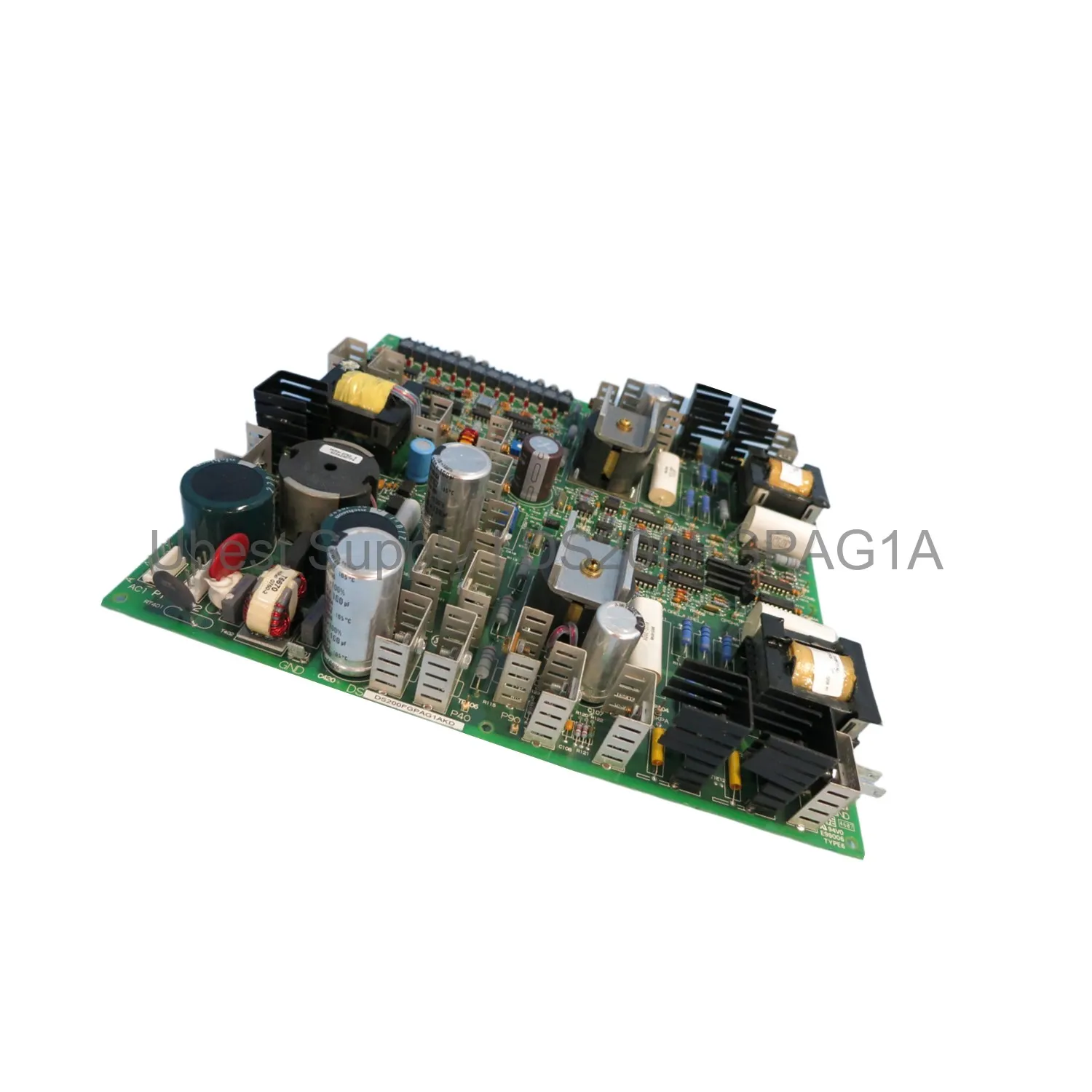

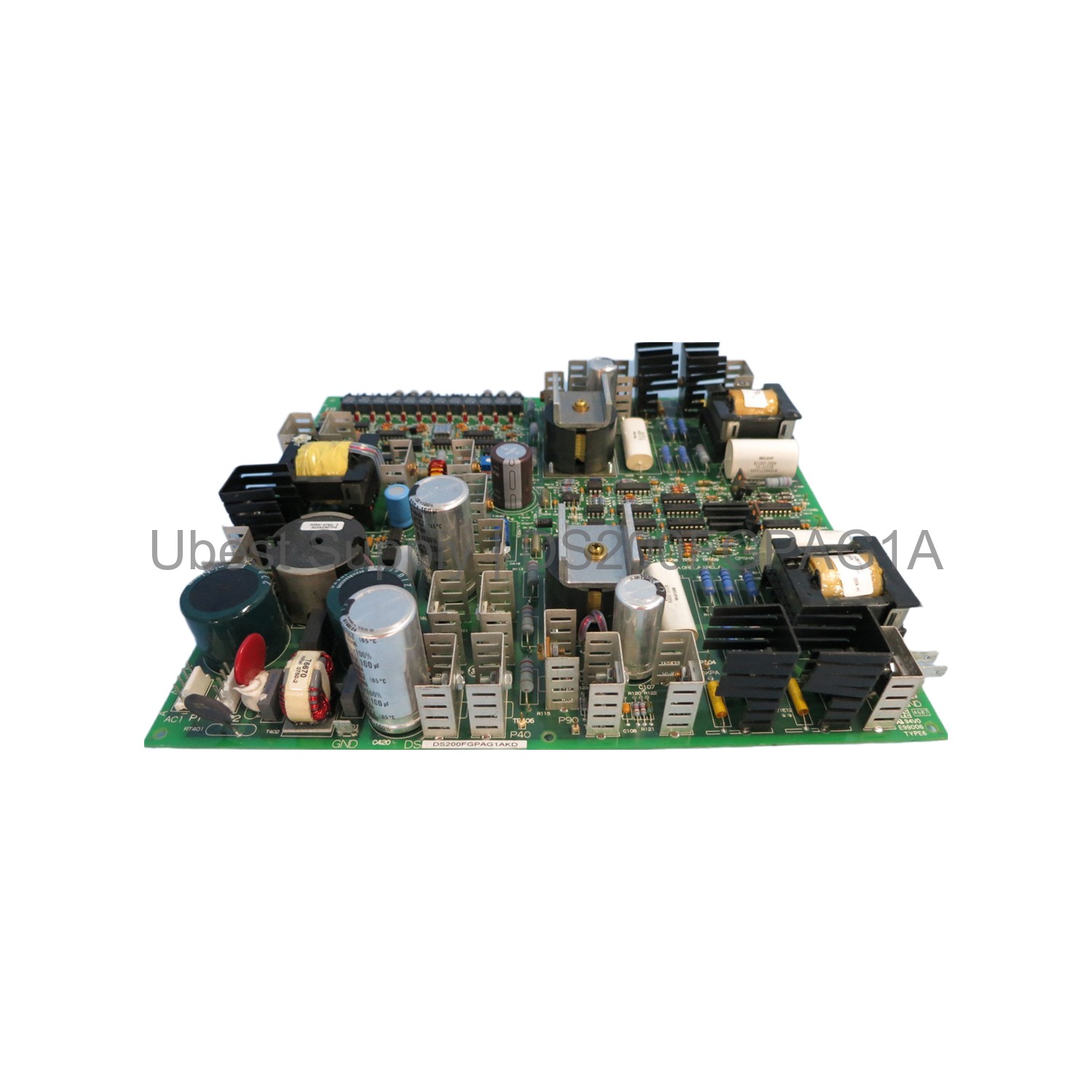

The General Electric DS200FGPAG1A is a Gate Pulse Amplifier Board. It is part of the Mark VI series. This board works with the LS2100 series. It provides gate driver circuits for a twelve-pulse converter. The board uses fiber-optic connectors for reliable signal transmission. It is a critical component for industrial drive systems.

Application Scenarios

This board is used in large industrial drives. It controls the firing of power semiconductors. It is common in metal processing and mining. It also works in oil and gas applications. The board handles high voltage and current levels. It ensures precise motor control in harsh environments.

Technical Specifications

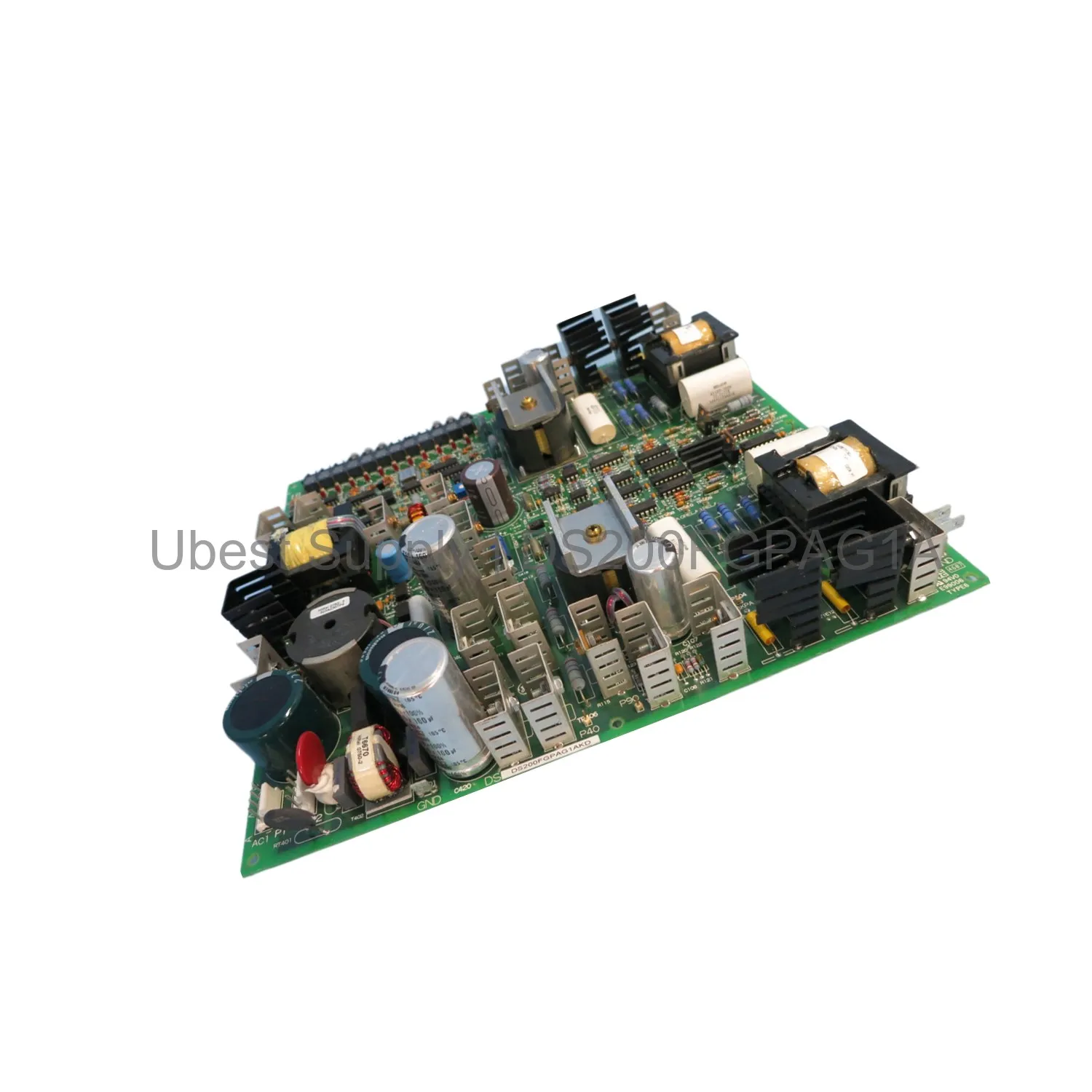

The board has 30 test points. Nine test points are for Gate A. Nine test points are for Gate B. Twelve test points are for cell status monitors. It has two gate driver circuits. The board uses a twelve-pulse converter. It needs a supply voltage of 2080 or 3300 VAC. The power supply input is 120 VRMS. The maximum power is 350 VA. It has 15 fiber-optic connectors. One connector is a transmitter. Fourteen connectors are receivers. The board is not backwards compatible.

Installation & Maintenance Guide

Always power down the system before installation. Wear an anti-static wrist strap. Handle the board by its edges. Do not touch the components. Align the board with the backplane slots. Push it in firmly until it clicks. Secure it with the mounting screws. Check all fiber-optic connections for dust. Clean them with a lint-free cloth. Test the board after installation. Use the test points for diagnostics. Monitor the cell status LEDs.

Packing List

One GE DS200FGPAG1A Gate Pulse Amplifier Board. The board is packed in an anti-static bag. It is placed in a sturdy cardboard box. The box has foam padding for protection. No additional cables or manuals are included.
