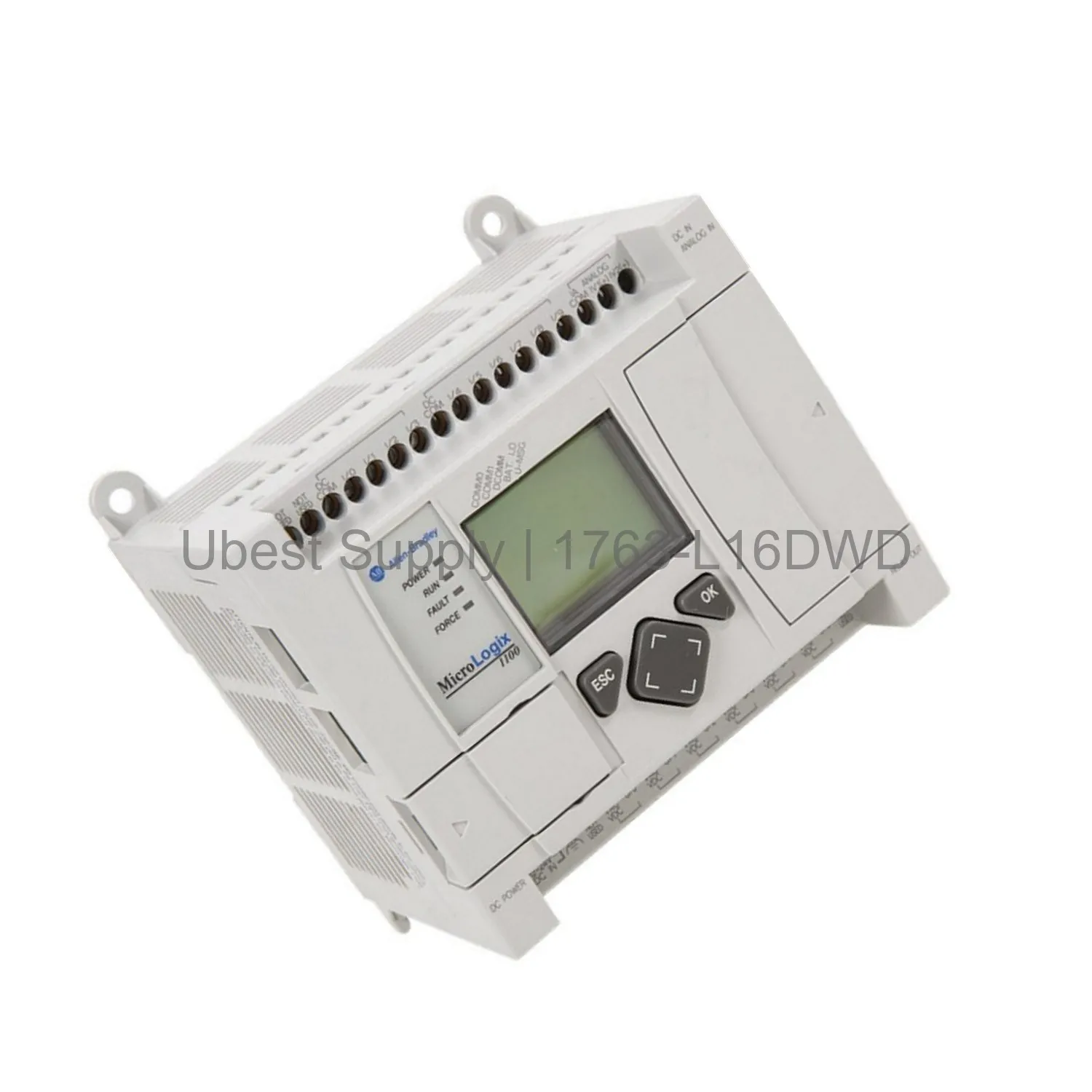

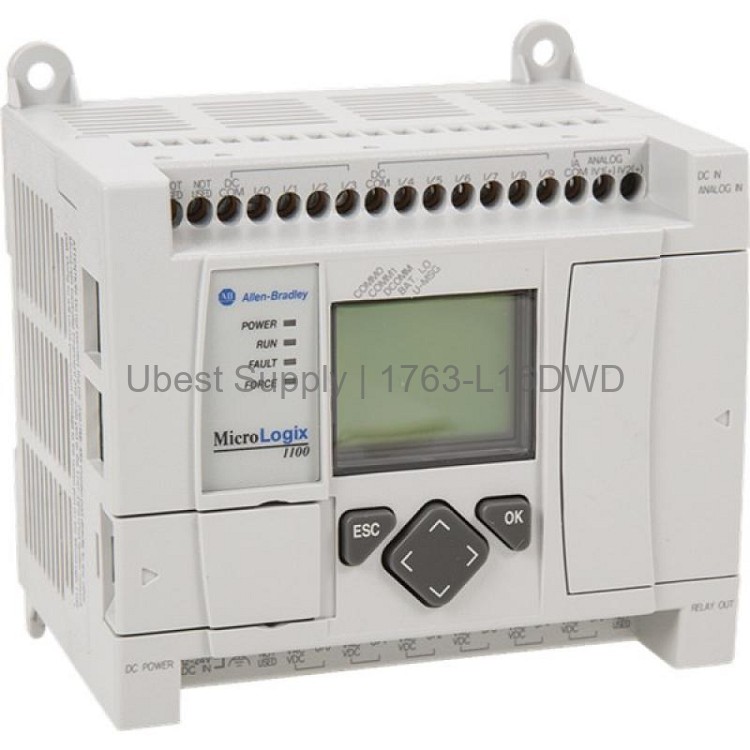

Allen-Bradley MicroLogix 1100 1763-L16DWD Programmable Controller

Product Overview

The 1763-L16DWD is a MicroLogix 1100 programmable controller from Allen-Bradley. It runs on 12 to 24 Volts DC power. This unit includes 10 digital inputs, 2 analog inputs, and 6 relay outputs. It also has an LCD display and keypad for local monitoring. The controller supports Ethernet and RS-232/485 communication. Use it for small to medium control tasks.

Application Scenarios

This controller works well in manufacturing lines. It can handle packaging machines and conveyor systems. Use it in water treatment plants or building automation. The 1763-L16DWD fits applications needing mixed input types. It also works for remote monitoring with built-in Ethernet.

Technical Specifications

• Input power: 12-24 VDC
• Point count: 16 integrated I/O
• Digital inputs: 10 (sink/source, up to 4 high-speed)
• Analog inputs: 2, 0-10 VDC, 10-bit resolution
• Outputs: 6 relay, 10 mA min load
• Communication: 1 RS-232/485 + 1 Ethernet
• Display: LCD with keypad
• Operating temp: -20 to 65 °C
• Mounting: DIN rail or panel

Installation & Maintenance Guide

Mount the controller horizontally. Use a DIN rail or direct panel screws. For wiring, use 12-20 AWG solid wire or 14-20 AWG stranded. Connect the drain wire to ground. Do not exceed 35W power consumption. The battery backs up RAM. Replace the battery only when the controller is off.

Packing List

One 1763-L16DWD controller. One terminal block. One product manual. One lithium backup battery.
