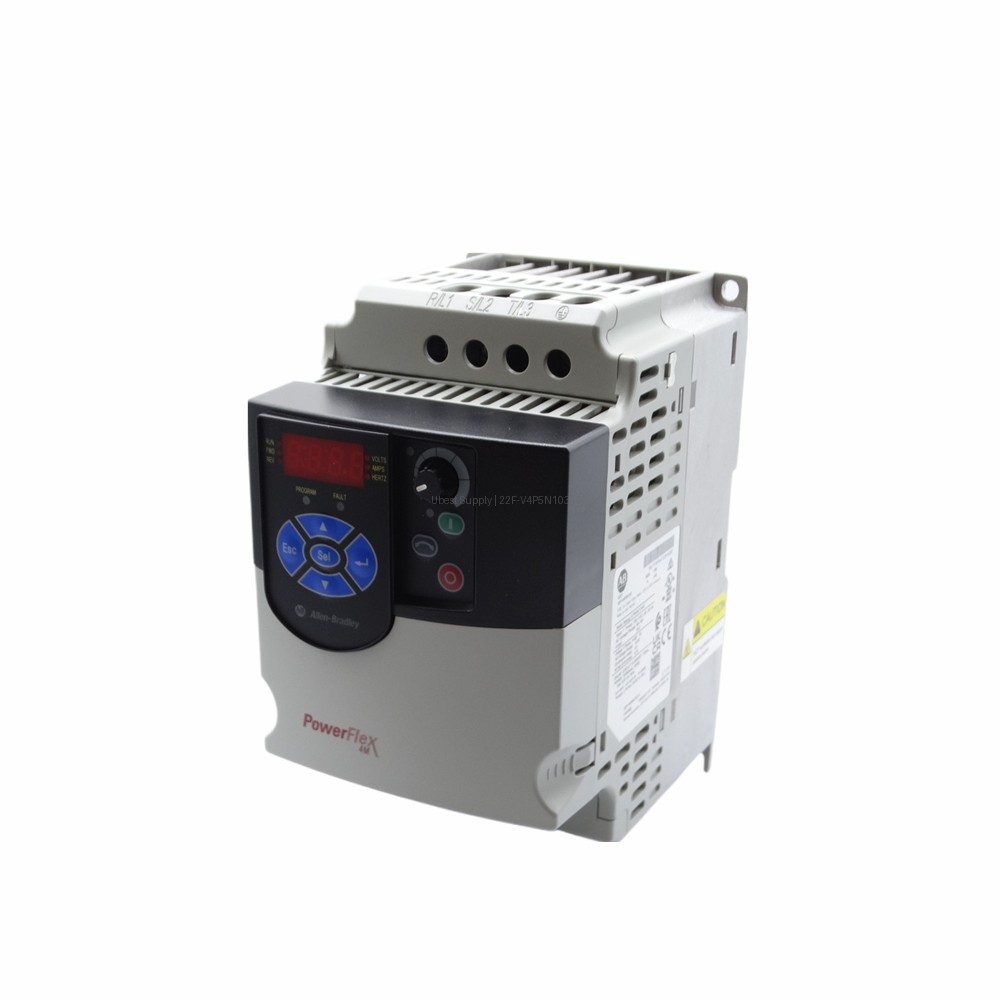

Allen-Bradley PowerFlex 4M 22F-V4P5N103 AC Drive 0.75 kW

Product Overview

The Allen-Bradley PowerFlex 4M 22F-V4P5N103 is a compact AC drive. It delivers 0.75 kW of power at 4.5 Amps. This unit operates on a single-phase input of 100-120 Volts AC. It provides a three-phase output up to 230 Volts AC. The drive comes in an open IP20 enclosure. It features a fixed keypad for easy local control. This model does not include a CE compliant filter. It also lacks a brake IGBT. The drive uses Volts per Hertz control method. It is ideal for simple speed control applications.

Application Scenarios

This drive works well for fans and pumps. It also suits small conveyors and mixers. Use it for packaging machines or simple material handling. The compact size fits into small control panels. It is perfect for OEM machinery. The drive handles constant torque or variable torque loads. It operates reliably in industrial environments.

Technical Specifications

The 22F-V4P5N103 has an input rating of 2.2 kVA and 18.0 Amps. The input voltage range is 100-120 VAC. The output voltage range is 0-230 VAC three-phase. The output current is 4.5 Amps. The frequency is 50/60 Hz. It uses a Frame Size B. The enclosure rating is NEMA/UL Open Type and IP20. The PWM frequency adjusts up to 10 kHz. Control logic uses 24V DC sink or source. You can select this with a DIP switch. The drive includes a removable MOV. Speed control uses an isolated 0-10V or 4-20 mA input.

Installation & Maintenance Guide

Mount the drive vertically on a flat surface. Ensure proper airflow for cooling. Use shielded cables for motor wiring. Set the DIP switch for your control logic. Connect the input power to the correct terminals. Configure parameters via the fixed keypad. Perform regular inspections for dust buildup. Check all connections for tightness. Follow the user manual for detailed steps.

Packing List

The package includes one PowerFlex 4M AC drive. It includes a quick start guide. A product CD with software is included. Mounting hardware is provided. The unit is packed securely for shipping. We ship via Fedex, UPS, or DHL.
