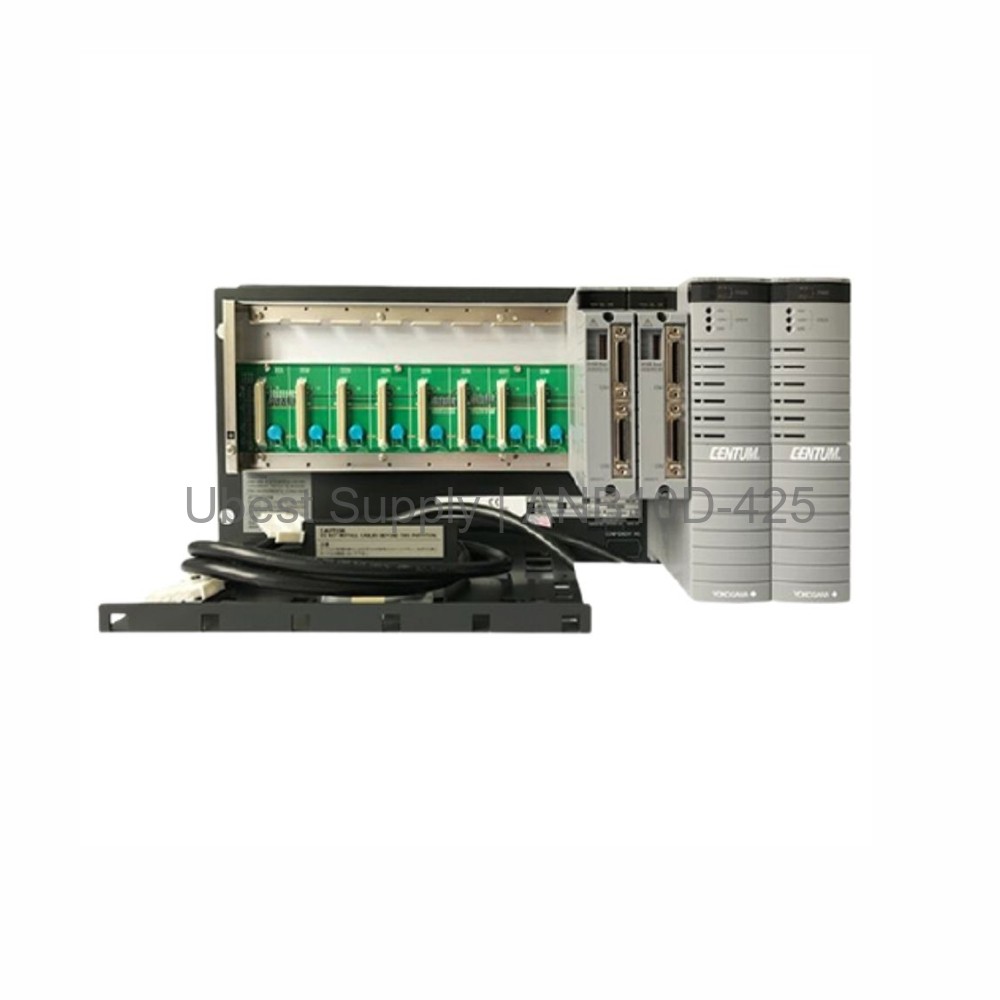

ANB10D-425 ESB Bus Node Unit for Yokogawa DCS

Product Overview

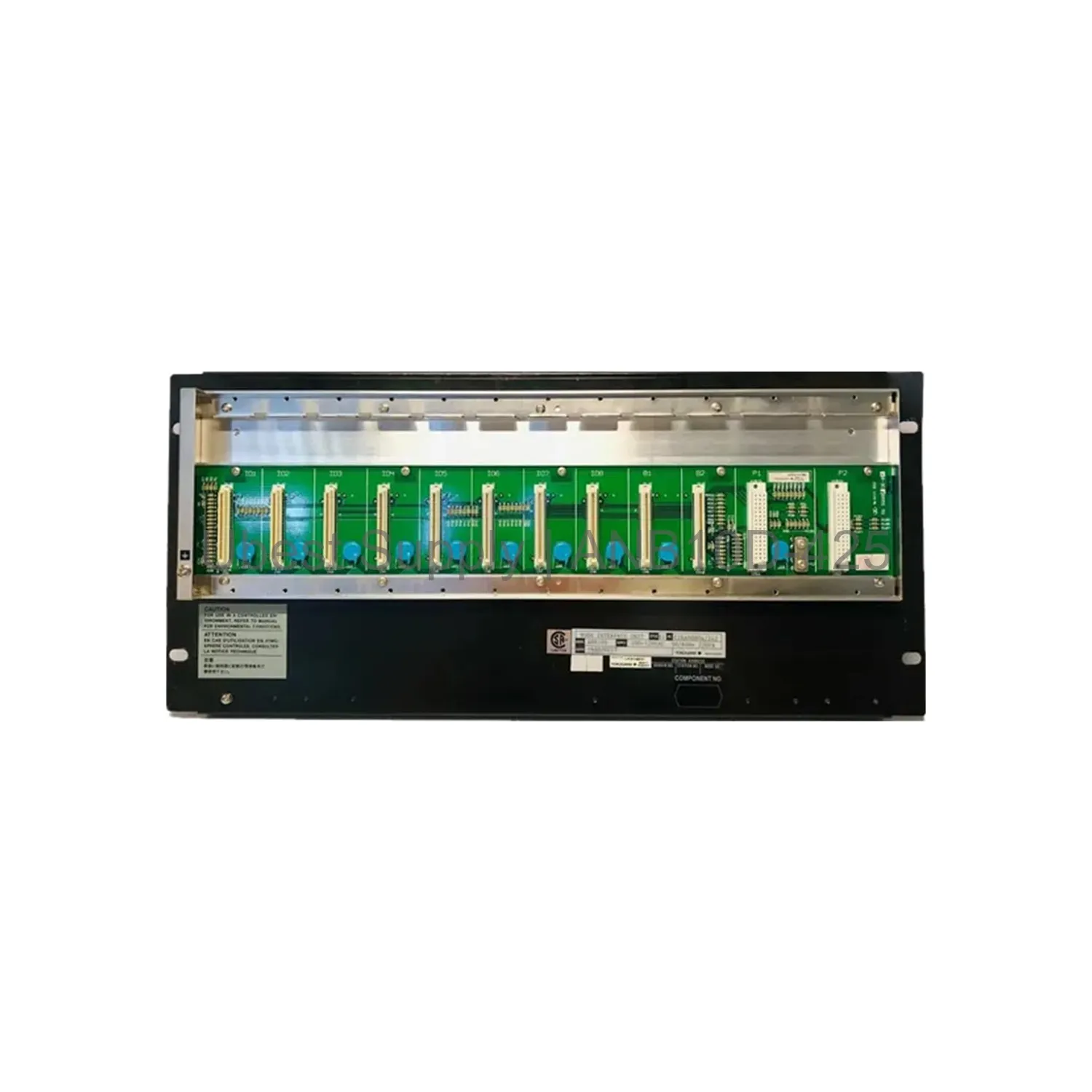

The Yokogawa ANB10D-425/CU2N is a high-performance ESB bus node unit. It supports dual-redundant power supply configurations. This unit uses a 220-240 V AC power source. It is designed for basic type applications with no explosion protection. The ANB10D-425/CU2N ensures stable data transmission in your control system. It weighs approximately 10 kg. This weight includes 8 I/O modules. The unit mounts in a standard 19-inch rack.

Application Scenarios

This node unit works best in industrial automation. It fits perfectly in Yokogawa CentumVP DCS environments. Use it for process control in factories. It handles critical data from field devices. The dual-redundant design boosts system reliability. It is ideal for continuous production lines. It also suits power generation plants. The unit supports high-speed ESB bus communication.

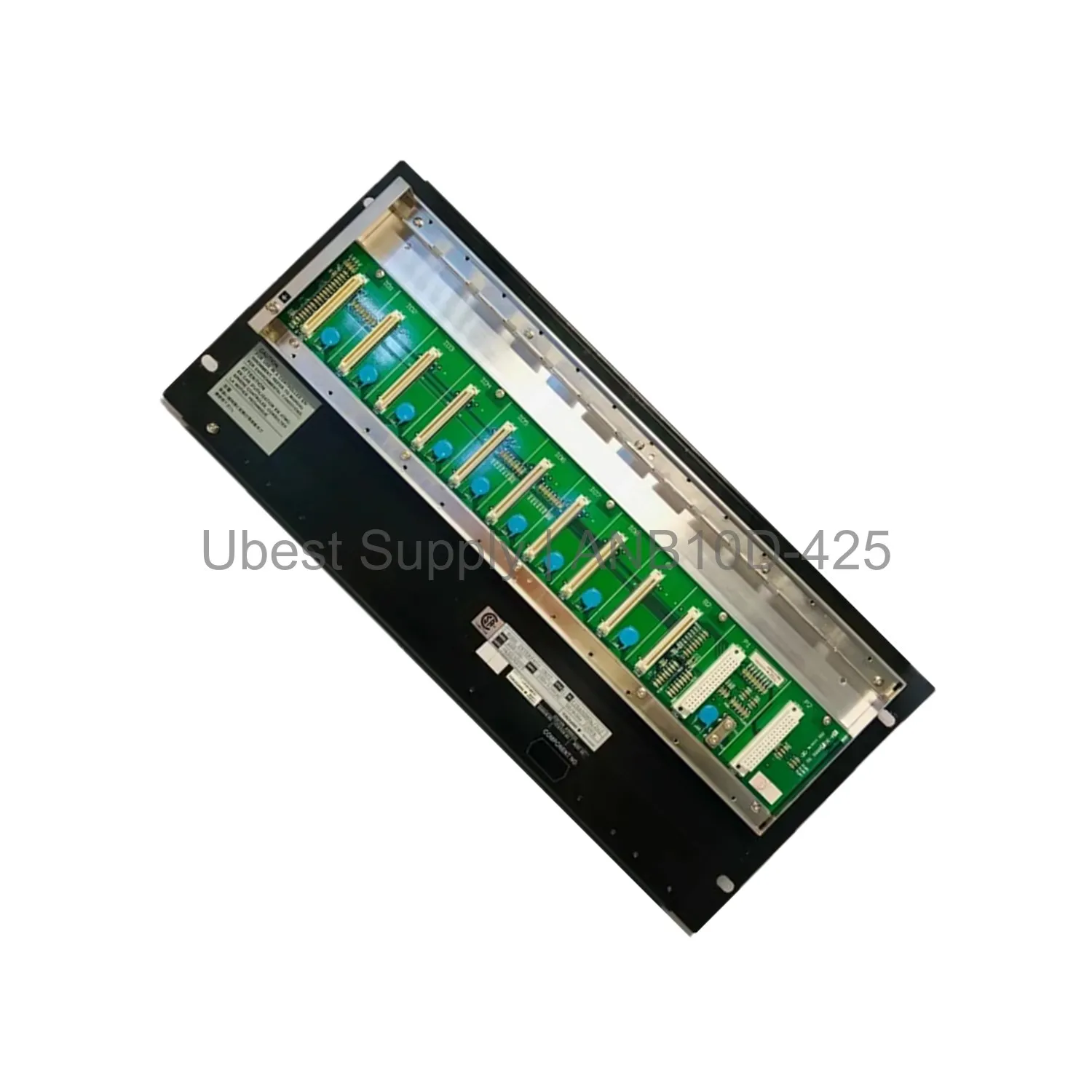

Technical Specifications

The unit uses a dual-redundant power supply. It accepts 220-240 V AC at 50/60 Hz. Power consumption is 230 VA or 120 W. For 100-120 V AC, consumption is 200 VA or 120 W. For 24 V DC, it draws 5.5 A. The weight is about 10 kg. This includes 8 I/O modules. The mounting style is 19-inch rack mount. Use M5 x 4 screws for installation. An insulation bash is included as an accessory.

Installation & Maintenance Guide

Mount the unit in a 19-inch rack. Use the provided M5 screws. Connect the power supply according to your voltage. Ensure proper grounding for safety. The unit uses a connector unit for the ESB bus. Keep the area clean and dry. Check connections regularly for tightness. Replace damaged components immediately. Use only Yokogawa approved parts. The system requires minimal routine maintenance.

Packing List

1 x ESB Bus Node Unit (ANB10D-425/CU2N). 1 x Connector Unit for ESB Bus. 1 x Insulation bash accessory. Mounting screws are included. The product ships in secure packaging. Shipping is via Fedex, UPS, or DHL. All items are brand new and original.
