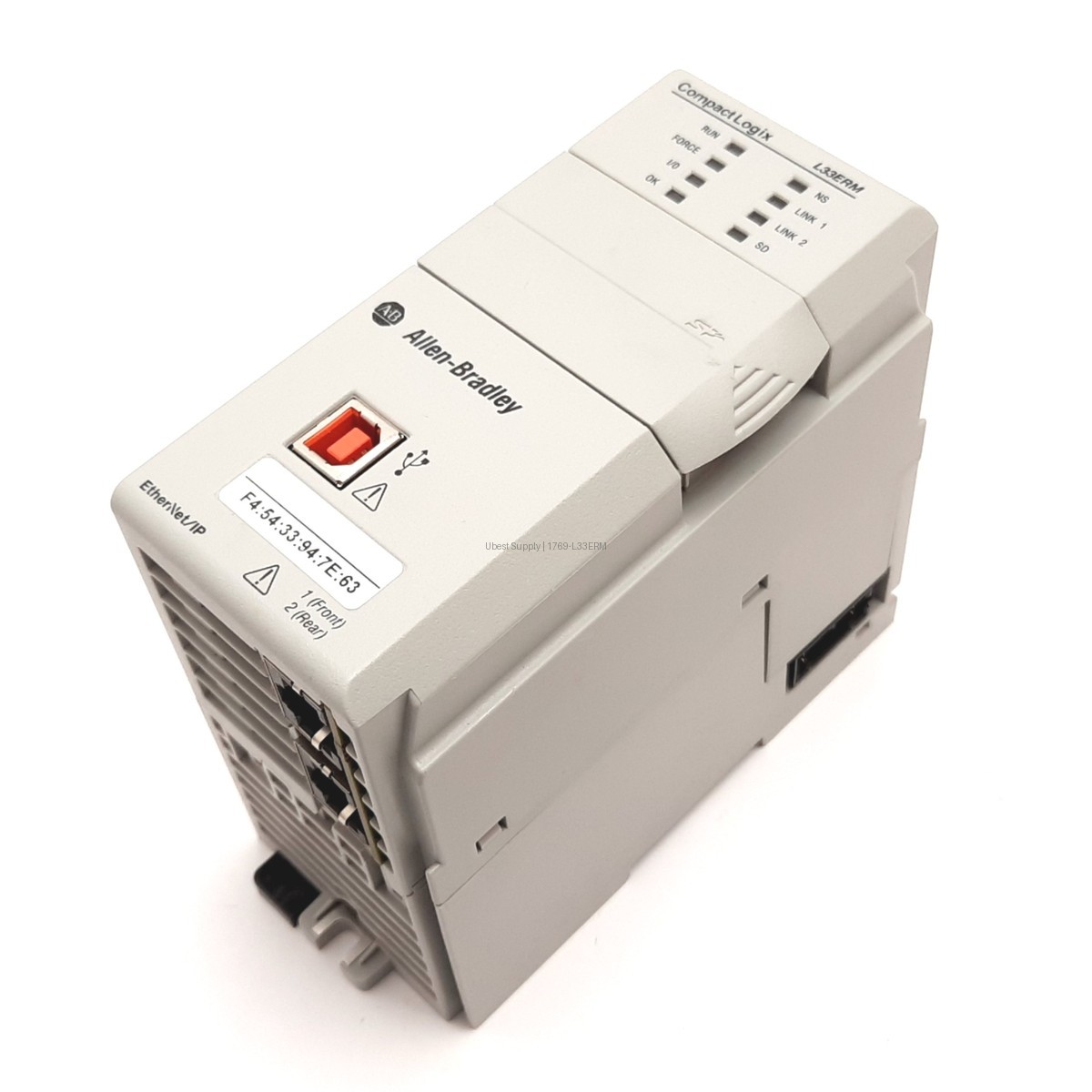

CompactLogix 1769-L33ERM Controller 2MB Memory 8 Axes

Product Overview

The Allen-Bradley 1769-L33ERM is a CompactLogix controller. It offers 2 MB of memory and 1 GB of non-volatile storage. This unit supports up to 32 Ethernet/IP nodes. It also handles 16 local I/O modules across 3 banks. The controller manages 8 motion axes with integrated motion. It uses 32 tasks for complex automation. This model ships with a 1784-SD1 memory card. It is ideal for mid-range machine control.

Application Scenarios

This controller works well in packaging lines. It also suits material handling systems. Use it for assembly machines and robotic cells. The 1769-L33ERM fits discrete and process control. It handles motion control for servo drives. Use it in food and beverage production. It also works in automotive manufacturing. The Ethernet ports connect to HMIs and drives. This unit supports remote I/O racks. It is a strong choice for system integration.

Technical Specifications

The controller has 2 MB of memory. It uses a 1 GB SD card for storage. It supports 32 Ethernet/IP nodes. The unit has 2 Ethernet ports at 10/100 Mbps. It includes 1 USB port at 12 Mbps. The operating temperature is 0 to 60 degrees Celsius. It handles 20 to 30 G of shock. Wire size is 22-14 AWG solid. Wire size is 22-16 AWG stranded. It uses copper wire rated at 90 degrees Celsius. The unit weighs 2 pounds. Shipping size is 8 x 8 x 5 inches.

Installation & Maintenance Guide

Mount the controller on a DIN rail. Connect power to the correct terminals. Use 22-14 AWG copper wire. Install the 1784-SD1 card in the slot. Set the IP address via software. Use RSLogix 5000 or Studio 5000 to program. Use Ladder Diagram or Structured Text. Keep the unit in a clean, dry area. Check connections for tightness. Do not expose it to vibration. Replace the SD card if needed. Use only authorized parts.

Packing List

The package includes one 1769-L33ERM controller. It includes one 1784-SD1 memory card. It includes a quick start guide. It includes a USB cable. It includes mounting hardware. It does not include power supply. It does not include I/O modules. Shipping is via FedEx, UPS, or DHL. The unit is packed in anti-static material. The box is labeled with the model number.
