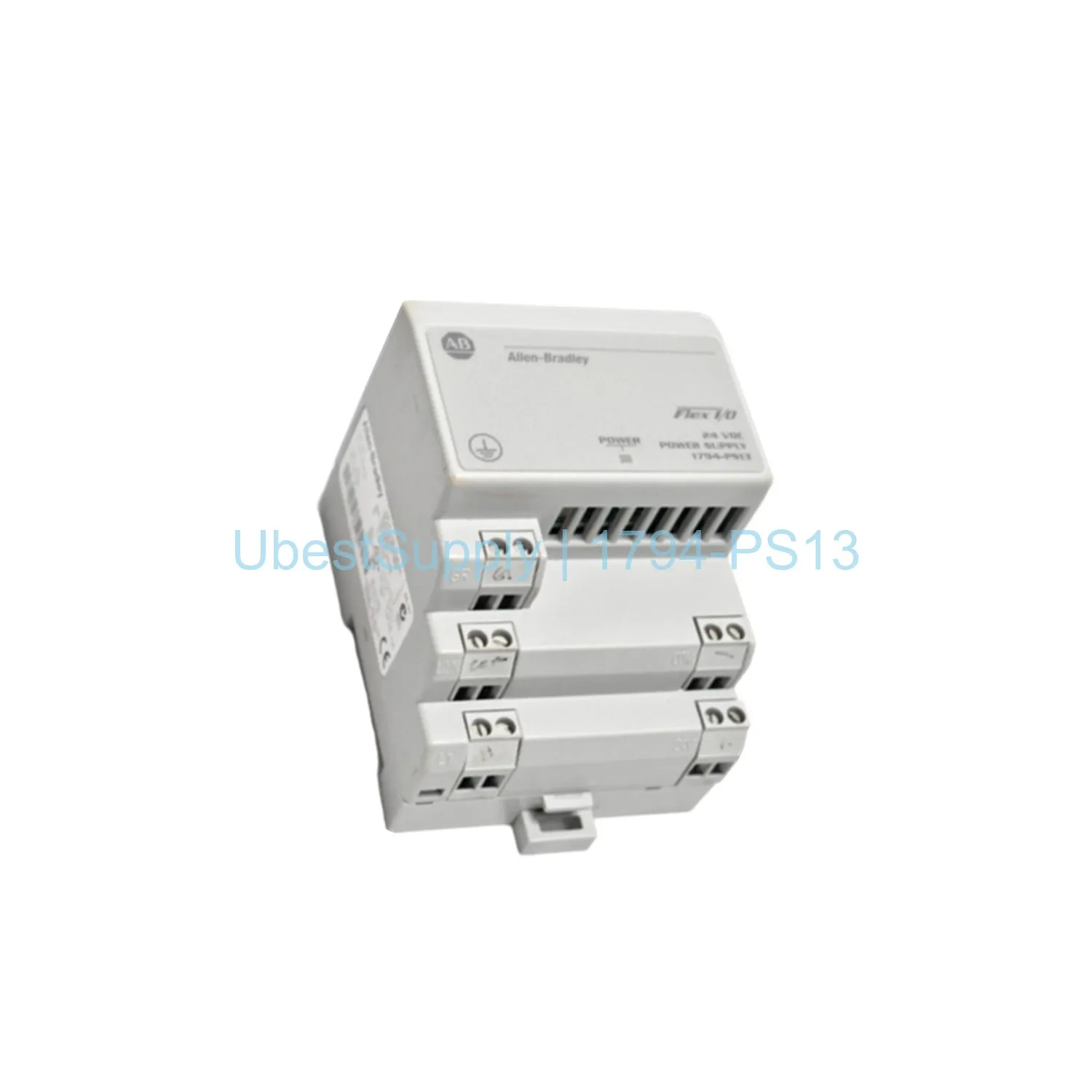

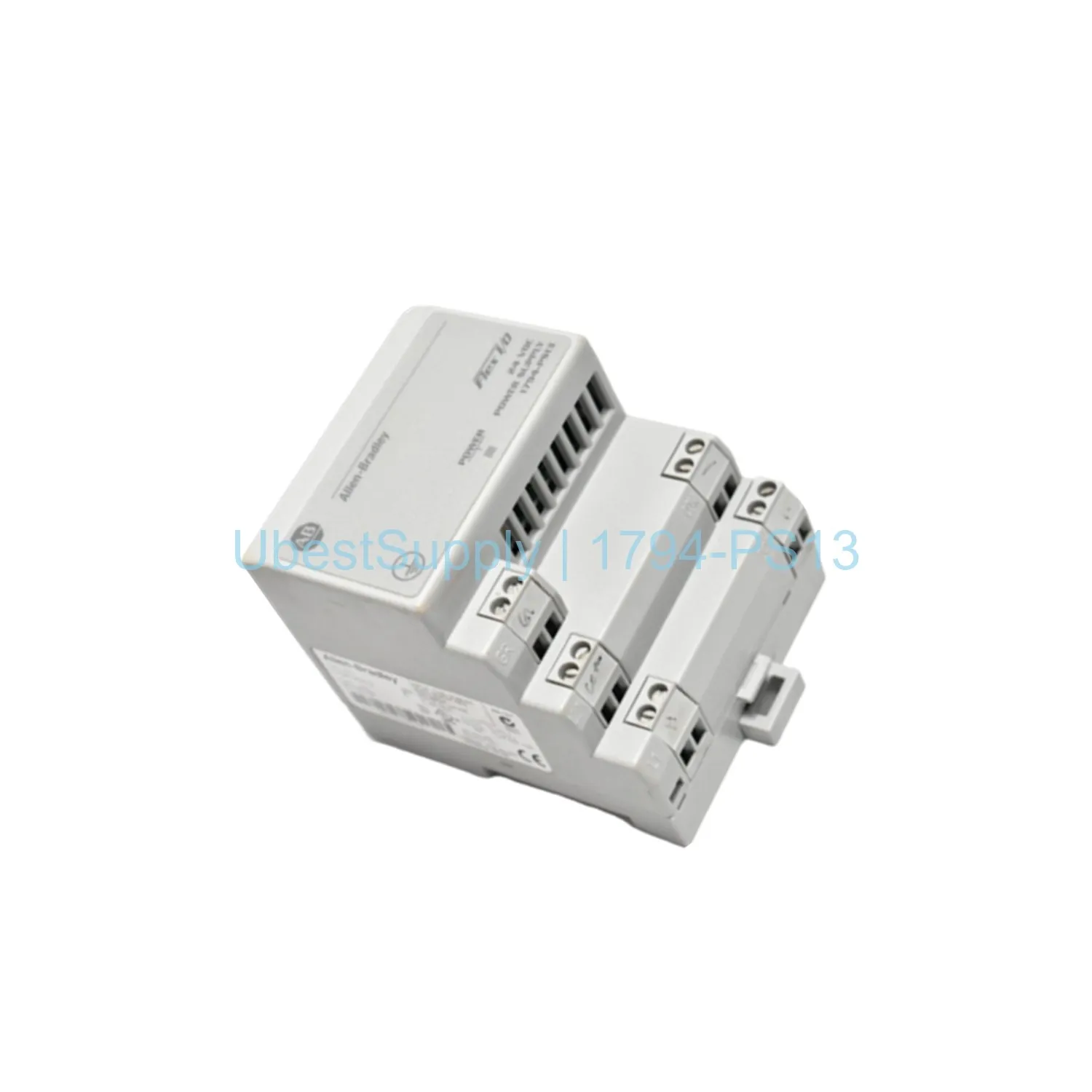

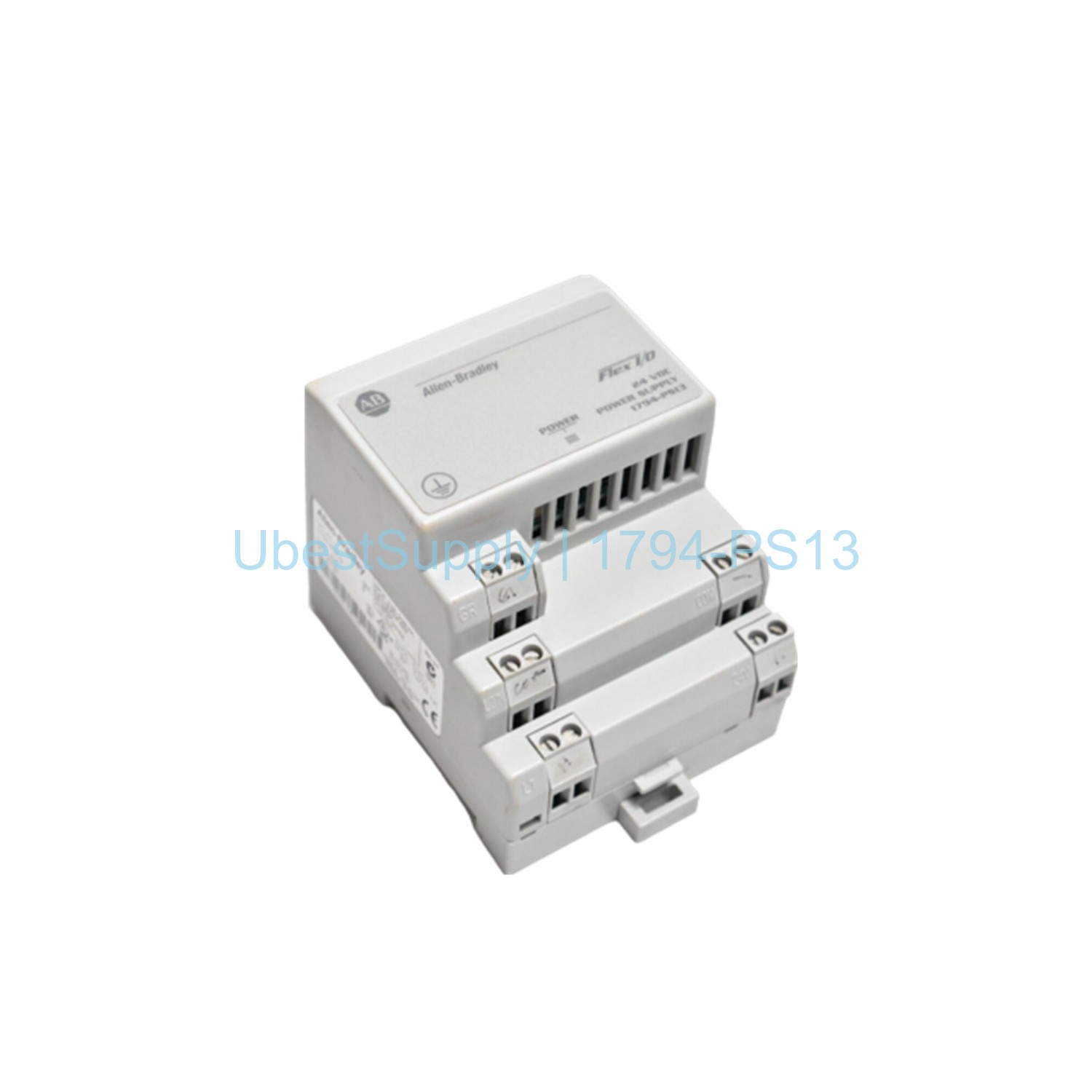

Allen-Bradley 1794-PS13 Flex I/O Power Supply Module

Product Overview

The 1794-PS13 is a power supply module from the Allen-Bradley Flex I/O system. It provides stable 24V DC power to Flex I/O adapters and modules. This unit accepts a wide input voltage range of 85-264VAC at 47-63 Hz. It delivers up to 1.3A output current and 31.2W power. The module features overvoltage and overcurrent protection. A green LED indicates output voltage between 20.4V and 28V DC.

Application Scenarios

This power supply is ideal for industrial automation systems using Flex I/O. It suits applications that require distributed I/O in harsh environments. The module powers four adapters and supports daisy chaining. Use it with AC and DC I/O modules. Typical industries include manufacturing, oil and gas, and water treatment.

Technical Specifications

• Input voltage: 85-264VAC
• Input frequency: 47-63 Hz
• Nominal input: 120VAC/0.6A or 230VAC/0.42A
• Maximum input current: 0.7A
• Output voltage nom.: 24VDC
• Output voltage range: 20.4-27.6VDC
• Output current: 1.3A
• Output power: 31.2W
• Output ripple: 1200mV peak-to-peak
• Overcurrent protection: 1.4A
• Overvoltage protection: internally limited to 40VDC
• Power dissipation: 7W
• Thermal dissipation: 23.9 BTU/hr
• Isolation voltage: 2500VDC
• Dimensions: 87 x 69 x 69 mm
• Weight: not specified

Installation & Maintenance Guide

Mount the module in a suitable enclosure. Use wire size 0.34-2.5 mm² (22-12 AWG) with 75°C insulation. Tighten connections to 0.8 Nm torque. The open-type enclosure requires Category 2 wiring. The green LED indicates proper output. If the LED is off, check for no power or overvoltage. Replace the module if output exceeds 35VDC.

Packing List

Each shipment includes one 1794-PS13 module and a documentation pack. We ship via FedEx, UPS, or DHL. Contact us for shipping options.
